Draper Bench Press 10 Tonne 70538

Draper Bench Press 10 Tonne 70538

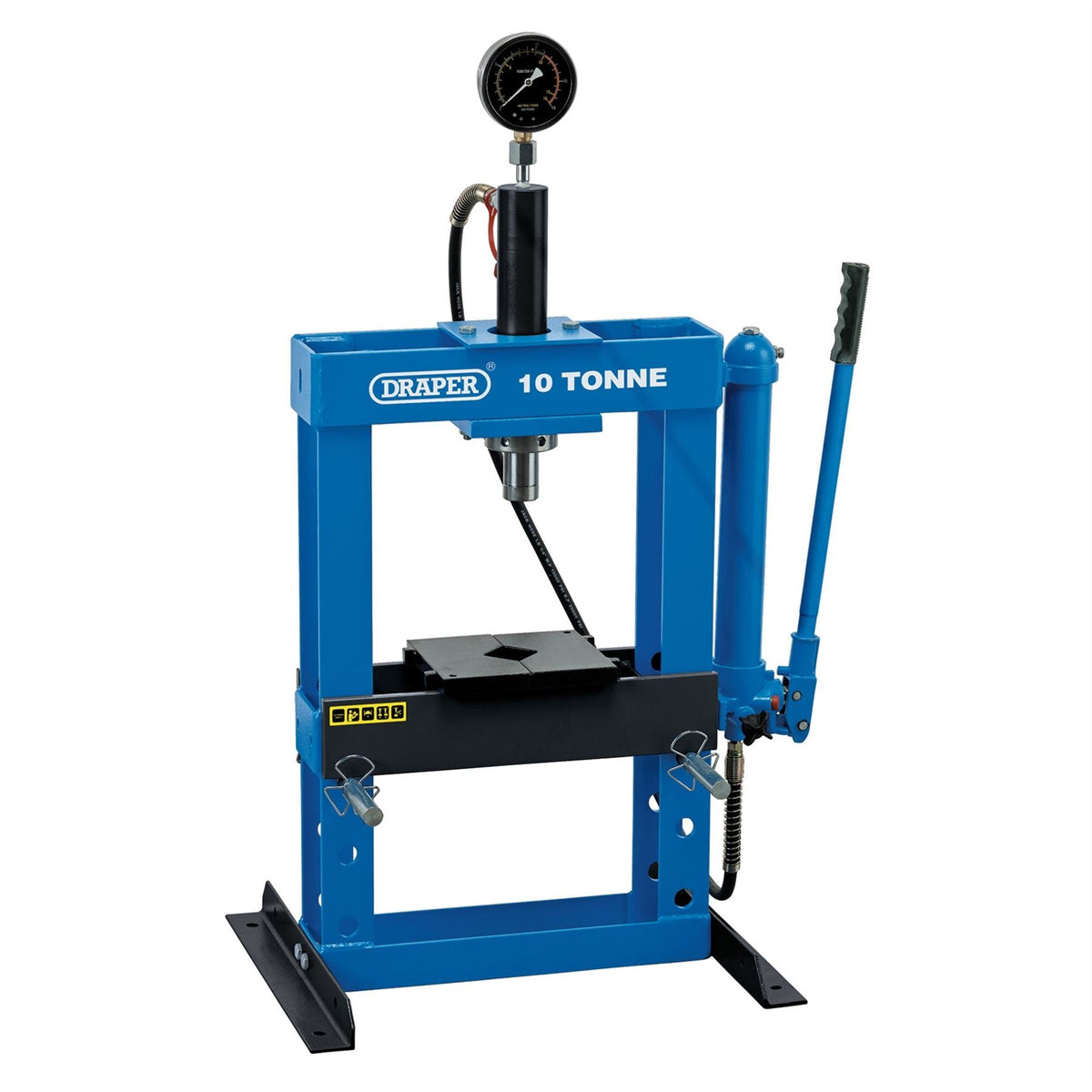

Robust hydraulic 10 tonne bench press with sliding ram. There are four adjustable table heights: 110, 195, 280 and 365mm. The glycerine liquid filled gauge provides increased accuracy and prolonged service life. There is a detachable hand pump that can be secured to the press or bench. An anti-kink coil is fitted to each end of the flexible hose for increased protection. Fitted with a safety valve to prevent the press from overloading. Complete with two flat V-shaped blocks. Fully tested and certified for safe, reliable operation.
Features:

• Sliding ram
• Four adjustable table heights between 110-365mm
• Glycerine filled gauge for increased accuracy and long service life
• Detachable hand pump that can be secured to the press or bench
• Anti-kink coil fitted to each end of the flexible hose for increased protection

Product Contents:

• 1 x Bench Press, 10 Tonne

Brand: Draper
Stock No: 70538
Part No: HBP/10D
Warranty: 12 months

Specification:

• Capacity: 10 Tonne
• Gauge range: 0-16 Tonne
• Gauge diameter: 105mm
• Ram stroke: 175mm
• Ram diameter: 40mm
• Working table width: 335mm
• Overall height: 1,058mm
• Weight: 55kg
• Ram height to table: 110-365mm

Downloads:

• Product Data Sheet: View Here
• Instruction Manual: View Here
• Parts Listing: View Here
• Declaration of Conformity UK CA: View Here
• Declaration of Conformity CE: View Here
