Draper Butterfly Type Air Impact Wrench 3/8" Sq. Dr. 84120

Draper Butterfly Type Air Impact Wrench 3/8" Sq. Dr. 84120

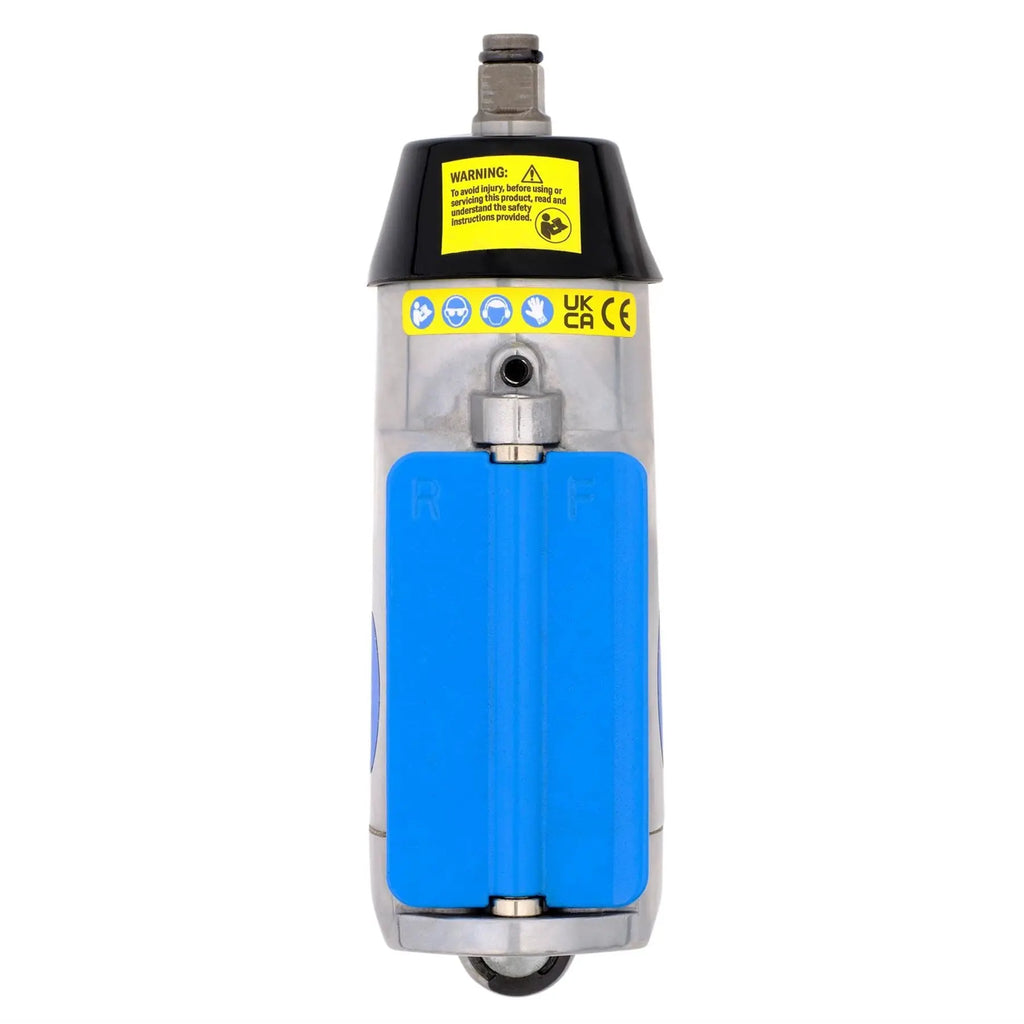

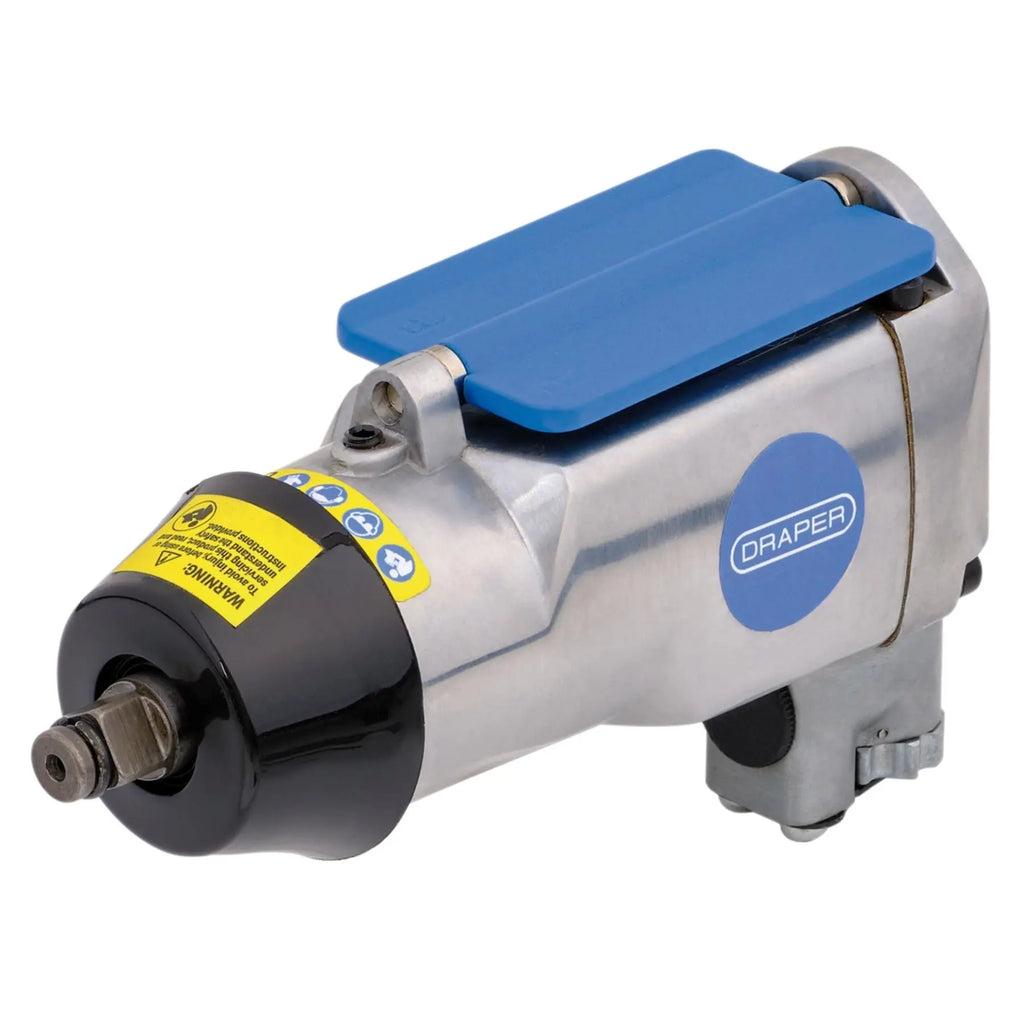

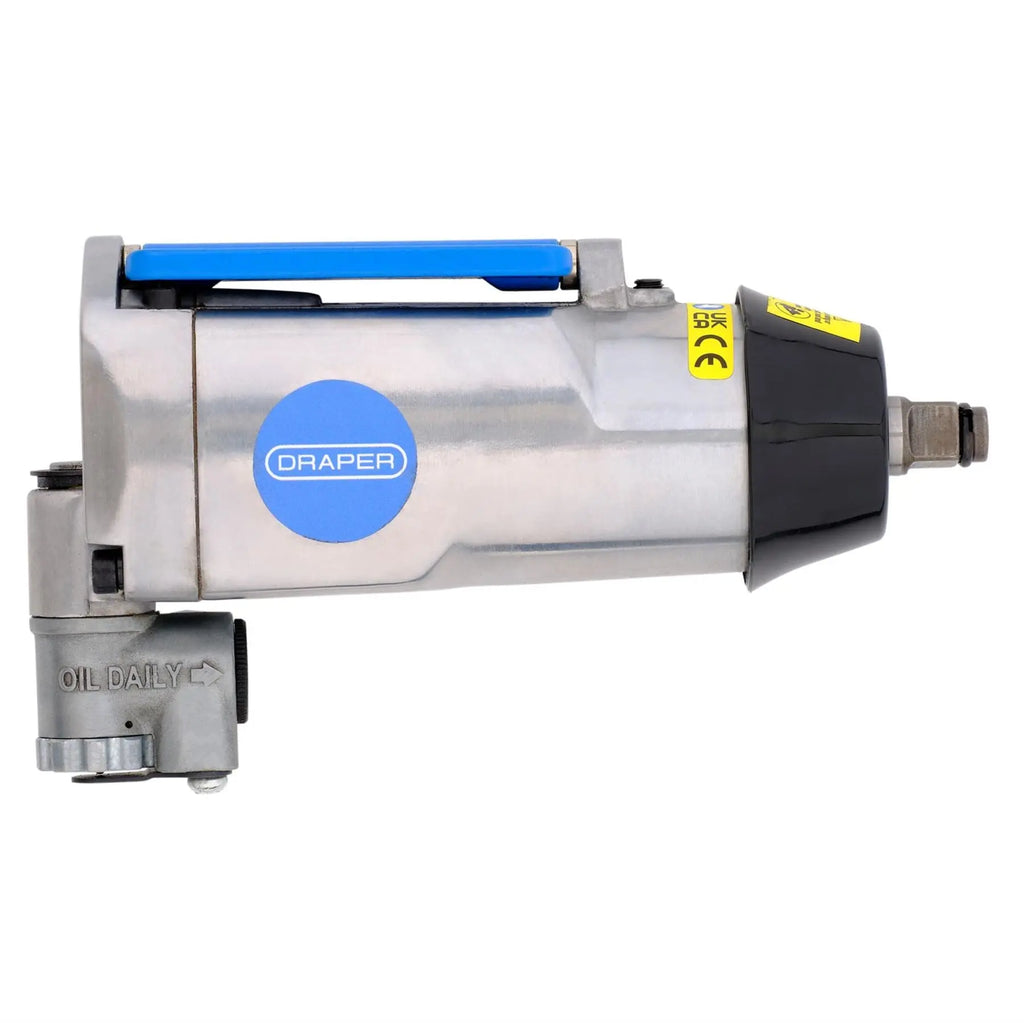

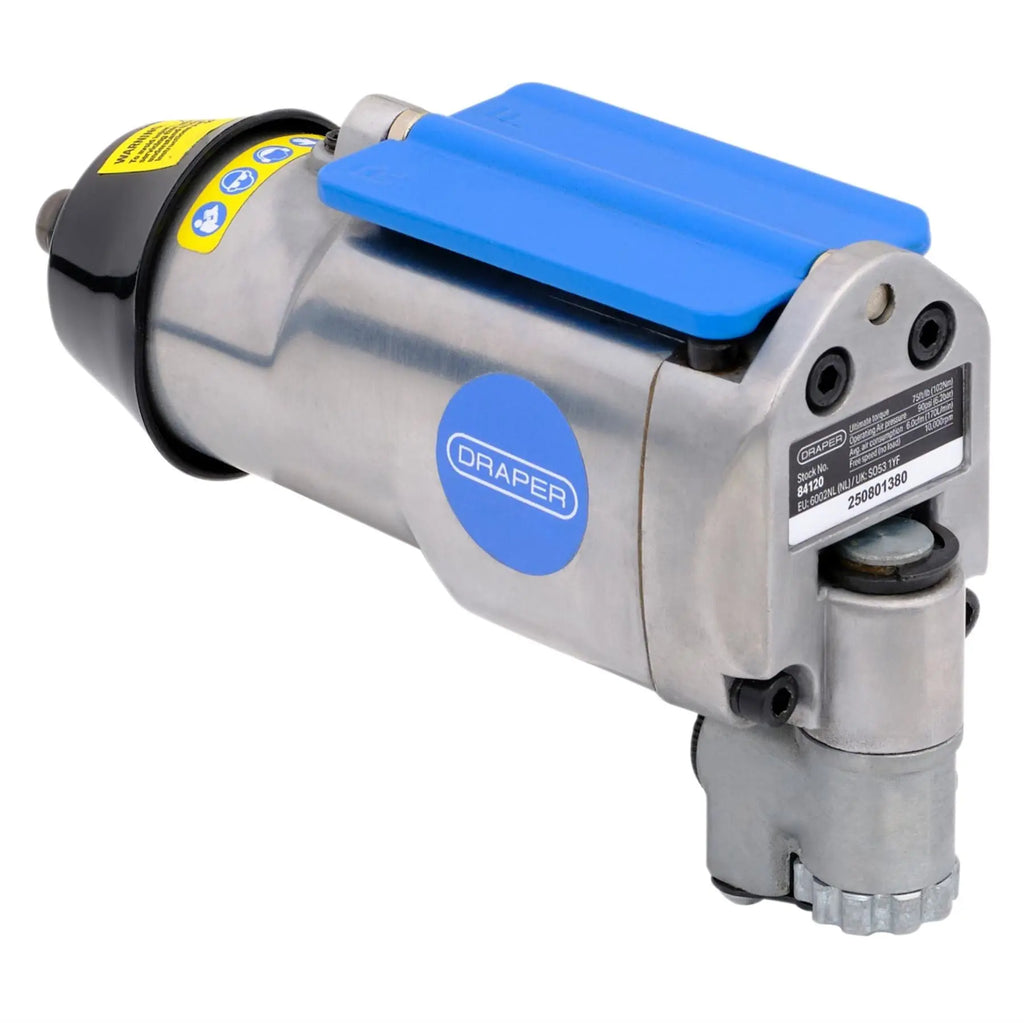

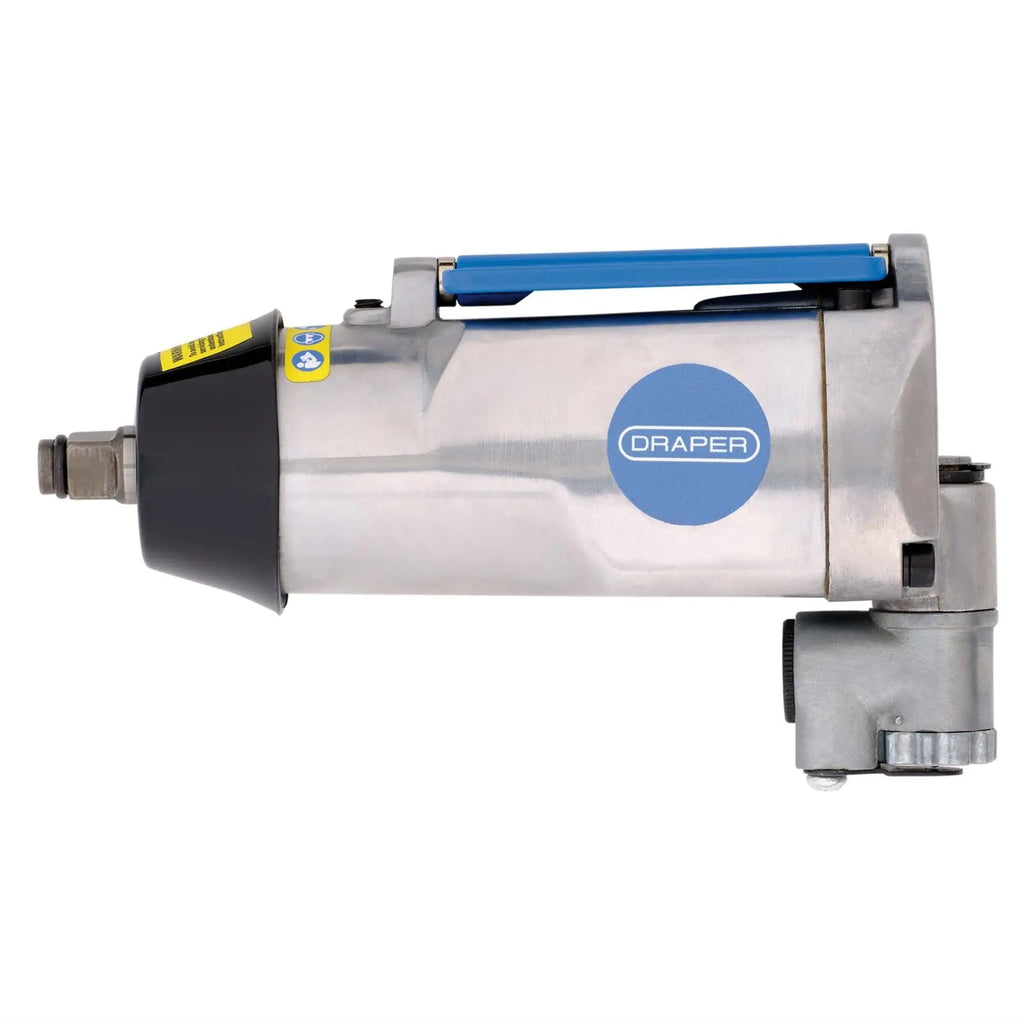

Single hammer butterfly air impact wrench. Manufactured with a lightweight aluminium housing attached with a one handed forward and reverse butterfly control with built-in regulator to vary speed and power. Attached with a side exhaust and a 1/4" BSP airline connector which connects with the 360° rotating air inlet, helping prevent air-lines from kinking when in use. The compact size helps in tight spaces, making it ideal for transmission, body panel, exhaust system and small engine repairs.
Features:

• Single hammer butterfly air impact wrench
• Lightweight aluminium housing
• Three speed reversible motor
• Built-in regulator varies speed and power
• Swivel air inlet provides easy manoeuvering
• Butterfly throttle for easy single hand operating
• Compact size helps in tight spaces
• Side exhaust
• Ideal for transmission, body panel, exhaust system and small engine repair

Product Contents:

• 1 x Butterfly Type Air Impact Wrench, 3/8" Sq. Dr.

Brand: Draper
Stock No: 84120
Part No: DAT-BAIW
Warranty: 6 months

Specification:

• Min Hose Size: 3/8" (10mm)
• Free Speed: 10,000 rpm
• Average Air Consumption: 6cfm (170L/min)
• Air Inlet: 1/4" BSP
• Operating Air Pressure: 90psi (6.2bar)
• Ultimate Torque: 102Nm (75ft/lb)
• Weight: 0.90kg
• Square Drive: 3/8"
• Vibration Level: 2.5m/s2

Downloads:

• Product Data Sheet: View Here
• Instruction Manual: View Here
• Parts Listing: View Here
• Declaration of Conformity UK CA: View Here
• Declaration of Conformity CE: View Here
