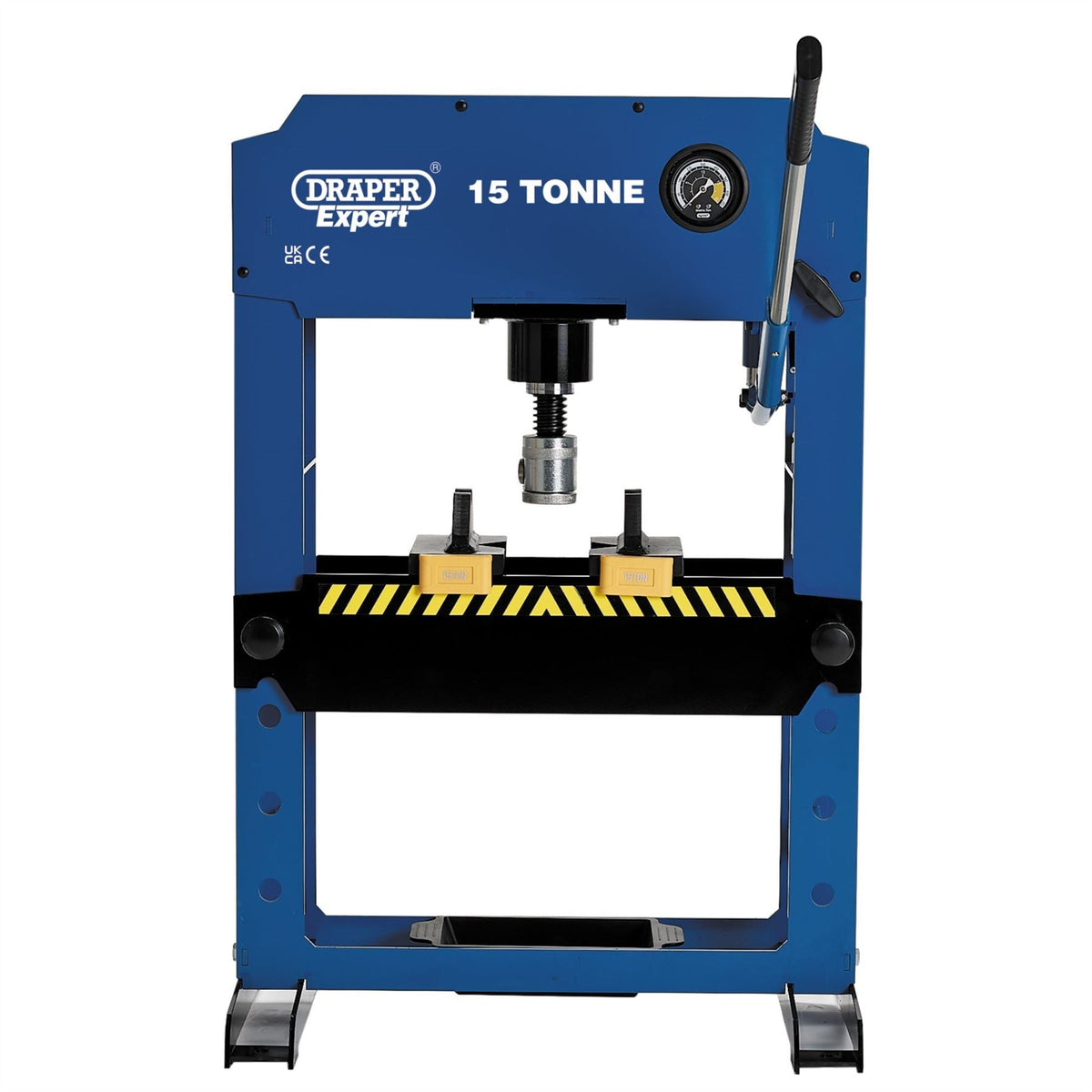

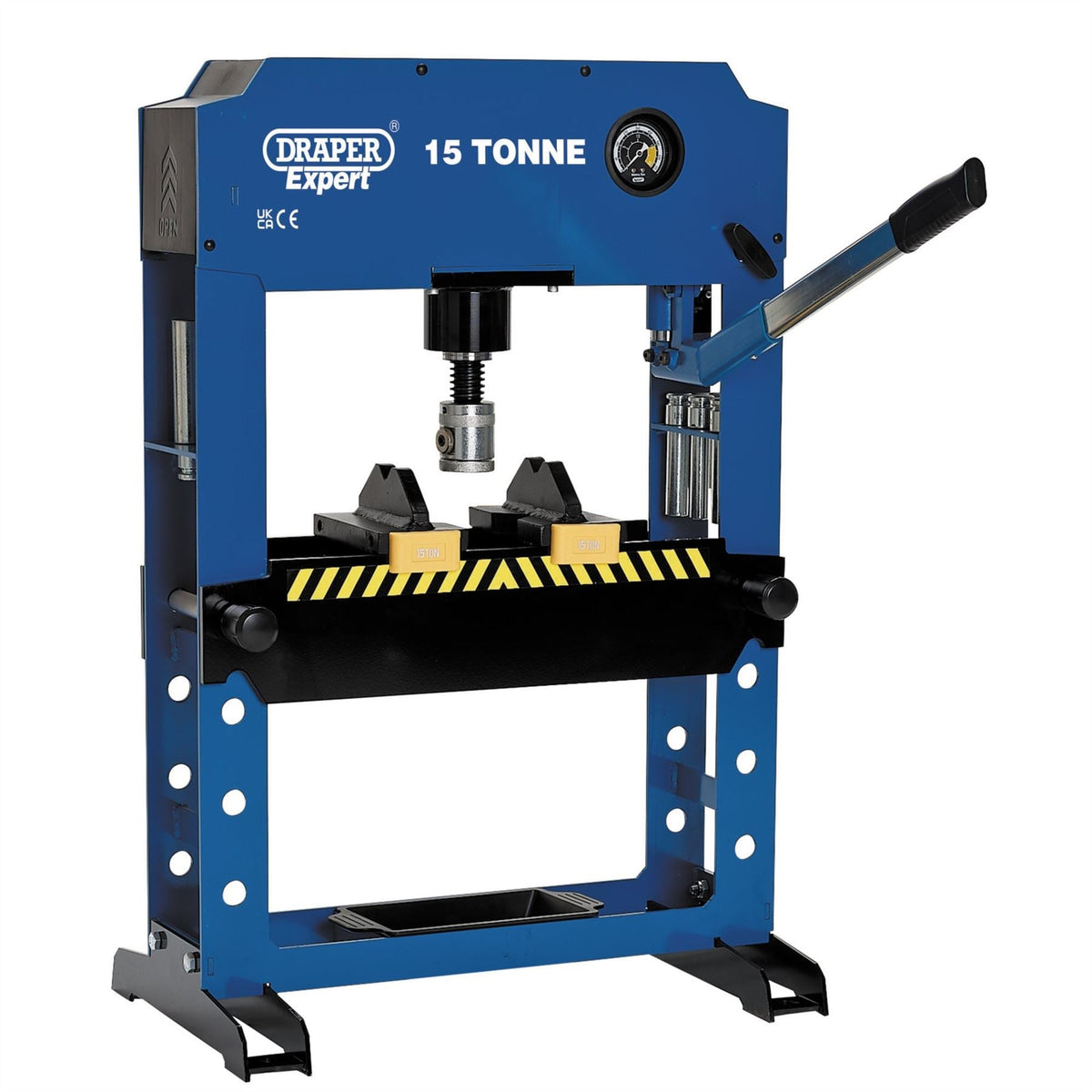

Draper Expert Hydraulic Bench Press 15 Tonne 70563
Robust hydraulic 15 tonne bench press with hand pump for manual hydraulic operation. There are eight adjustable table heights with a working range between 45-385mm. Robot welding one-piece frame for increased stability. There are dustproof covers fitted to the top of the frame to prevent dust entering the pump and ram, which helps to increase their service life. There is a removable parts tray located in the frame base. Supplied with eight press pins ranging from 2-15 tonnes and two flat v-shaped pressing blocks.
Features:
- Adjustable table heights
- Manual hydraulic operation
- Storage tray located in the base frame, which can be removed
- Supplied with press pins
Product Contents:
- 1 x Draper Expert Hydraulic Bench Press, 15 Tonne
Brand: Draper Expert
Stock No: 70563
Part No: HBP/15
Warranty: 12 months
Specification:
-
Weight (net): 56kg
-
Frame dimensions: (H) 810 x (W) 440 x (D) 134mm
-
Gauge diameter: 60mm
-
Press pin capacity: 2-15 Tonnes
-
Table height: 45-385mm
-
Ram diameter: 50mm
-
Ram stroke: 170mm
-
Overall height: 855mm
-
Capacity: 15 Tonne
