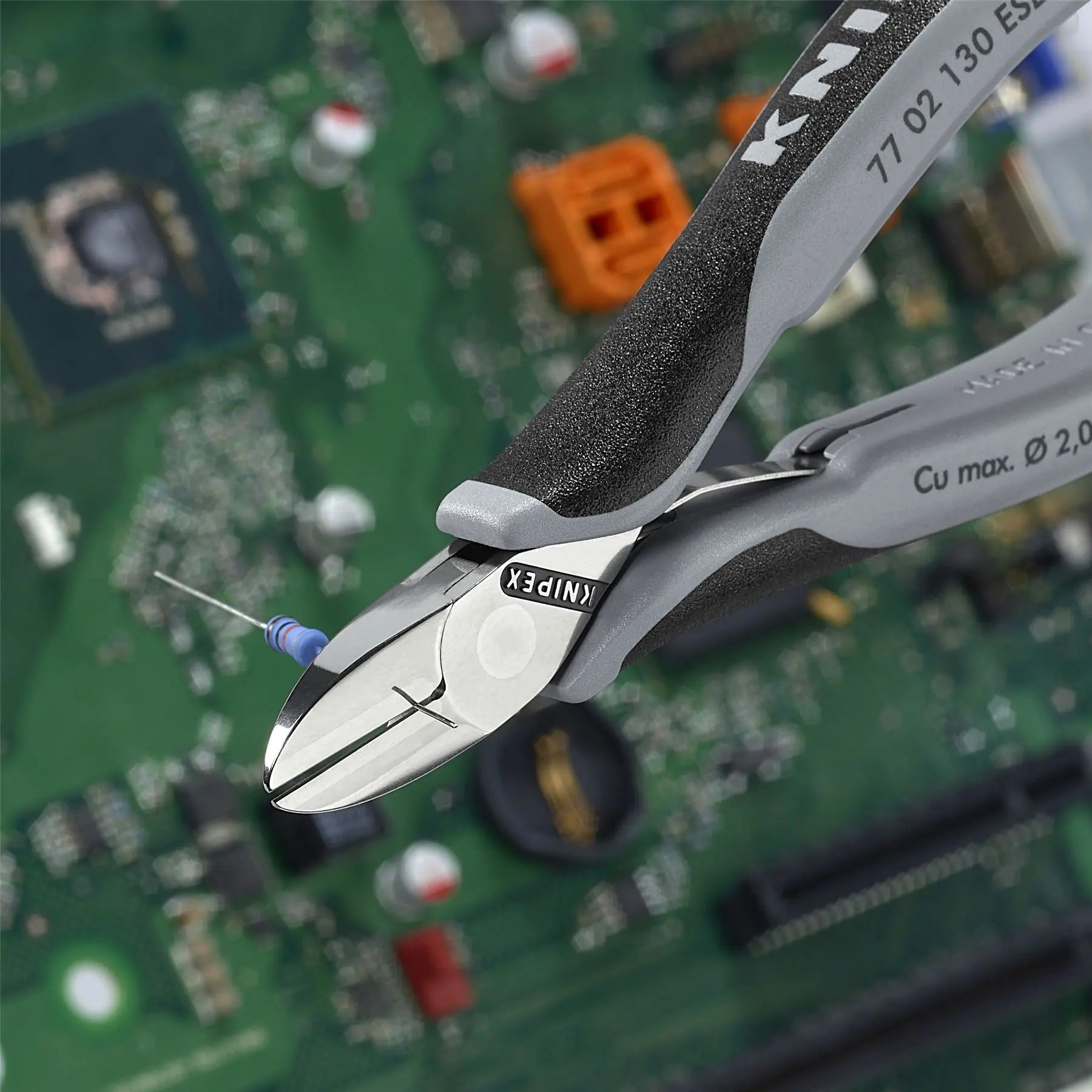

KNIPEX Electronics Diagonal Cutter Pliers with Carbide Cutting Edges 130mm Multi Component Grips 77 02 130 ESD
KNIPEX Electronics Diagonal Cutter Pliers with Carbide Cutting Edges 130mm Multi Component Grips 77 02 130 ESD
KNIPEX Electronics Diagonal Cutter Pliers with Carbide Cutting Edges 130mm Multi Component Grips 77 02 130 ESD
Roll over image to zoom in Click on image to zoom
KNIPEX Electronics Diagonal Cutter Pliers with Carbide Cutting Edges 130mm Multi Component Grips 77 02 130 ESDKNIPEX Electronics Diagonal Cutter Pliers with Carbide Cutting Edges 130mm Multi Component Grips 77 02 130 ESDKNIPEX Electronics Diagonal Cutter Pliers with Carbide Cutting Edges 130mm Multi Component Grips 77 02 130 ESD

KNIPEX Electronics Diagonal Cutter Pliers with Carbide Cutting Edges 130mm Multi Component Grips 77 02 130 ESD

SKU: 77 02 130 ESD
Price:
$79.00

VAT included

Stock:
In stock

Pickup available at White Rose Tools (Barnsley)

Usually ready in 1 hour

30 Dec. Estimated arrival
27 Dec. Order placed
28-29 Dec. Order dispatches
30 Dec. Delivered!

Description




KNIPEX Electronics Diagonal Cutter Pliers with Carbide Cutting Edges 130mm Multi Component Grips 77 02 130 ESD

77 02 130 ESD Electronics Diagonal Cutters ESD
Durable, load-optimised design with backlash-free box joint. High, slim sleeves for fine and comfortable gripping between thumb and index finger. electrically discharging handles - dissipative. Less physical effort due to very high transmission ratio. Load-optimised for a more direct feel when working. Low-friction double spring for gentle and even opening. The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools. Cutters additionally laser hardened, cutter hardness at least 62 HRC. round head, with small bevel.

  • Cutting capacities medium hard wire (diameter): Ø 1.5 mm
  • Schneidwerte harter Draht (Durchmesser): Ø 0.8 mm
  • Cutting capacities soft wire (diameter): Ø 0.3 – 2 mm
  • Jaw length (B): 16.2 mm
  • Jaw thickness (joint) (D): 8.5 mm
  • Head width (A): 13 mm
  • Cutting edge length mm (C): 16.2 mm
  • ESD: yes


    • Technical Information:
    • Cutters additionally laser hardened, cutter hardness at least 62 HRC
    • Less physical effort due to very high transmission ratio
    • Load-optimised for a more direct feel when working
    • low-friction double spring for gentle and even opening
    • round head, with small bevel
    • The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools

    Downloadable Files:
