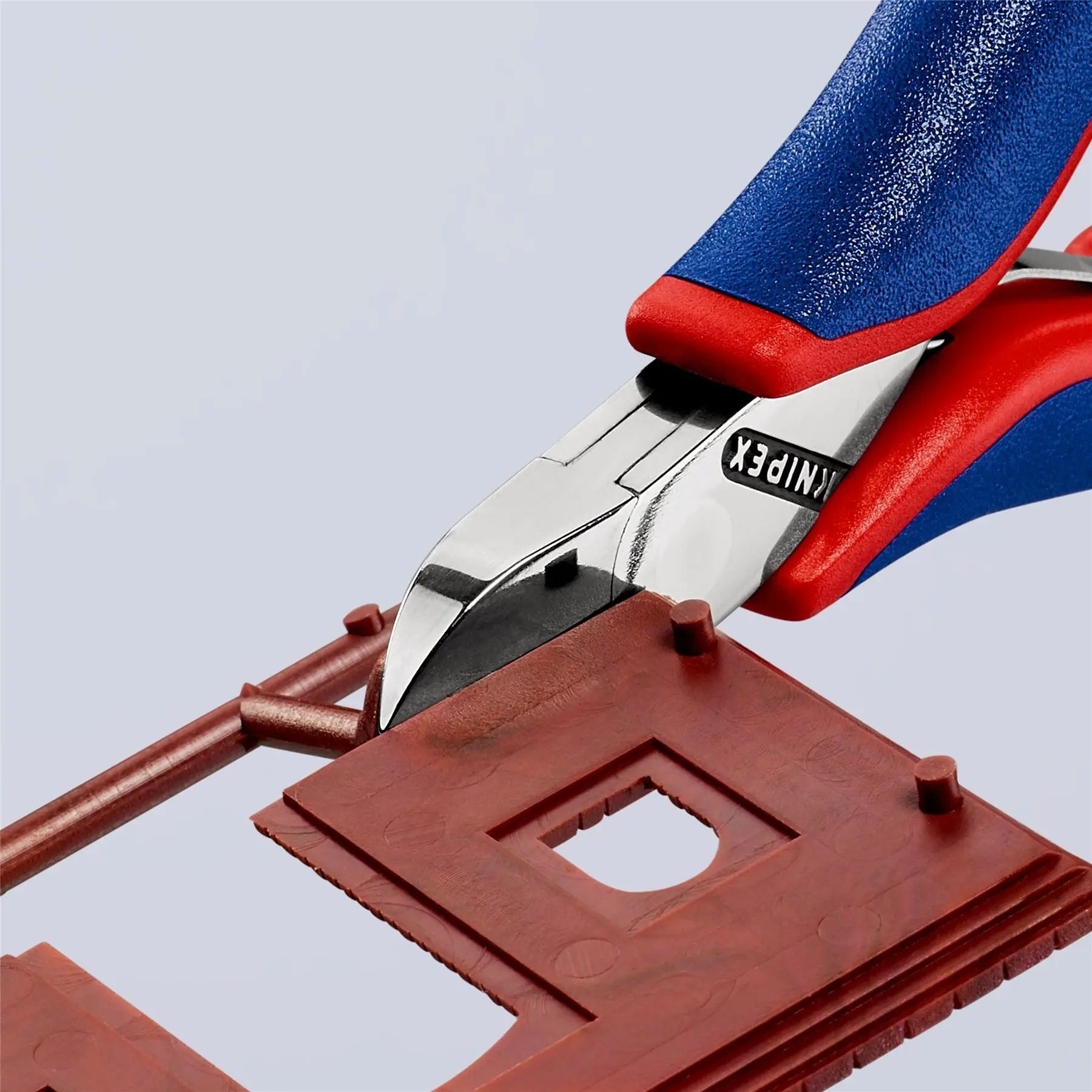

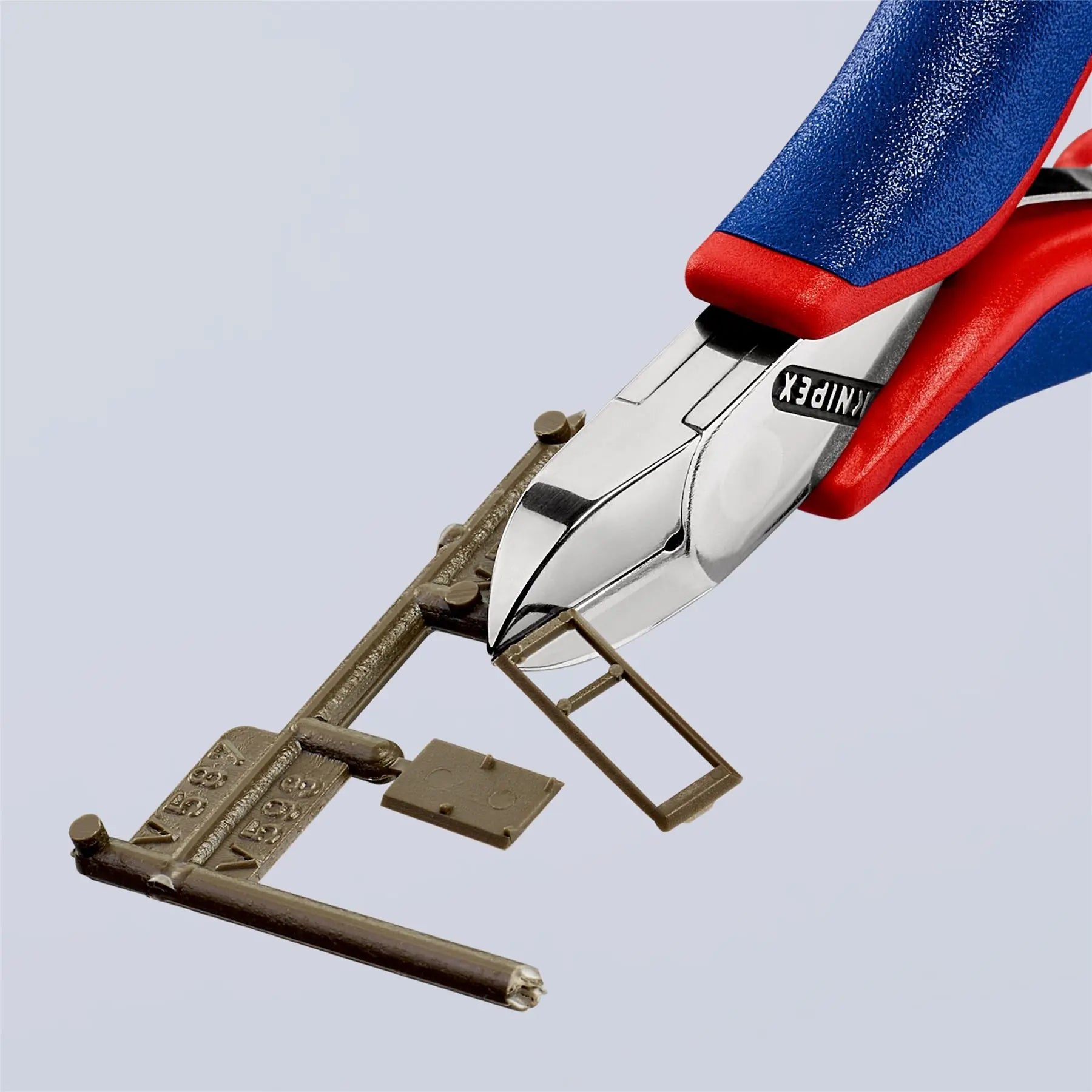

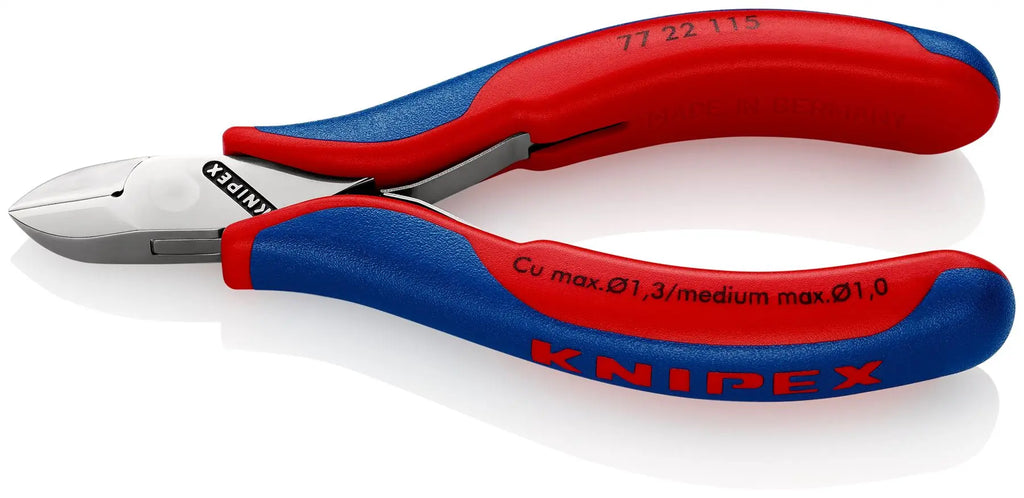

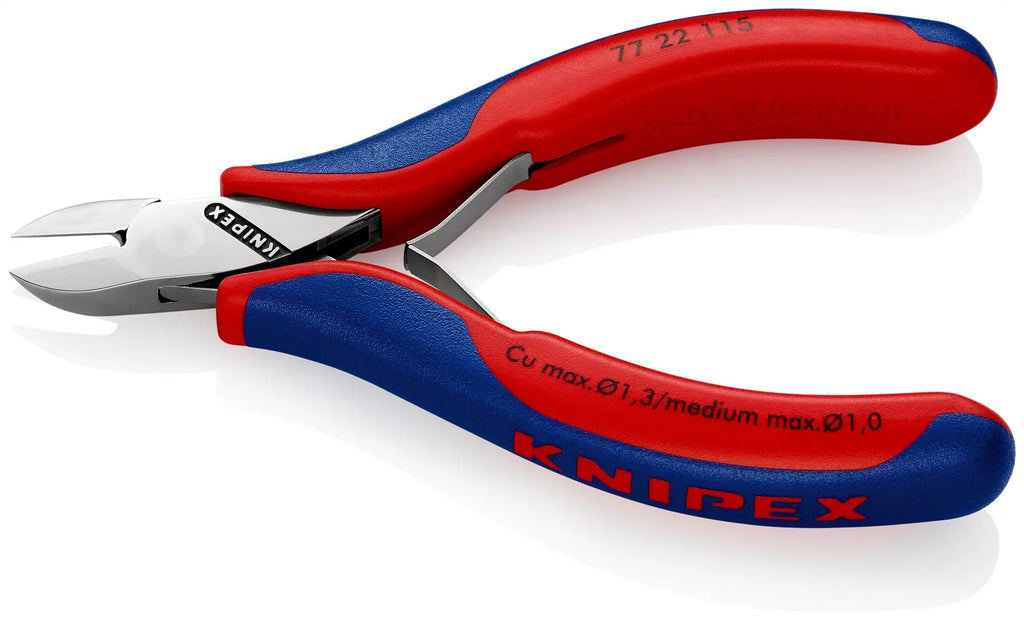

KNIPEX Electronics Diagonal Side Cutting Pliers with Box Joint 115mm Multi Component Grips 77 22 115 SB
77 22 115 SB Electronics Diagonal Cutter
Durable, load-optimised design with backlash-free box joint. High, slim sleeves for fine and comfortable gripping between thumb and index finger. Less physical effort due to very high transmission ratio. Load-optimised for a more direct feel when working. Low-friction double spring for smooth and even opening. The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools. Cutters additionally laser hardened, cutter hardness at least 62 HRC. round head, without bevel.
Cutting capacities medium hard wire (diameter): Ø 1.0 mm
Cutting capacities soft wire (diameter): Ø 0.3 – 1.3 mm
Jaw length (B): 14 mm
Jaw thickness (joint) (D): 7 mm
Head width (A): 11 mm
Technical Information:
- Load-optimised for a more direct feel when working
- Low-friction double spring for smooth and even opening
- The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools
- Cutters additionally laser hardened, cutter hardness at least 62 HRC
