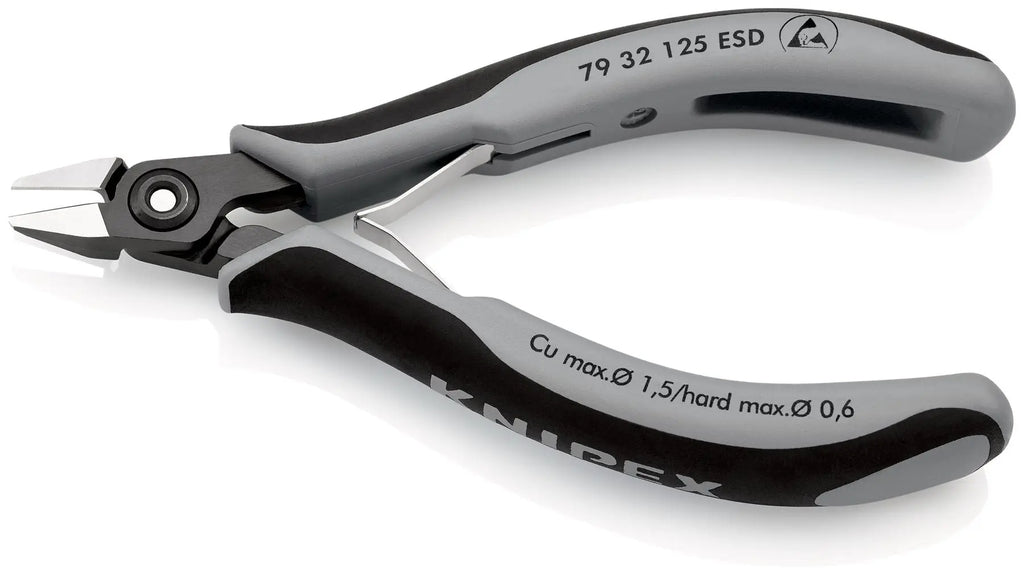

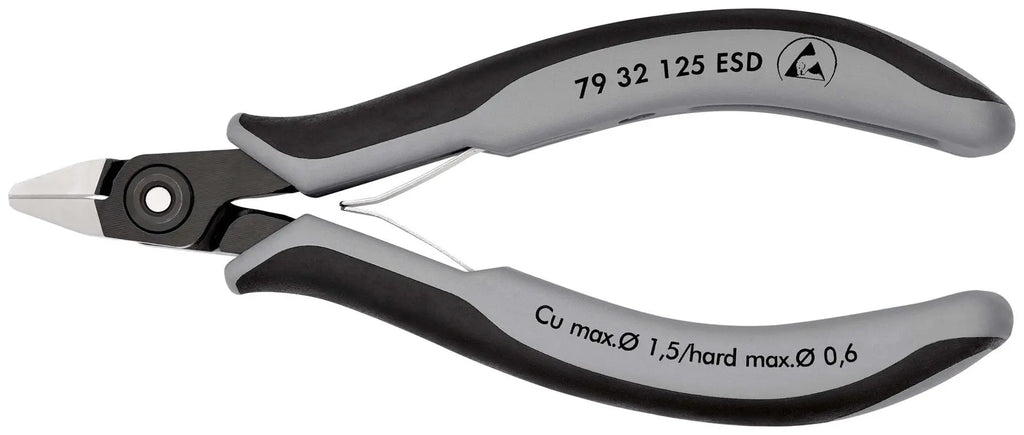

KNIPEX Precision Electronics Side Cutter 125mm Multi Component Grips 79 32 125 ESD
79 32 125 ESD Precision Electronics Side Cutter ESD

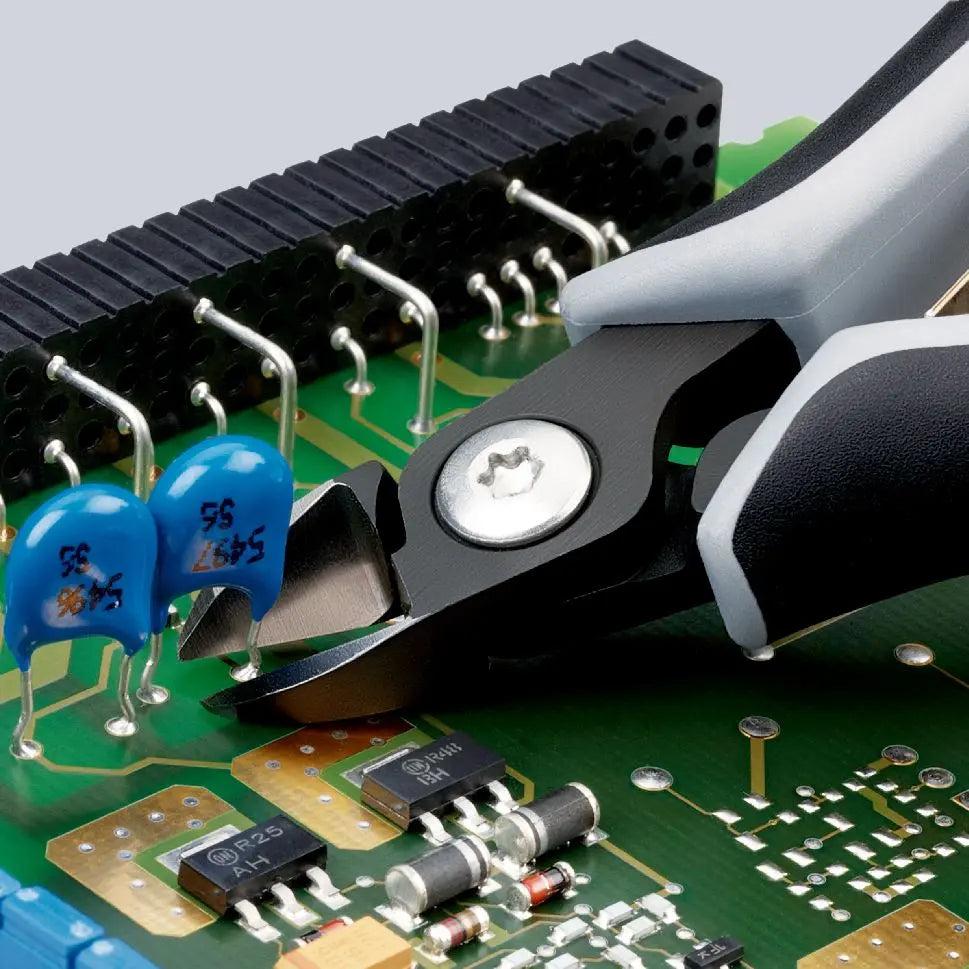

Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics. Electrically discharging handles - dissipative. Very precisely ground and sharp cutting edges with very small bevels for exact cutting on delicate electronic components; also available without bevel for flush cutting. Precision cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC. Approx. 20% lighter than conventional electronics pliers. Bolted joint with carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range. Smooth-running double spring for a gentle and even opening. Ergonomically optimised multi-component handles. pointed head.
Cutting capacities medium hard wire (diameter): Ø 1.1 mm
Cutting capacities hard wire (diameter): Ø 0.6 mm
Cutting capacities soft wire (diameter): Ø 0.2 – 1.5 mm
Jaw length (B): 11 mm
Jaw thickness (joint) (D): 6.5 mm
Head width (A): 11 mm
ESD: yes
Technical Information:
- Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
- Electrically discharging handles - dissipative
- Very precisely ground and sharp cutting edges with very small bevels for exact cutting on delicate electronic components
- Also available without bevel for flush cutting
- Precision cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC
- Approx. 20% lighter than conventional electronics pliers
- Bolted joint with carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range
- Smooth-running double spring for a gentle and even opening
- Ergonomically optimised multi-component handles
