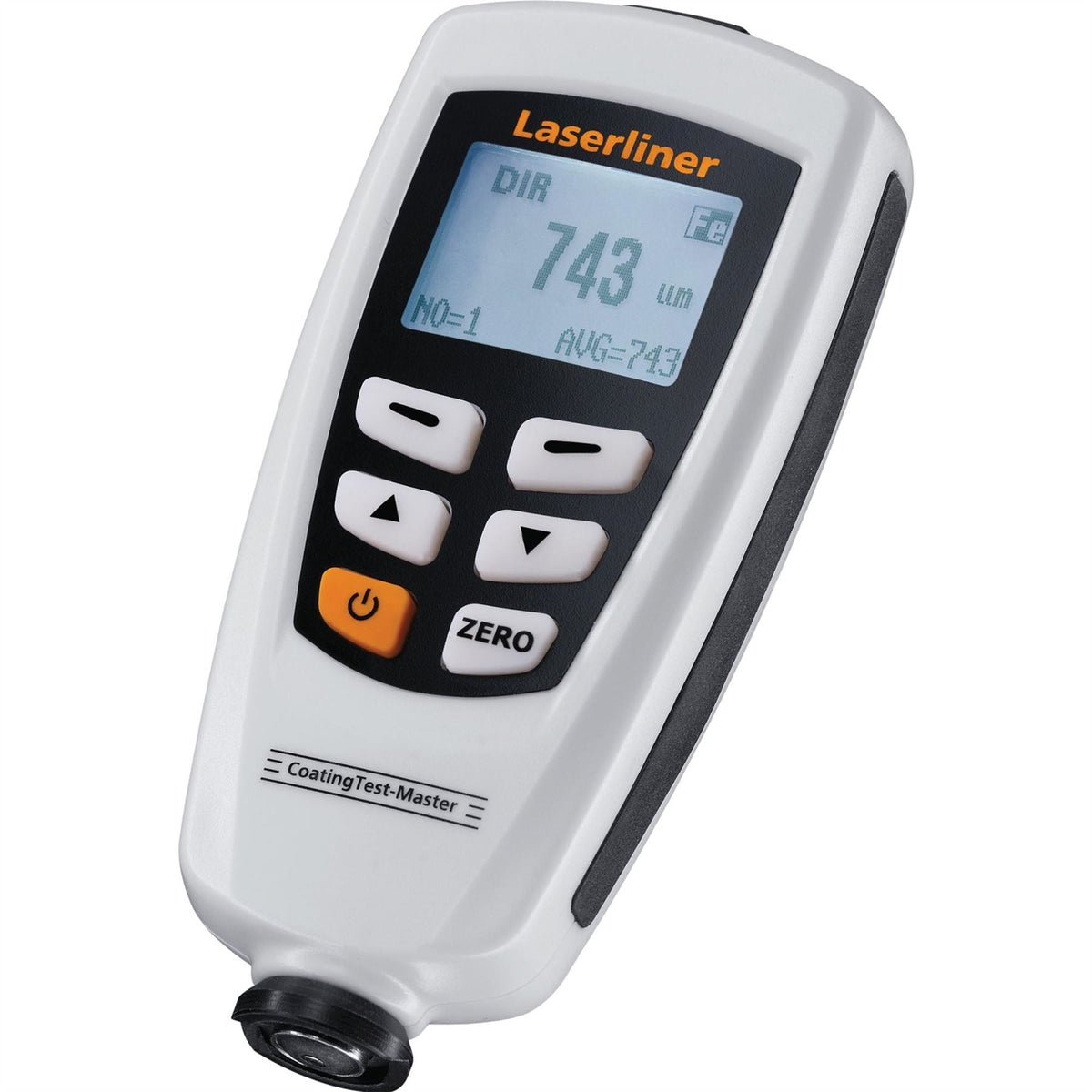

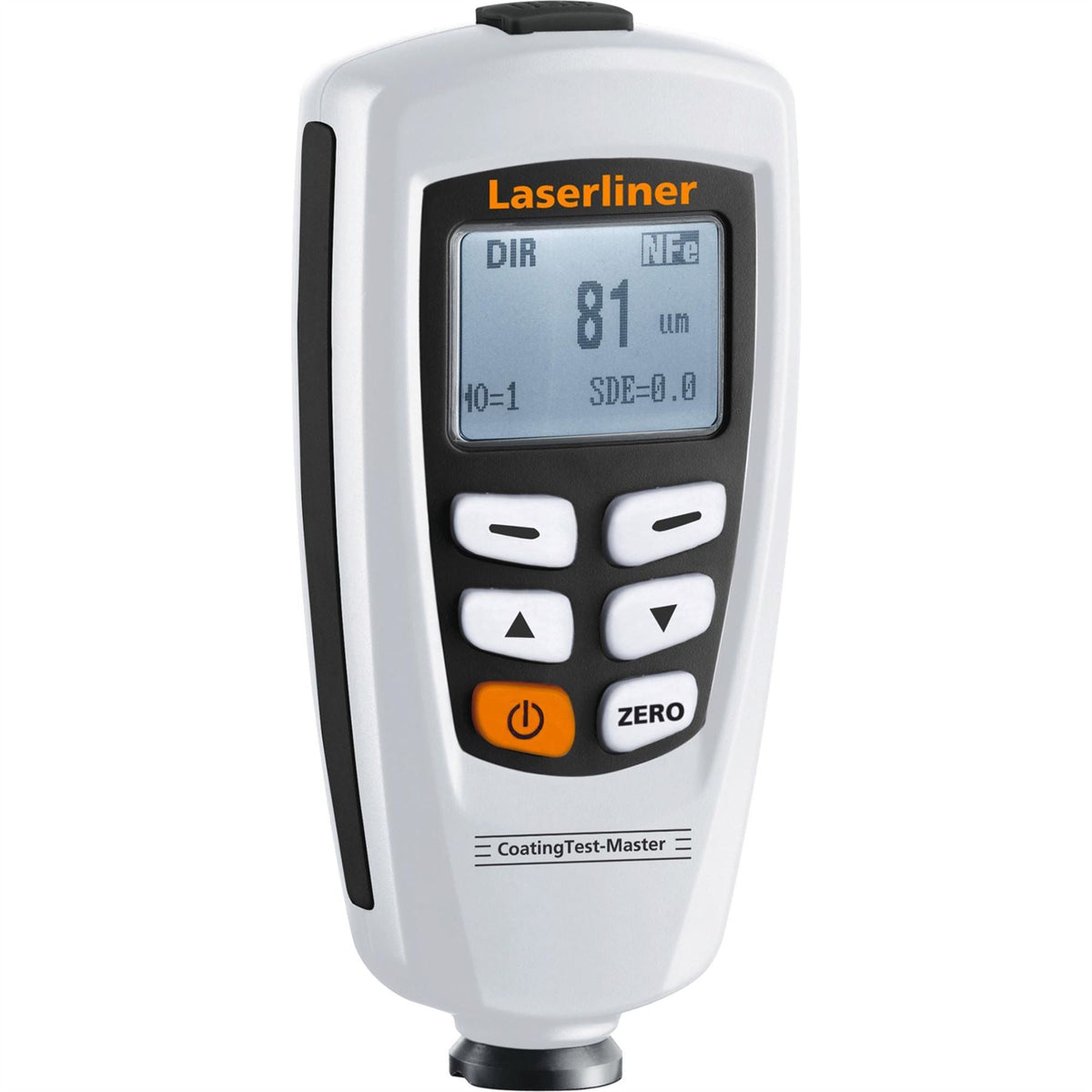

Laserliner 082.150A CoatingTest-Master Coating Thickness Measuring Device 32005

Laserliner 082.150A CoatingTest-Master Coating Thickness Measuring Device 32005

This point precise coating thickness measuring instrument is suitable for insulating and non-magnetic coatings on non-ferrous metals. The base material is identified automatically (ferrous/ferromagnetic, non-ferrous/non-ferromagnetic). The device features one-point or two-point calibration to increase the measuring accuracy. 400 measured values can be saved to the internal memory and transferred to a PC via the USB interface for further analysis. Supplied with USB cable, batteries and carrying case.

Features:

• Point precise coating thickness measurement based on induction and eddy current principle
• Measurable coatings: non-magnetic (paint, zinc on steel) and insulating (paint, anodised coatings)
• Automatic identification of base material (ferrous/ferromagnetic, non-ferrous/non-ferromagnetic)
• Comprehensive data backup due to internal memory for 400 measured values
• Increased measuring accuracy due to one-point and two-point calibration
• USB interface for analysis on PC
• Min/Max/AVG display
• Easy-to-read display
• Supplied with USB cable, batteries and carrying case

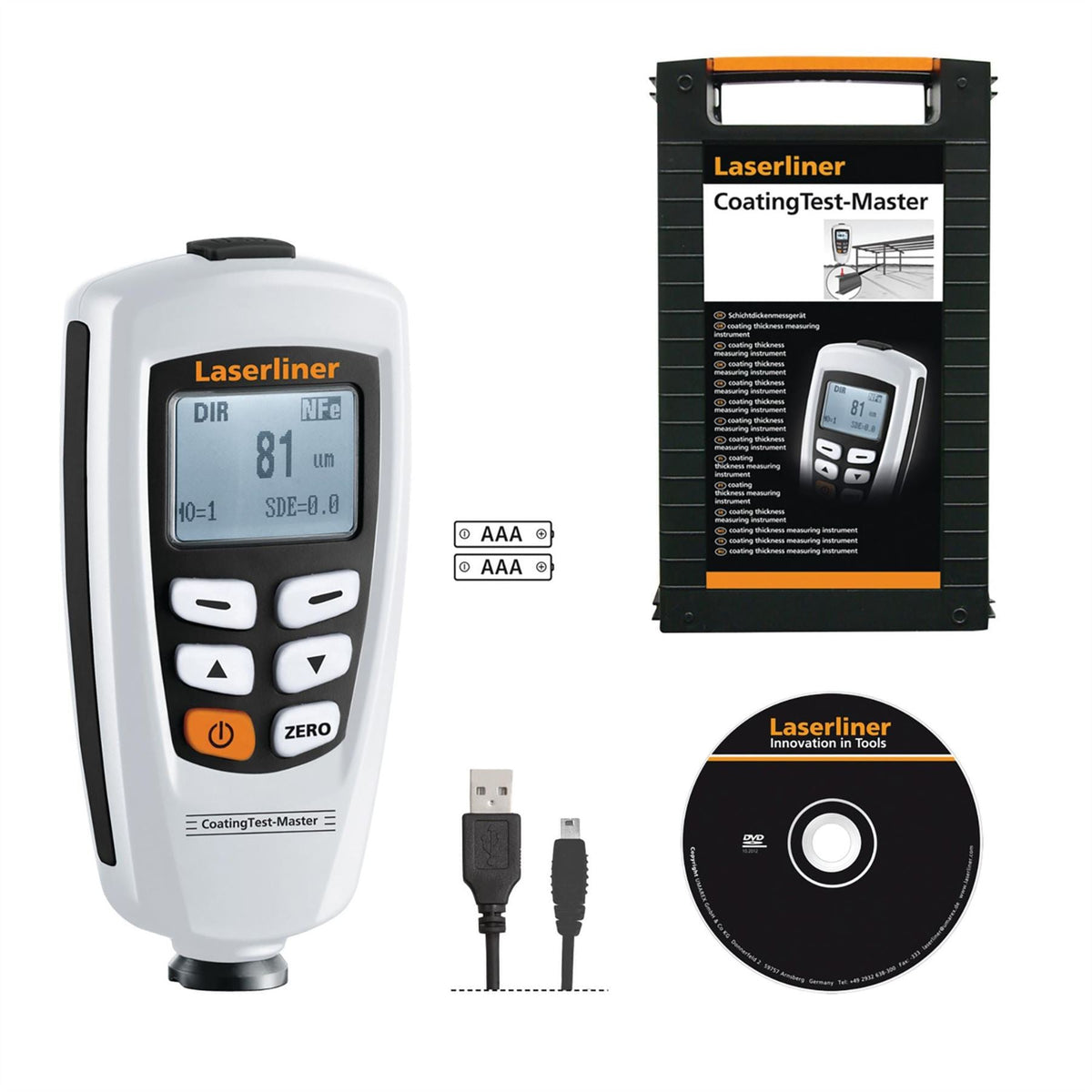

Product Contents:

• 1 x Laserliner 082.150A CoatingTest-Master Coating Thickness Measuring Device
• 1 x Calibration references
• 1 x Software
• 1 x USB cable
• 1 x Batteries
• 1 x Carrying case

Brand: Laserliner
Stock No: 32005
Part No: 082.150A
Warranty: 4 years

Specification:

• Power Supply: 2 x 1.5V LR03 (AAA)
• Memory: 80 measurements / mode
• Port: USB
• Sensor Type: Magnetic-inductive (Fe), eddy current (NFe)
• Coating Thickness Measuring Range: 0 … 1250 µm
• Measured Variable: Coating thickness
• User calibration: Yes
• Zero adjustment: Yes
• Standard deviation: Yes
• Coating thickness: Yes
• Data transfer: Yes
• Ferrous and non-ferrous: Yes
• Single and continuous measurement: Yes
• Mean value: Yes
• Weight: 116 g
• Dimensions (W x H x D): 23 mm x 110 mm x 50 mm

Downloads:

• Product Data Sheet: View Here
• Instruction Manual: View Here
