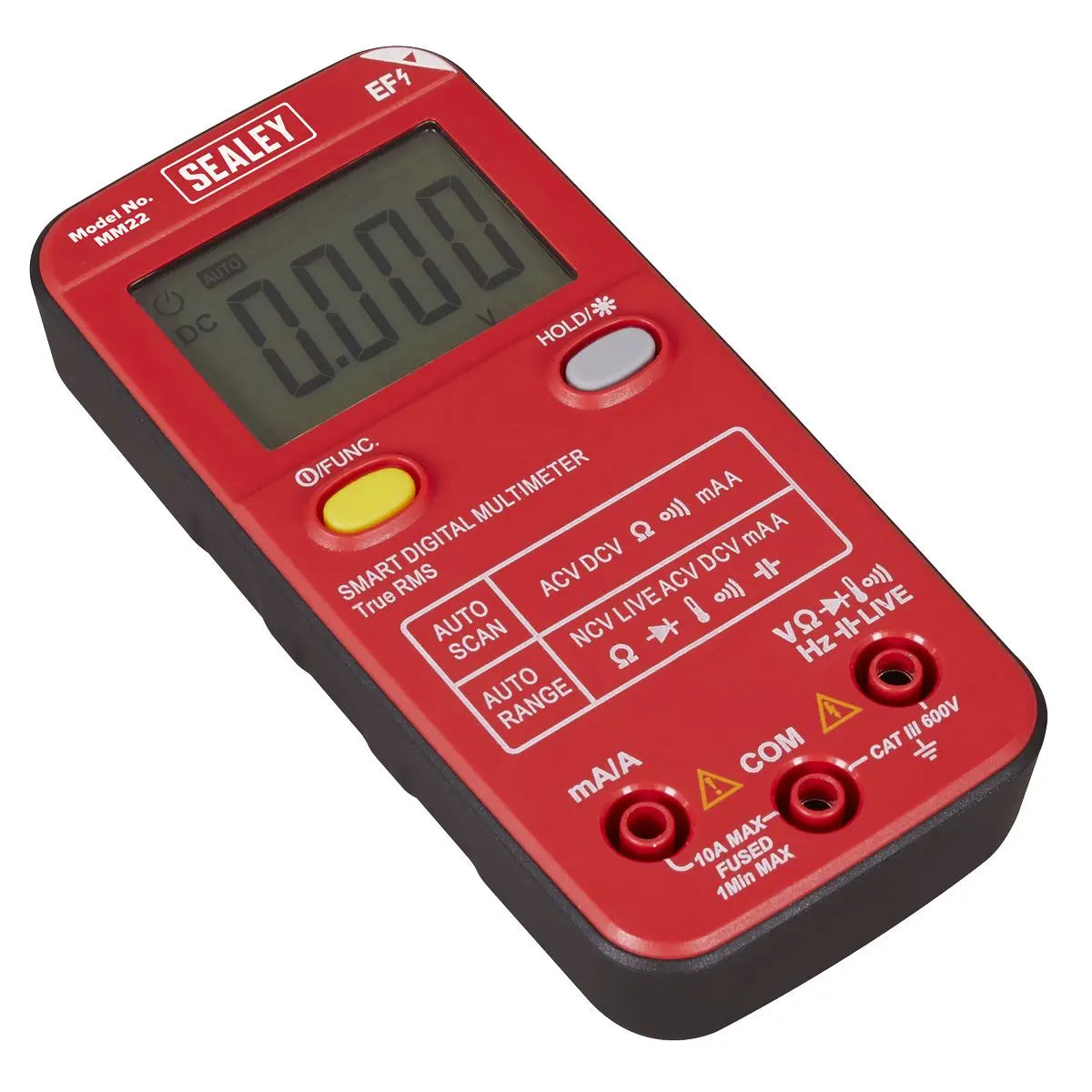

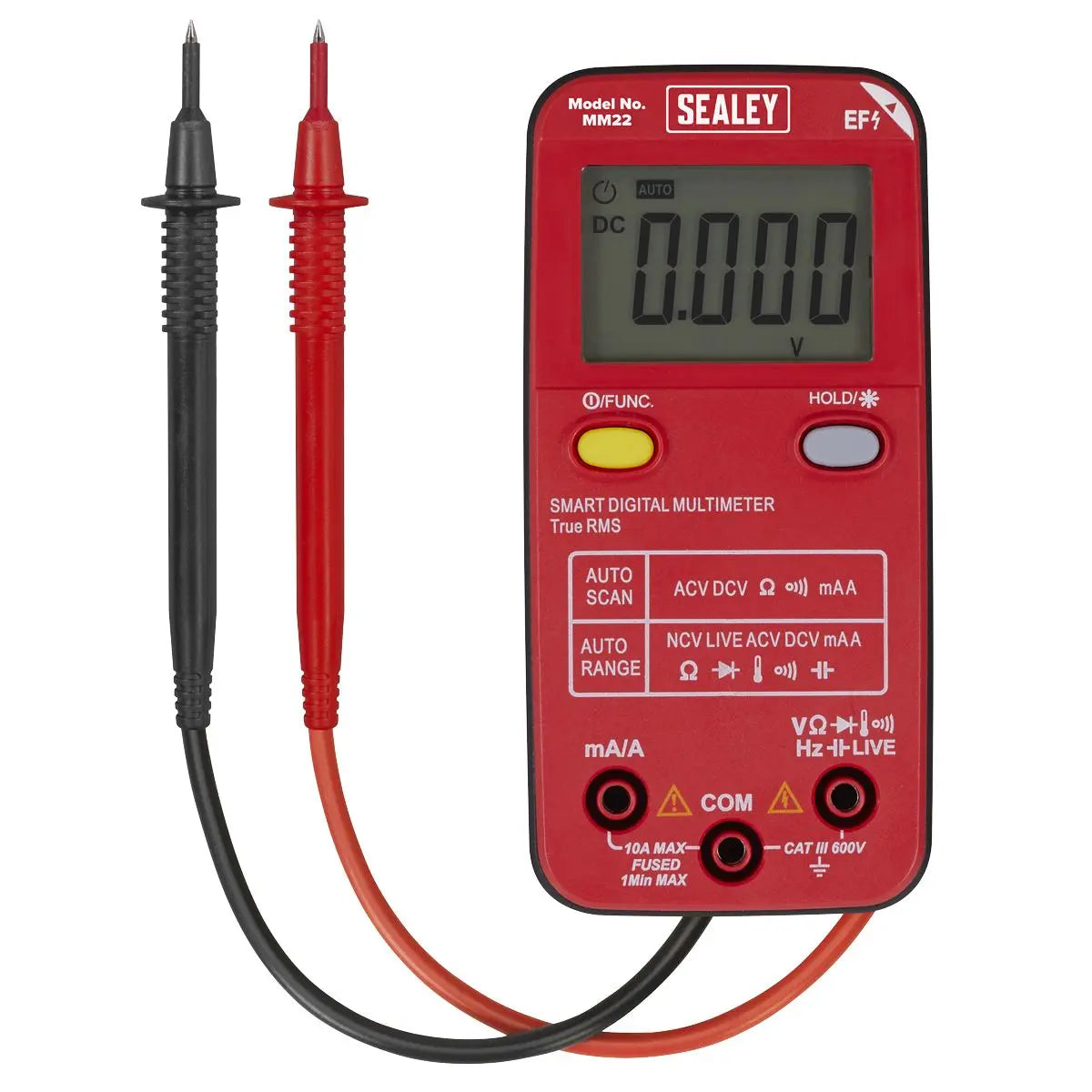

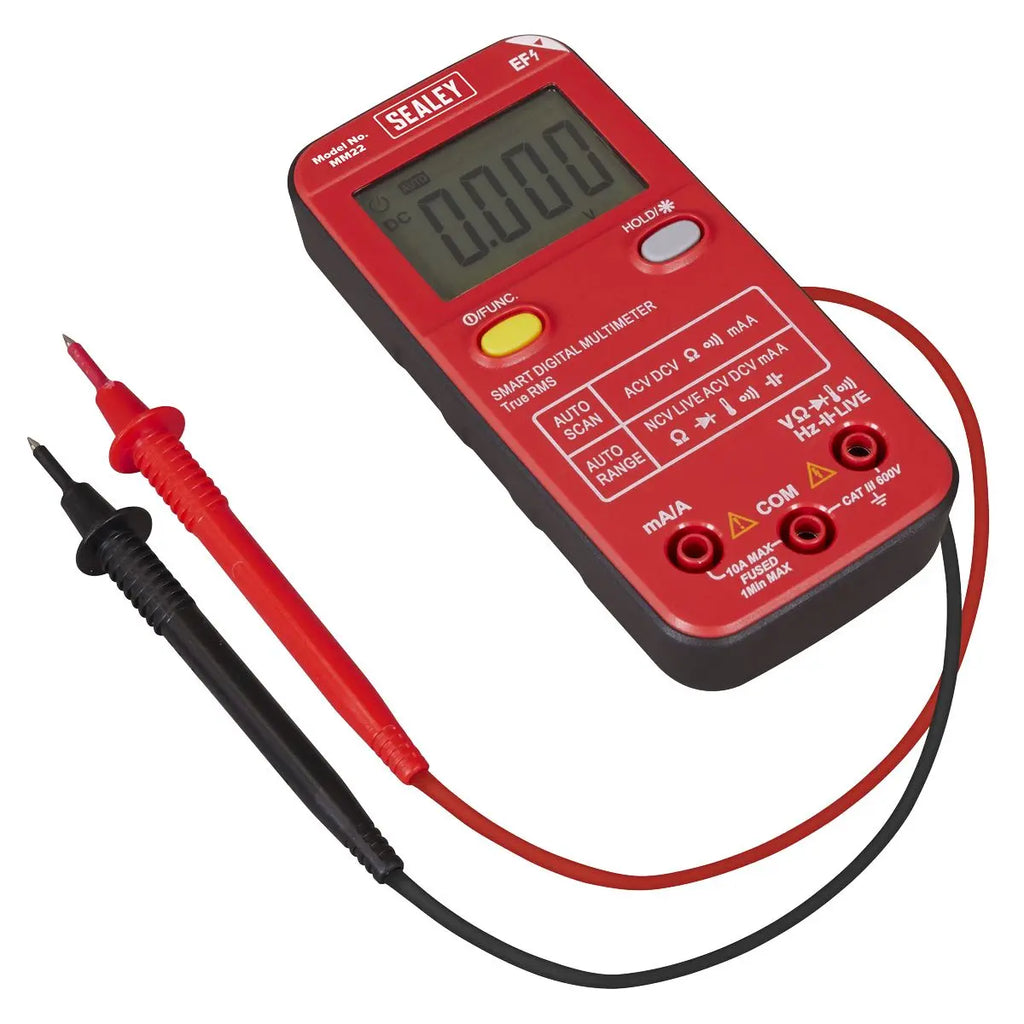

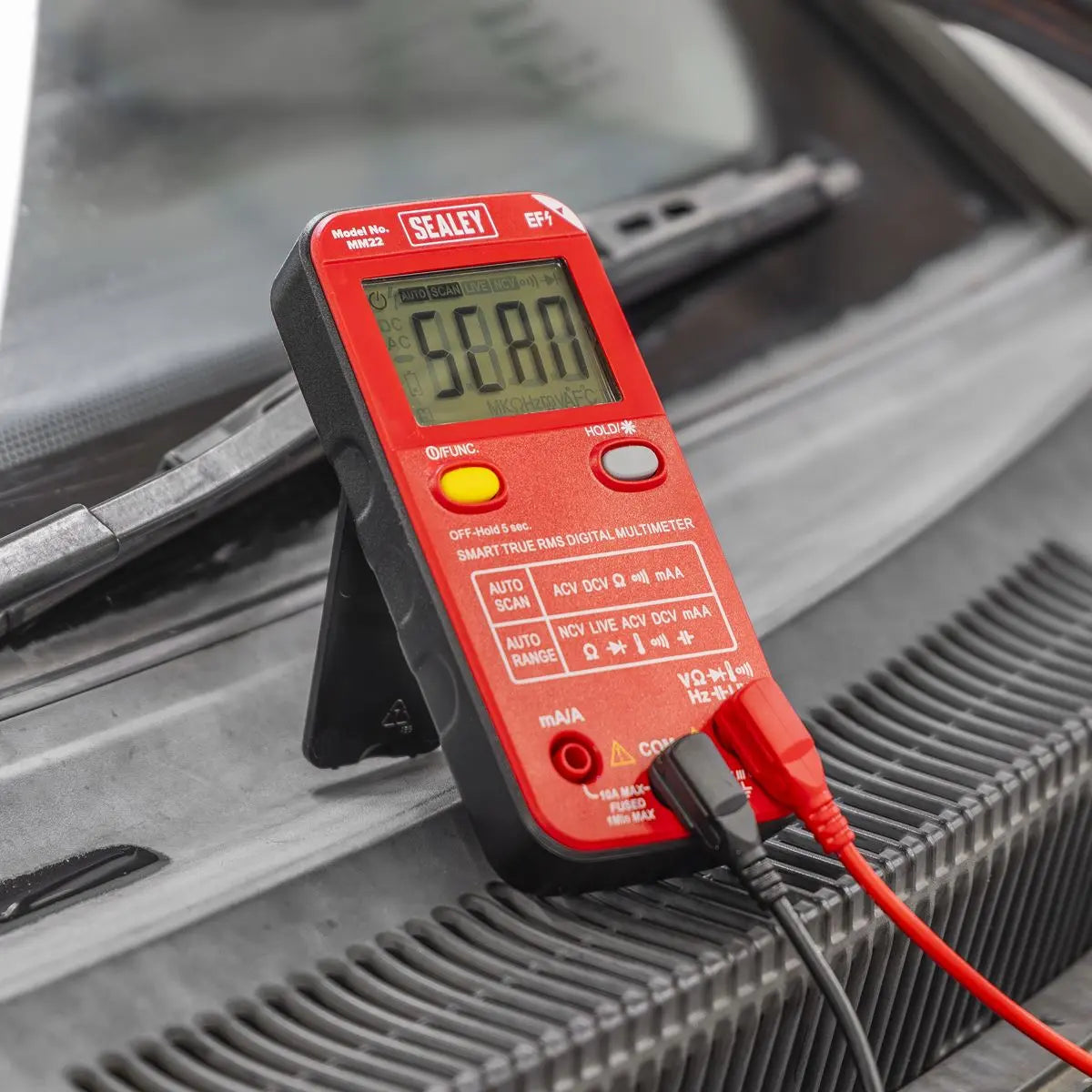

Sealey 13-Function Professional Smart Auto-Scanning Digital Multimeter

Sealey 13-Function Professional Smart Auto-Scanning Digital Multimeter

HIGH-PRECISION PERFORMANCE - Smart auto-ranging multimeter ensures accurate and reliable measurements.

INTELLIGENT - The multimeter automatically detects and selects the required test function, AC/DC, voltage/current, resistance and continuity.

SAFETY COMPLIANCE - Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use.

VERSATILE FEATURES - Includes temperature measurement capability, data-hold and auto-power-off function.

NON-CONTACT VOLTAGE DETECTION (NCVD) - Allows safe, one-handed use.

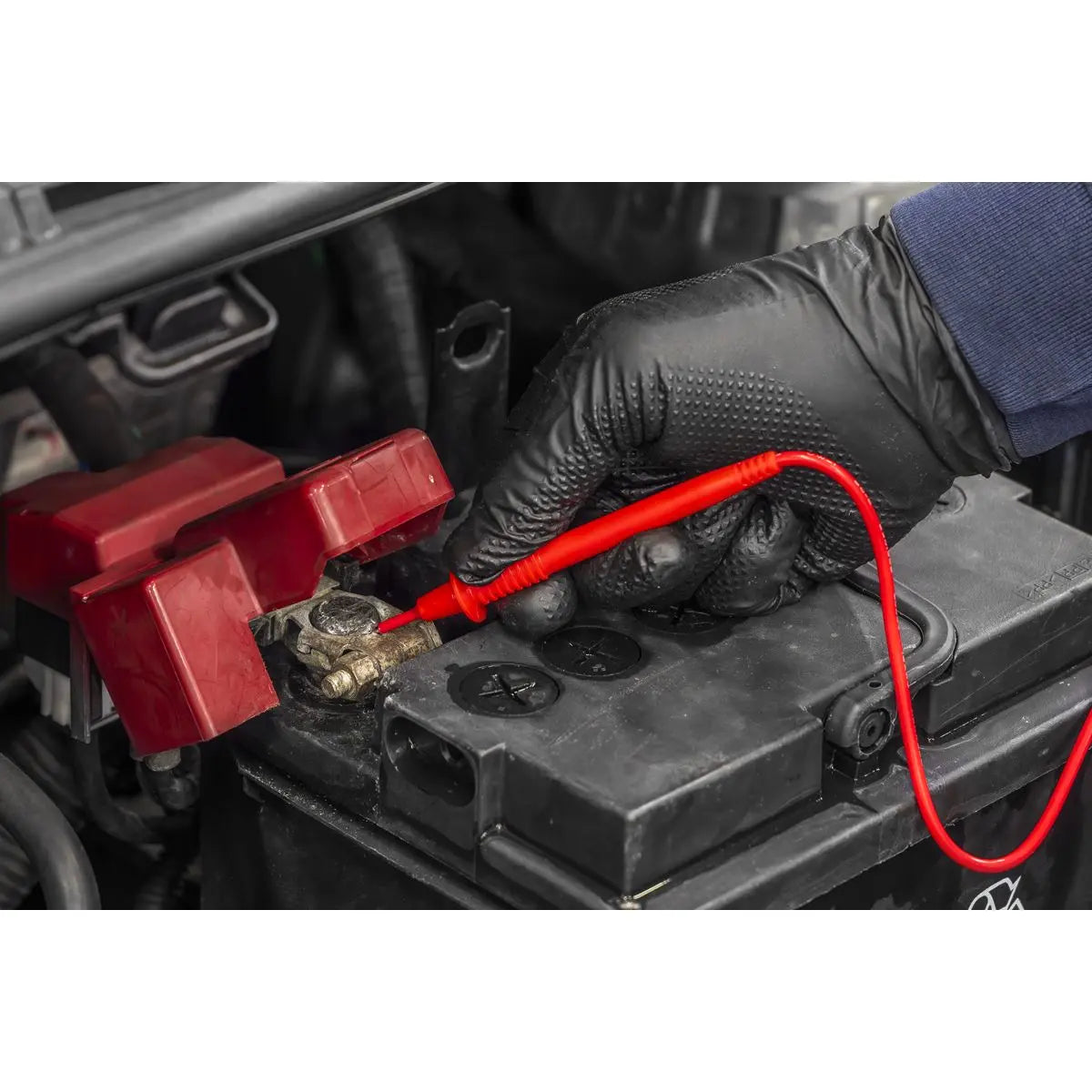

LIVE TEST FUNCTIONALITY - Can test for live feeds with a single probe.

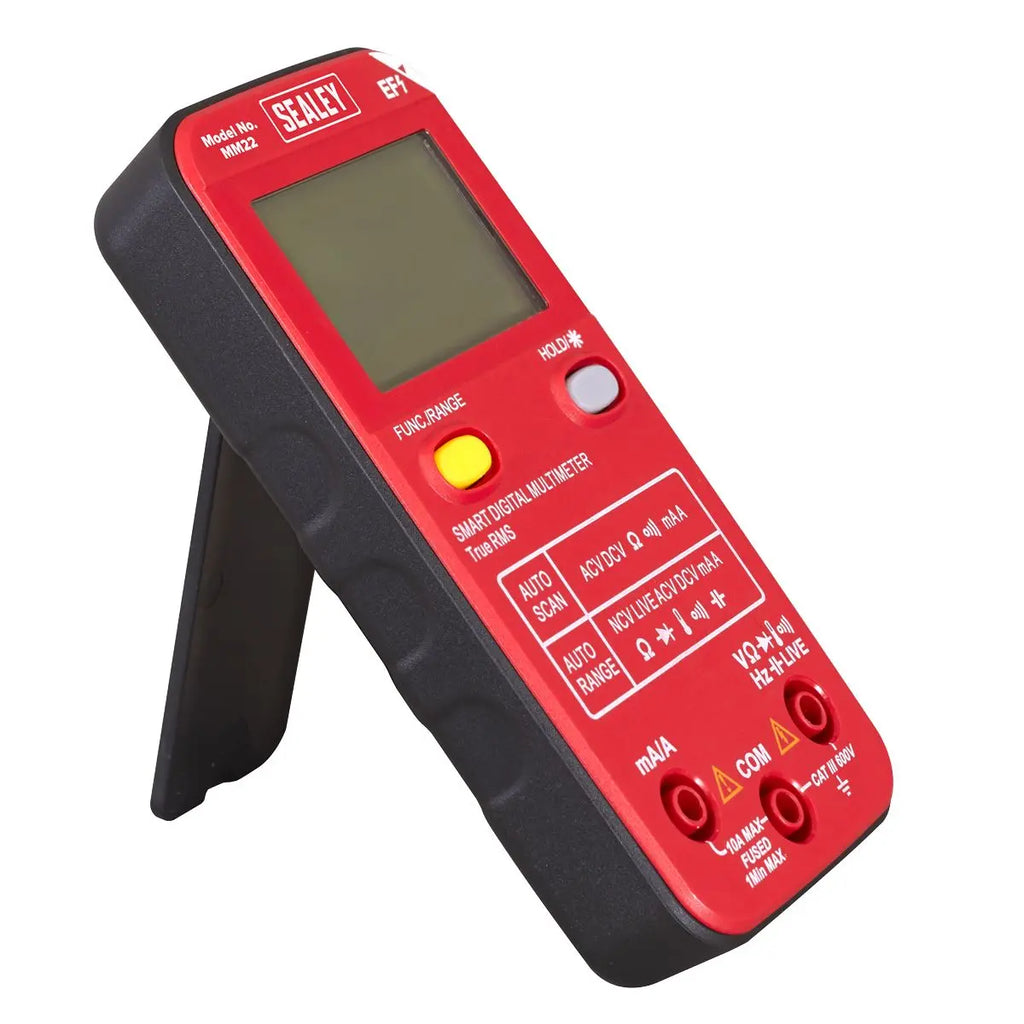

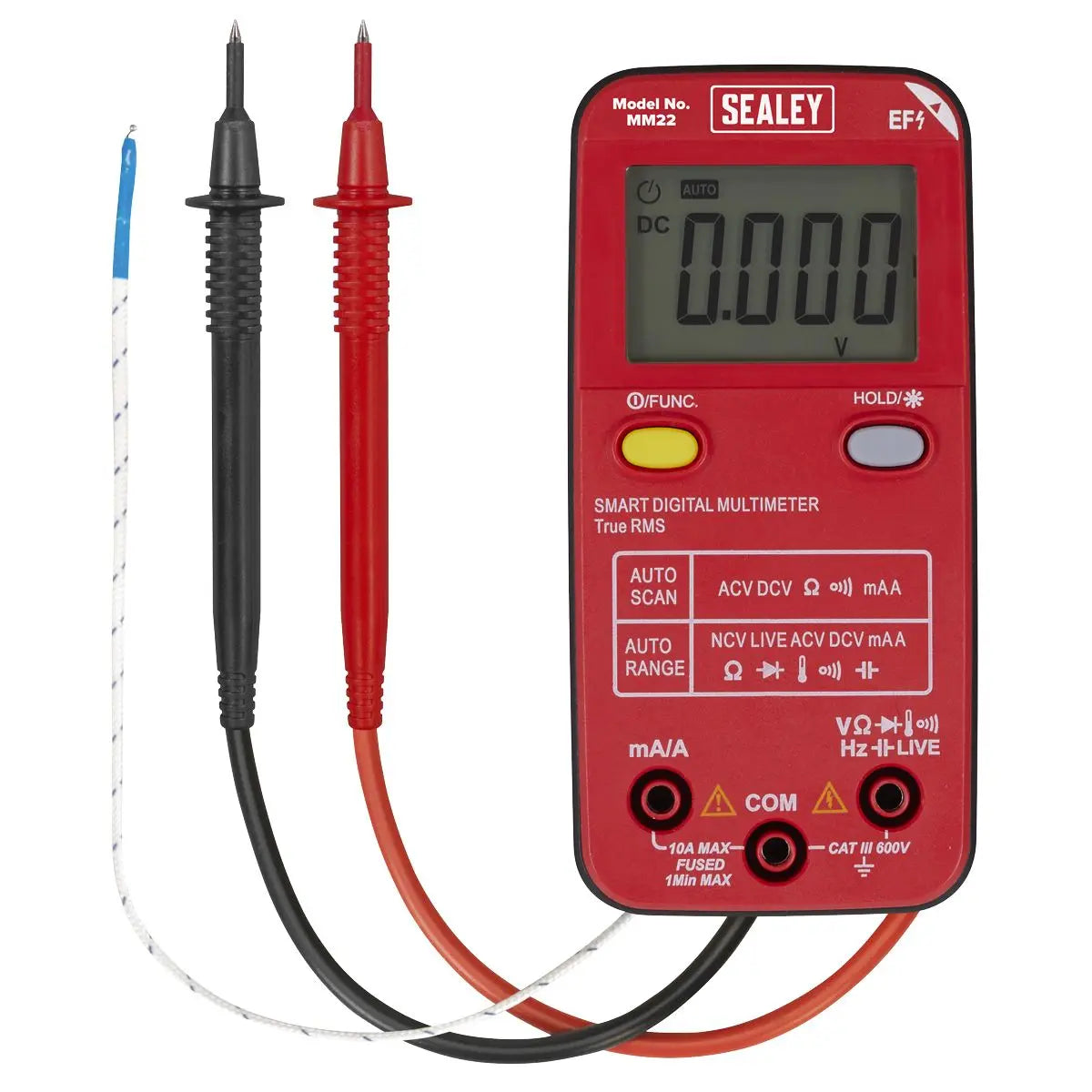

COMPREHENSIVE ACCESSORIES - Supplied with probes, including a thermocouple probe, and integral upright stand for use on the workbench.

LCD DISPLAY – Clear and easy-to-read.

Specification:

• Model No MM22
• Brand: Sealey
• Nett Weight: 0.20kg
• AC Voltage (Accuracy): 400mV/4V/40V/400V/600V
• DC Voltage (Accuracy): 400mV/4V/40V/400V/600V
• AC Current (Accuracy): 4000mA/10.00A
• DC Current (Accuracy): 4000mA/10.00A
• Resistance (Accuracy): 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
• Auto Range: ACV/DCV/Resistance/Continuity/Diode/Temperture/Capacitance/NCV/LIVE/mA/A
• Auto Scan: V/R/CONT/A
({IF["Temperature (Accuracy): -200°C to 1200°C -328°F to 2192°F"!=""]})
• Temperature (Accuracy): -200°C to 1200°C -328°F to 2192°F
({ENDIF})
• Frequency (Accuracy): Yes
• Duty Cycle: No
• Continuity: Yes
• Diode Test: Yes
• Backlit/Tourch Yes
• Transistor Test: No
• Hi-Impact Rubber Case: No
• Digits x Height: 4 x 16mm
• Low Battery Indicator: Yes
• Battery (Supplied): 2 x 1.5V (AAA)
• Information: Data-Hold, Auto-Power-Off, Integral Stand & Live Test.
• Size (L x W x D): 130 x 62 x 26mm
• Weight: 0.138kg
• Conformity: EN 61010-1

Product Guarantee: 1 Year
Catalogue Page: Page 410

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
