Description

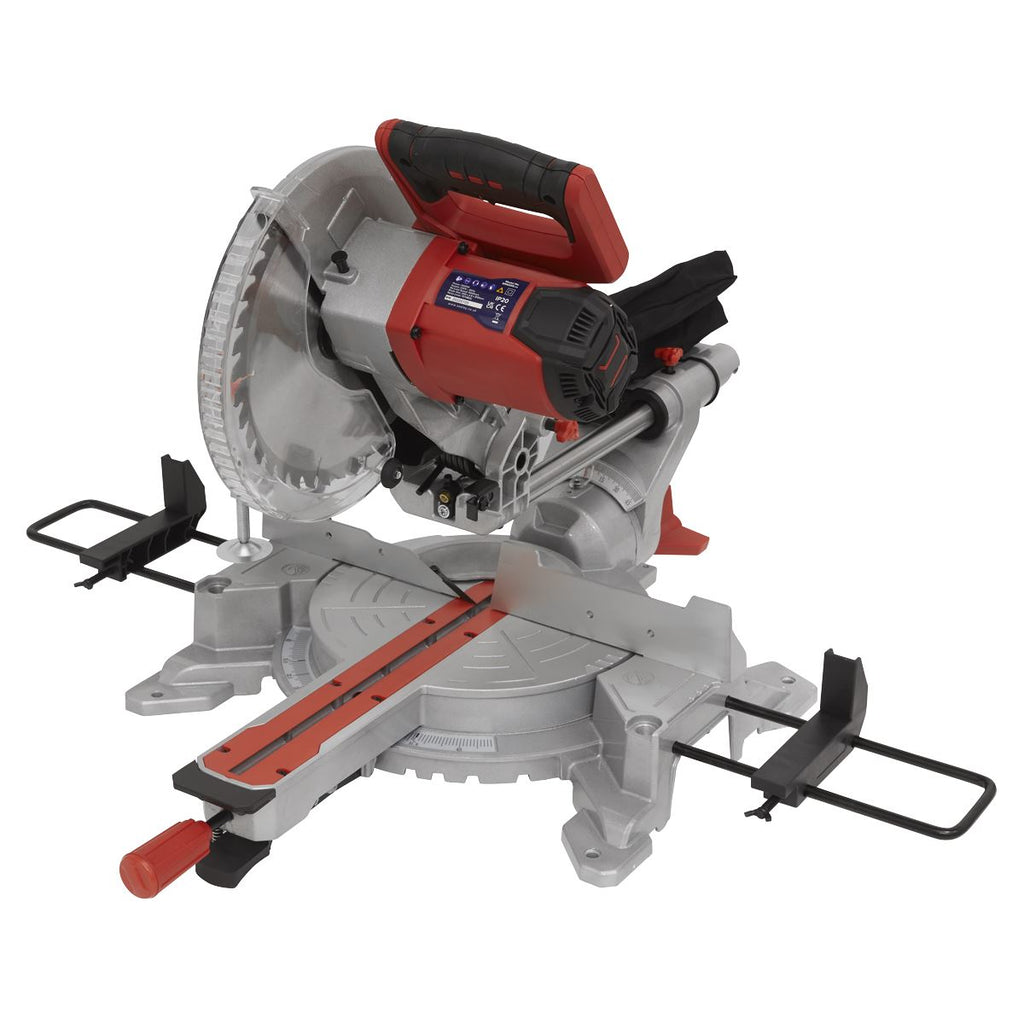

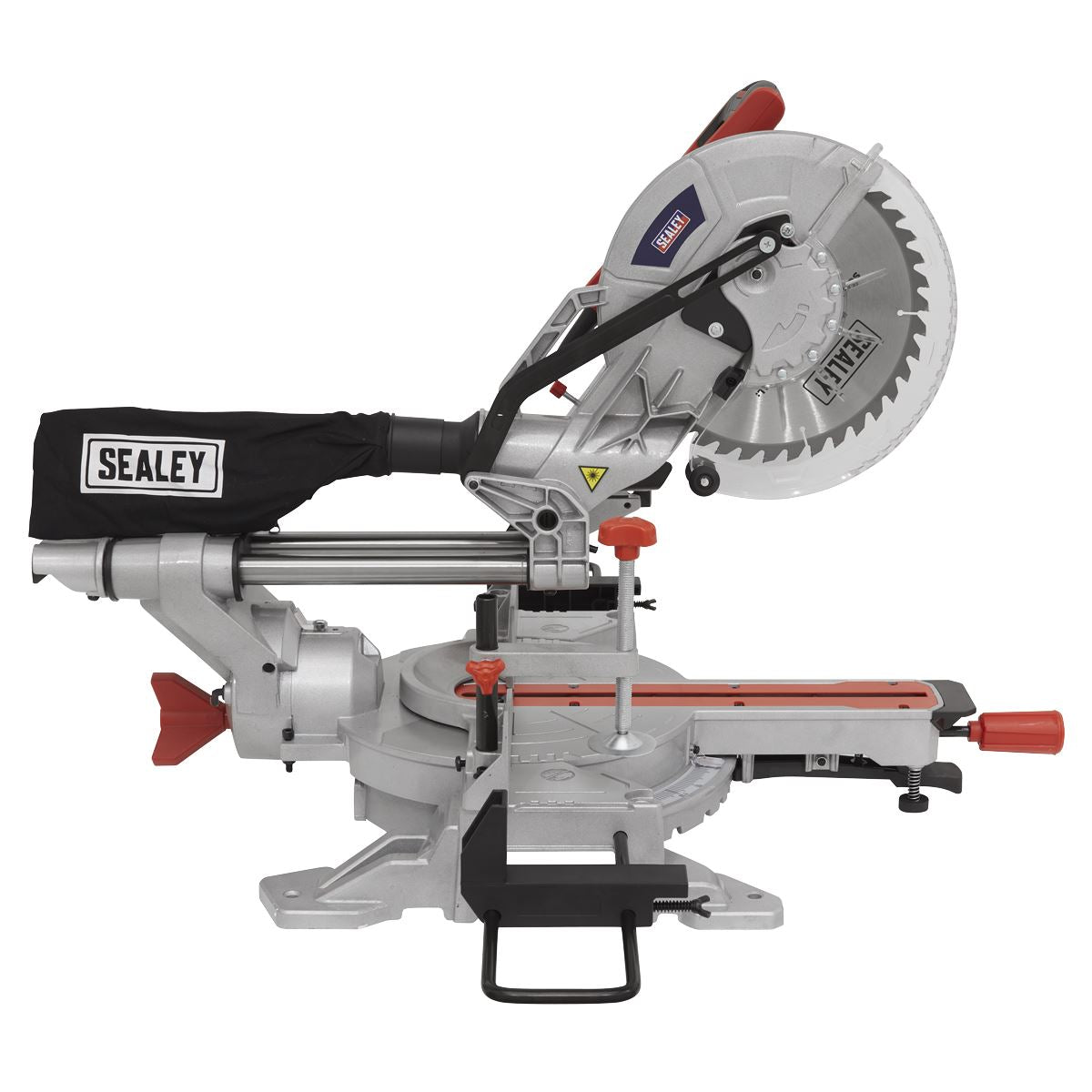

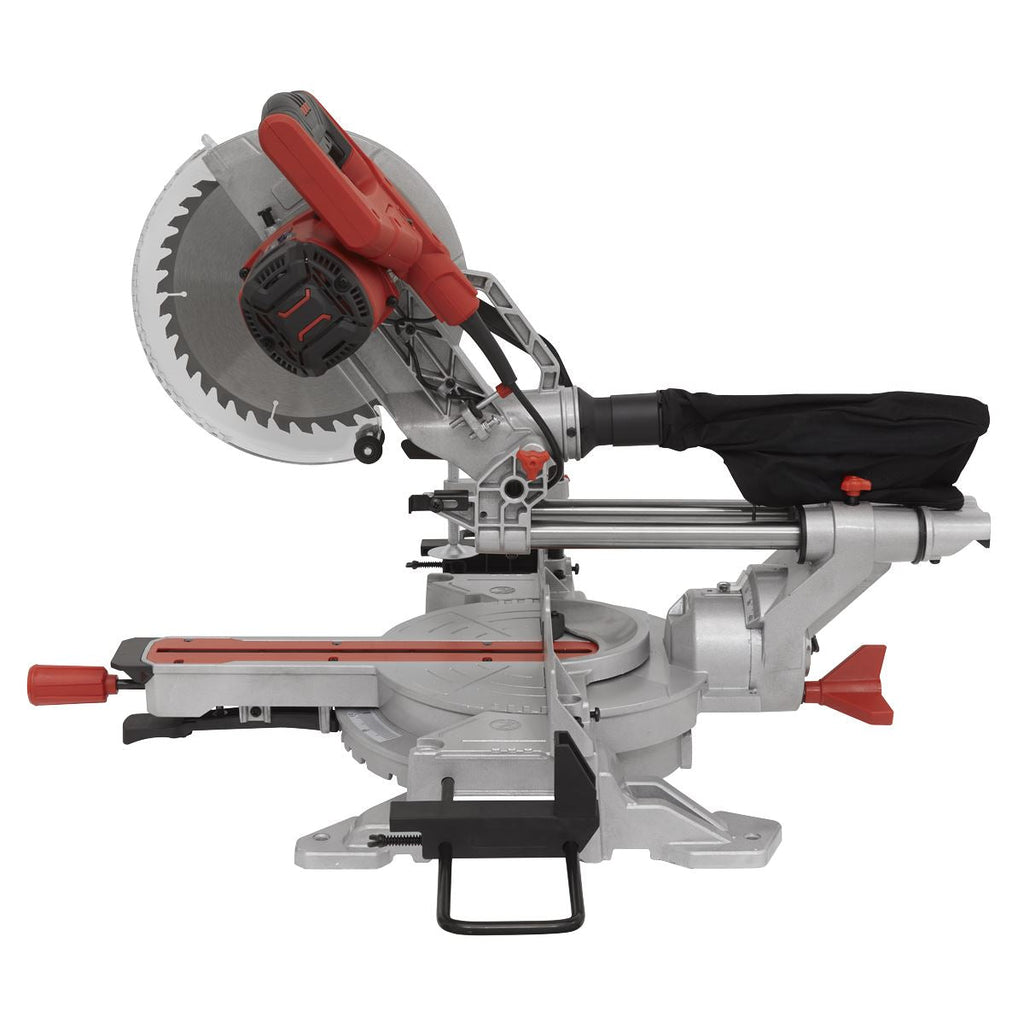

Sealey Sliding Compound Mitre Saw Ø255mm
Powerful 2000W motor.
Fitted with a 40-tooth TCT blade for fresh wood.
Can be fitted with Model No. SMS255B multipurpose blade for use with mild steel, aluminium and wood with nails.
Features slides which can be locked at different lengths allowing greater control over the desired length of cut.
Max. cut of up to 315mm at 0° bevel.

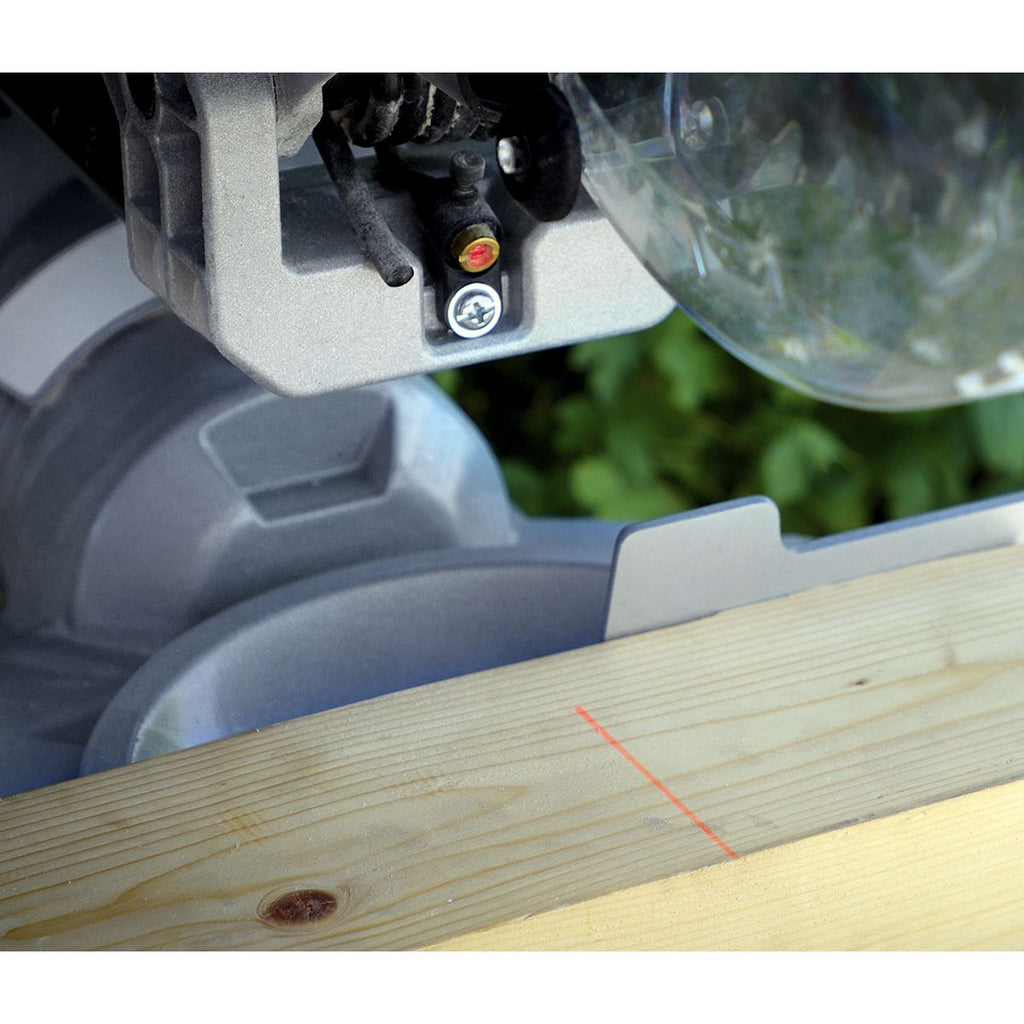

Unit is also fitted with a laser guide to help produce accurate cuts.

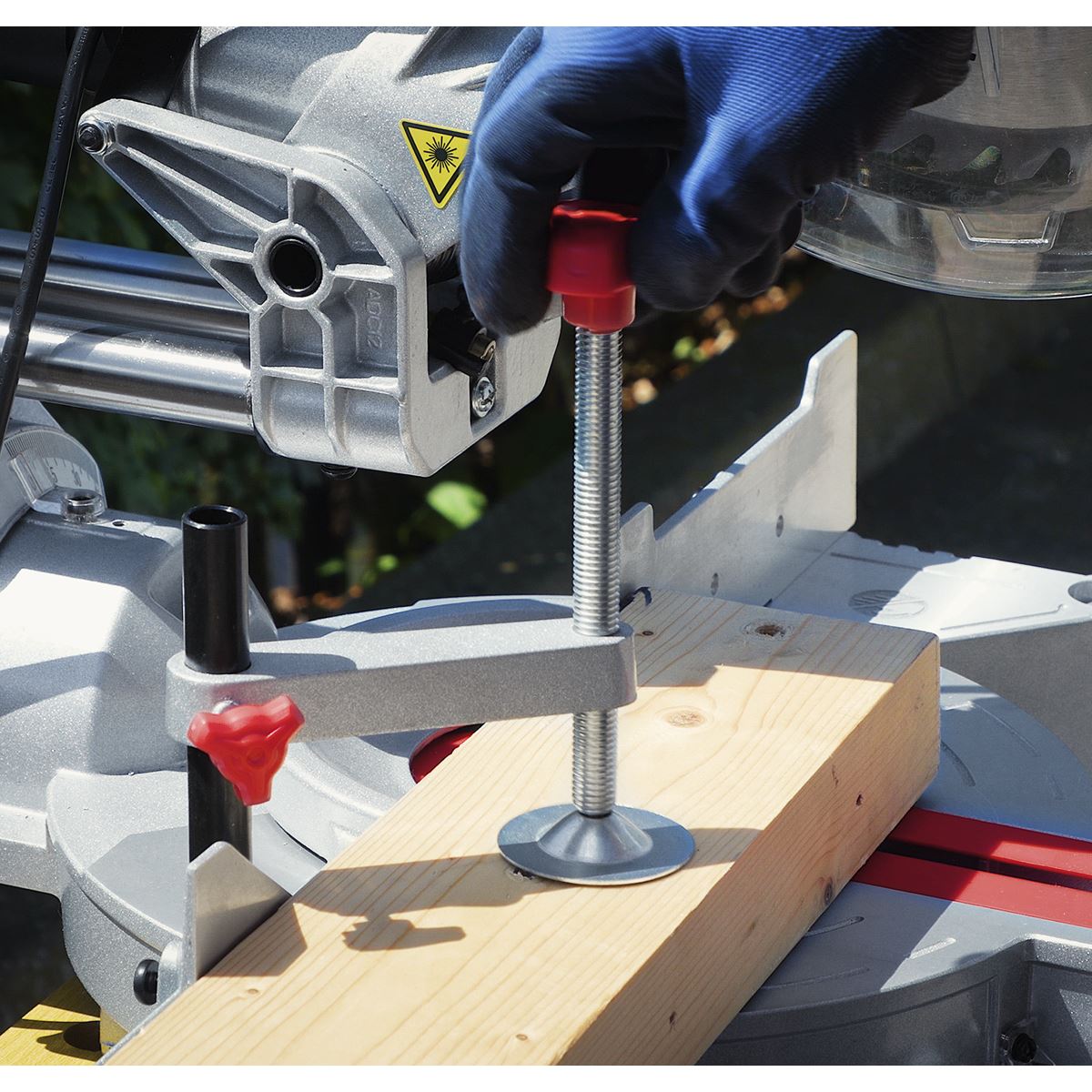

Supplied with workpiece clamp, dust extraction bag, two extension rails and fitted with carry handle.

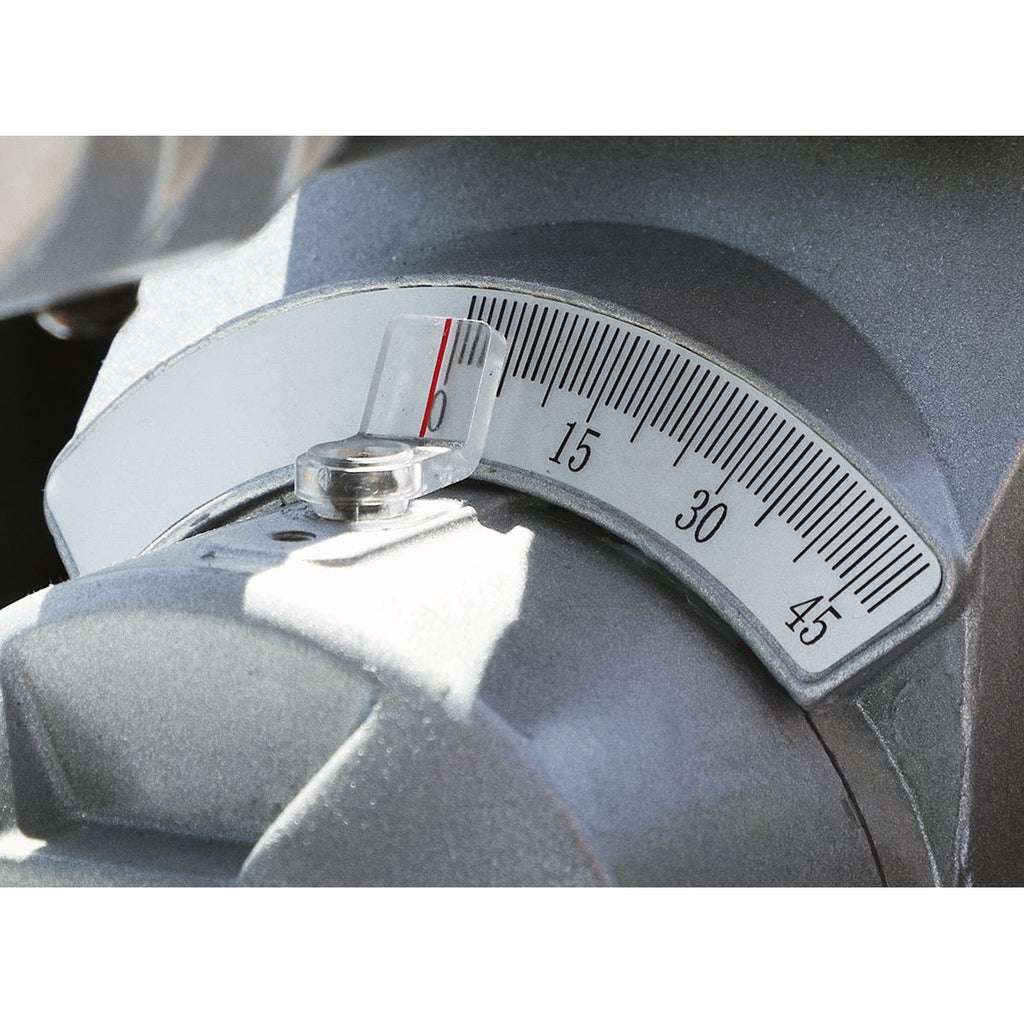

Features locking increments at mitre stops 0°,15°, 22.5°, 31.6°, 45° left and right.
Cross Cut (0° Bevel x 0° Table): 90 x 315mm.
Mitre Cut (0° Bevel x 45° Table): 90 x 215mm.
Bevel Cut (45° Bevel x 0° Table): 40 x 215mm.
Specification:
- Model No SMS255
- Blade Size(s): 255 x 2.8 x Ø30mm
- Blade Speed(s): Max Speed 7000rpm
- Brand: Sealey
- Cross Cut (0° Bevel x 0° Table): 90 x 315mm
- Mitre Cut (0° Bevel x 45° Table): 90 x 215mm
- Bevel Cut (45° Bevel x 0° Table): 40 x 215mm
- Consumable Parts: SMS255B - Multipurpose Cut-Off Saw Blade Ø250 x 2.4mm/Ø30mm 60tpu
- Dust Extraction Port: ID Ø35mm/OD Ø43mm
- Motor Power: 2000W
- Nett Weight: 16.4kg
- No-Load Speed: 5000rpm
- Positive Mitre Lock: 0°,15°, 22.5°, 31.6°, 45° Left and Right
- Supply: 230V
Catalogue Page: Page 1237
