Description

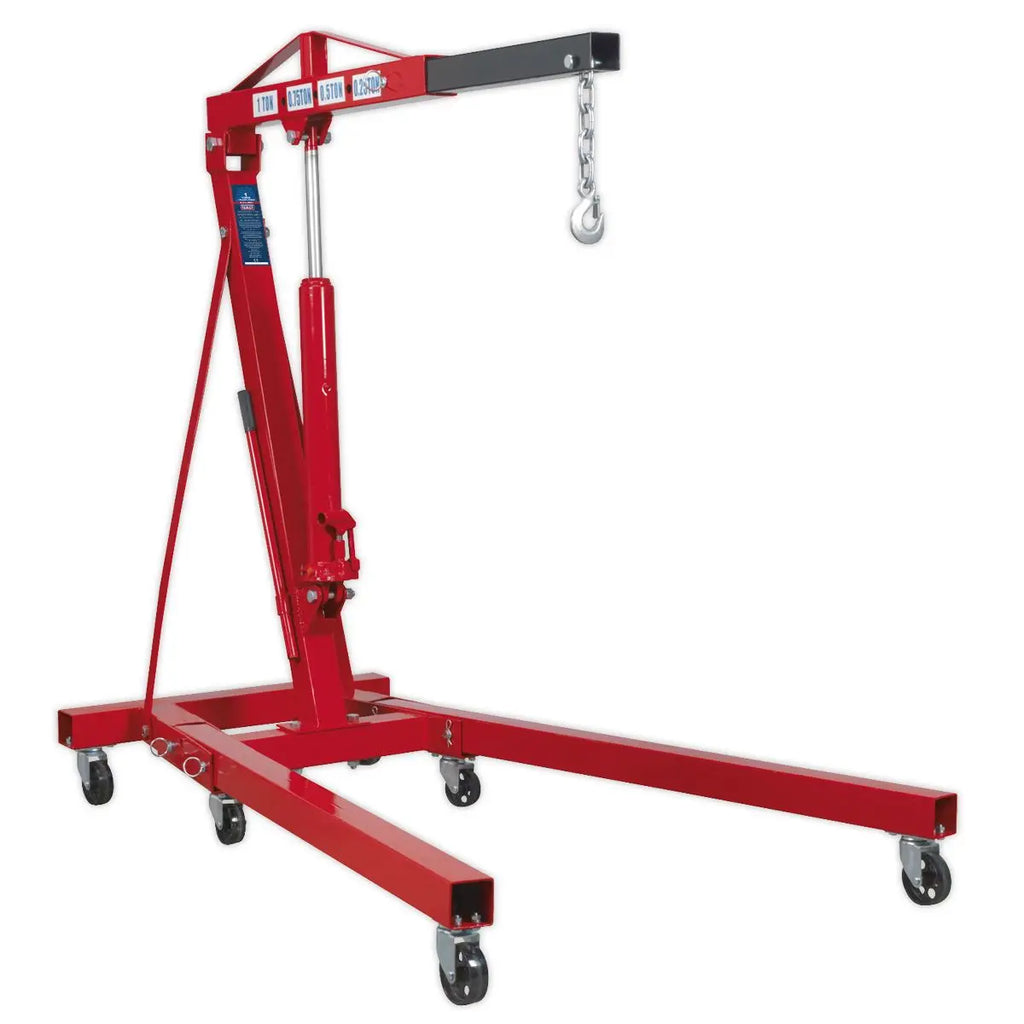

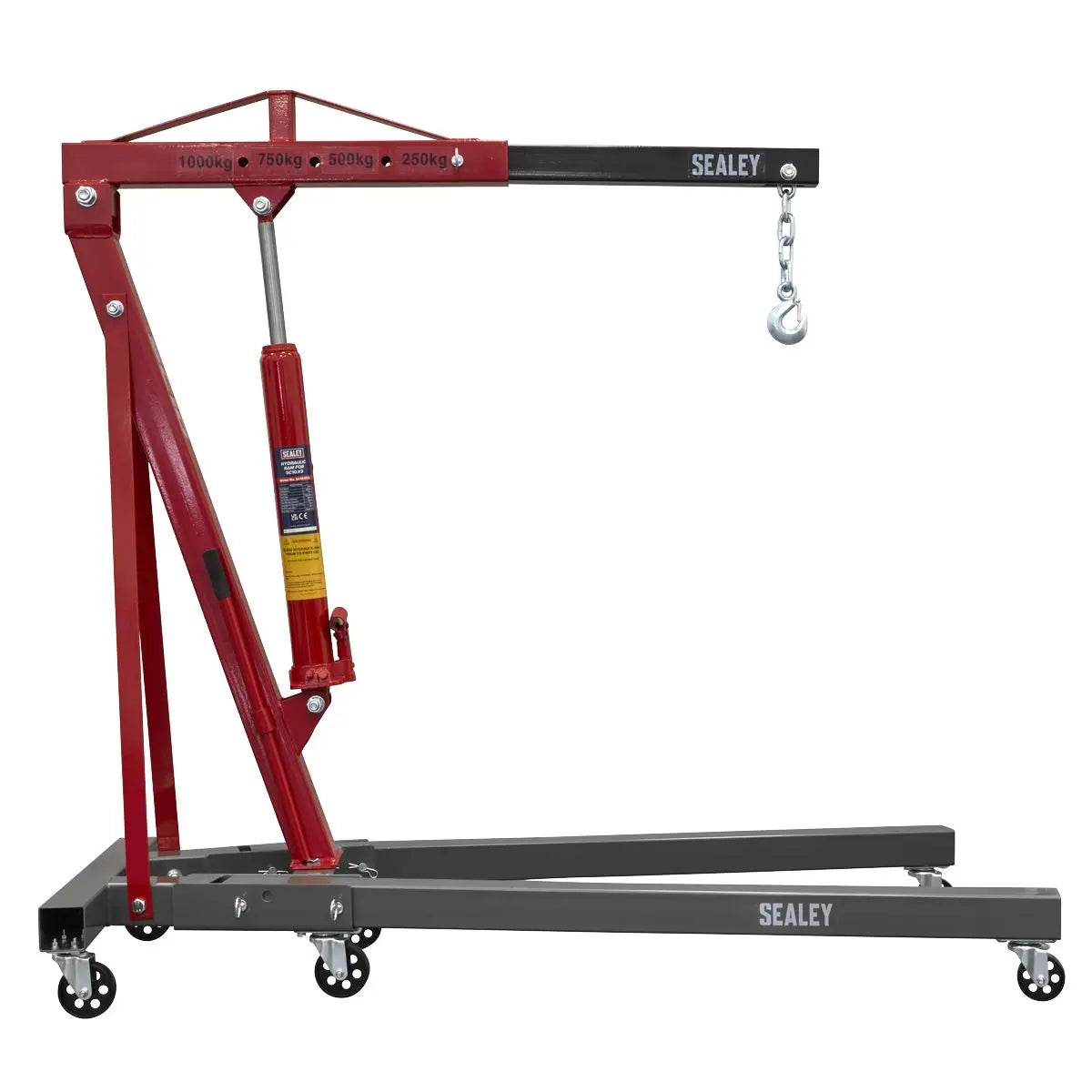

Sealey KD' Type Folding Crane 1 Tonne

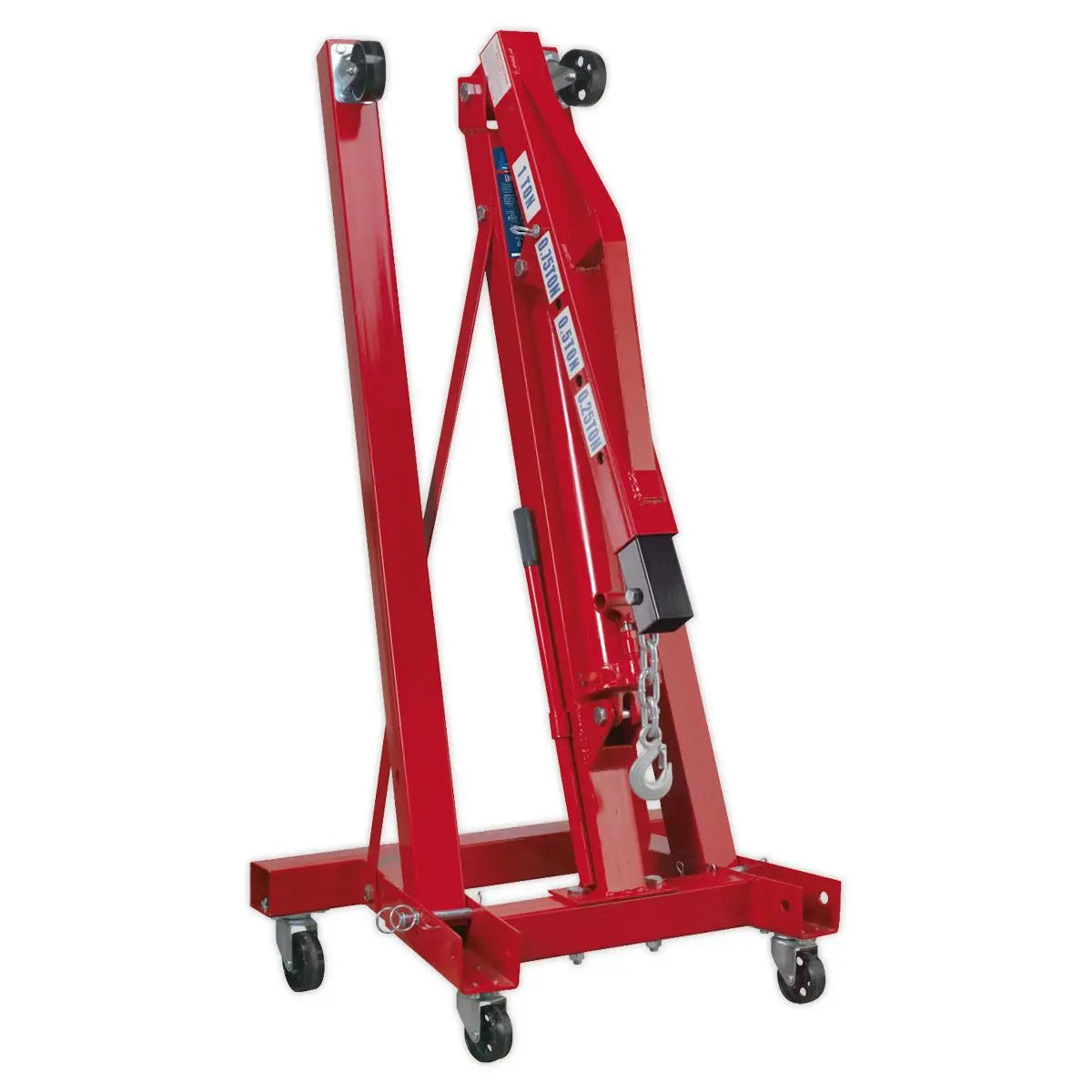

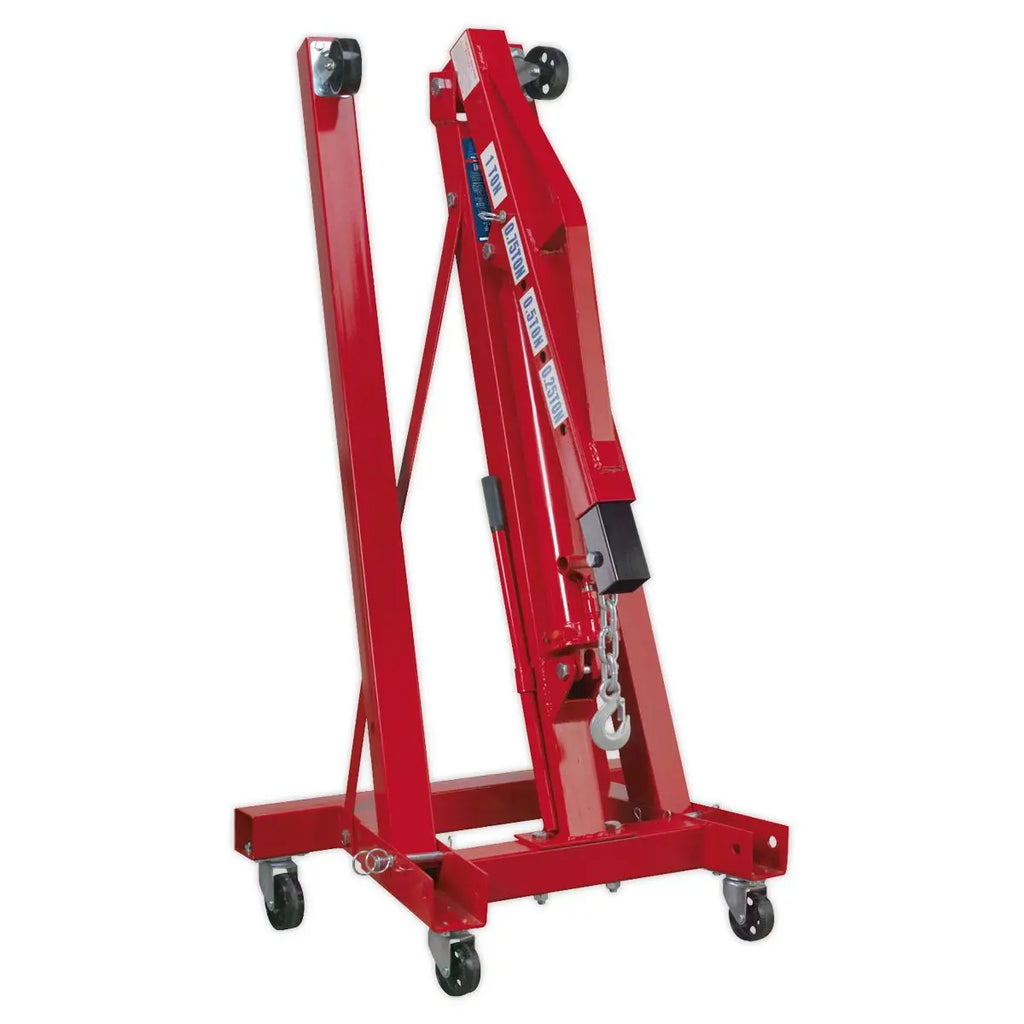

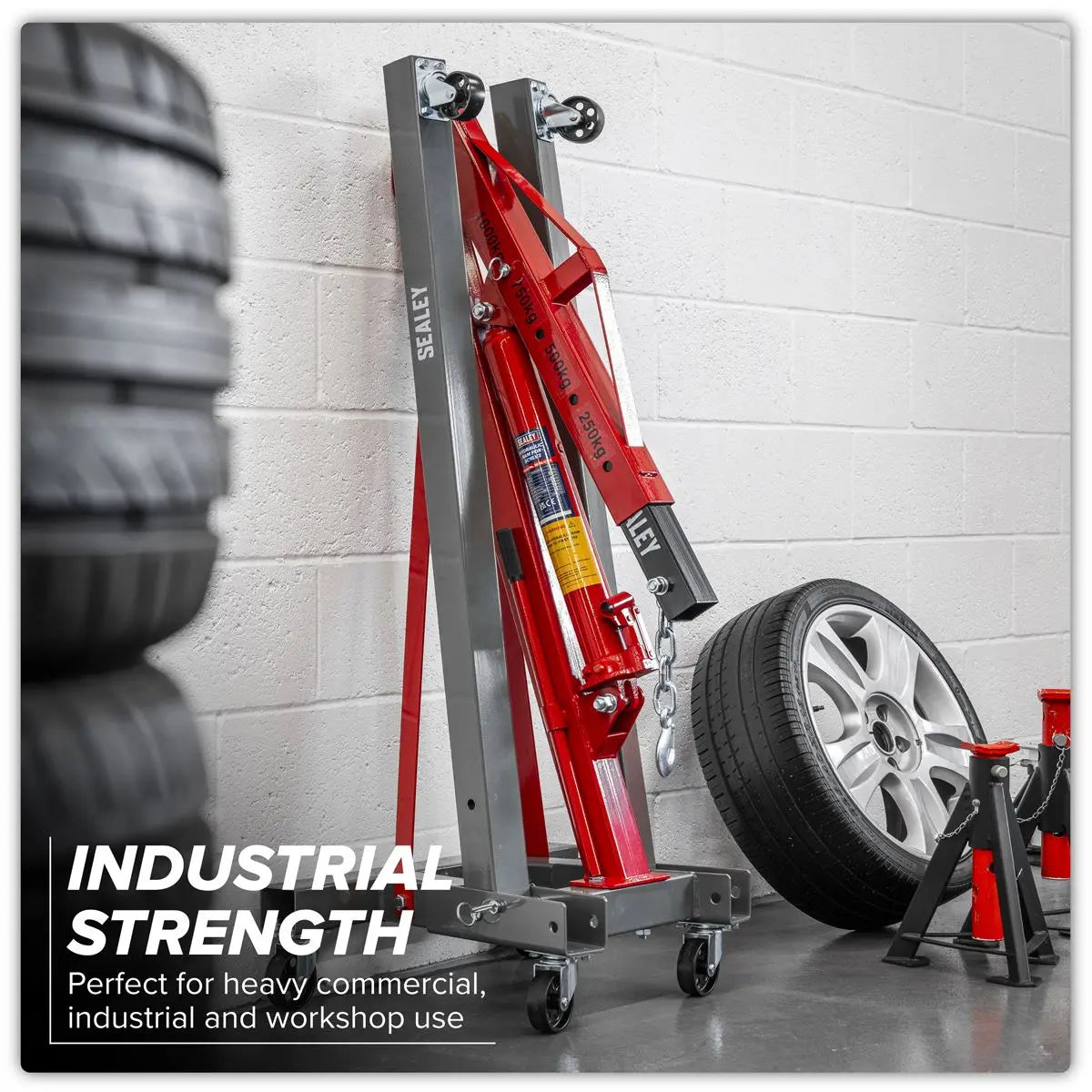

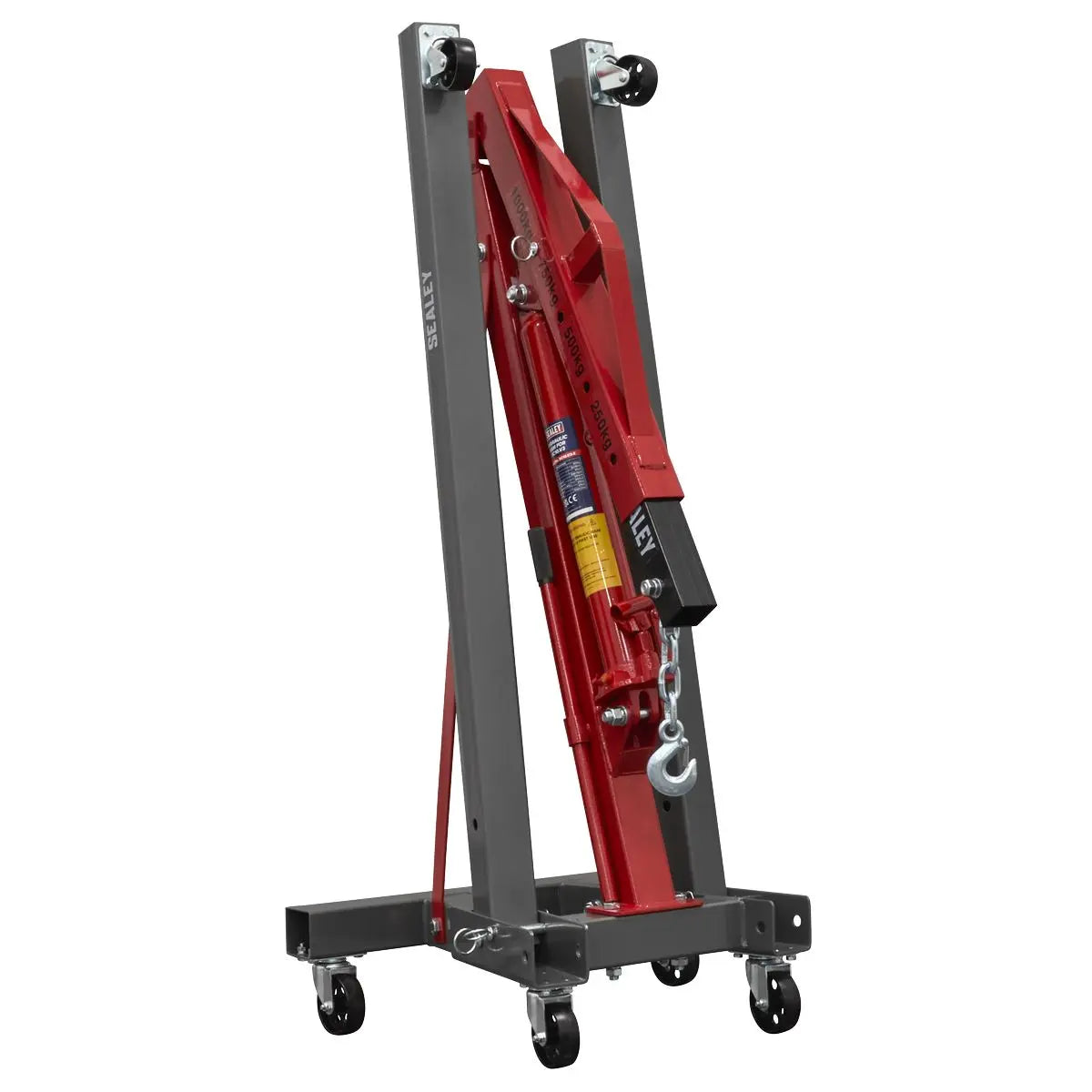

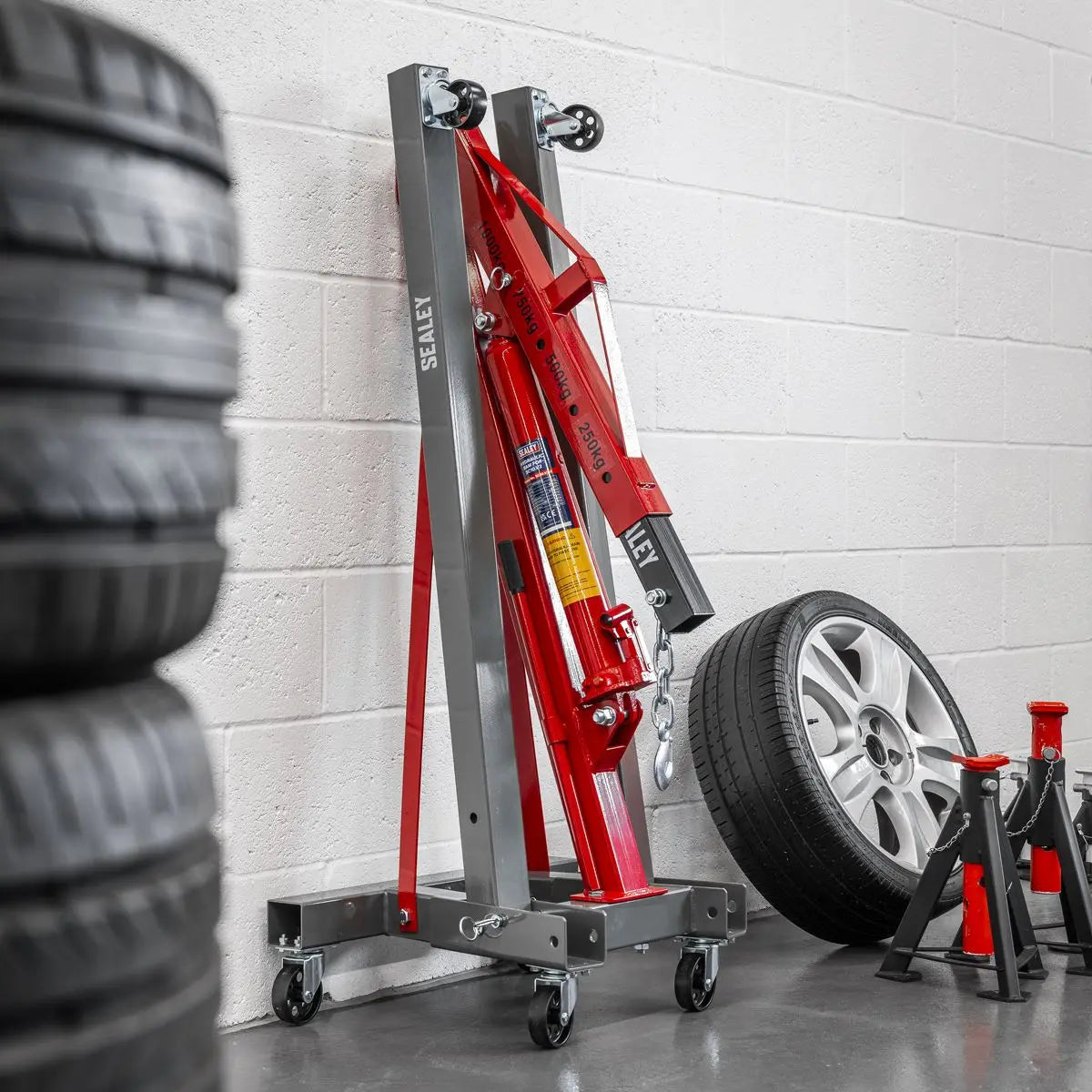

SPACE SAVING - Folds for easy storage, freeing valuable workshop space when not in use.
EASY MANOEUVRABILITY - Six heavy-duty castor wheels.

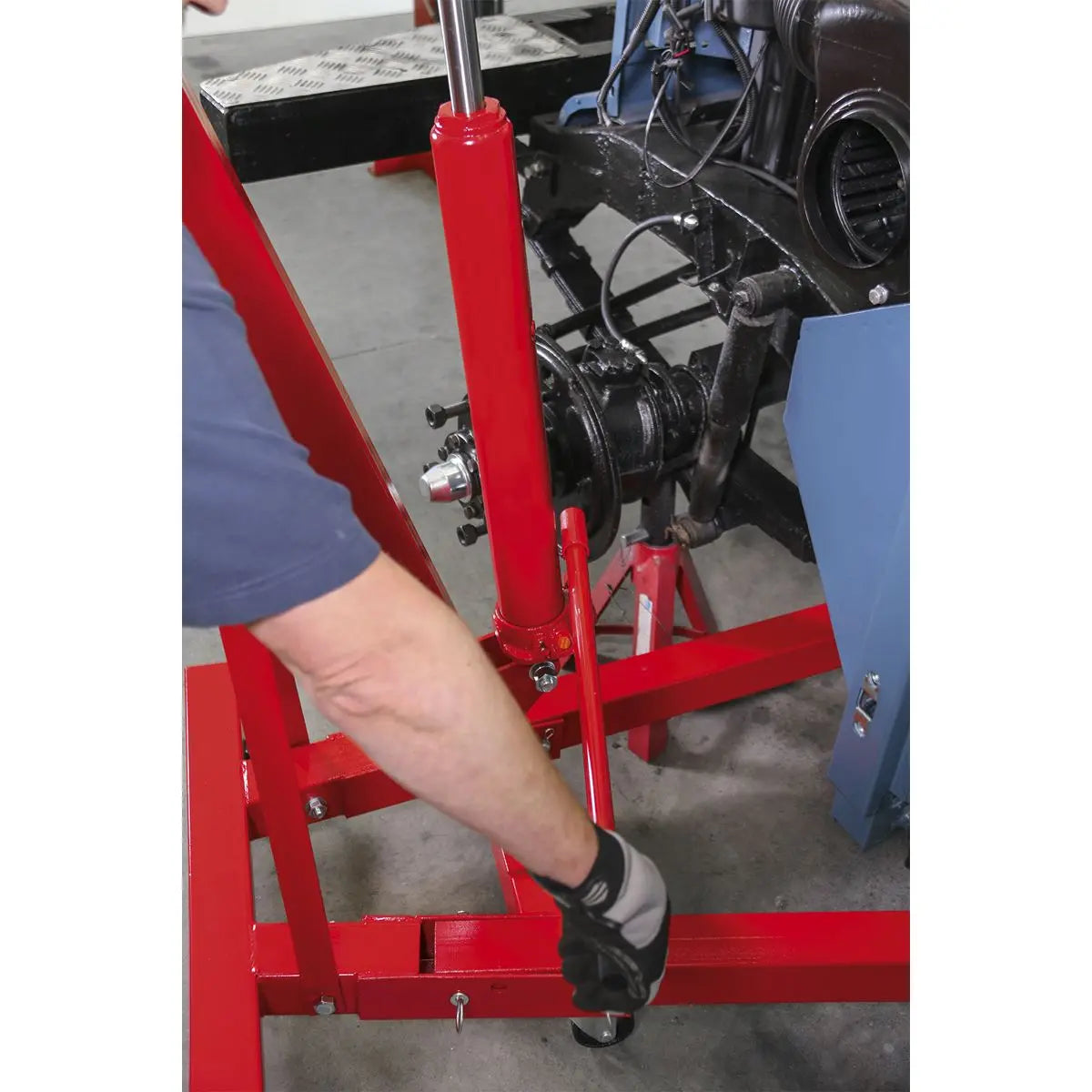

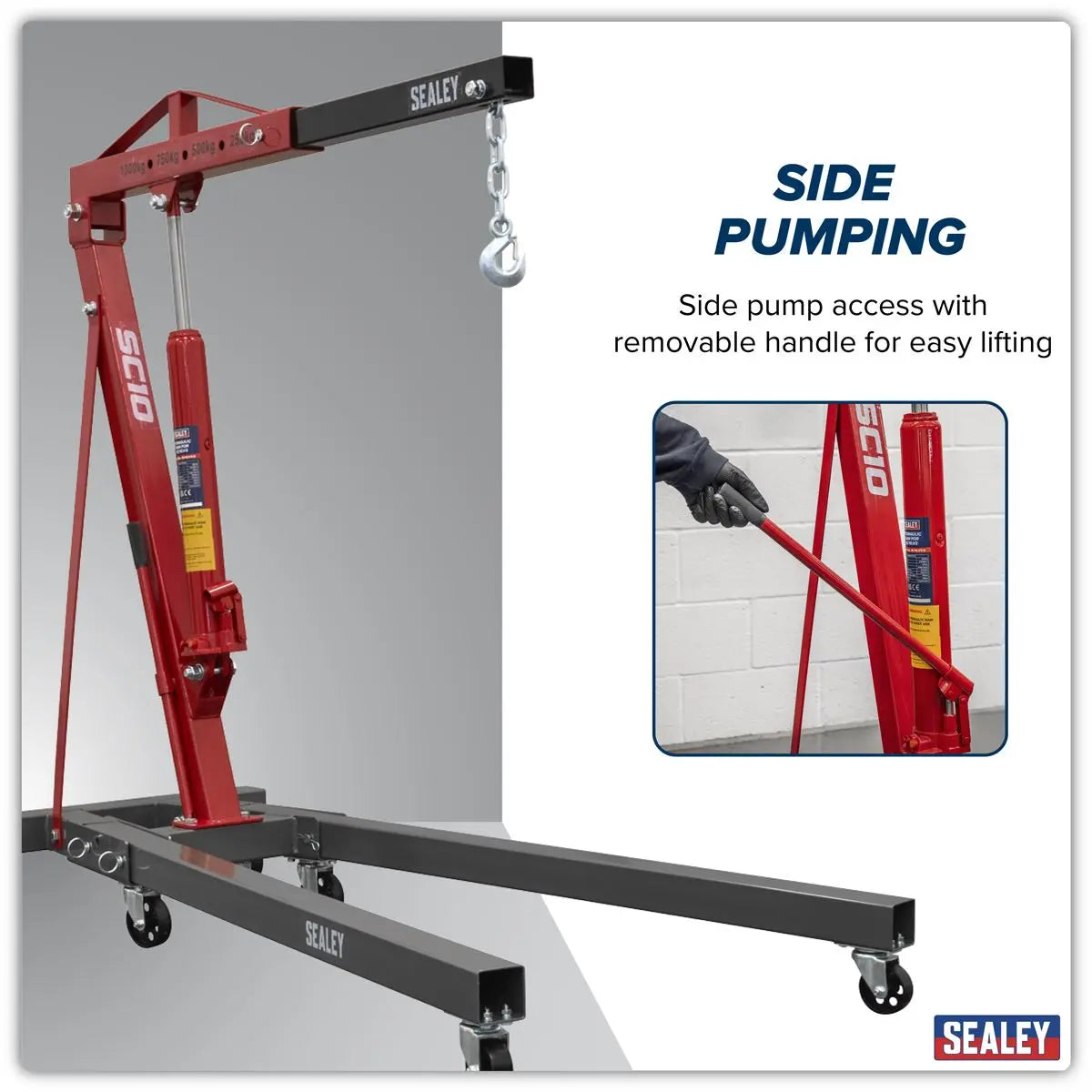

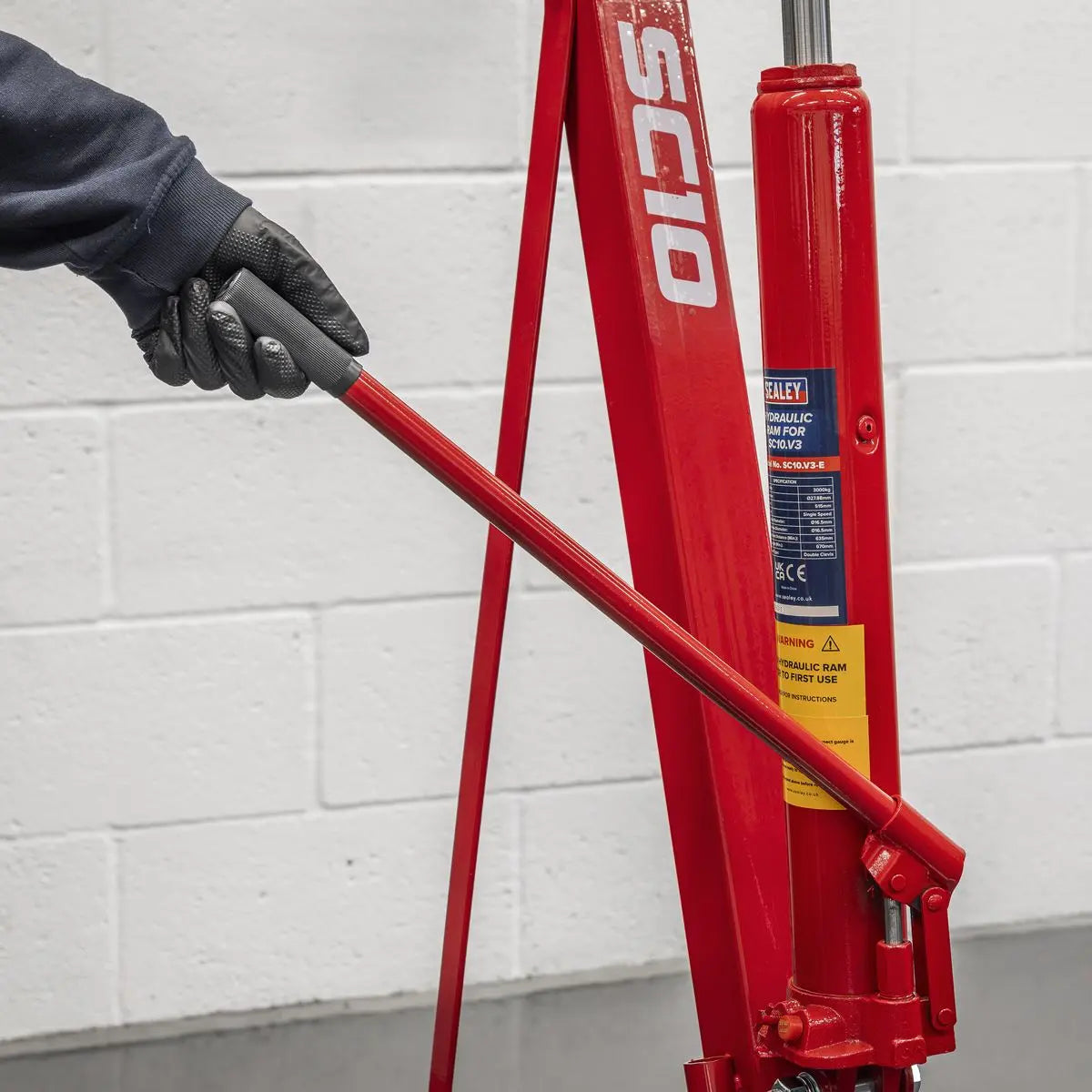

SIMPLE ACCESS - Pump access from the side for safe handling of heavy loads.
Delivered in knock-down form for reduced freight cost.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
- Model No SC10
- Brand: Sealey
- Height Jib Down: 1405mm
- Height Legs Folded: 1440mm
- Height of Frame: 185mm

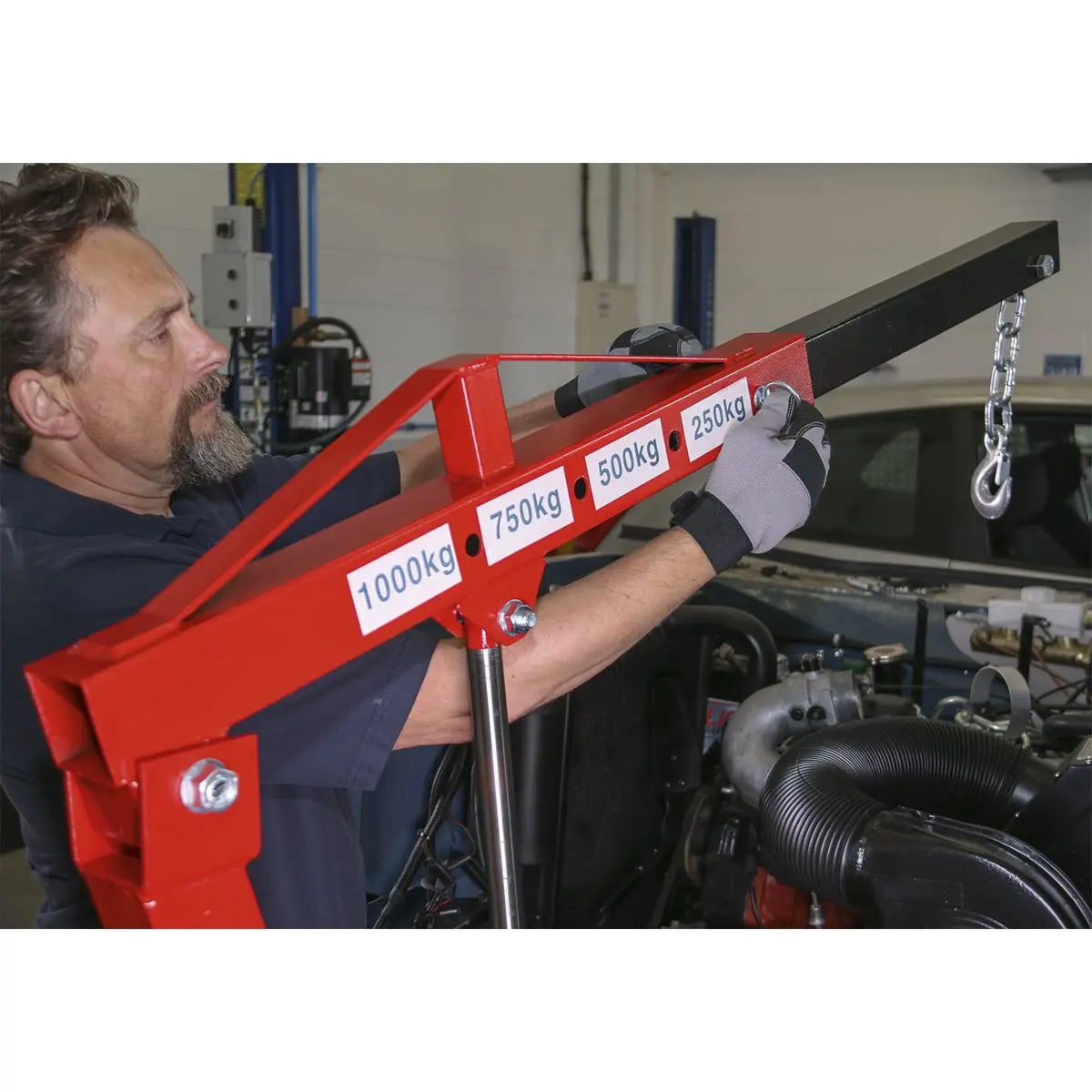

- Length of Jib Position 1: 830mm
- Length of Jib Position 2: 950mm
- Length of Jib Position 3: 1070mm
- Length of Jib Position 4: 1190mm
- Length of Jib Position 5: N/A
- Length: 1620mm

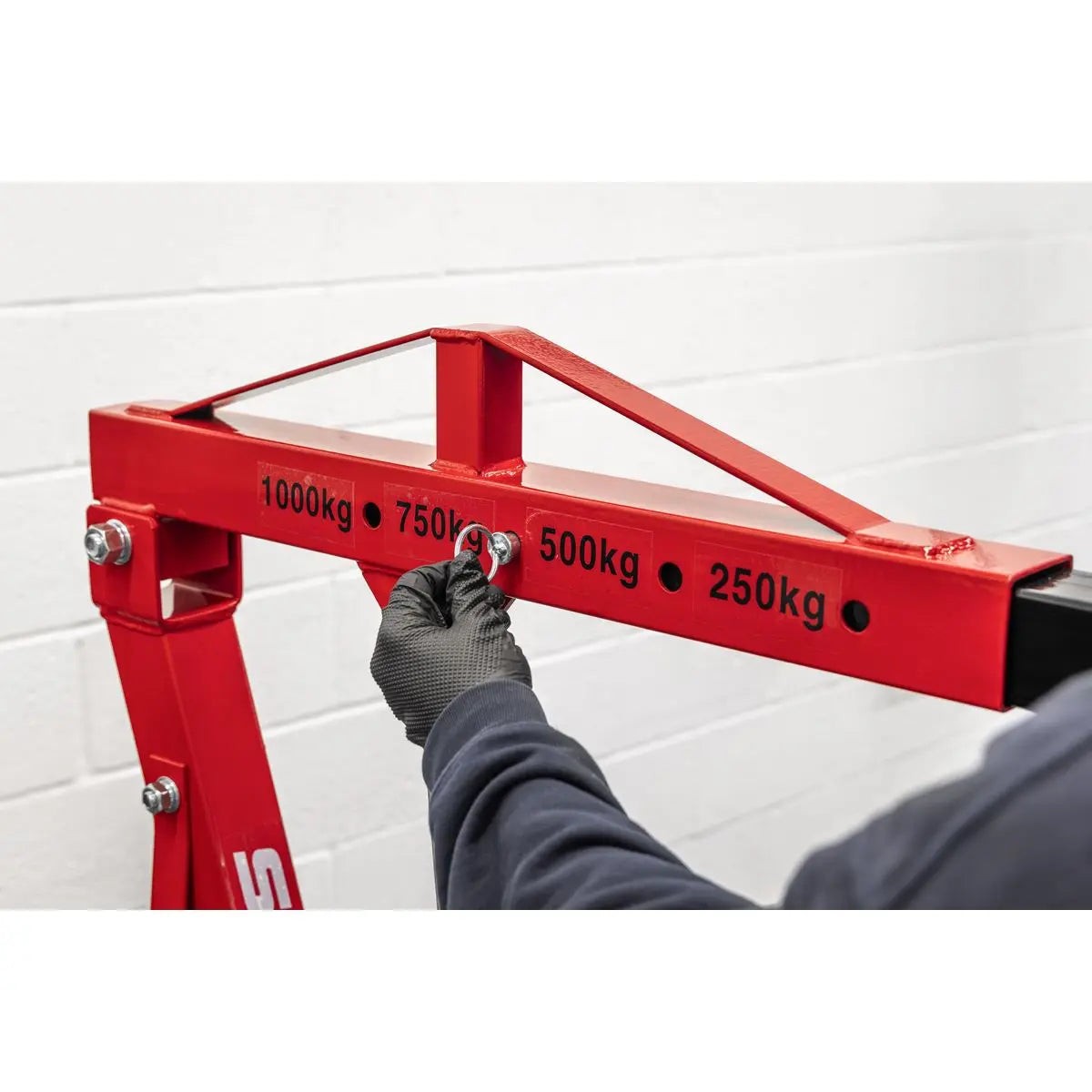

- Lifting Capacity in Position 1: 1000kg
- Lifting Capacity in Position 2: 750kg
- Lifting Capacity in Position 3: 500kg
- Lifting Capacity in Position 4: 250kg
- Lifting Capacity in Position 5: N/A
- Max. Lift Ht at Jib Position 1: 1820mm
- Max. Lift Ht at Jib Position 2: 1935mm
- Max. Lift Ht at Jib Position 3: 2030mm
- Max. Lift Ht at Jib Position 4: 2150mm
- Max. Lift Ht at Jib Position 5: N/A
- Nett Weight: 67kg
- Rear Width: 700mm
- Width Front Frame: 920mm
- Width Inside Front Frame: 780mm
- Width Inside Front Frame: 780mm
Catalogue Page: Page 886
