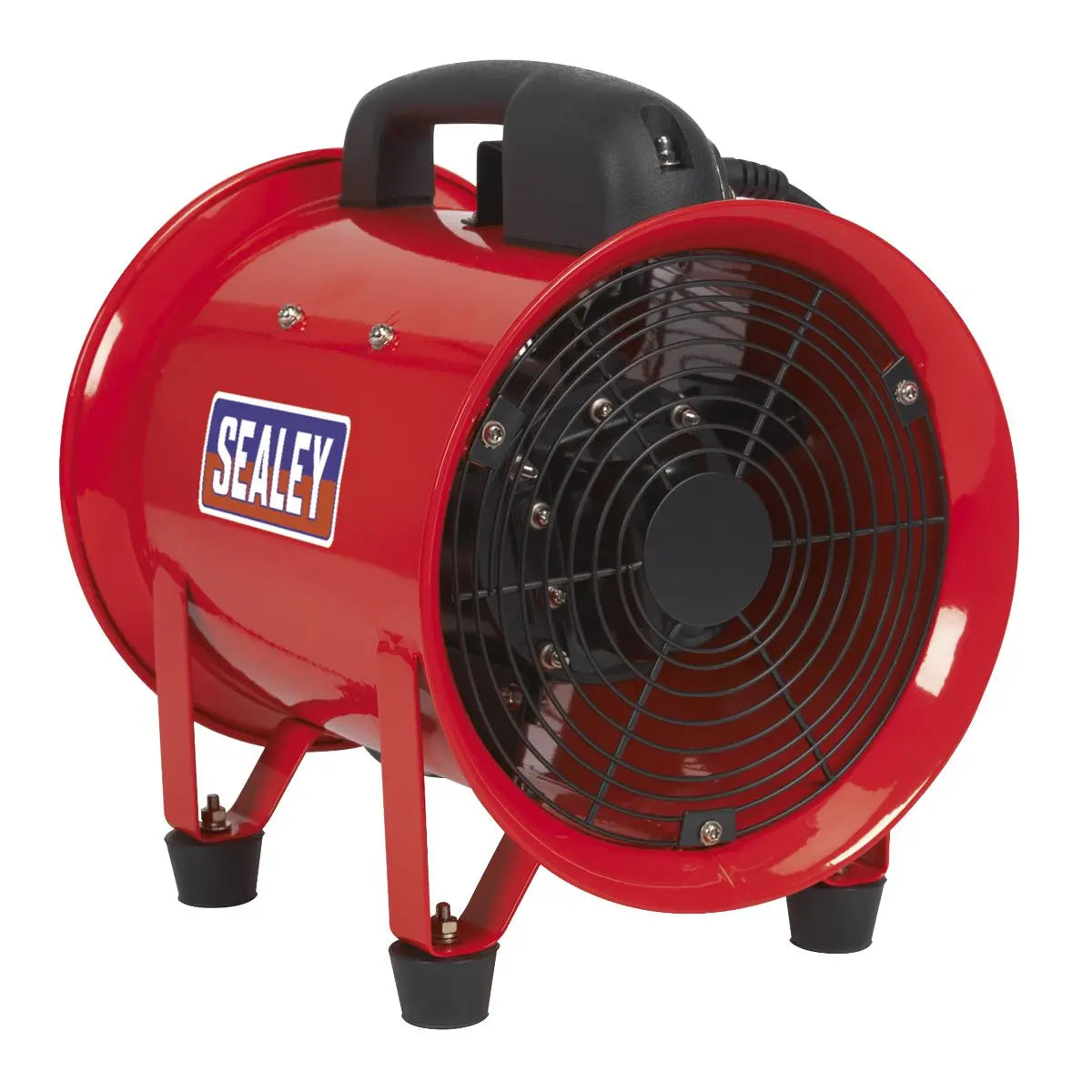

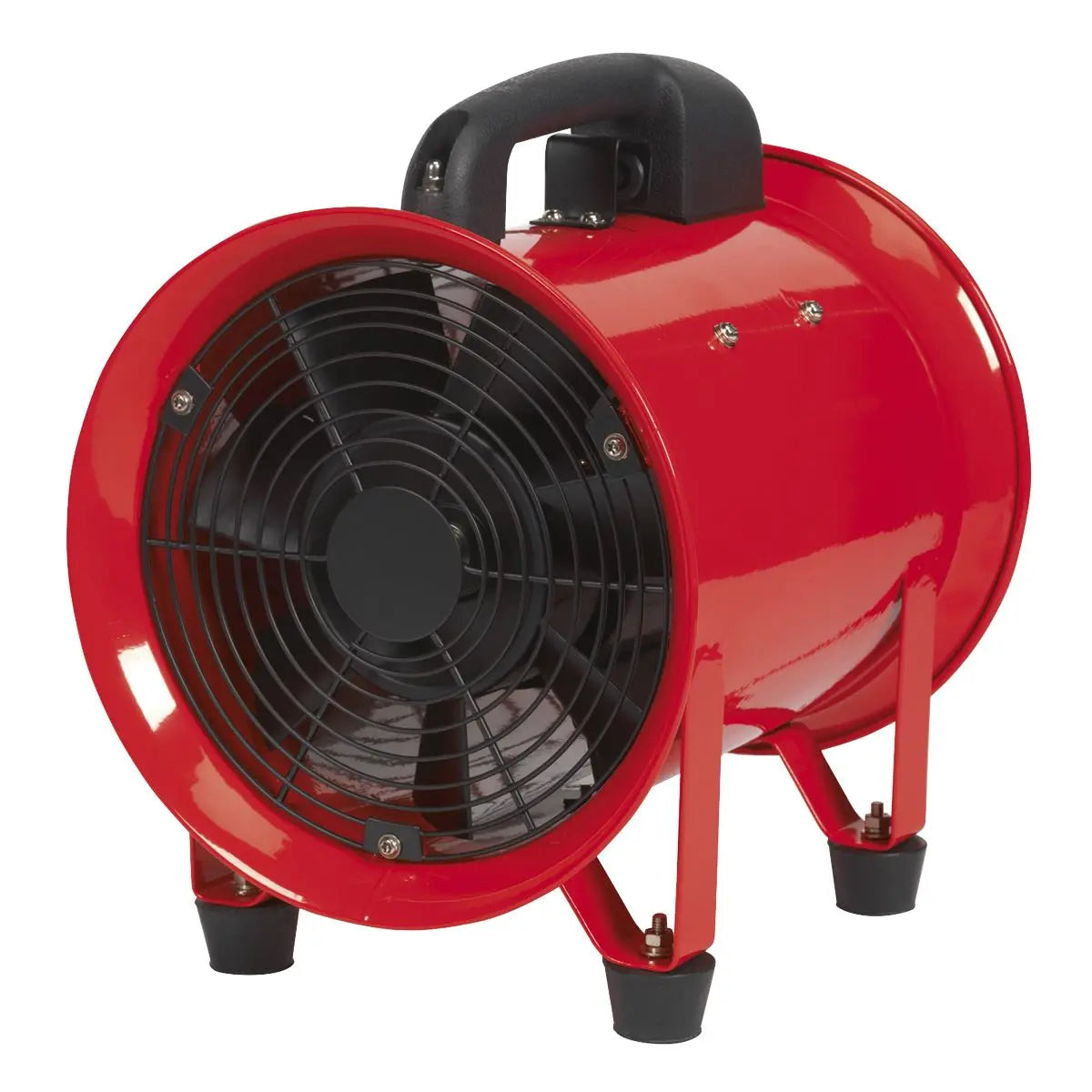

Sealey Portable Ventilator Ø200mm with 5m Ducting

Sealey Portable Ventilator Ø200mm with 5m Ducting

VOLUME VENTILATION - Ideal for use where high volume clean air delivery is required. Airflow: 1233m³/hr(725cfm).

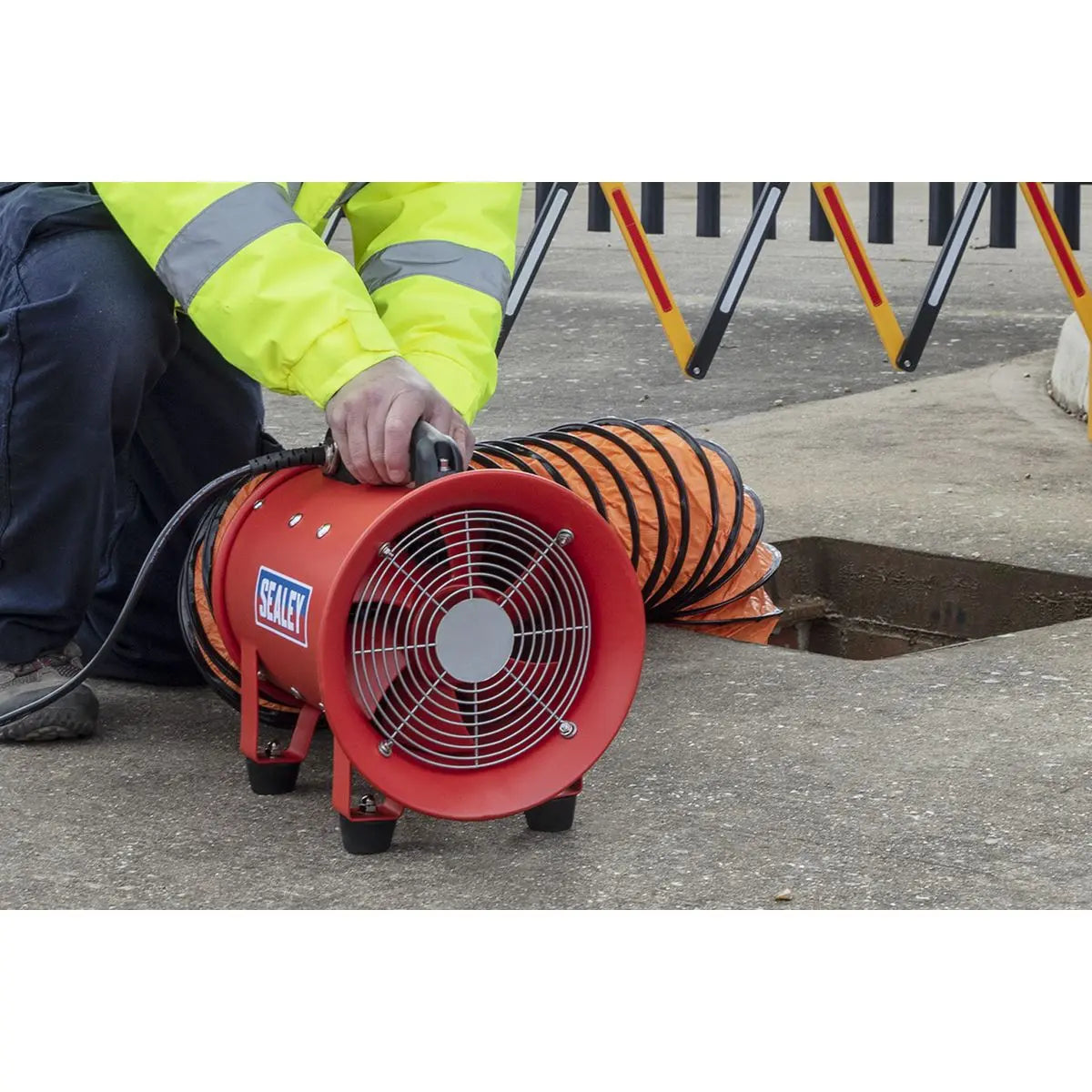

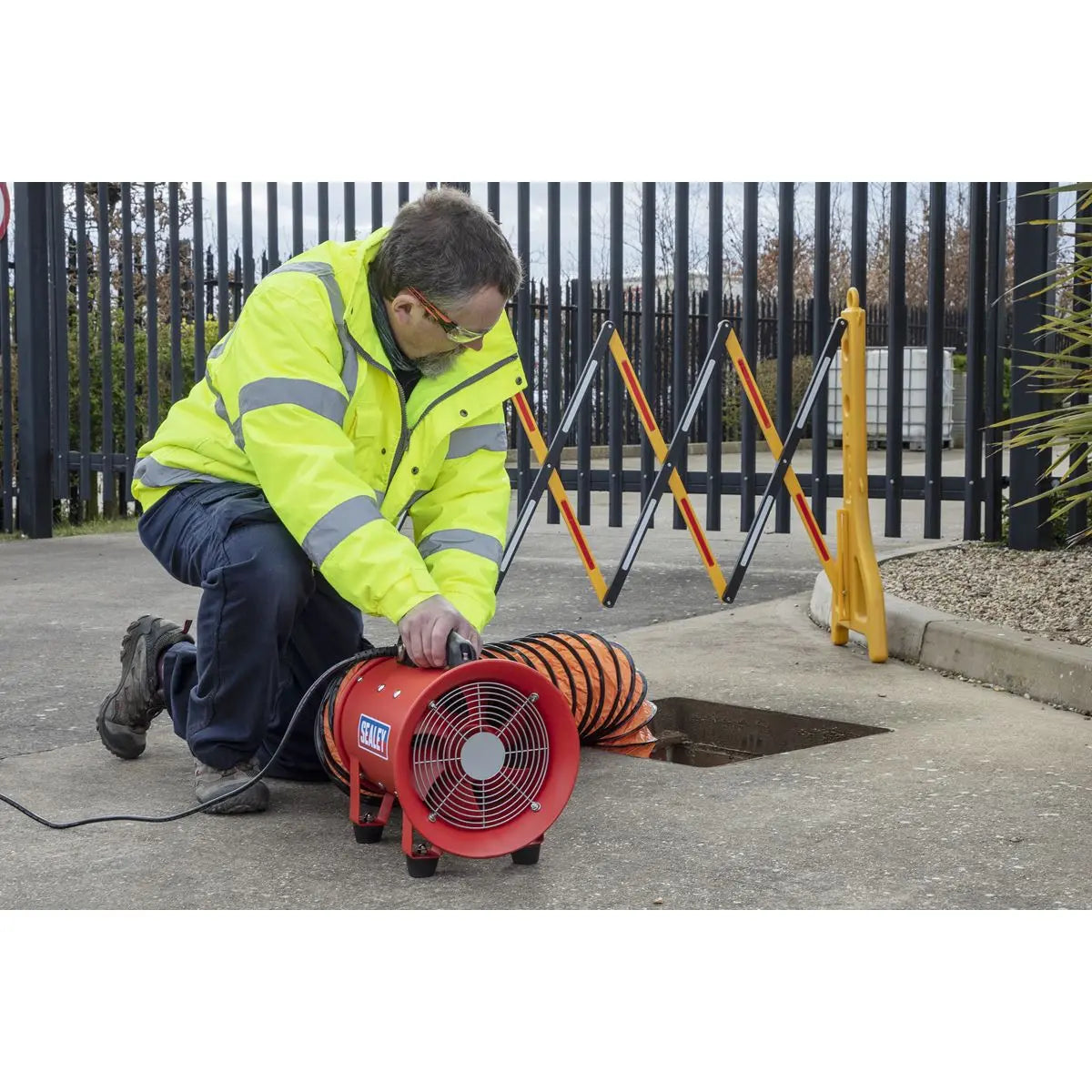

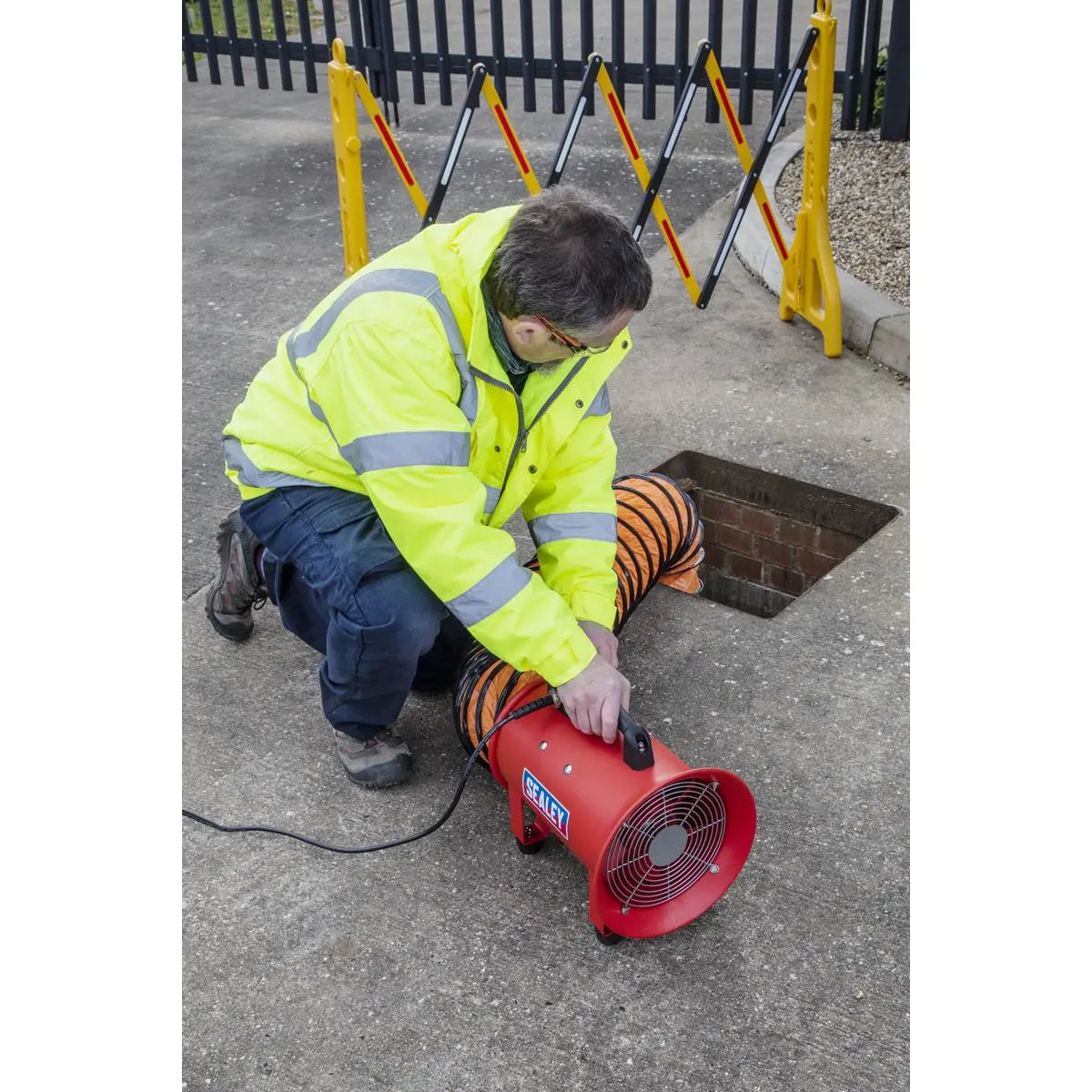

DIVERSE USAGE - Can be used across multiple industries including but not exclusive to: Marine, roof spaces and building sites, cable/pipe ducts and workshops.

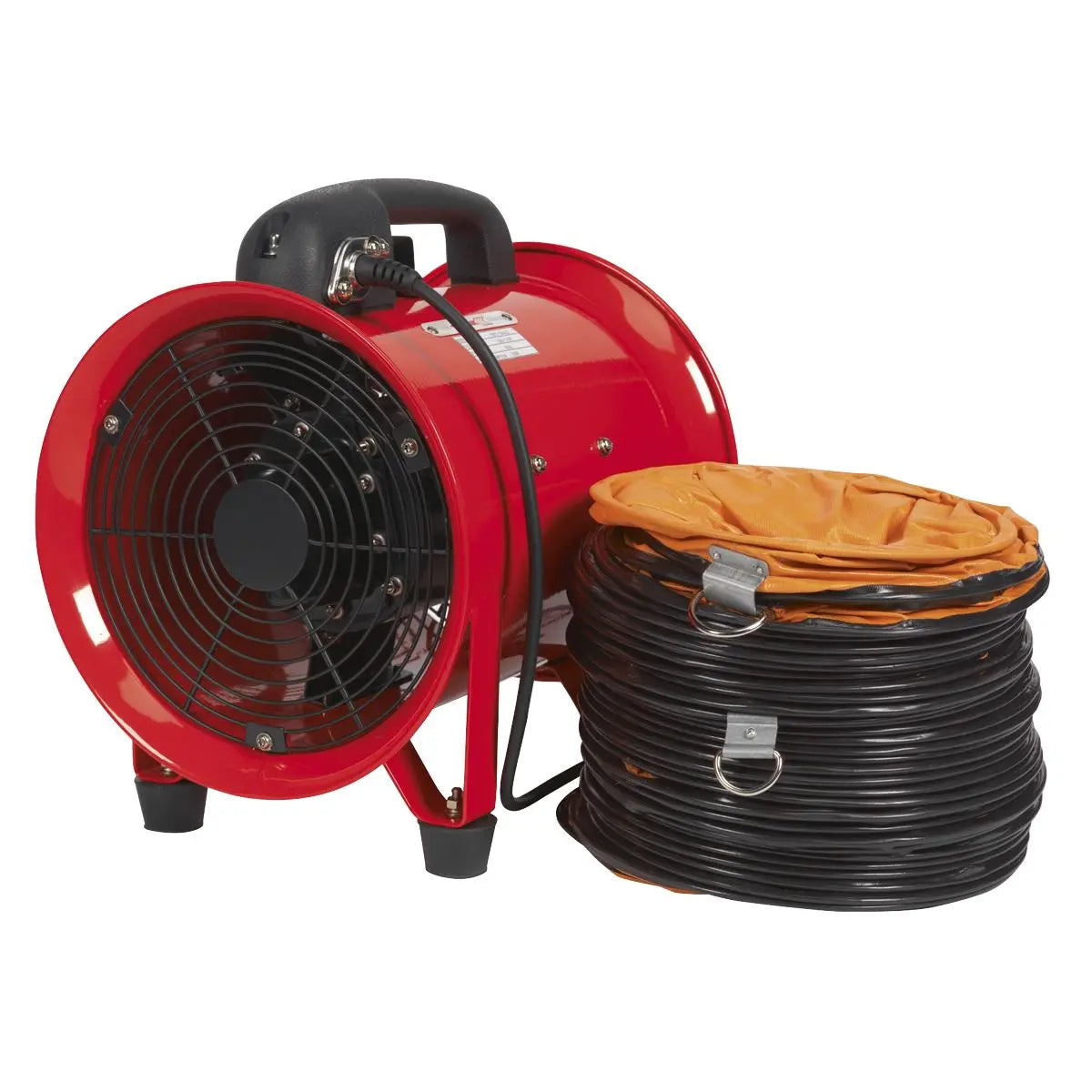

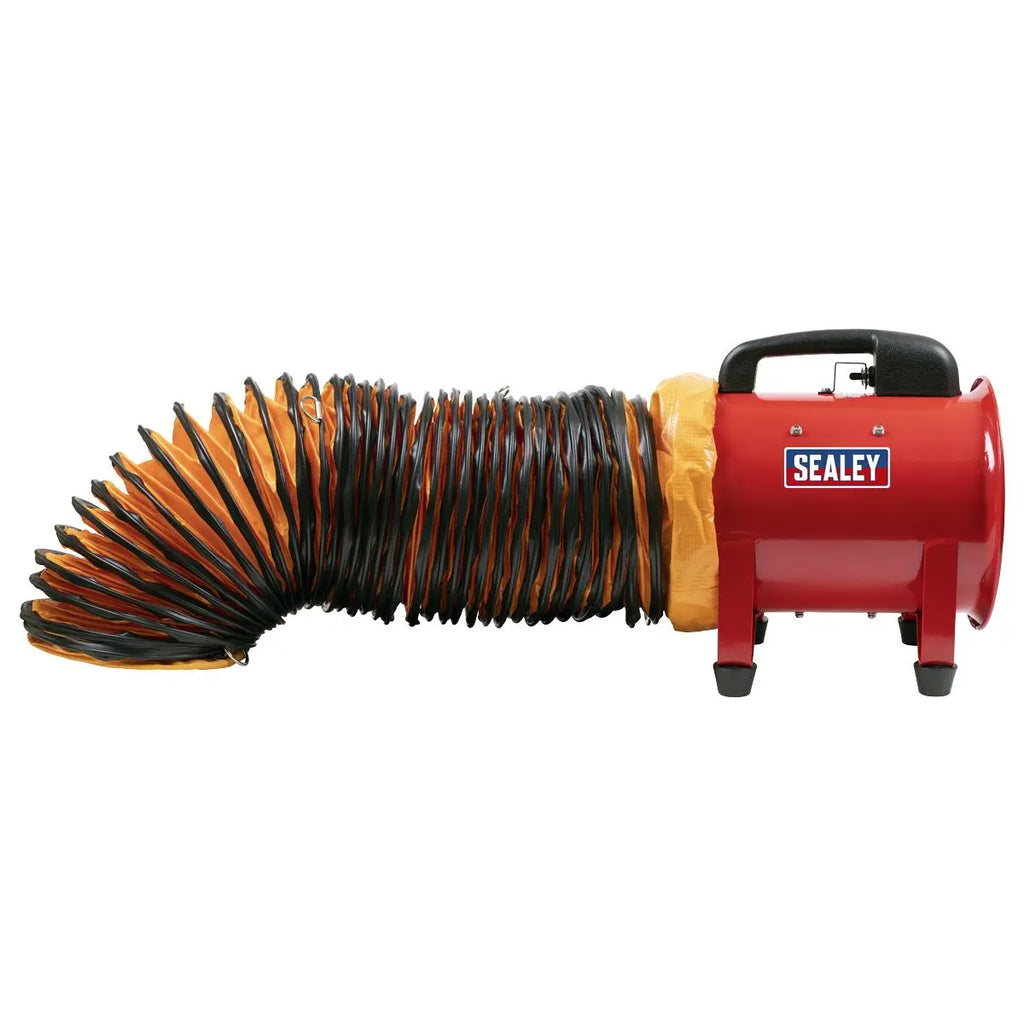

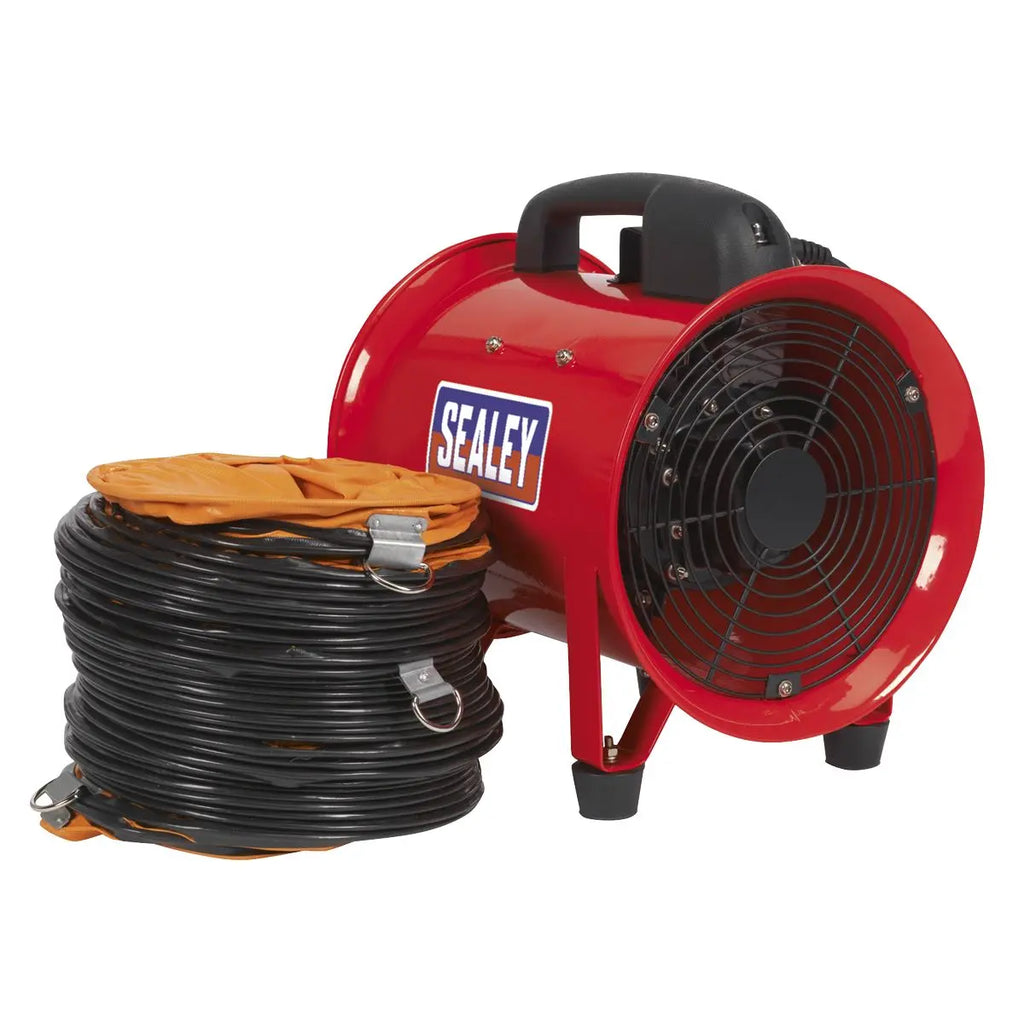

DUCTING SUPPLIED - 5m Ducting is supplied with this product. 10m ducting is available but not included (VEN200AK2).

LIGHTWEIGHT - Lightweight with large carry handle making it easily portable.

Specification:

• Model No VEN200
• Airflow: 1233m³/hr(725cfm) - 20.55m³/min
• Brand: Sealey
• Fan Diameter: Ø200mm
• Fan Speed: 2800rpm
• IP Rating: IPX4
• Maximum Air Velocity: 1.78m/sec
• Maximum Airflow: 1233m³/hr(725cfm) - 20.55m³/min
• Nett Weight: 6.7kg
• Noise Level: 81.90dB(A)
• Note: Measurement standard for service value: IEC 60879:1986
• Power: 116.83W
• Replacement Parts: VEN200AK1/VEN200AK2
• Service Value: 0.18(m³/min)/W
• Static Pressure: 3.1mbar
• Maximum Air Velocity: c
• Measurement Standard for Service Value: See "Test standard(s) or criteria(s)"
• Note: *Test mode: at highest speed and disconnected all oscillating mechanisms
• Static Pressure: 3.1mbar
• Supply: 230V

Product Guarantee: 1 Year
Catalogue Page: Page 1268

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
