Description

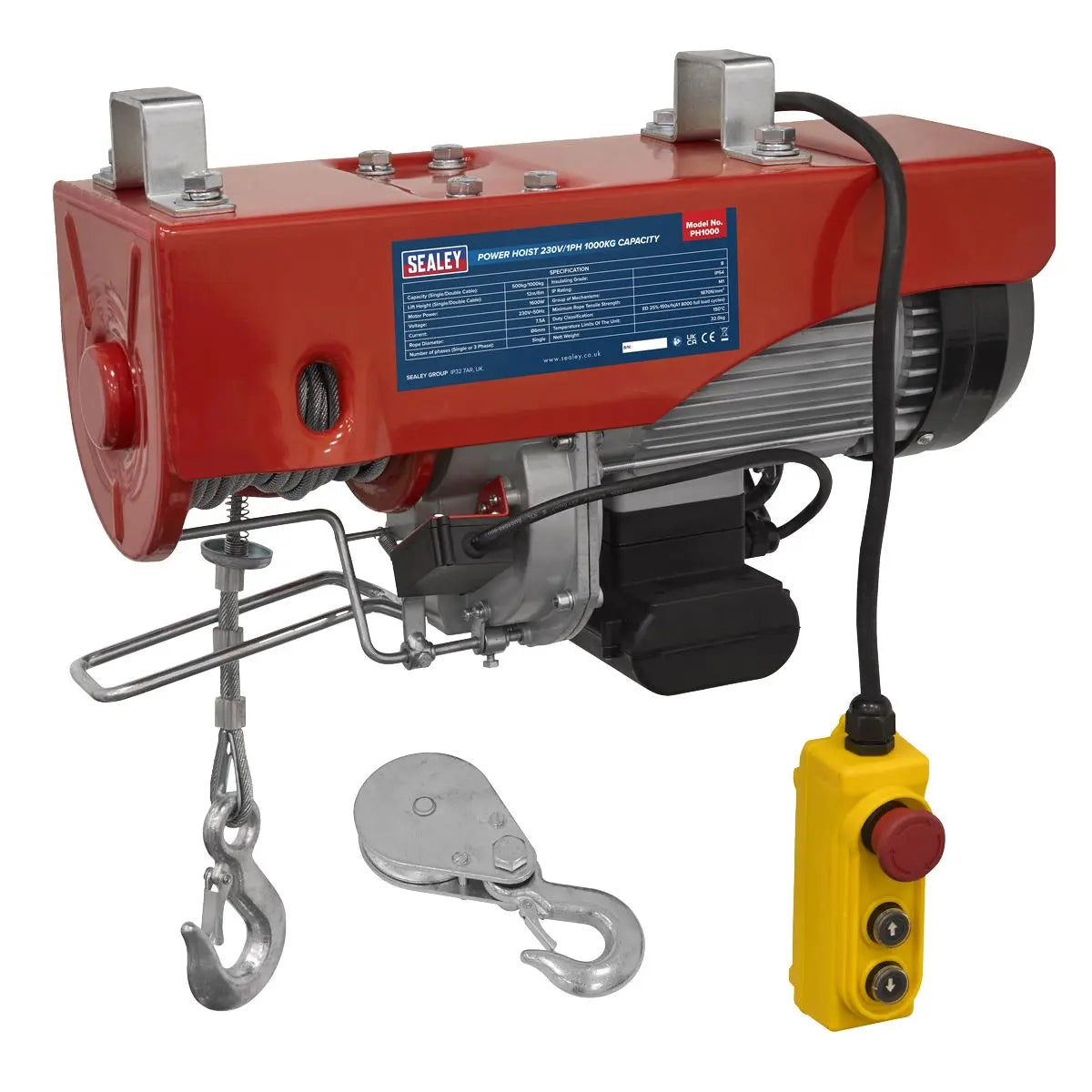

Sealey Power Hoist 230V/1ph 1000kg Capacity
MULTIPLE USES - A large, powerful motor capable of a number of lifting tasks, in garage, workshop, construction and industrial environments.

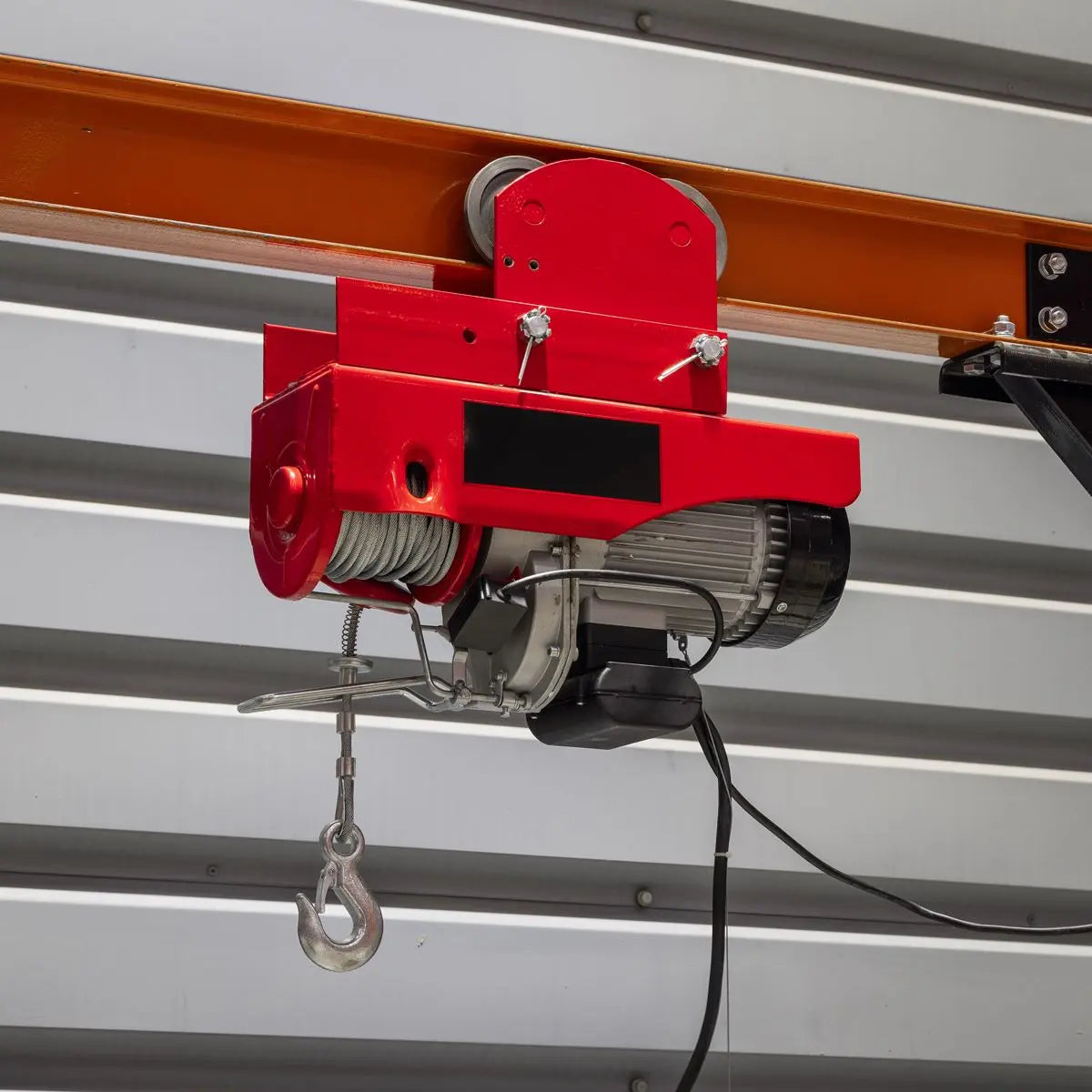

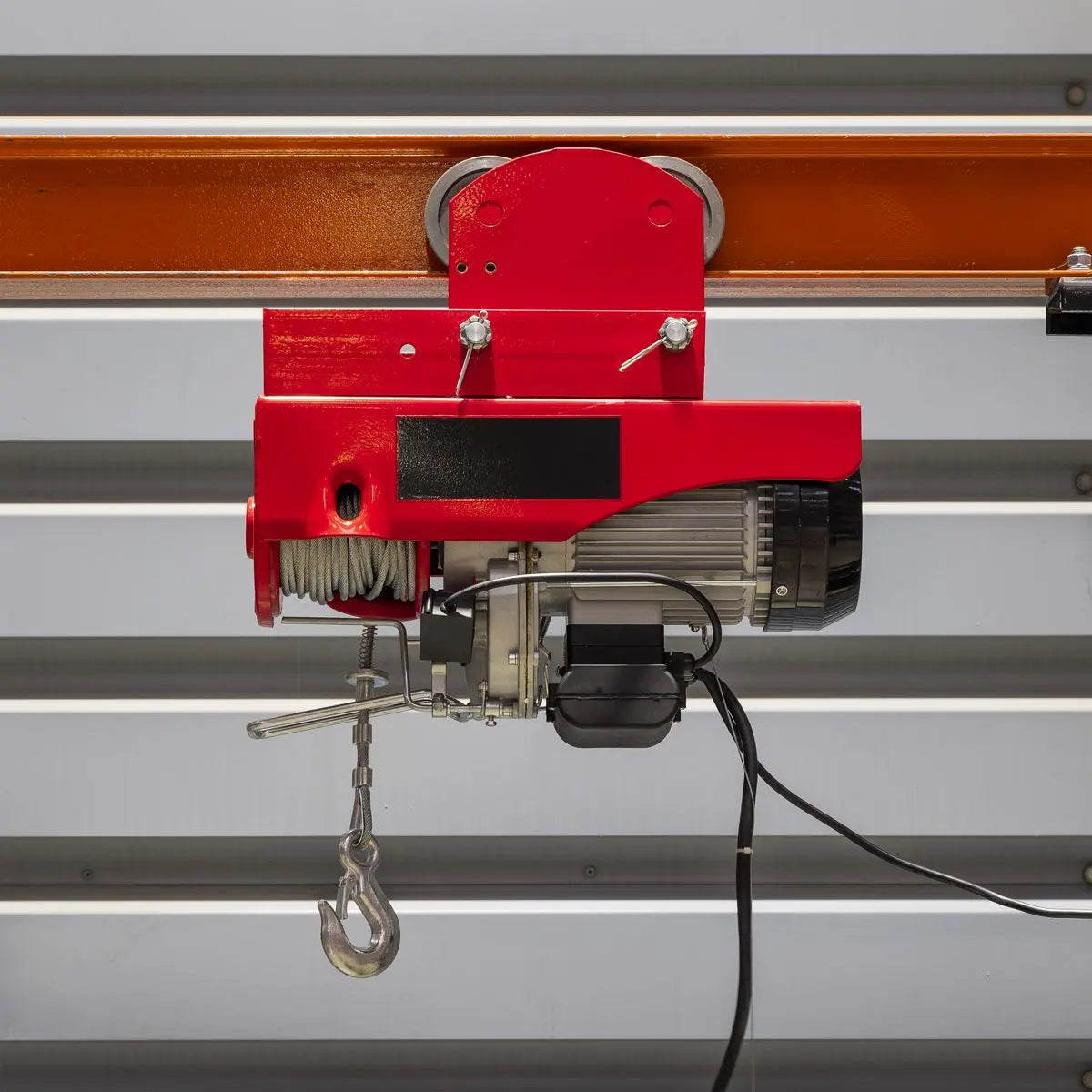

EASY INSTALLATION - Simple installation using the brackets provided, to suitable square section beams.
SAFETY CUT OUT - Thermostatic overload cut-out switch, protecting the motor.

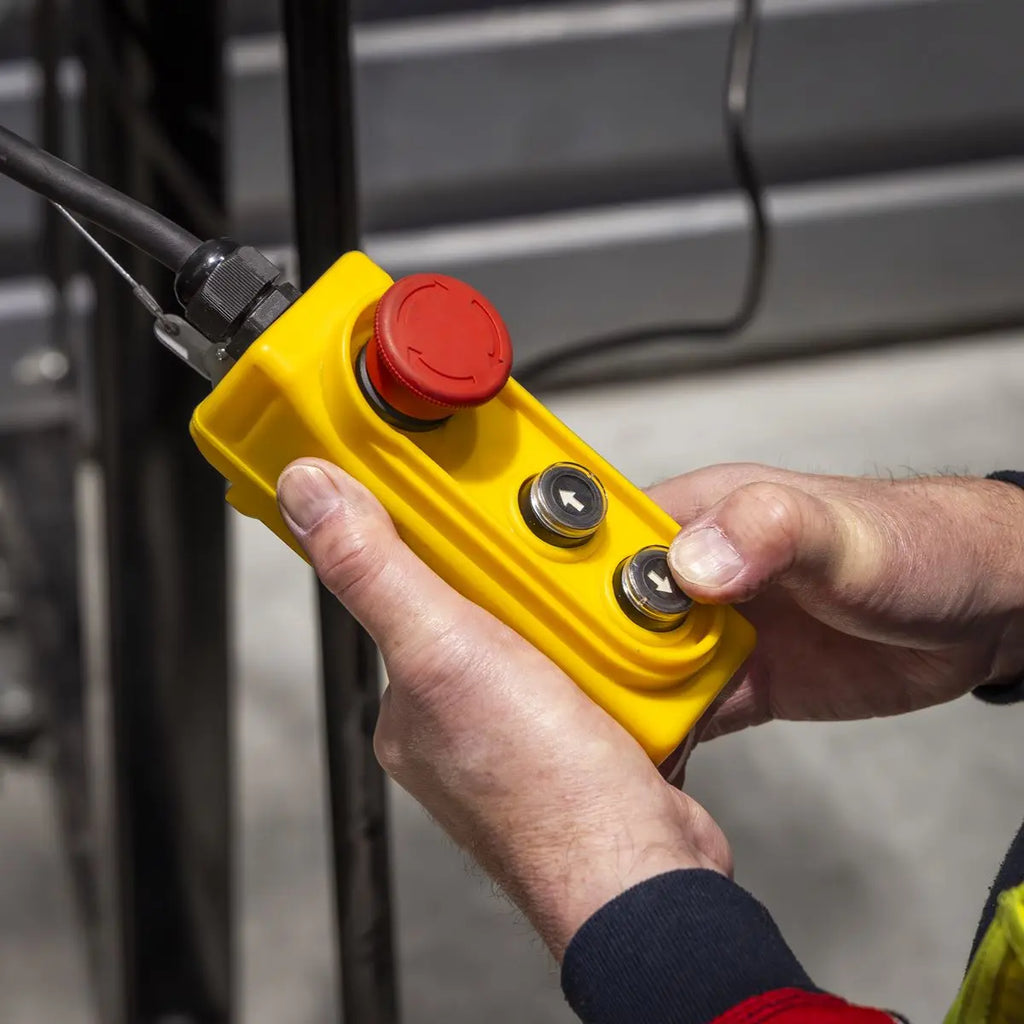

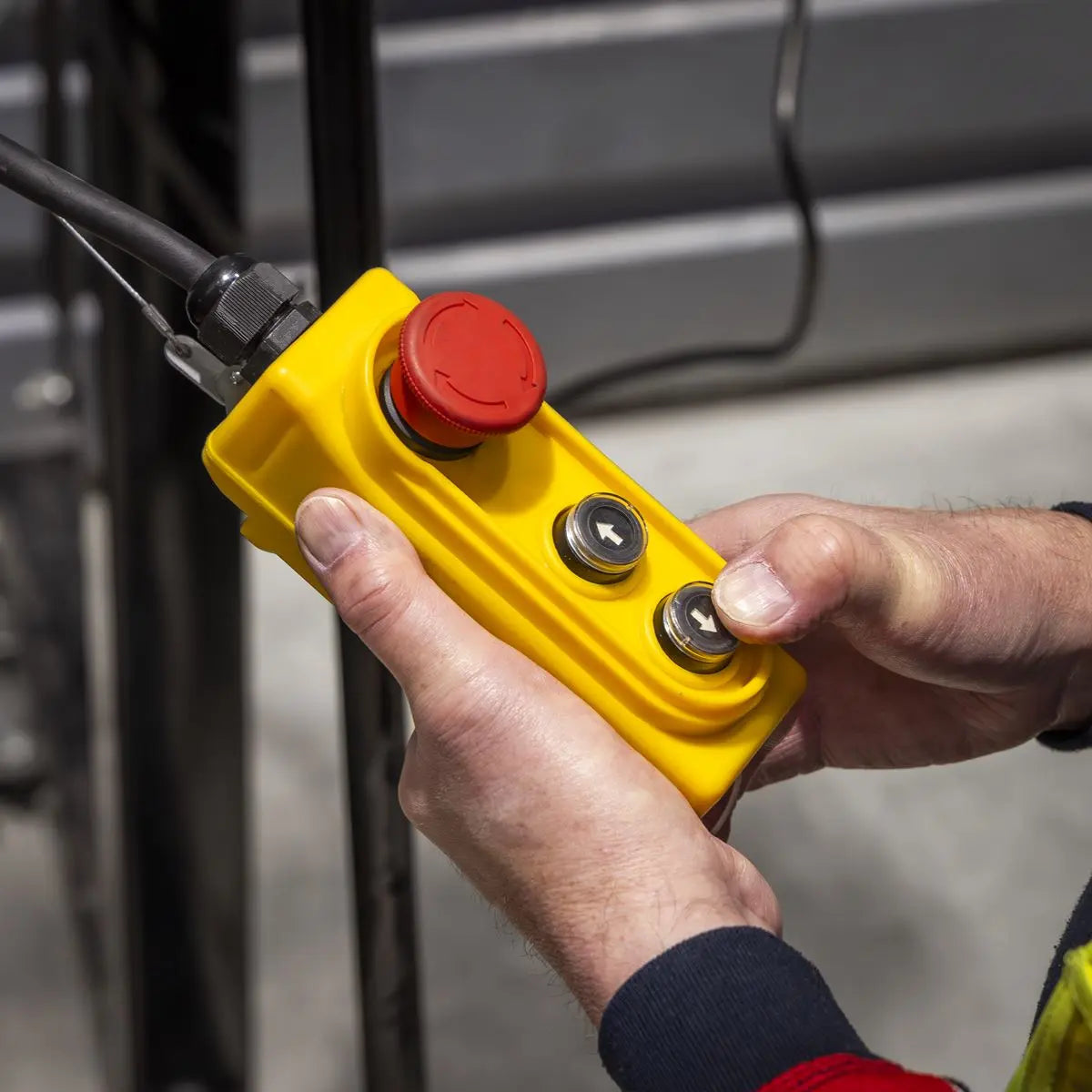

REMOTE CONTROL - Remote control with emergency stop for easy control from a safe distance.
CORROSION RESISTANT - Powder coated steel casing, for added corrosion resistance.
Specification:
- Model No PH1000
- Brand: Sealey
- Capacity (Double Cable): 1000kg
- Capacity (Single Cable): 500kg
- Current: 7.5A
- Duty Cycle: S3
- Group of Mechanisms: M1
- Insulating Grade: B
- IP Rating: IP54
- Lift Height (Double Cable): 6m
- Lift Height (Single Cable): 12m
- Lift Speed (Maximum): (Double) 4m/min (Single) 8m/min
- Minimum Rope Tensile Strength: 1870N/mm²
- Motor Power: 1600W
- Nett Weight: 32.0kg
- Rope Diameter: Ø6mm
- Work Rate: S3
