Sealey Premier Premier Long Reach/Low Profile Air Operated Telescopic Jack 10-40 Tonne

Sealey Viking Long Reach/Low Profile Air Operated Telescopic Jack 10-40 Tonne

HEAVY-DUTY HYDRAULICS - powerful and reliable this 3-stage jack is ideal for workshop or roadside use.

AIR OPERATED - takes the effort out of lifting heavy plant, tractors and commercial vehicles.

ACCESSORIES INCLUDED - supplied with 45mm and 75mm extensions.

LOW ENTRY/LONG REACH - easier access to hard to reach jacking points.

MAXIMUM CAPACITY - 40 Tonne.

3 Year Guarantee*.

Specification:

• Model No YAJ10-40LELR
• Air Consumption: 11.5cfm
• Brand: Viking
• Capacity: 40 Tonne
• Chassis Length: 830mm

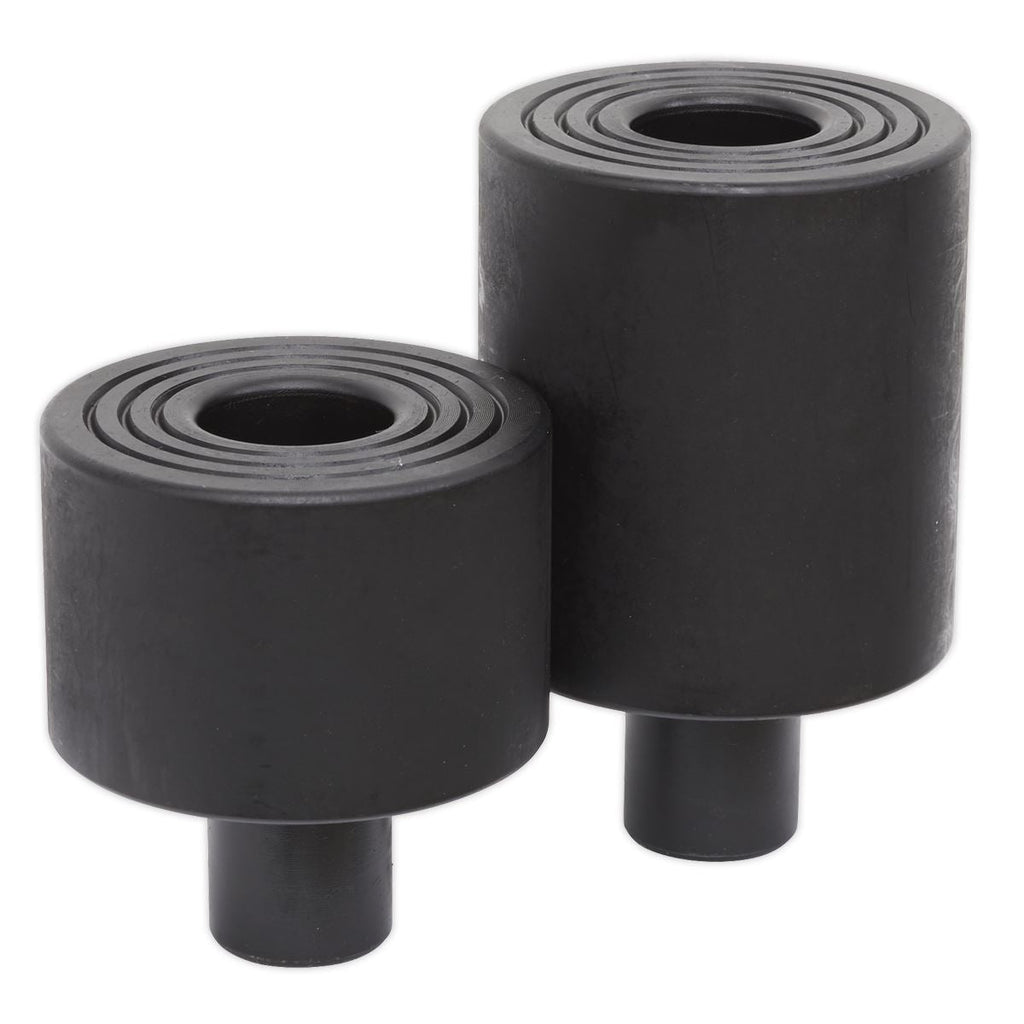

• Extensions: 45/75mm
• Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): 302/40
• Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): 347/20
• Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne): 396/10
• Maximum Length: 2210mm
• Minimum Saddle Height: 130mm
• Nett Weight: 54kg
• Overall Width: 282mm
• Piston Stroke: 159mm
• Screw Extension: n/a
• Width without Wheels: 179mm
• Working Pressure: 116-174psi

Product Guarantee: 3 Years
Catalogue Page: Page 847

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
