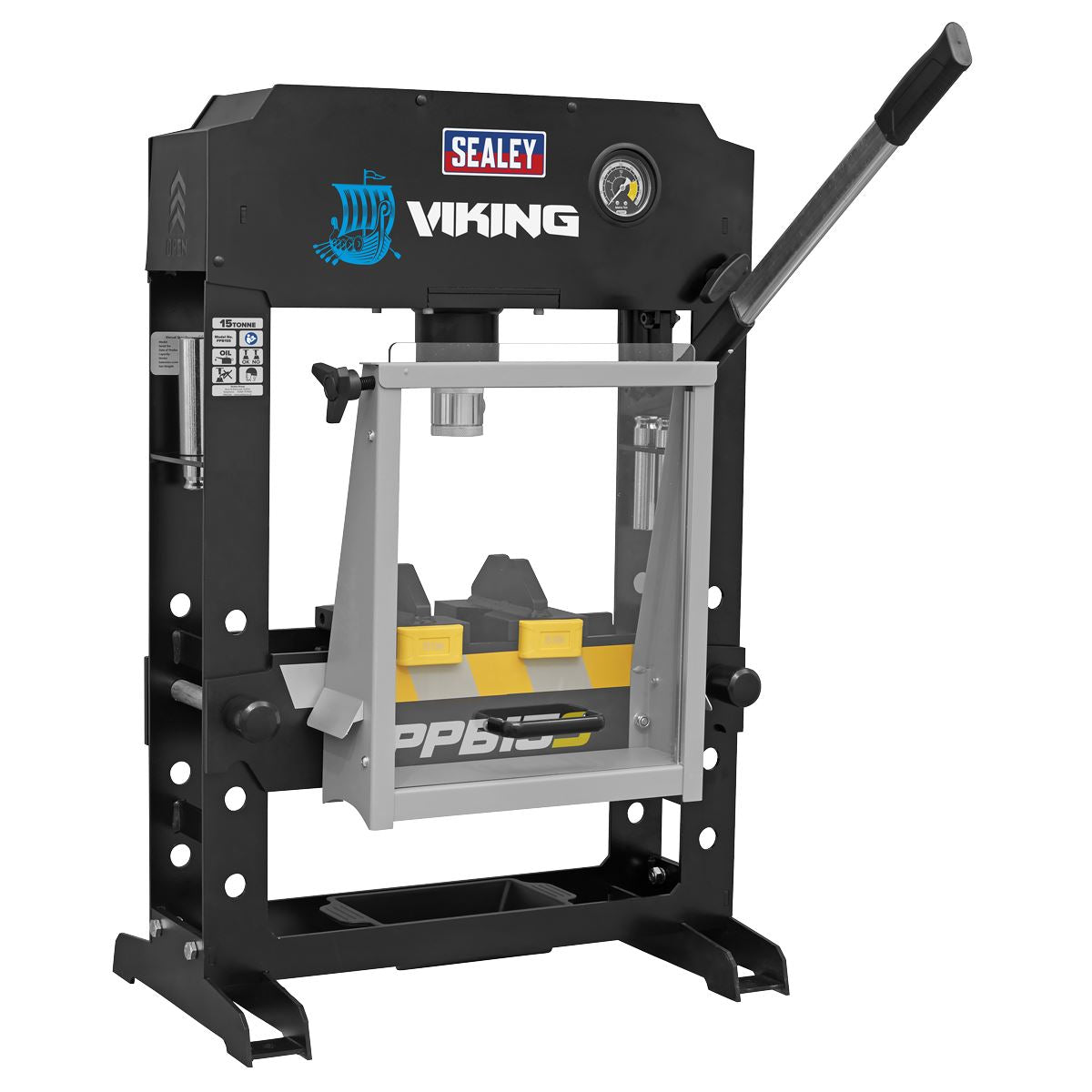

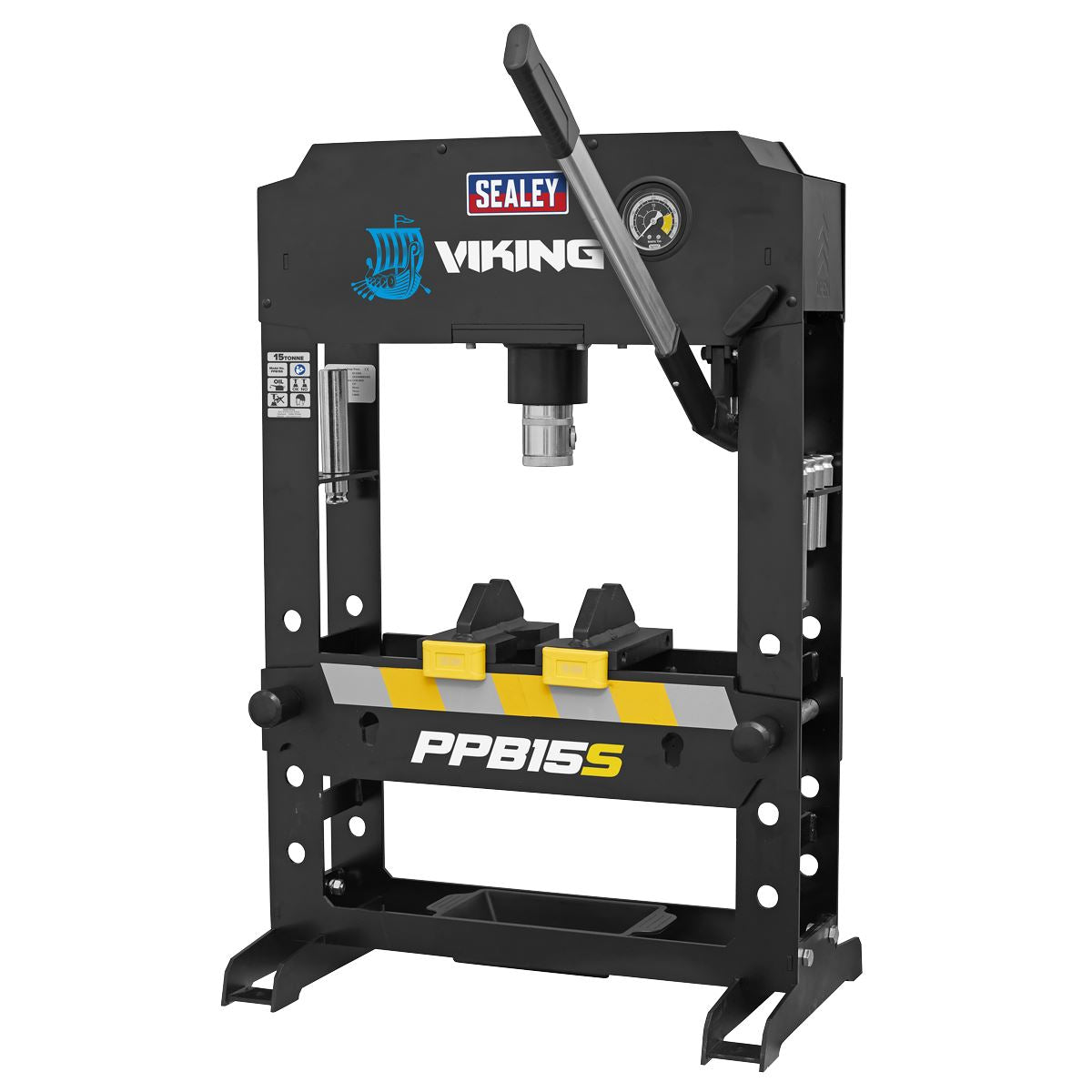

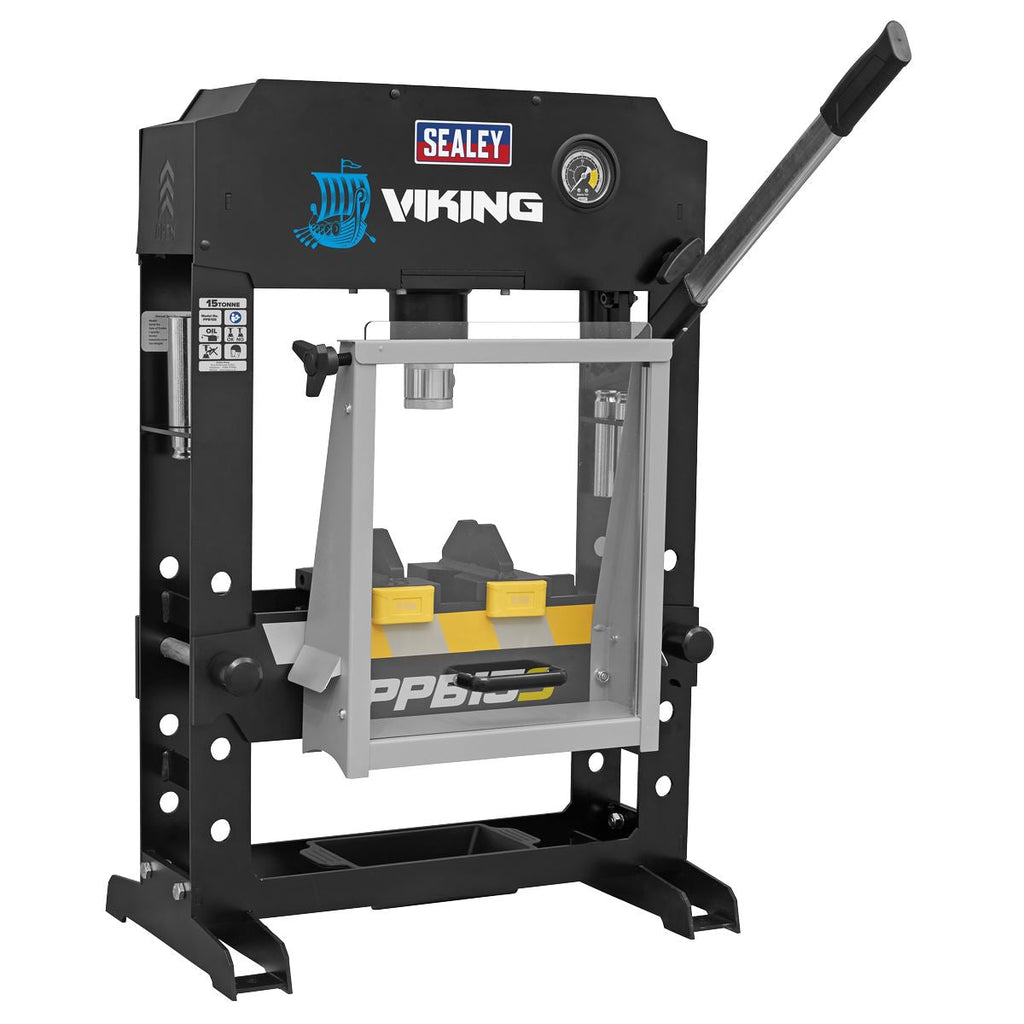

Sealey Viking Bench Type Hydraulic Press 15 Tonne

Sealey Viking Bench Type Hydraulic Press 15 Tonne

Heavy-duty steel frame construction with handle operated hydraulic pump unit.

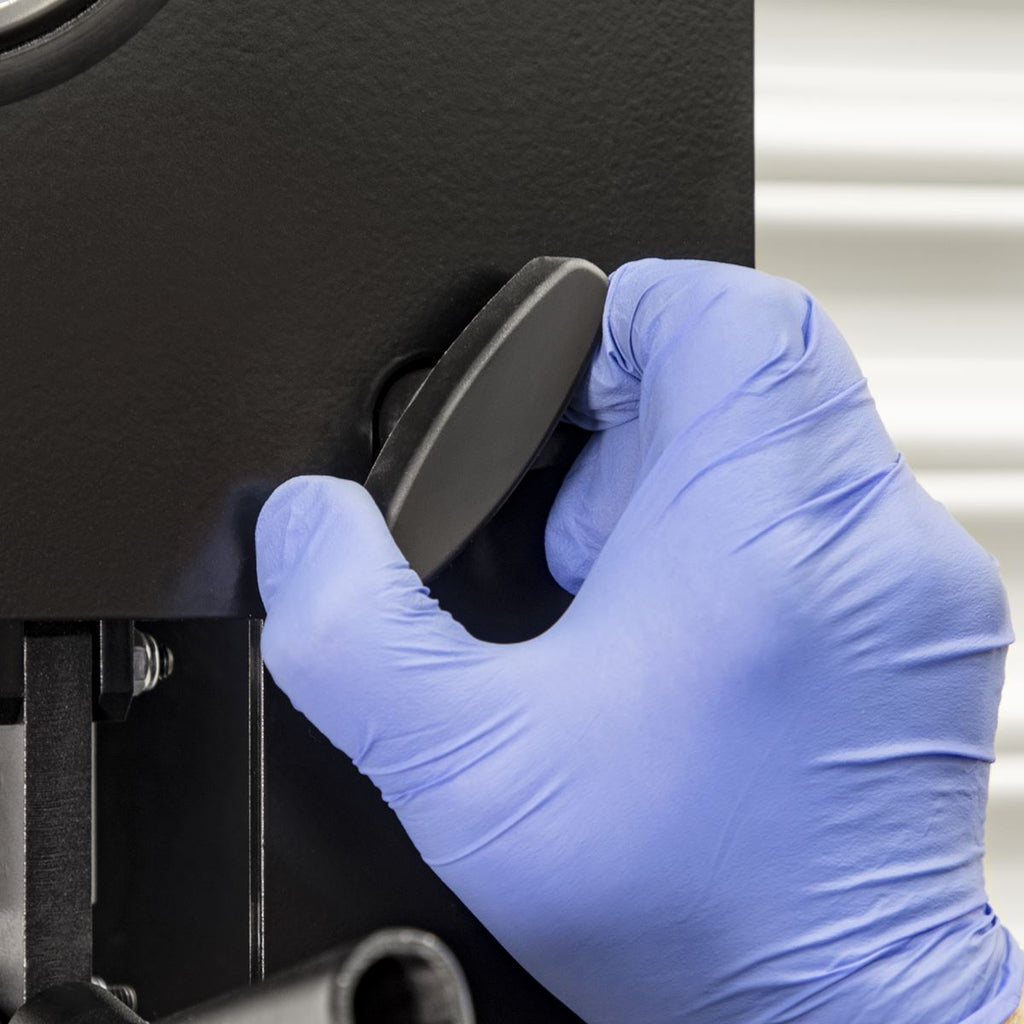

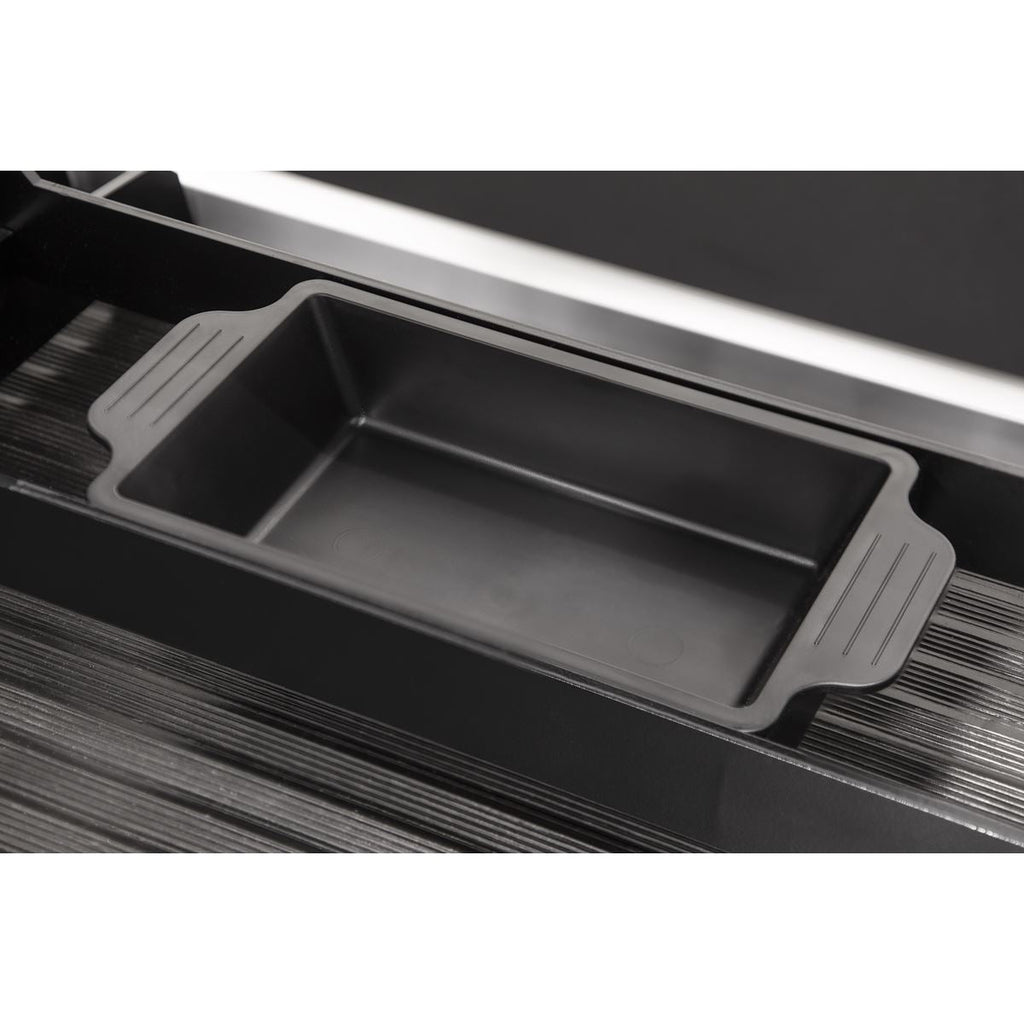

Screw adjustable ram and adjustable work area with removable tray.

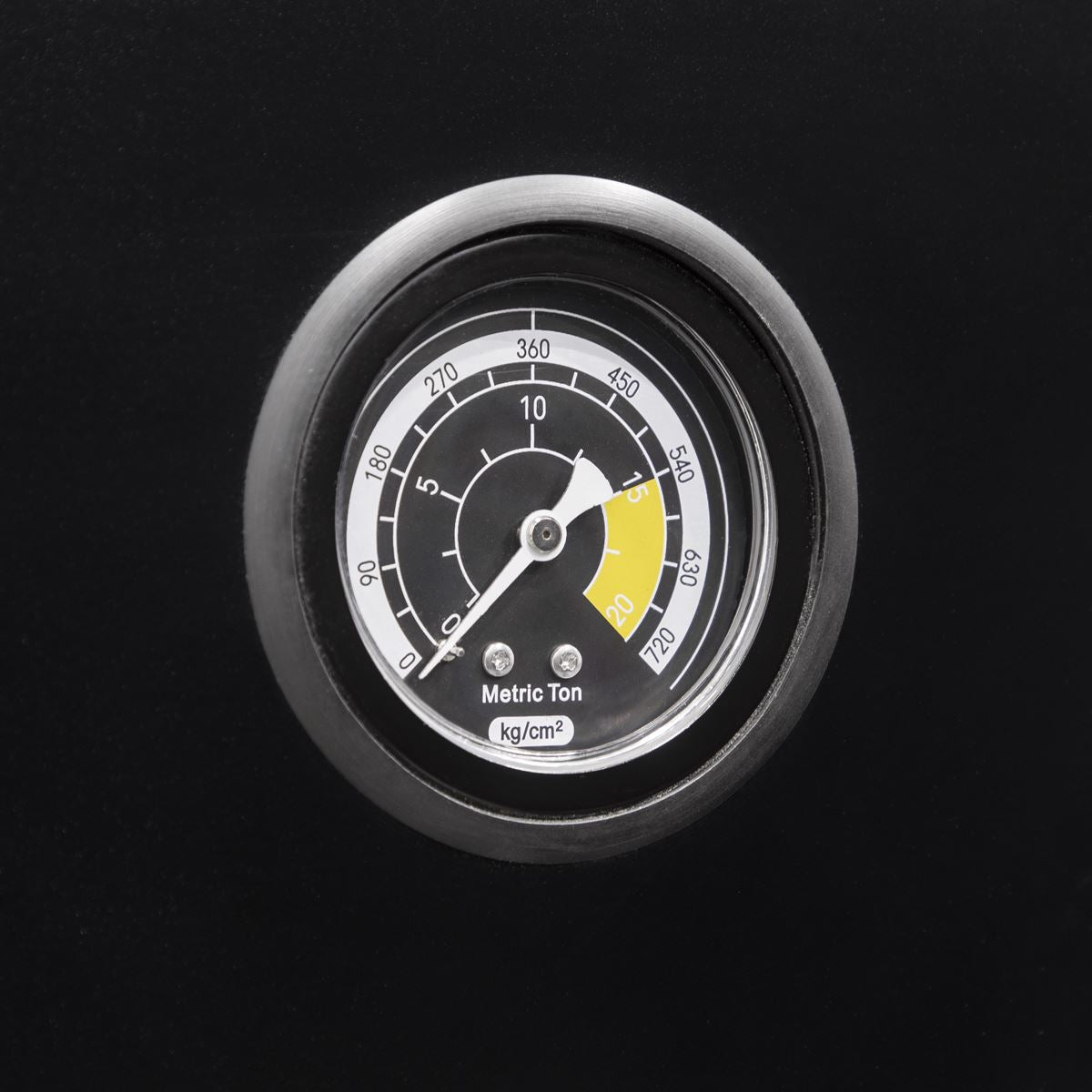

Frame head fitted with ram pressure gauge.

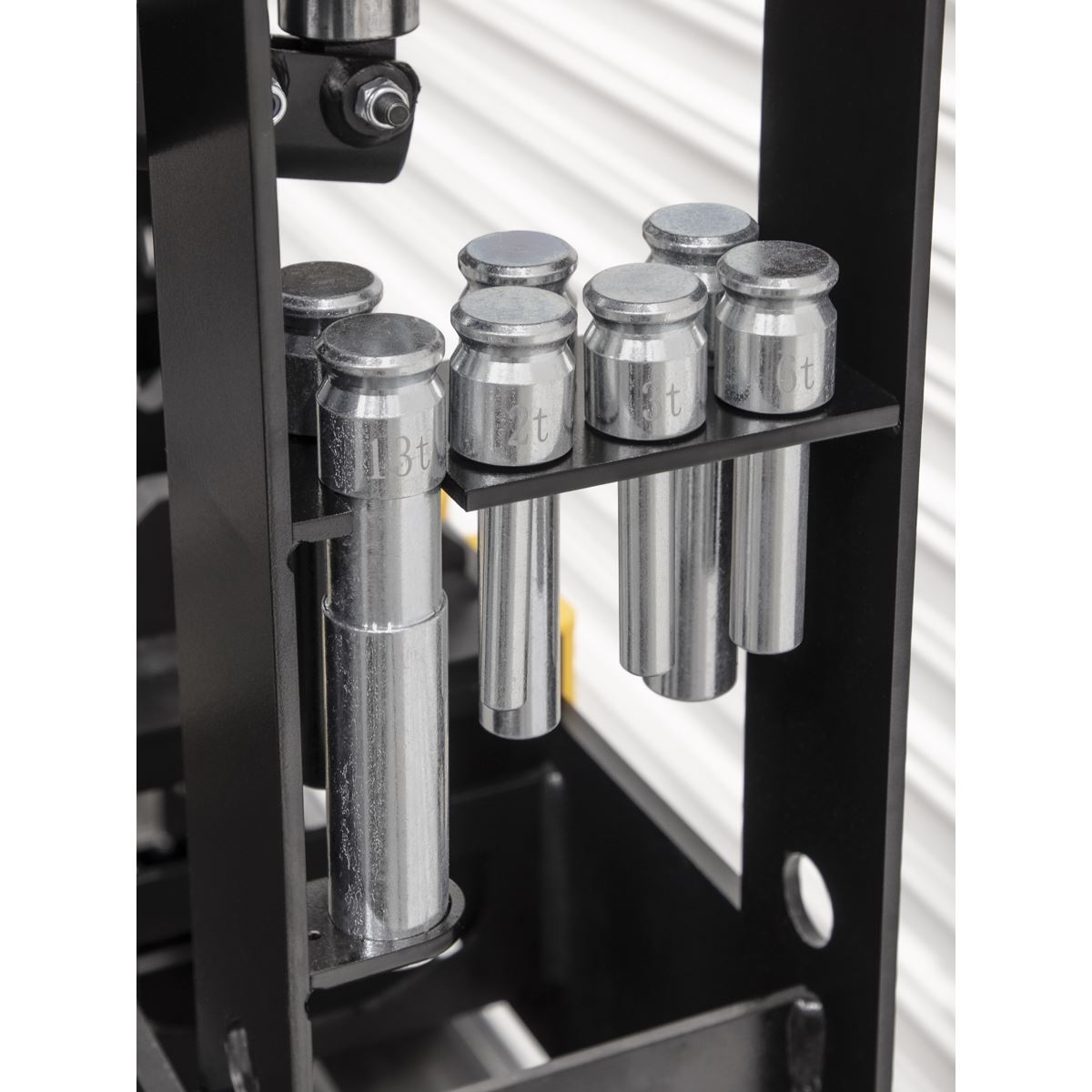

Storage for press pins included in frame.

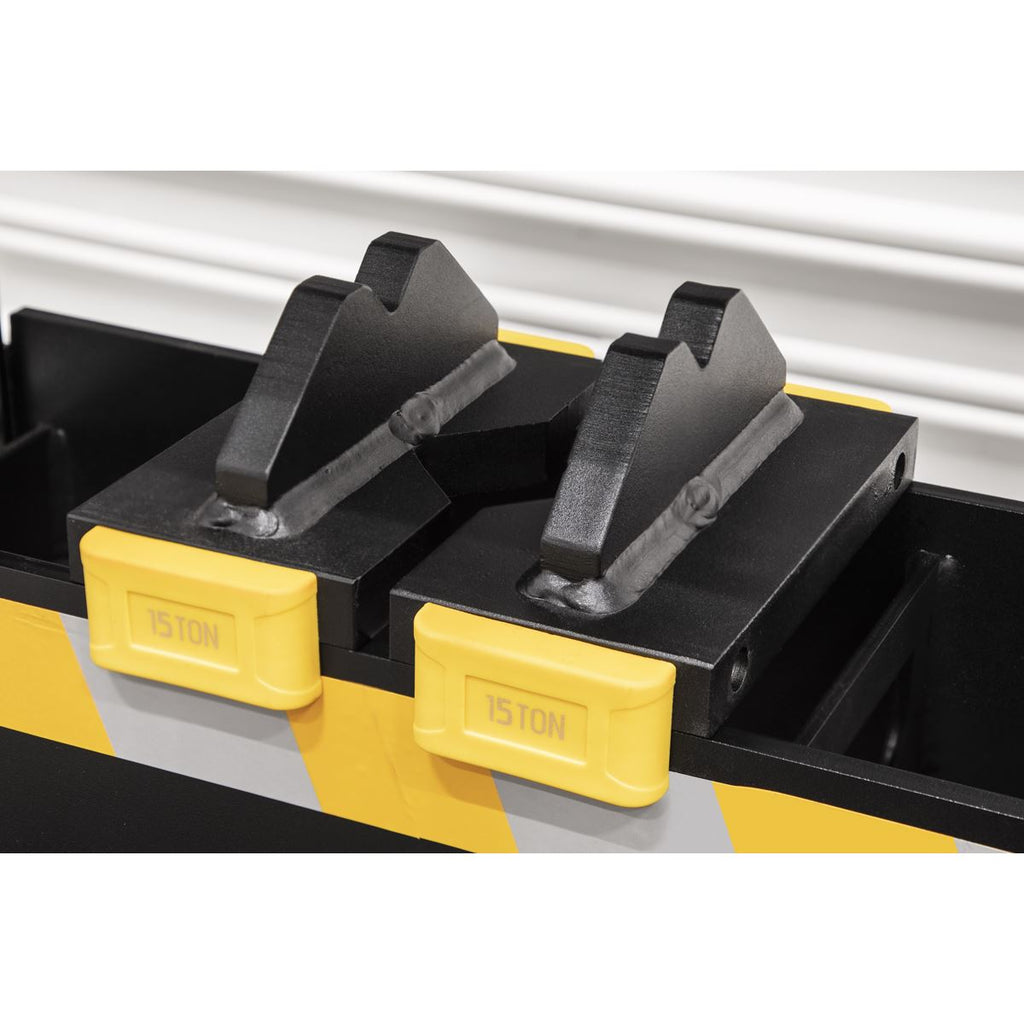

Supplied with press pins, flat pressing plate/V-blocks.

5 Year guarantee*.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No PPB15S
• Bench or Floor Mounting: Bench
• Brand: Viking
• Capacity: 15 Tonne
• Gauge Included: Yes
• Lateral Ram Travel: n/a

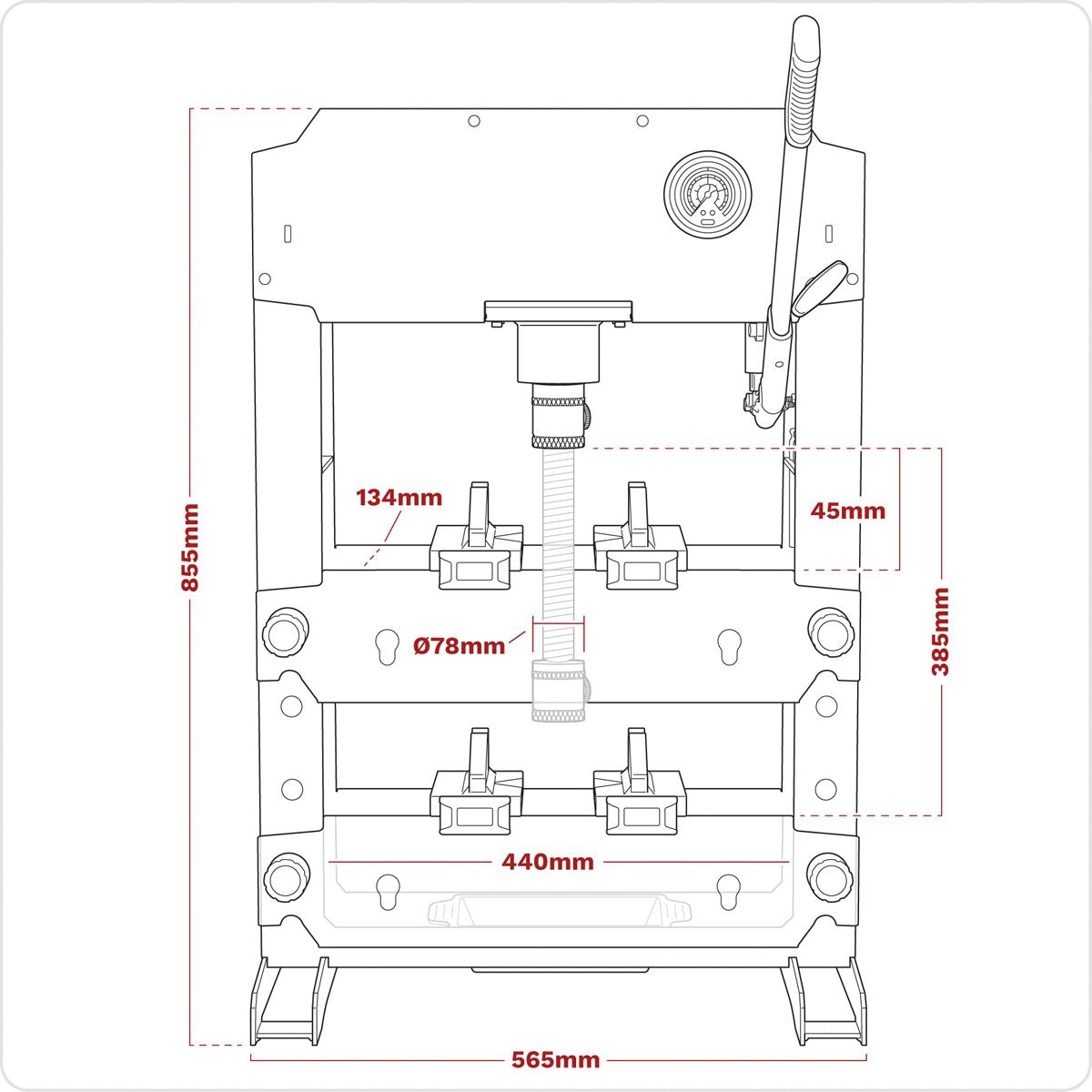

• Maximum Height - Ram to Table: 385mm
• Minimum Height - Ram to Table: 45mm
• Nett Weight: 56.3kg
• Overall Height: 855mm
• Overall Width: 565mm
• Ram Diameter: Ø78mm
• Ram Stroke: 95mm
• Screw Extension: 75mm
• Table Aperture: 147mm
• Type: Bench Type
• Working Table Depth: 163mm
• Working Table Width: 565mm

Product Guarantee: 5 Years
Catalogue Page: Page 330
