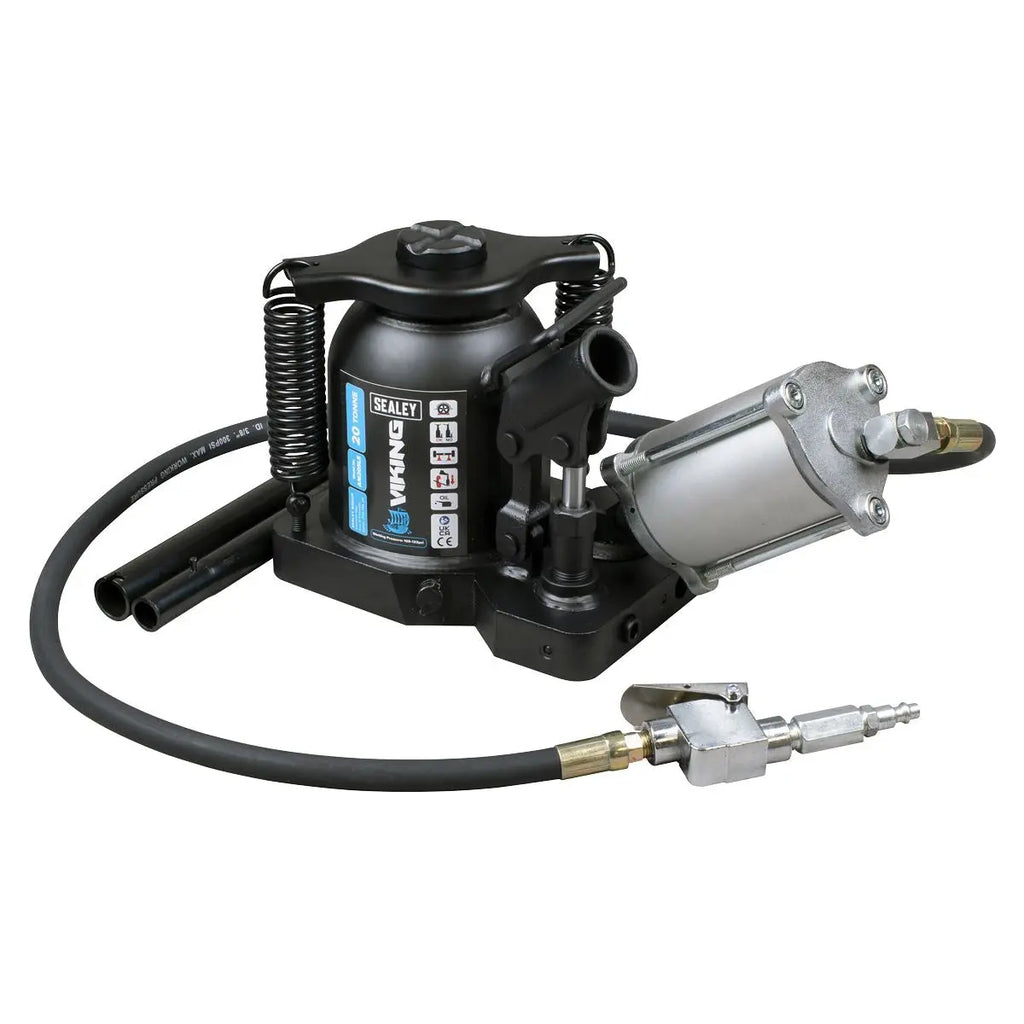

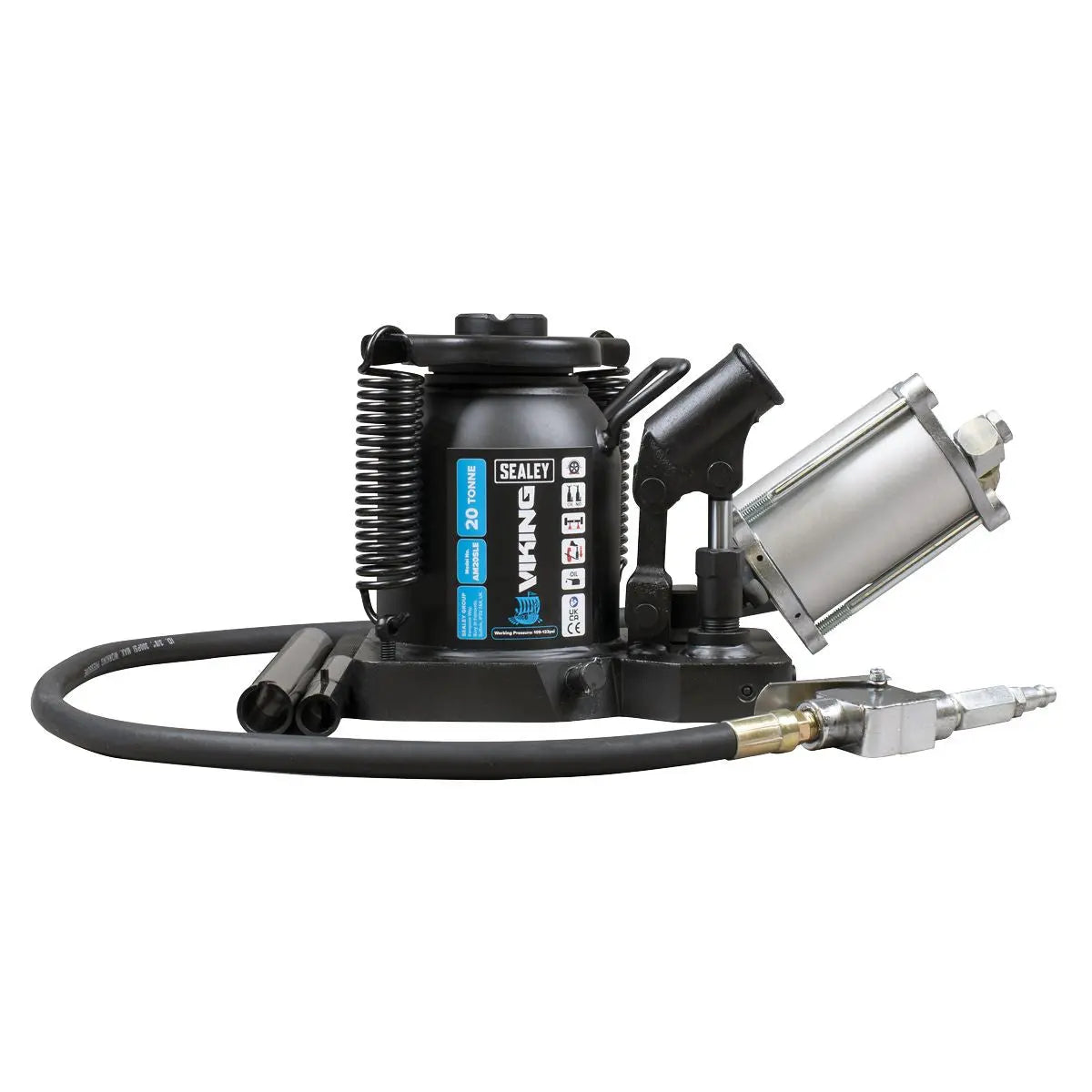

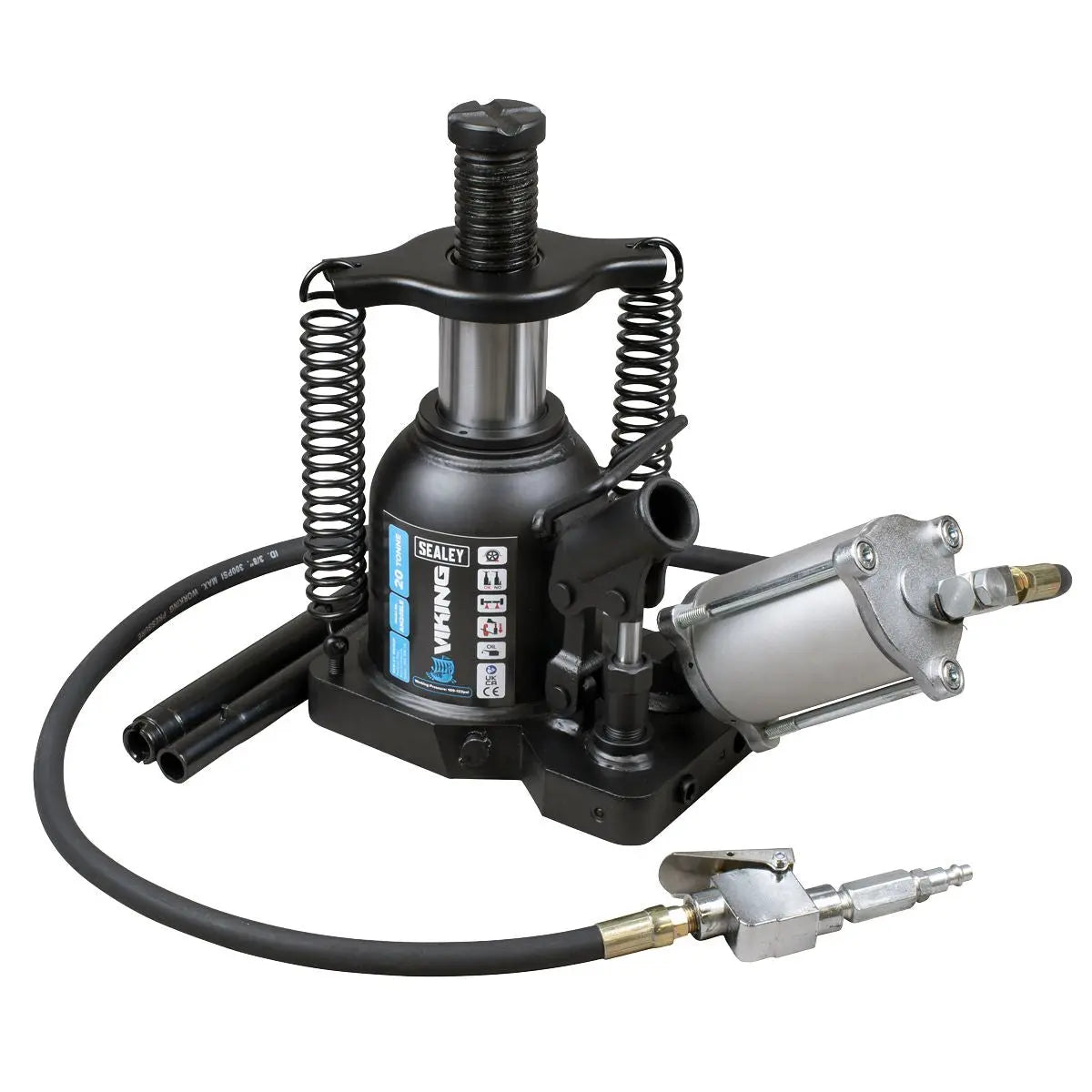

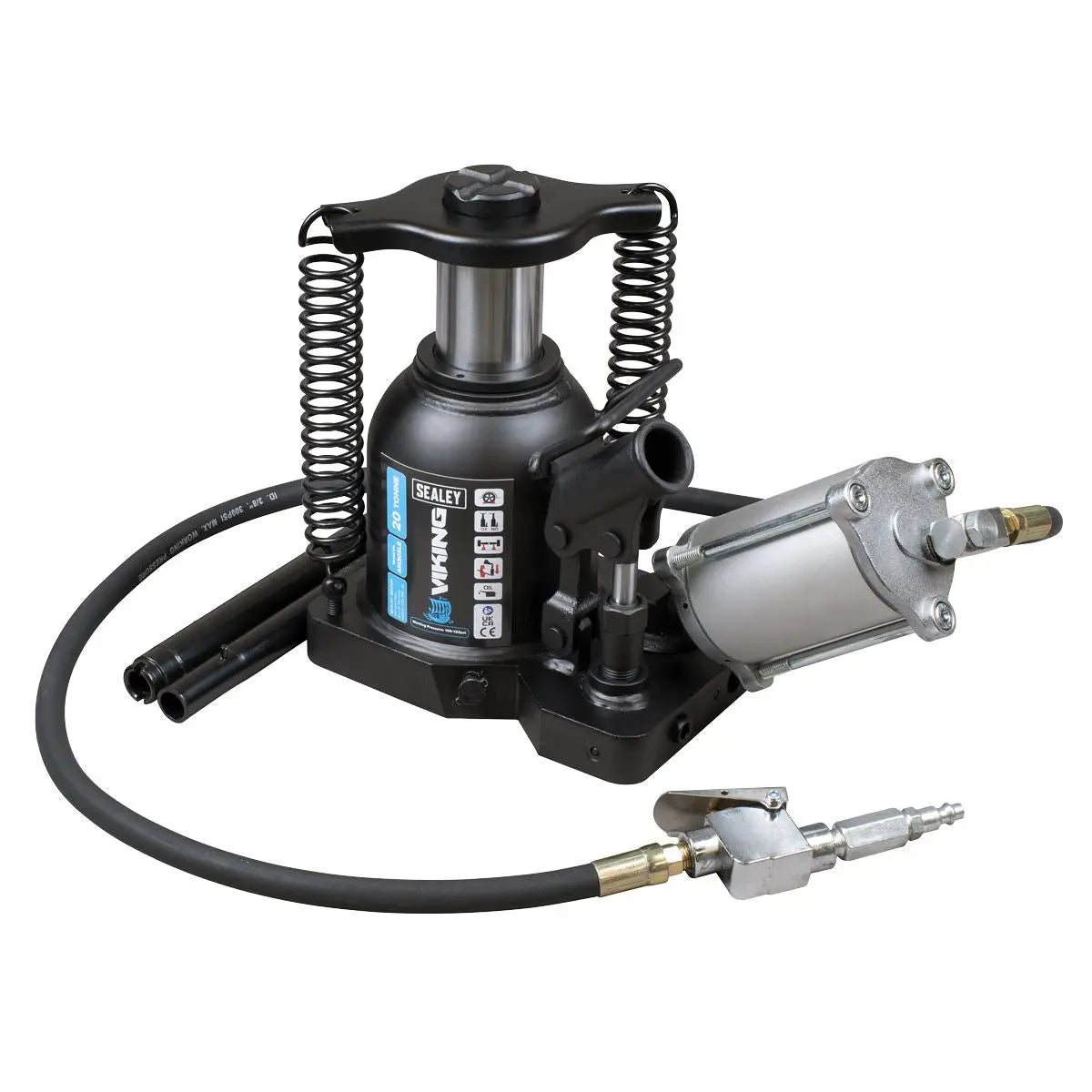

Sealey Viking Manual/Air Hydraulic Bottle Jack 20 Tonne

Sealey Viking Manual/Air Hydraulic Bottle Jack 20 Tonne

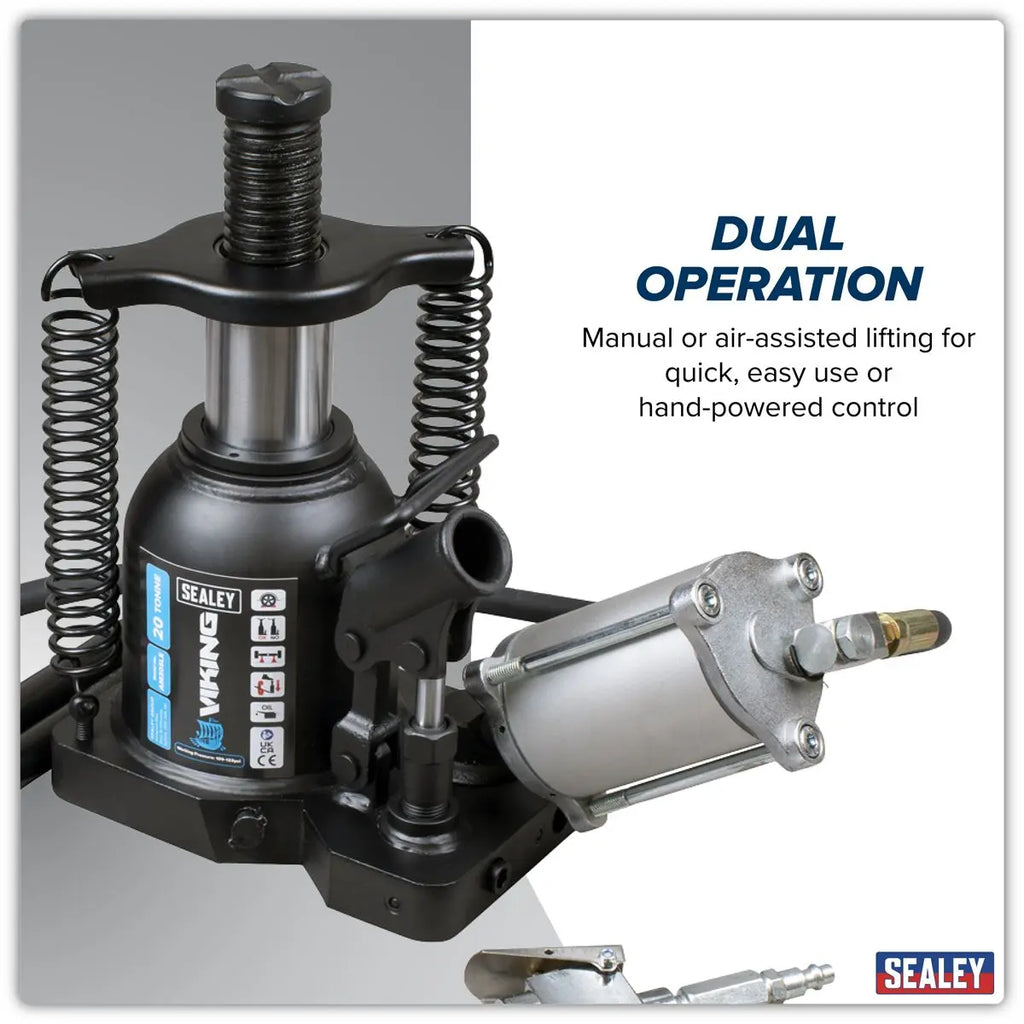

DUAL CONTROL - Air/Hydraulic bottle jack capable of both air assisted or manual operation.

SAFETY VALVE - Fitted with safety overload valve and manufactured in the EU.

EXTRA THICK BASE - All steel, one-piece base, reservoir and pump cylinder design gives added strength and stops distortion under load.

CONVENIENT HANDLE - Telescopic pump handle for easy storage. Allows use when an air supplier is unavailable.

EASED POSITIONING - 90° Rotating pump aids positioning the jack and the low profile for bus and coach fitters.

SERVICEABLE RAM - Fully serviceable ram piston with extension screw. Service kit readily available.

3 YEAR GUARANTEE*.

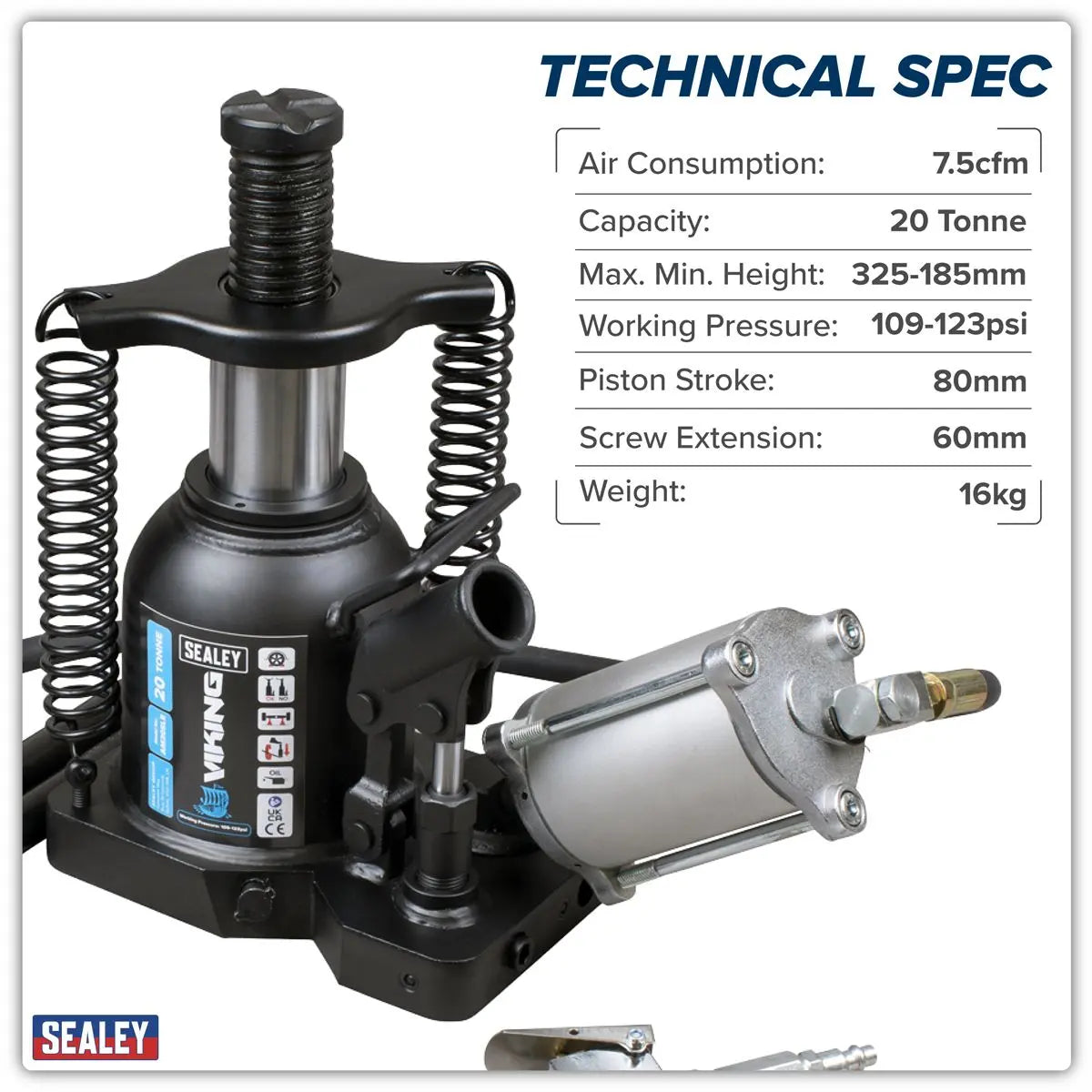

Specification:

• Model No AM20SLE
• Air Consumption: 7.5cfm
• Brand: Viking
• Capacity: 20 Tonne
• Maximum Height: 325mm
• Minimum Height: 185mm
• Nett Weight: 16kg
• Piston Stroke: 80mm
• Screw Extension: 60mm
• Working Pressure: 109-123psi

Product Guarantee: 3 Years
Catalogue Page: Page

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
