STABILA Torpedo Spirit Level 25cm with Belt Pouch Type 81 SV REM W360 16670

STABILA Torpedo Spirit Level 25cm with Belt Pouch Type 81 SV REM W360 16670

In steel construction you often need both hands free to work with, making a level with rare earth magnets that have extra-strong holding power a must. With its milled measuring surface and V-groove, it holds firmly on all steel structures especially rounded surfaces. This level has vials which can measure horizontal with gradients of 1% and 2%, a vertical vial and a third which allows you to rotate it through 360°. This level is practical, precise, convenient, and robustly built, typical STABILA.

Highlights:

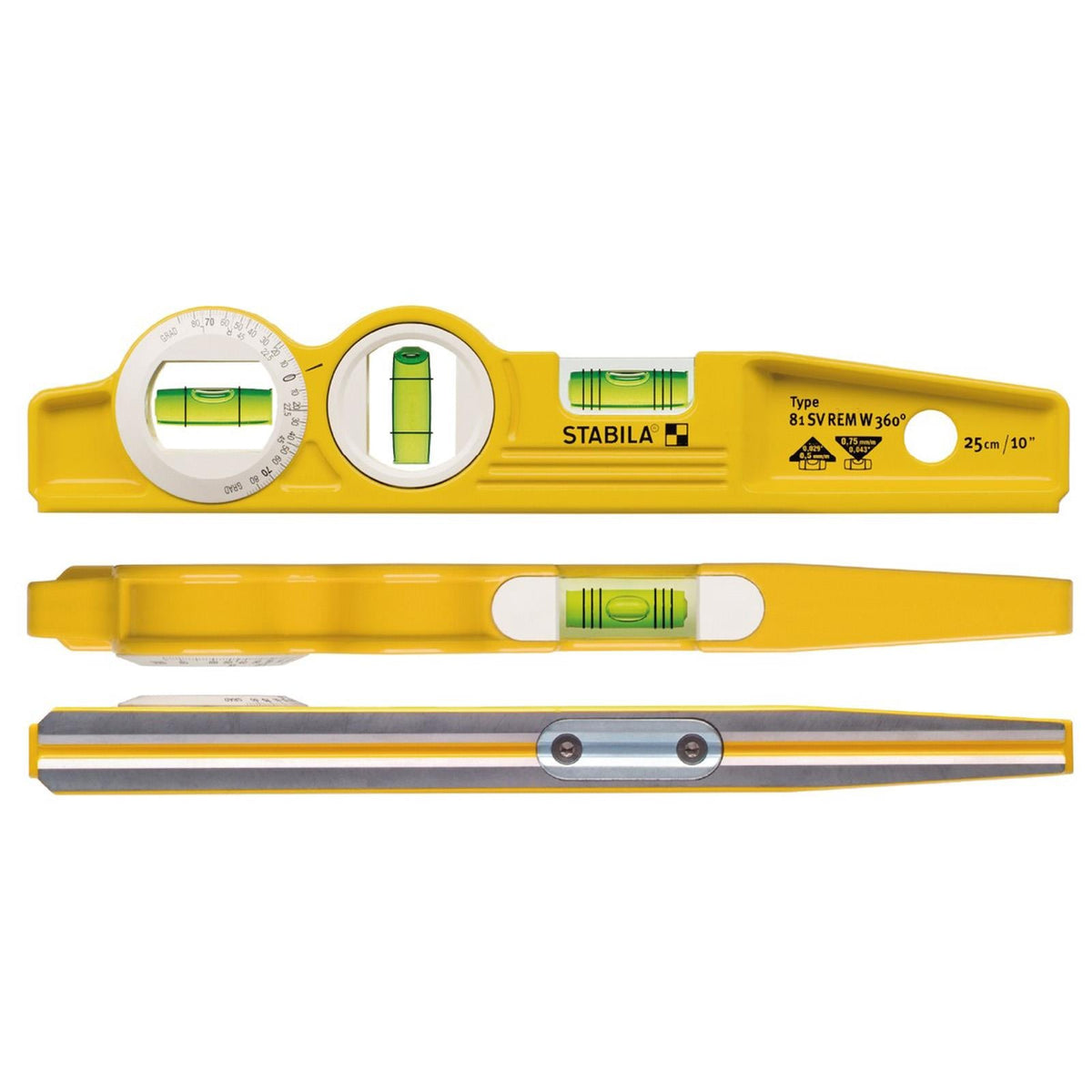

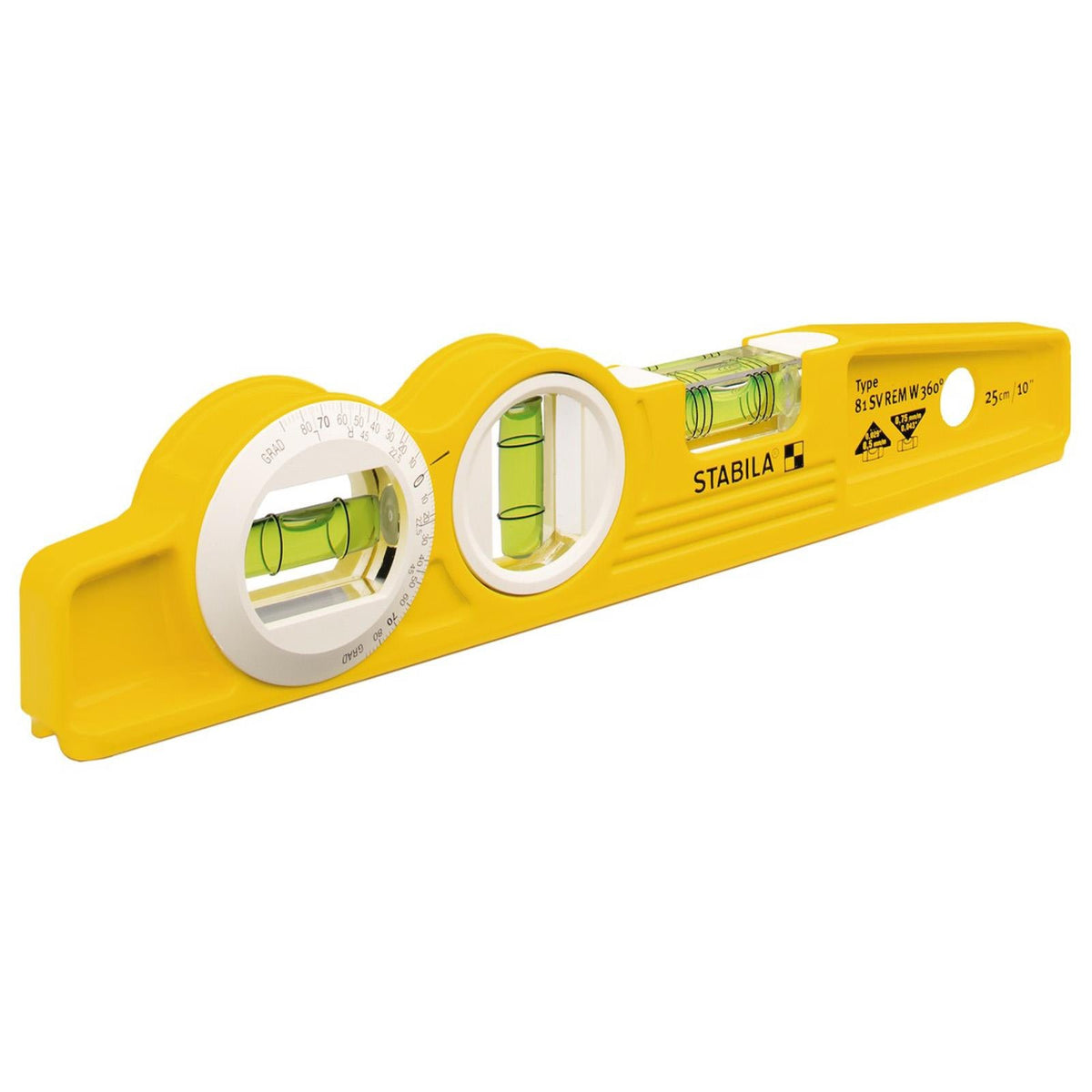

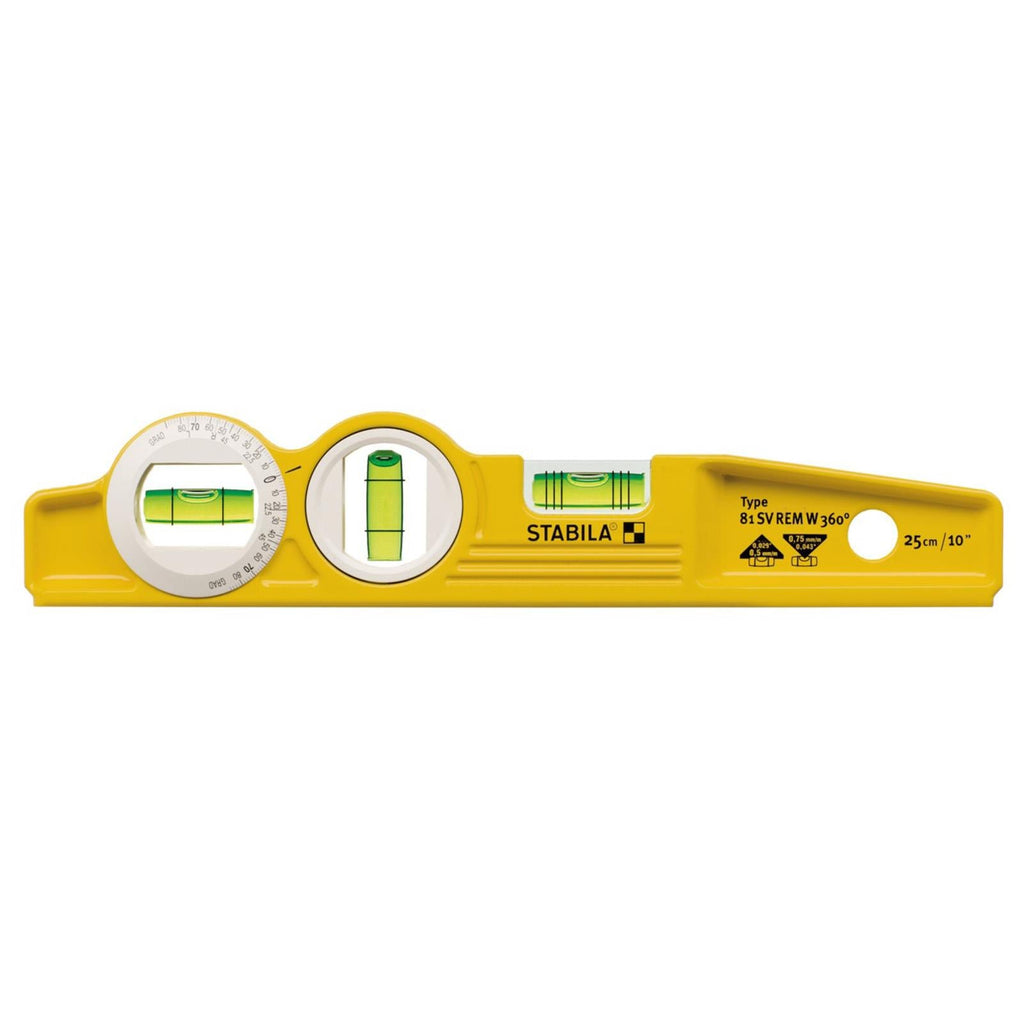

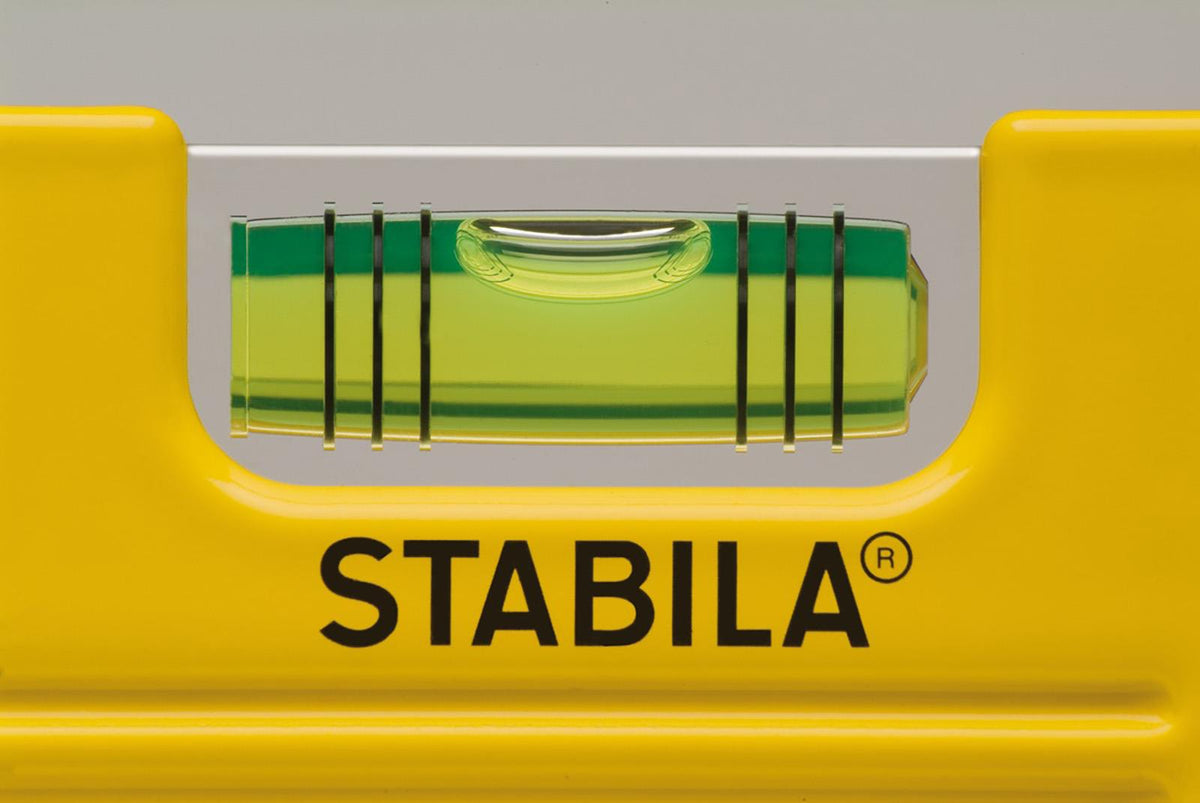

• Compact, tough, cast aluminium profile spirit level with six-ring horizontal vial for 1% and 2% slope measurement and additional rotatable angle vial.

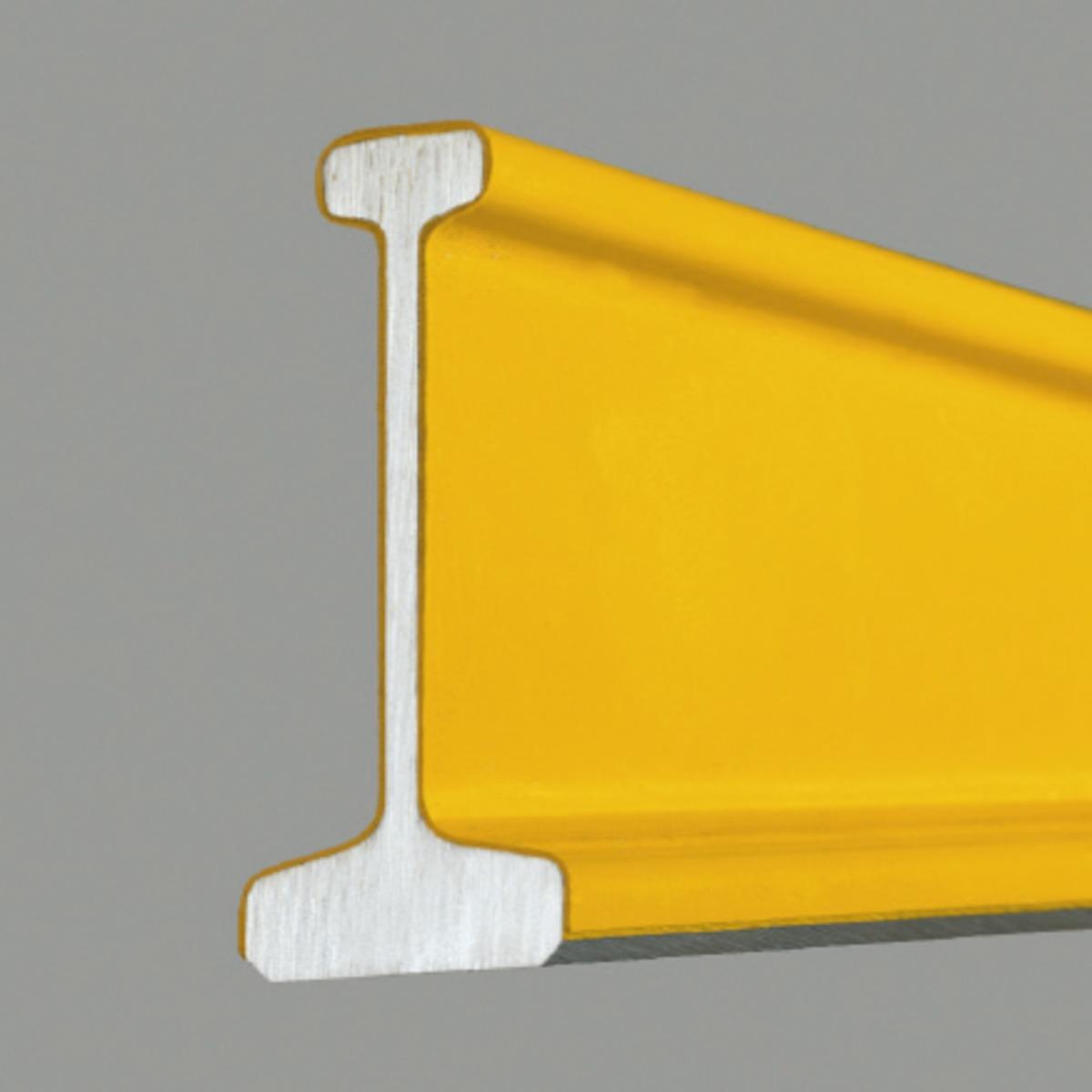

• Slender, trapezoidal profile shape.

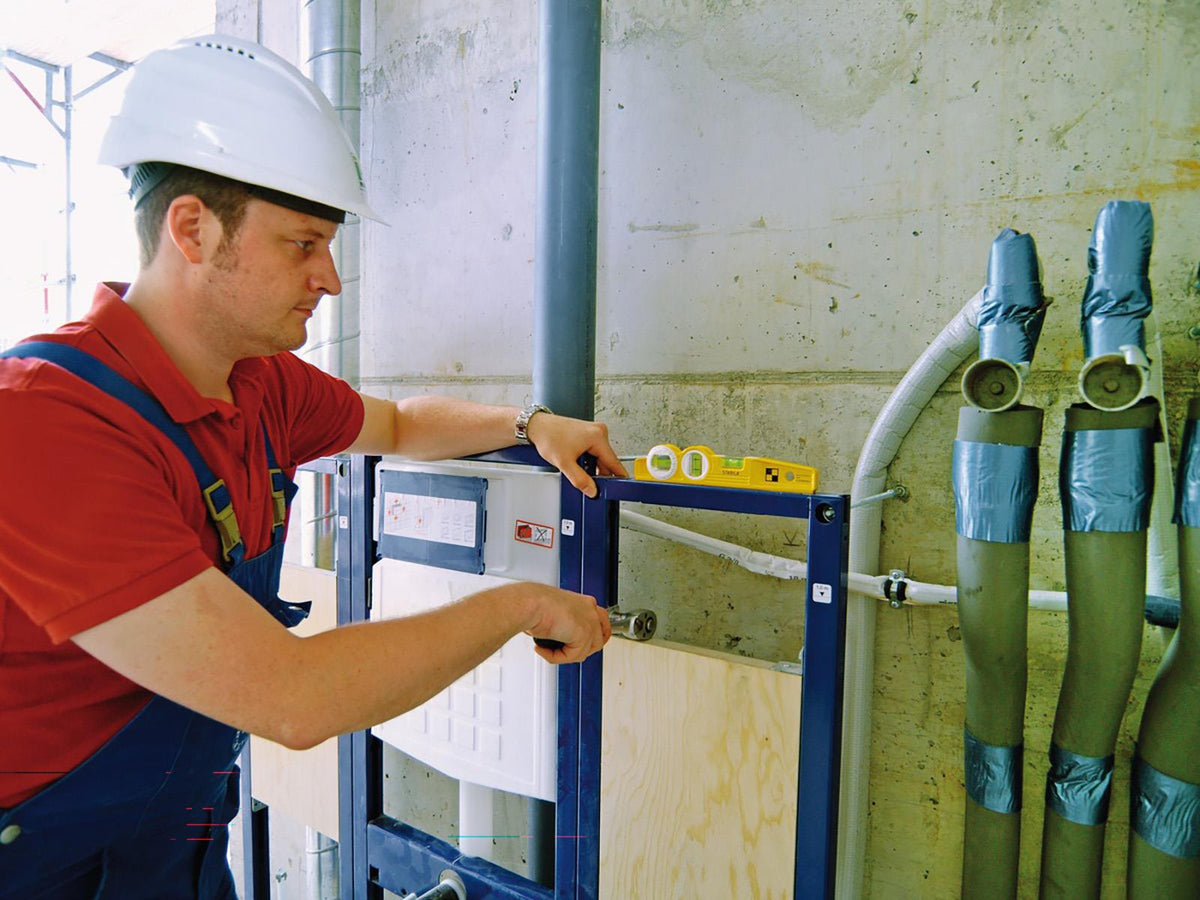

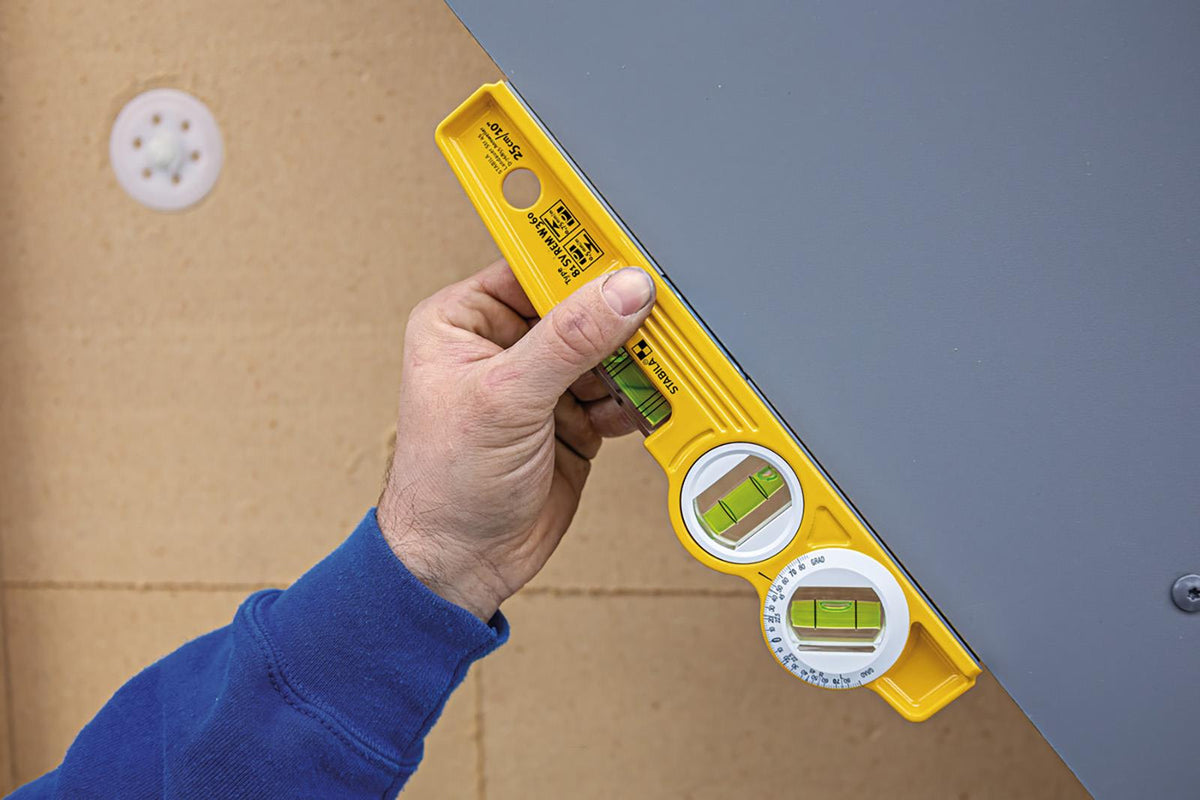

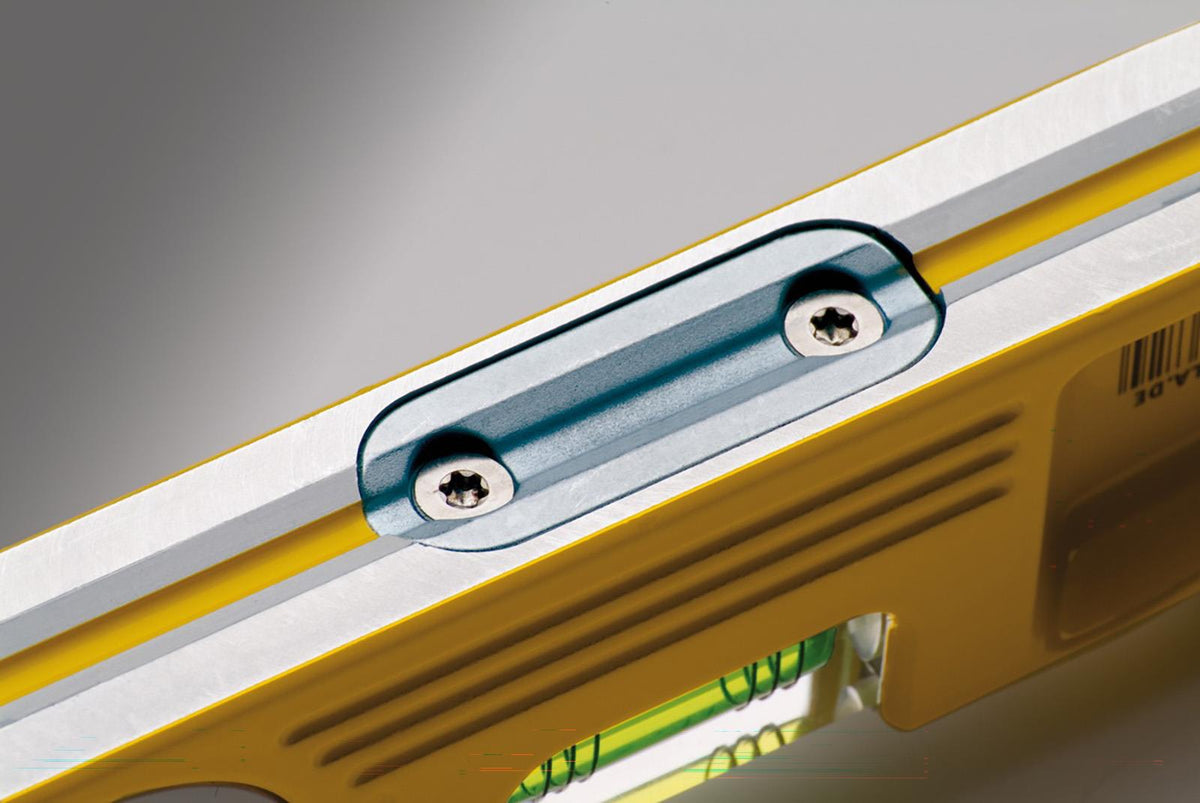

• Extra-strong rare-earth magnet system for adhesion to metal objects – leaves the hands free when aligning and adjusting pillars and supports.
• Precision-milled V-groove measuring surface for optimum hold on pipes.

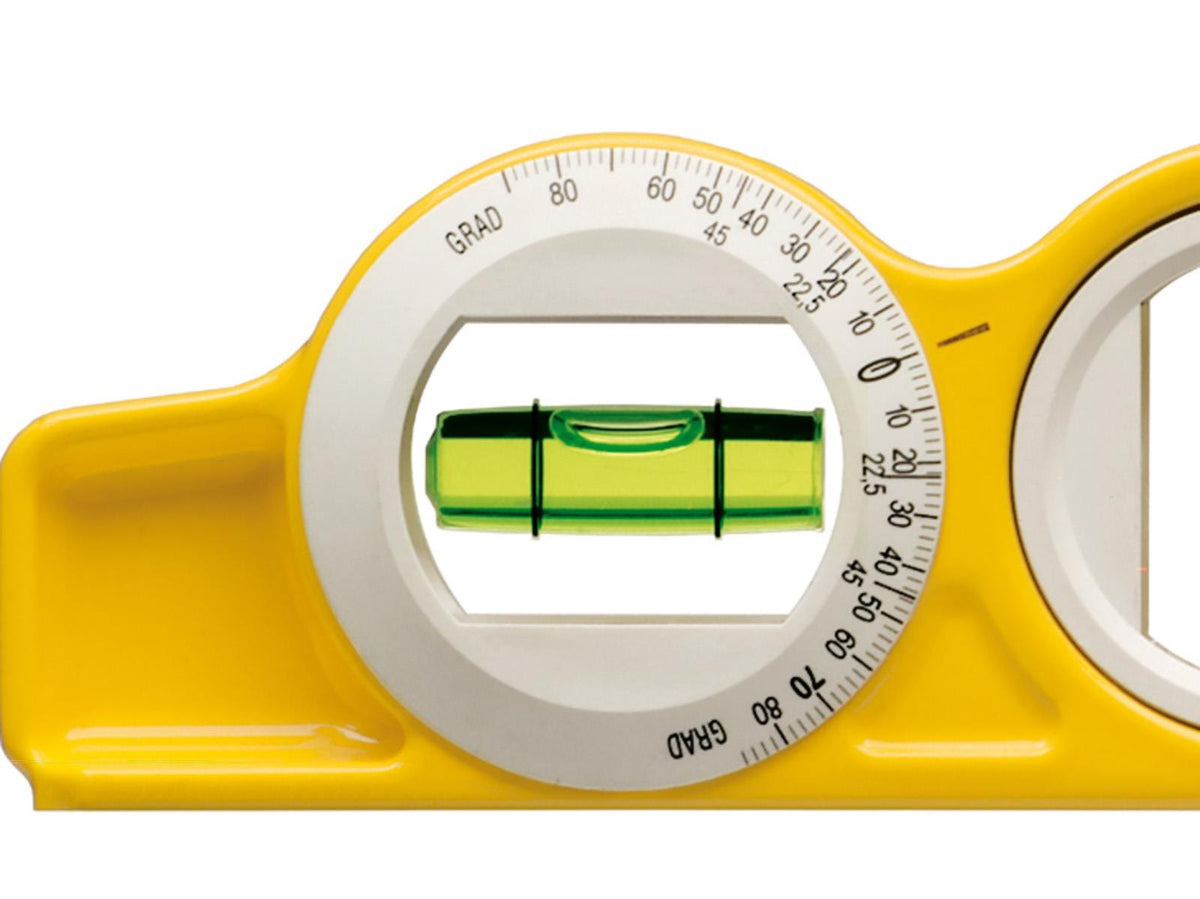

• Rotatable 360° angle vial for positioning and directly checking any angles, such as those on pipelines.

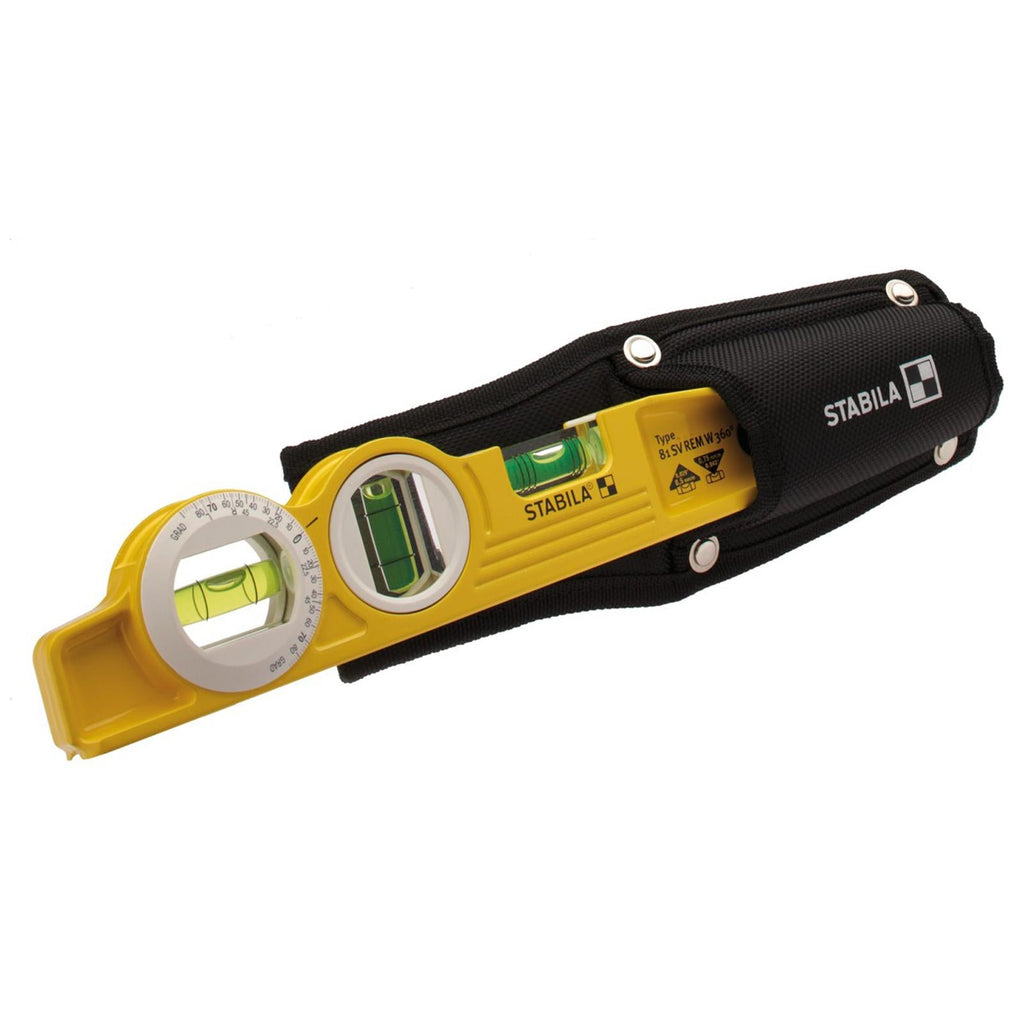

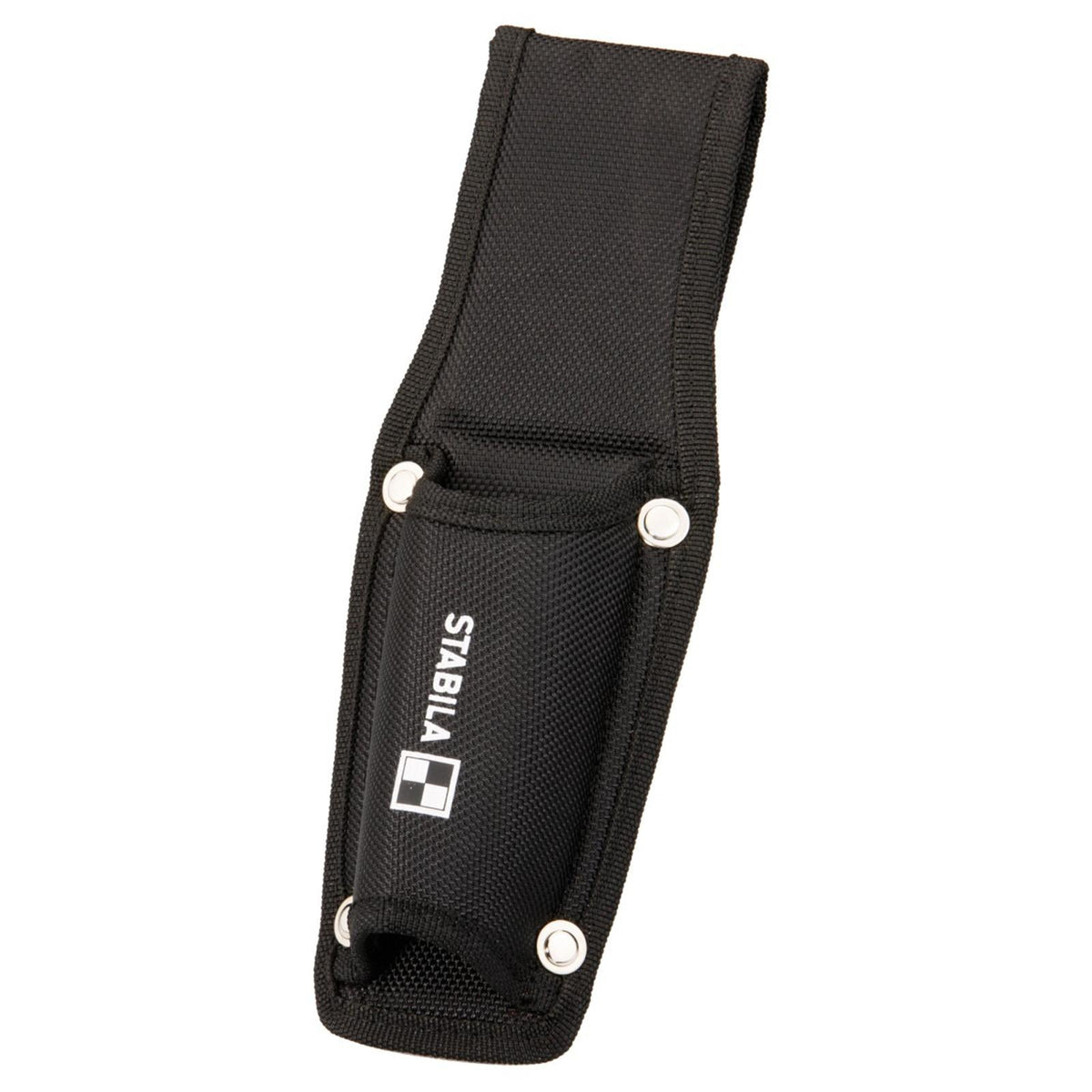

• With belt pouch – always to hand.
• Easy cleaning.
• STABILA installation technology ensures long-term accuracy – measuring accuracy in normal position is ± 0.5 mm/m and ± 0.75 mm/m in reverse position.
• Equipment: 1 six-ring horizontal vial, 1 vertical vial, 1 rotatable angle vial (tolerance of angle measurement is ± 0.3°), 1 milled V-groove measuring surface, rare-earth magnet system (up to 5 times stronger than standard ferrite magnets), belt pouch.

Features:

• Compact, tough, cast aluminium profile
• Rare-earth magnet system and V-groove measuring surface – for extra-strong adhesion to metal objects
• Rotatable 360° angle vial for positioning and checking any angles
• Six-ring horizontal vial for 1% and 2% slope measurement.

Specification:

• Measurement accuracy in normal position ±: 0.5 mm/m
• Measurement accuracy in reverse position ±: 0.75 mm/m
• Reverse measurement: Yes
• Number of vials: 3
• Number of vertical vials: 1 pc.
• Number of horizontal vials: 1 pc.
• Number of angled vials (rotatable): 1 pc.
• Number of six-ring vials: 1
• Number of measuring surfaces: 1 pc.
• Measuring surface, milled: Yes
• Profile: Cast aluminium profile
• Measuring surface with V-groove: Yes
• Magnet system: Rare-earth magnet
• Equipment: With belt pouch
• Material: Aluminium
• Colour: Yellow
• Net weight: 0.28 kg
• Manufacturer's guarantee: 10 Years
