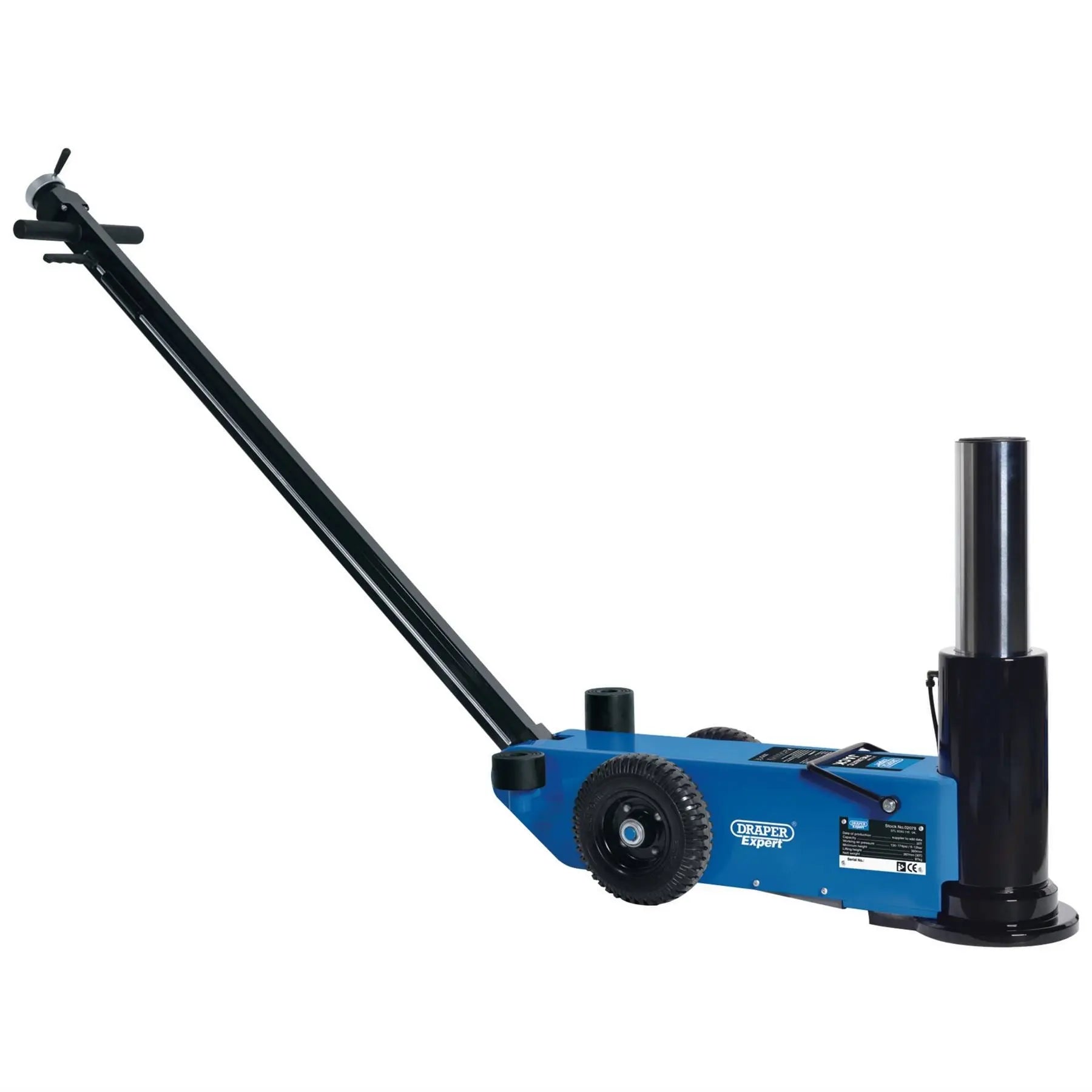

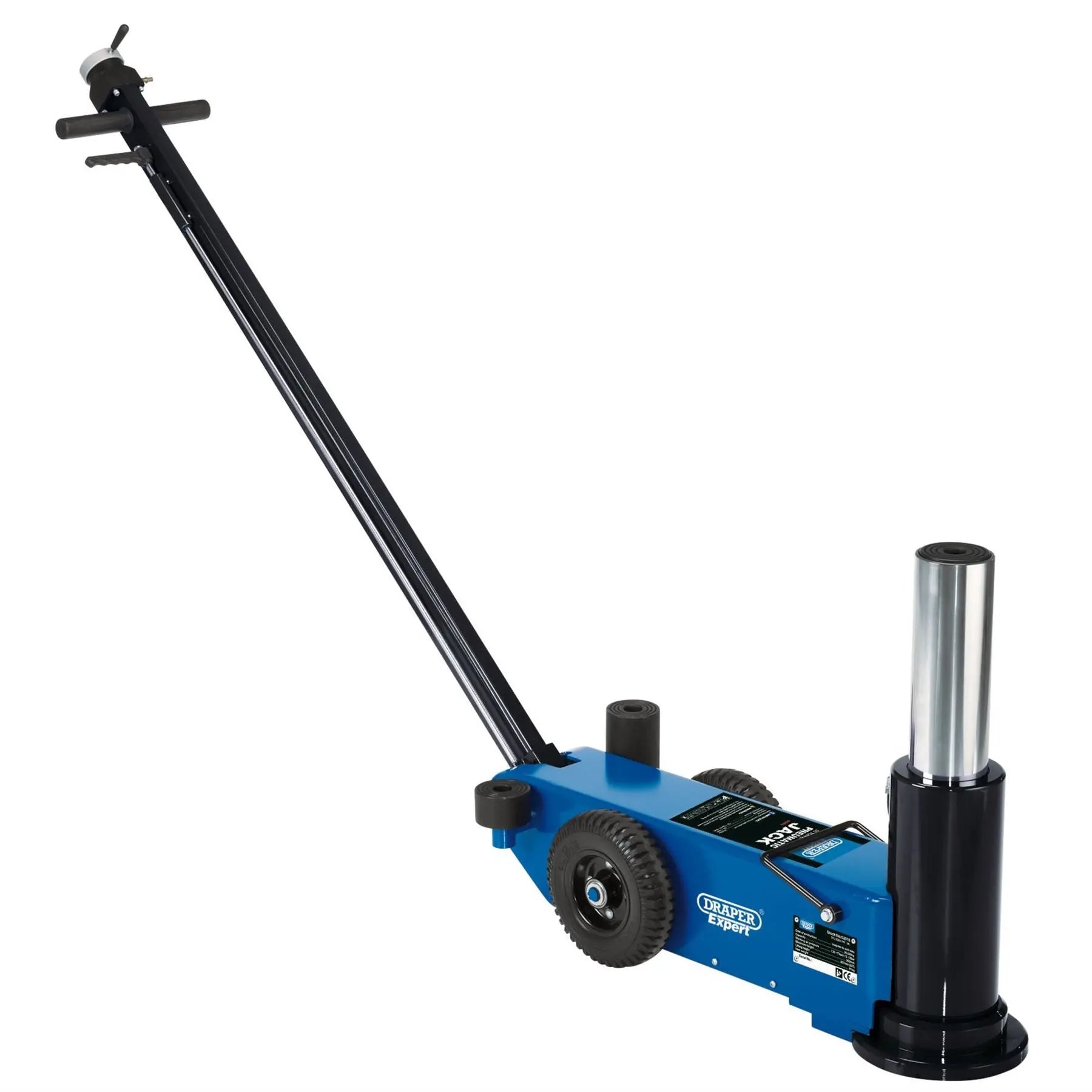

Draper Expert Pneumatic High Lift Jack 30 Tonne 02078

Draper Expert Pneumatic High Lift Jack 30 Tonne 02078

Portable and compact high lift pneumatic jack, capable of lifting 30 Tonnes. The ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 100mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.
Features:

• Single stage high lift pneumatic jack
• Agriculturally focused
• Ergonomic handle grips
• ‘Slow Down’ valve
• ‘Self Return’ switch
• Twin PP and rubber wheels
• Industrial seals

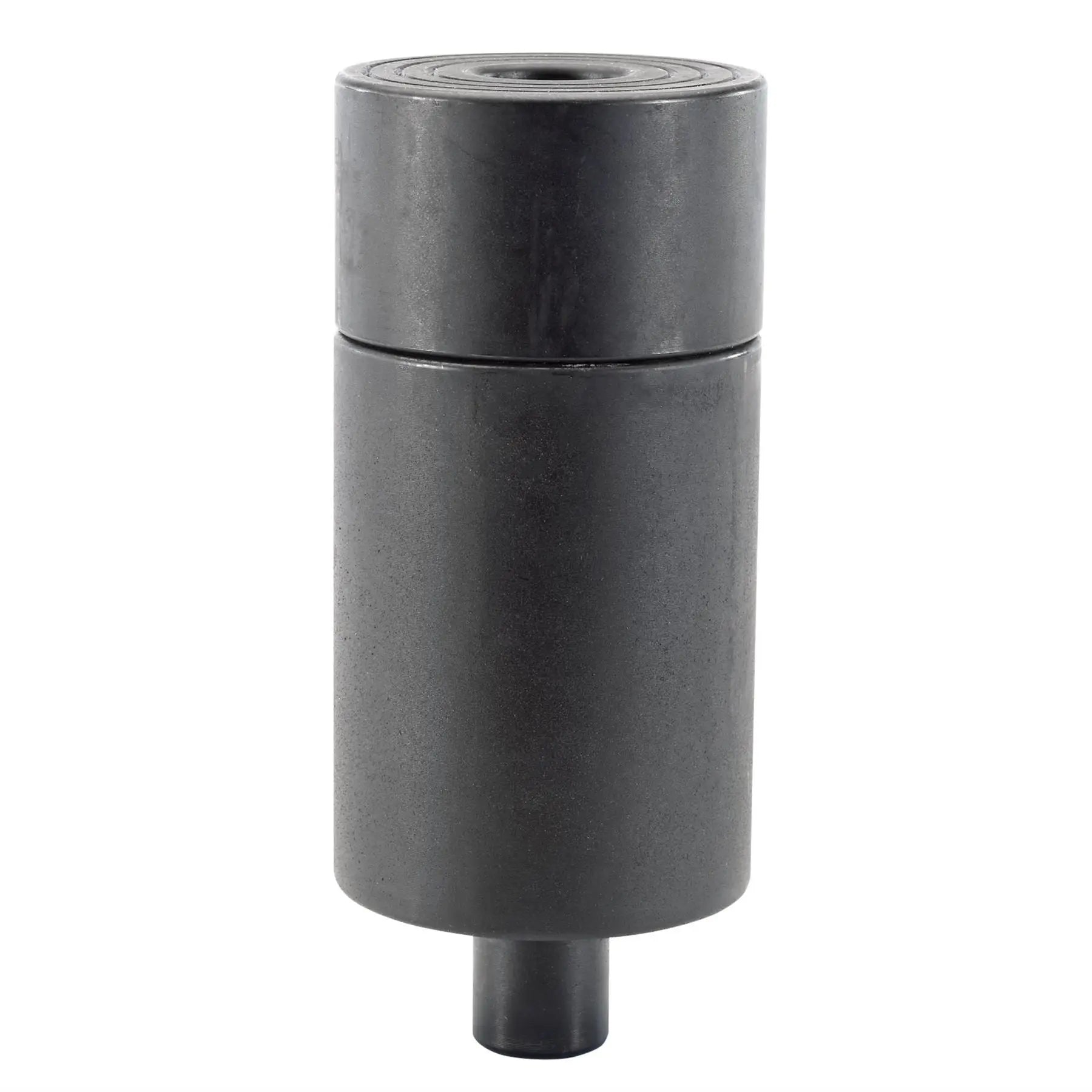

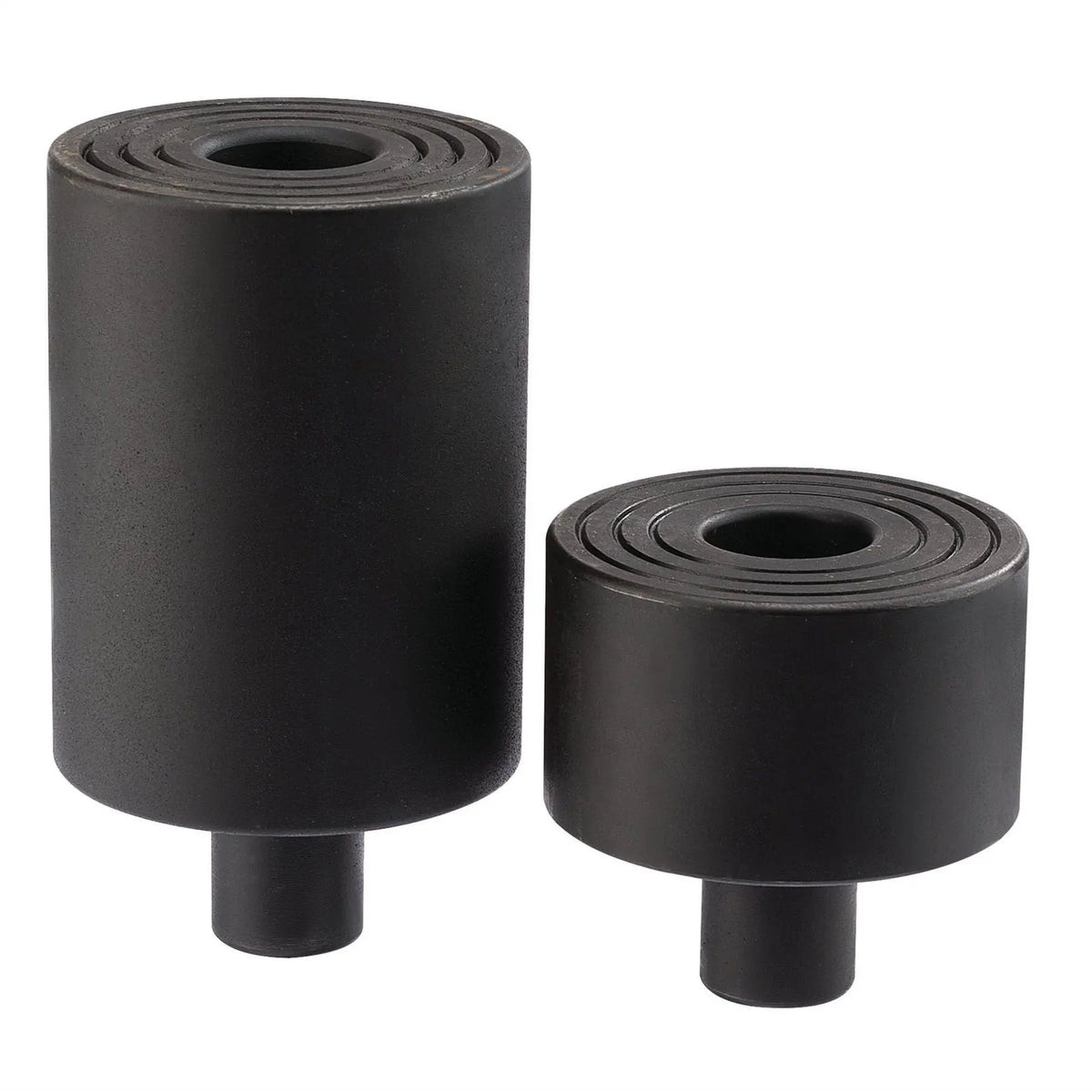

• Supplied with 1/4” BSP inlet and 45mm/100mm extensions

Product Contents:

• 1 x Pneumatic High Lift Jack, 30 Tonne

Brand: Draper Expert
Stock No: 02078
Part No: PJ30HL
Warranty: 12 months

Specification:

• Air Consumption: 11.5cfm
• Air Inlet: 1/4" BSP
• Capacity: 30 Tonne (30,000kg)
• Wheel Width: 55.5mm
• Wheel Diameter: 200mm
• Operating Air Pressure: 9 – 12BAR (130 – 174psi)
• Nett Weight: 87kg
• Min Height: 360mm
• Saddle Diameter: 83.6mm
• Lifting Height: 267mm
• Handle Length: 1380mm
• Chassis Dimensions: 840 x 215 x 360mm
• Max Height: 772mm (inc extensions)

Downloads:

• Product Data Sheet: View Here
• Instruction Manual: View Here
• Declaration of Conformity UK CA: View Here
• Declaration of Conformity CE: View Here
