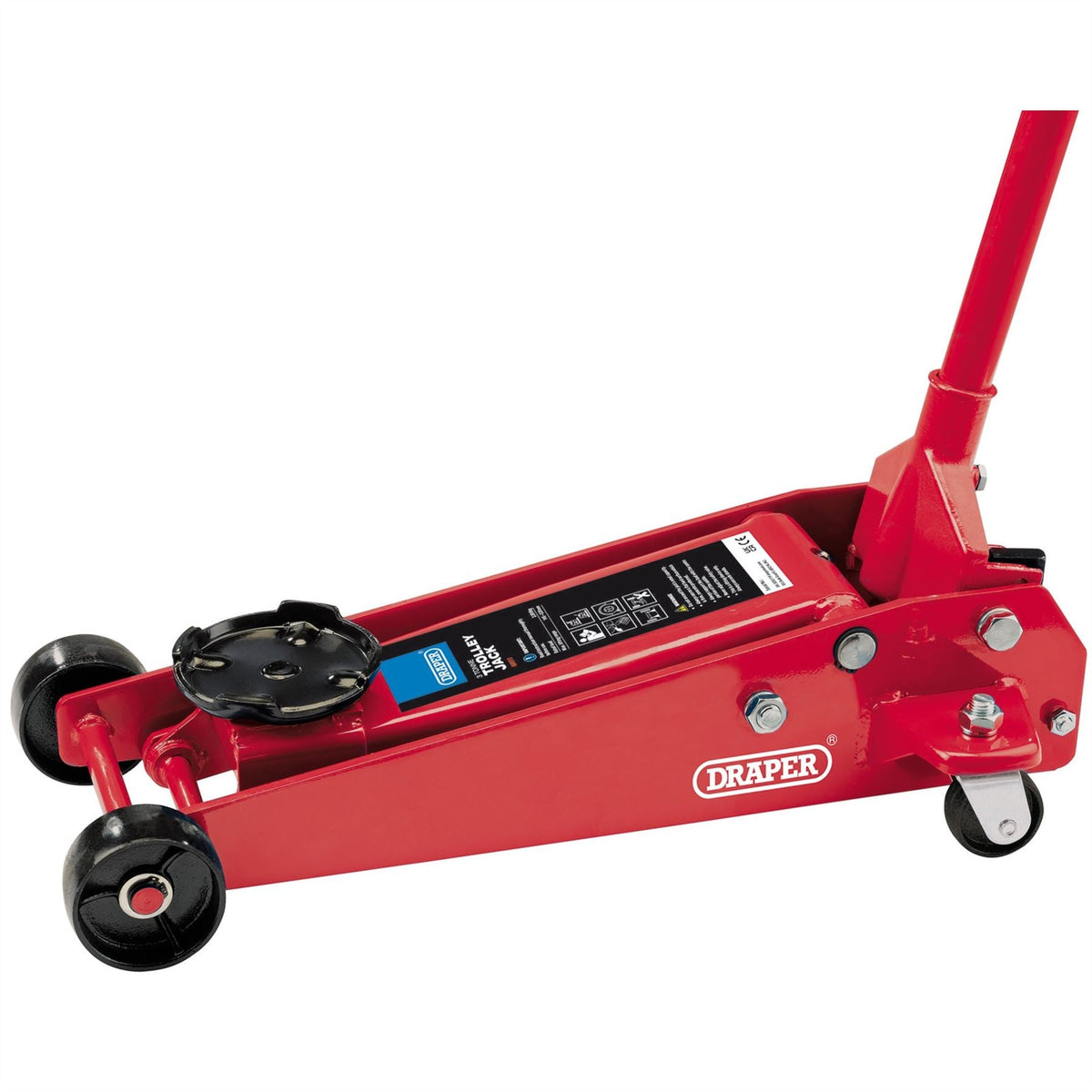

Draper Heavy Duty Garage Trolley Jack 3 Tonne Red 60977

Draper Heavy Duty Garage Trolley Jack 3 Tonne Red 60977

Heavy duty design with twist handle release mechanism and two-piece handle. Fitted with heavy duty rear swivelling castor wheels and large saddle to aid positioning under the vehicle. The jack incorporates a safety overload and bypass valves to prevent the handle locking at the maximum ram extension.
Features:

• Heavy-duty chassis
• Large steel castors
• Extra-large saddle
• Safety valve prevents the jack from overloading
• Supplied with a cog-type release mechanism and a two piece handle
• Manufactured to EN1494 Specification

Product Contents:

• 1 x Heavy Duty Garage Trolley Jack, 3 Tonne, Red

Brand: Draper
Stock No: 60977
Part No: TJ3HD/BR
Warranty: 12 months

Specification:

• Max Height: 520mm
• Min Height: 135mm
• Handle Length: 1,000mm
• Chassis Dimensions: 720mm
• Capacity: 3 Tonne (3,000kg)
• Nett Weight: 40kg
• Saddle Diameter: 130mm
• Lifting Range: 135 - 520mm
• Weight: 40kg
• Overall Size: 720 x 345 x 185mm

Downloads:

• Product Data Sheet: View Here
• Instruction Manual: View Here
• Parts Listing: View Here
• Declaration of Conformity UK CA: View Here
• Declaration of Conformity CE: View Here
