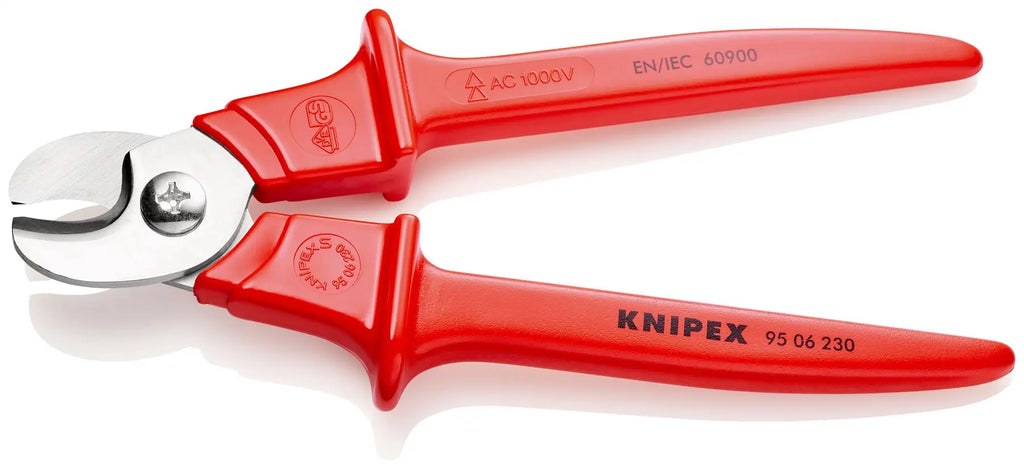

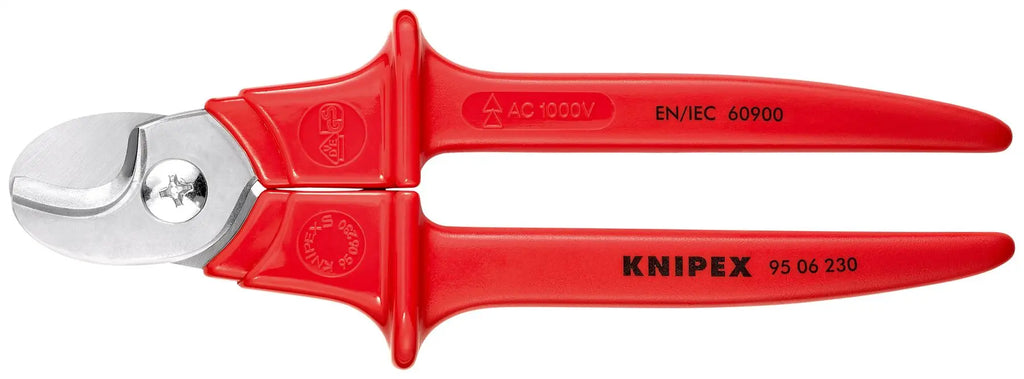

KNIPEX Cable Shears Cutters VDE Insulated Cuts Cable up to 16mm Diameter 230mm Plastic Insulated Handles 95 06 230 SB
95 06 230 SB Cable Shears
Not suitable for steel wire and hard drawn copper conductors. Precision-ground, hardened blades. No crushing, slight deformation of the cable only. Adjustable bolted joint. for copper single conductors up to 16 mm², multiple stranded wires up to 50 mm², fine stranded up to 70 mm² and aluminium conductors multiple stranded wires up to 70 mm². easy cutting with one-hand operation due to high transmission ratio. stainless - special grade - steel, oil-hardened and tempered. self-service card/blister.
Technical Information:
- adjustable bolted joint
- easy cutting with one-hand operation due to high transmission ratio
- for copper single conductors up to 16 mm², multiple stranded wires up to 50 mm², fine stranded up to 70 mm² and aluminium conductors multiple stranded wires up to 70 mm²
- no crushing, slight deformation of the cable only
- Not suitable for steel wire and hard drawn copper conductors
- precision-ground, hardened blades
- stainless - special grade - steel, oil-hardened and tempered
Downloadable Files:
- Data Sheet: View Here
