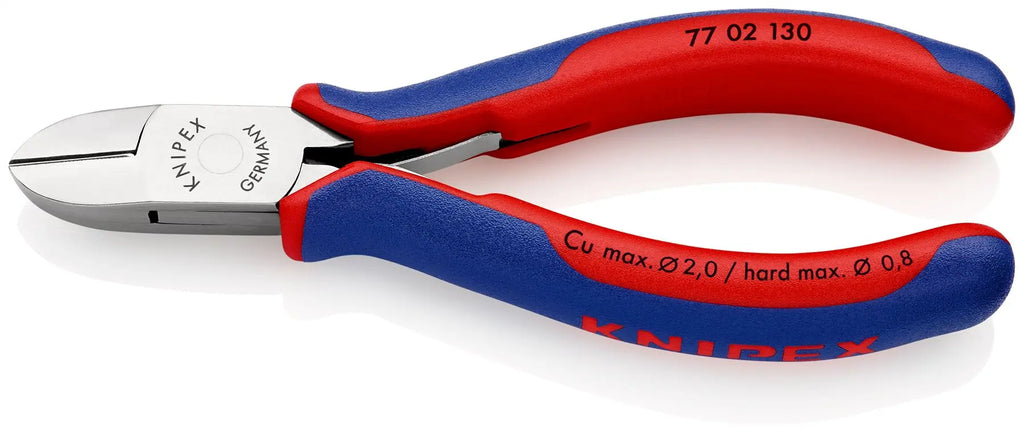

KNIPEX Electronics Diagonal Cutter Pliers Round Head Small Bevel 130mm Multi Component Grips 77 02 130 SB
Roll over image to zoom in Click on image to zoom
KNIPEX Electronics Diagonal Cutter Pliers Round Head Small Bevel 130mm Multi Component Grips 77 02 130 SB

KNIPEX Electronics Diagonal Cutter Pliers Round Head Small Bevel 130mm Multi Component Grips 77 02 130 SB

SKU: 77 02 130 SB
Price:
$68.00
Stock:
Sold out

Pickup currently unavailable at White Rose Tools (Barnsley)

25 Nov. Estimated arrival
22 Nov. Order placed
23-24 Nov. Order dispatches
25 Nov. Delivered!

Description




KNIPEX Electronics Diagonal Cutter Pliers Round Head Small Bevel 130mm Multi Component Grips 77 02 130 SB

77 02 130 SB Electronics Diagonal Cutter
Durable, load-optimised design with backlash-free box joint. High, slim sleeves for fine and comfortable gripping between thumb and index finger. Less physical effort due to very high transmission ratio. Load-optimised for a more direct feel when working. Low-friction double spring for gentle and even opening. The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools. Cutters additionally laser hardened, cutter hardness at least 62 HRC. round head, with small bevel.

  • Cutting capacities medium hard wire (diameter): Ø 1.5 mm
  • Schneidwerte harter Draht (Durchmesser): Ø 0.8 mm
  • Cutting capacities soft wire (diameter): Ø 0.3 – 2 mm
  • Jaw length (B): 18 mm
  • Jaw thickness (joint) (D): 9.5 mm
  • Head width (A): 13 mm
  • Cutting edge length mm (C): 16.2 mm


    • Technical Information:
    • Cutters additionally laser hardened, cutter hardness at least 62 HRC
    • Load-optimised for a more direct feel when working
    • low-friction double spring for gentle and even opening
    • round head, with small bevel
    • The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools
