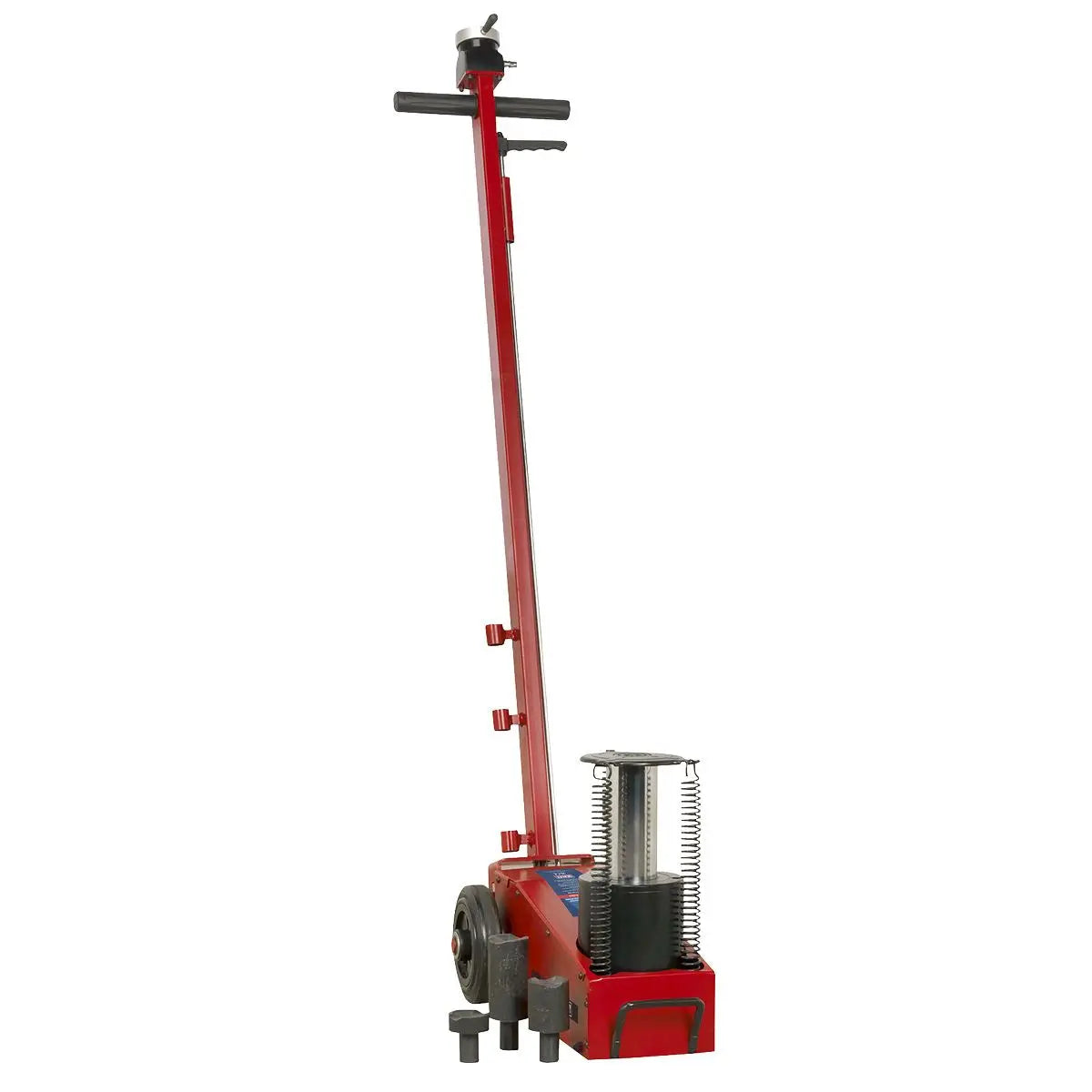

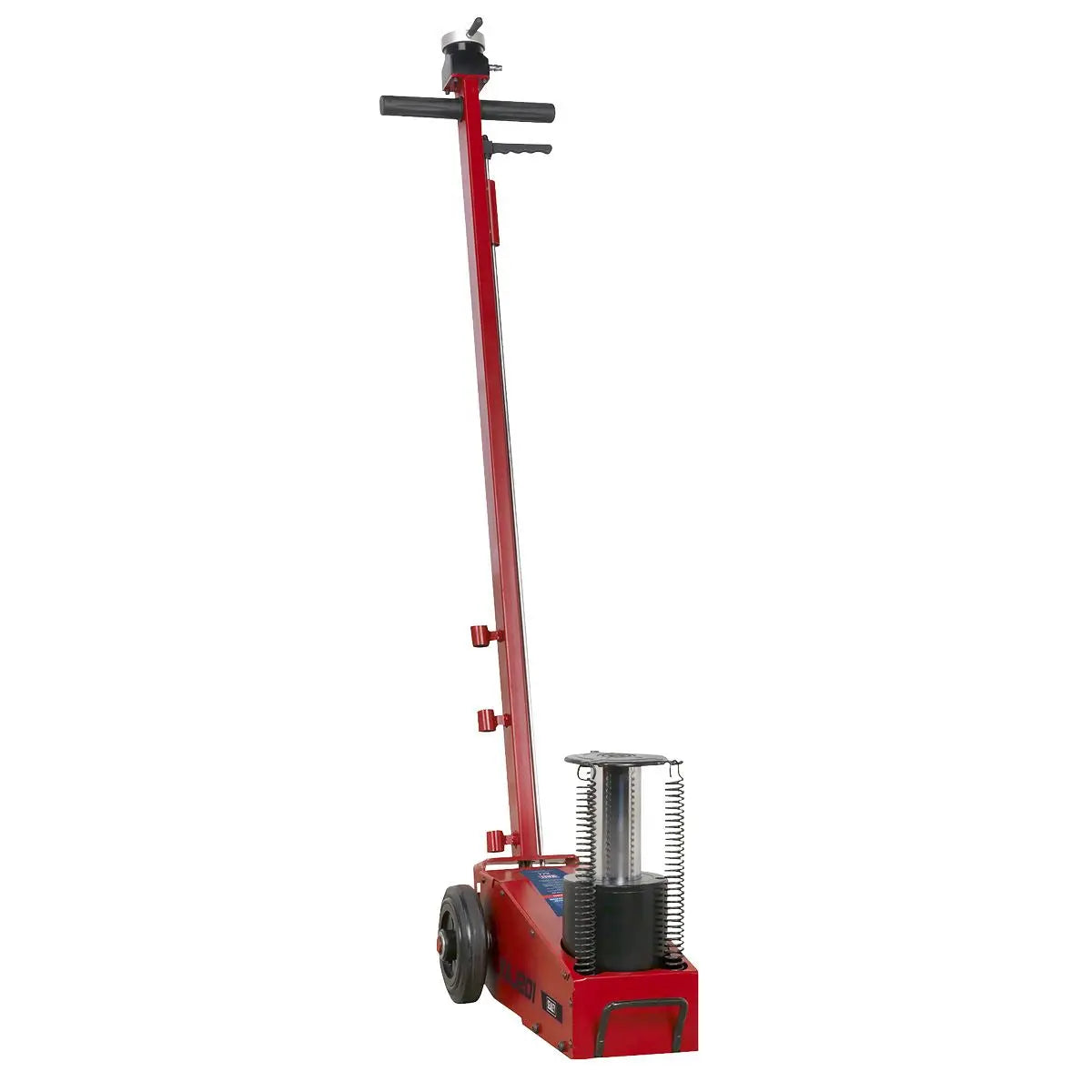

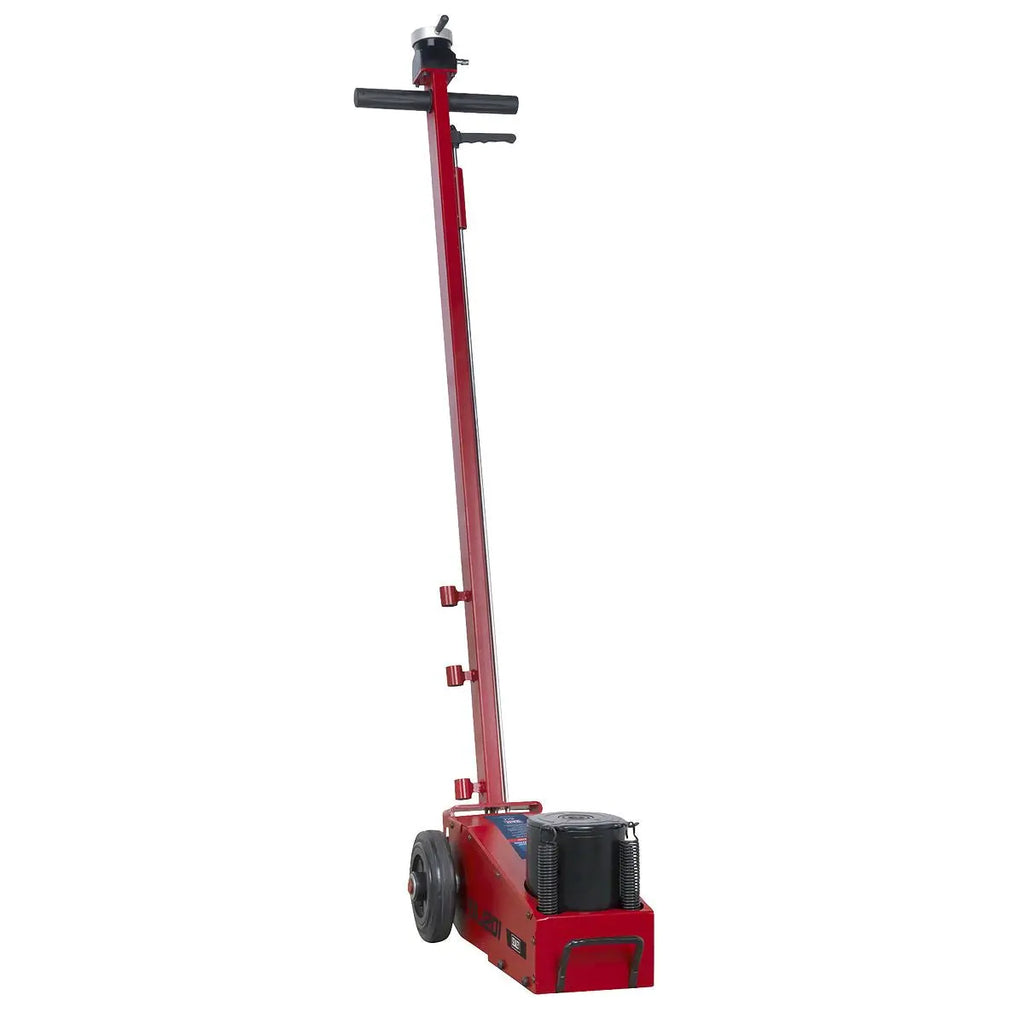

Sealey Air Operated Jack 20 Tonne - Single Stage

Sealey Air Operated Single Stage Jack 20 Tonne

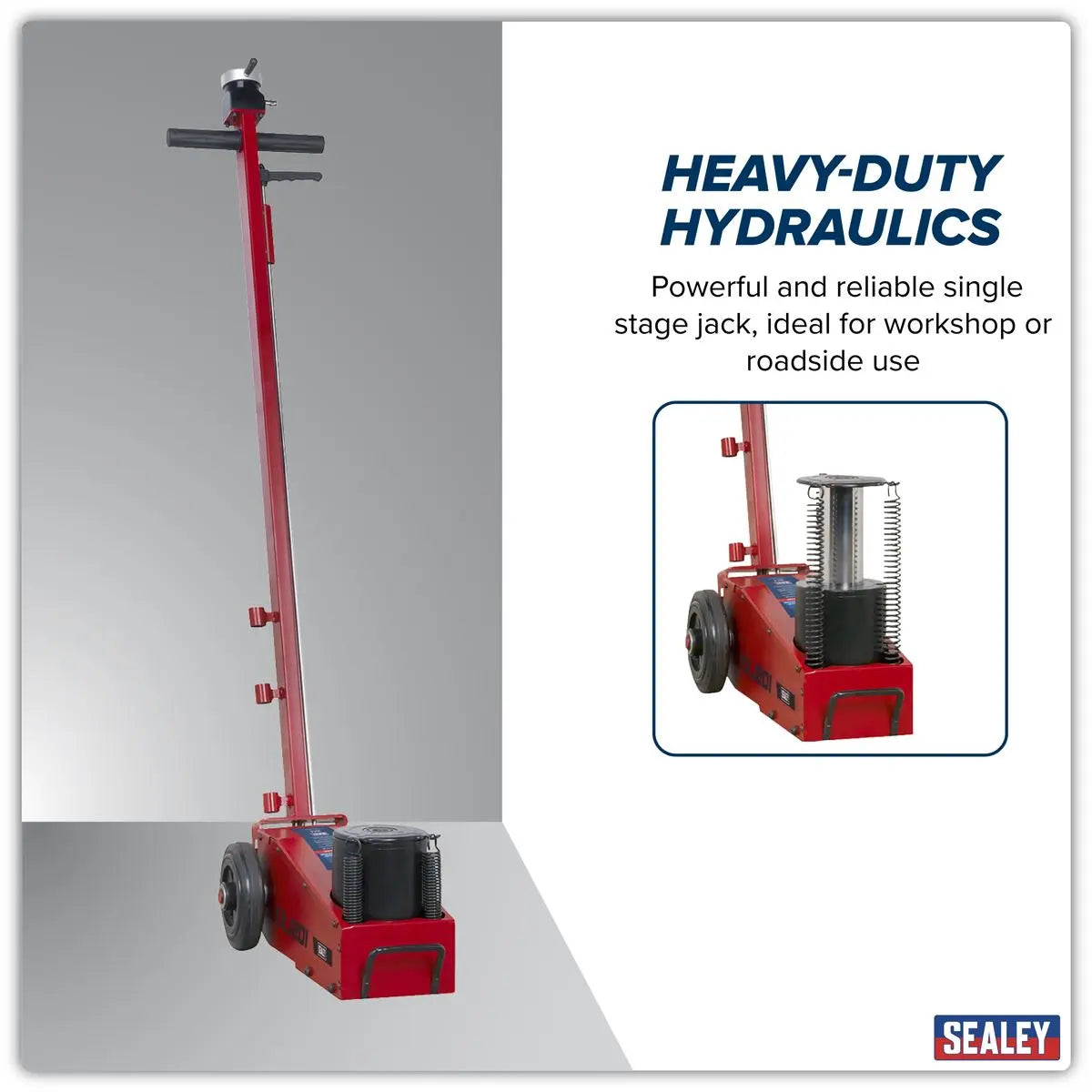

Powerful and reliable, ideal for workshop or roadside use.

At modest cost, it takes the effort out of lifting heavy plant, tractors and commercial vehicles.

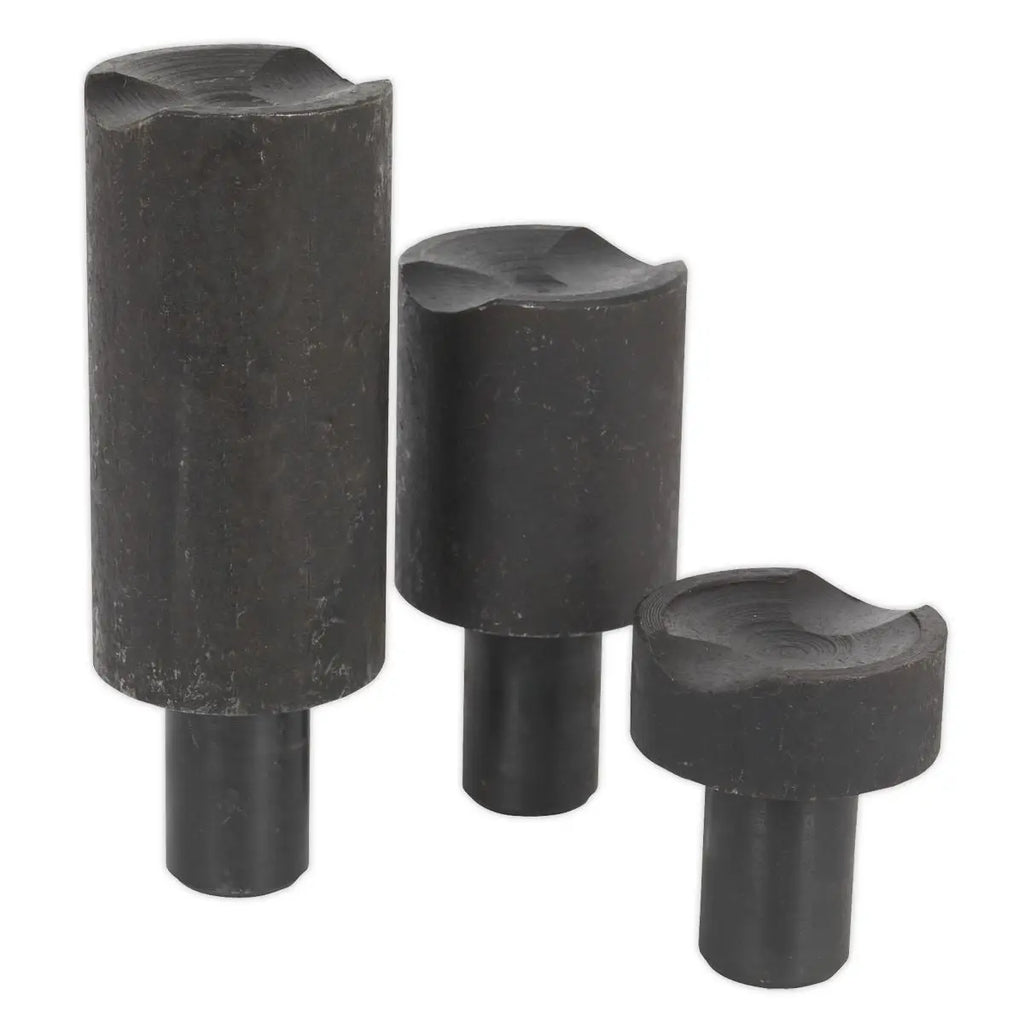

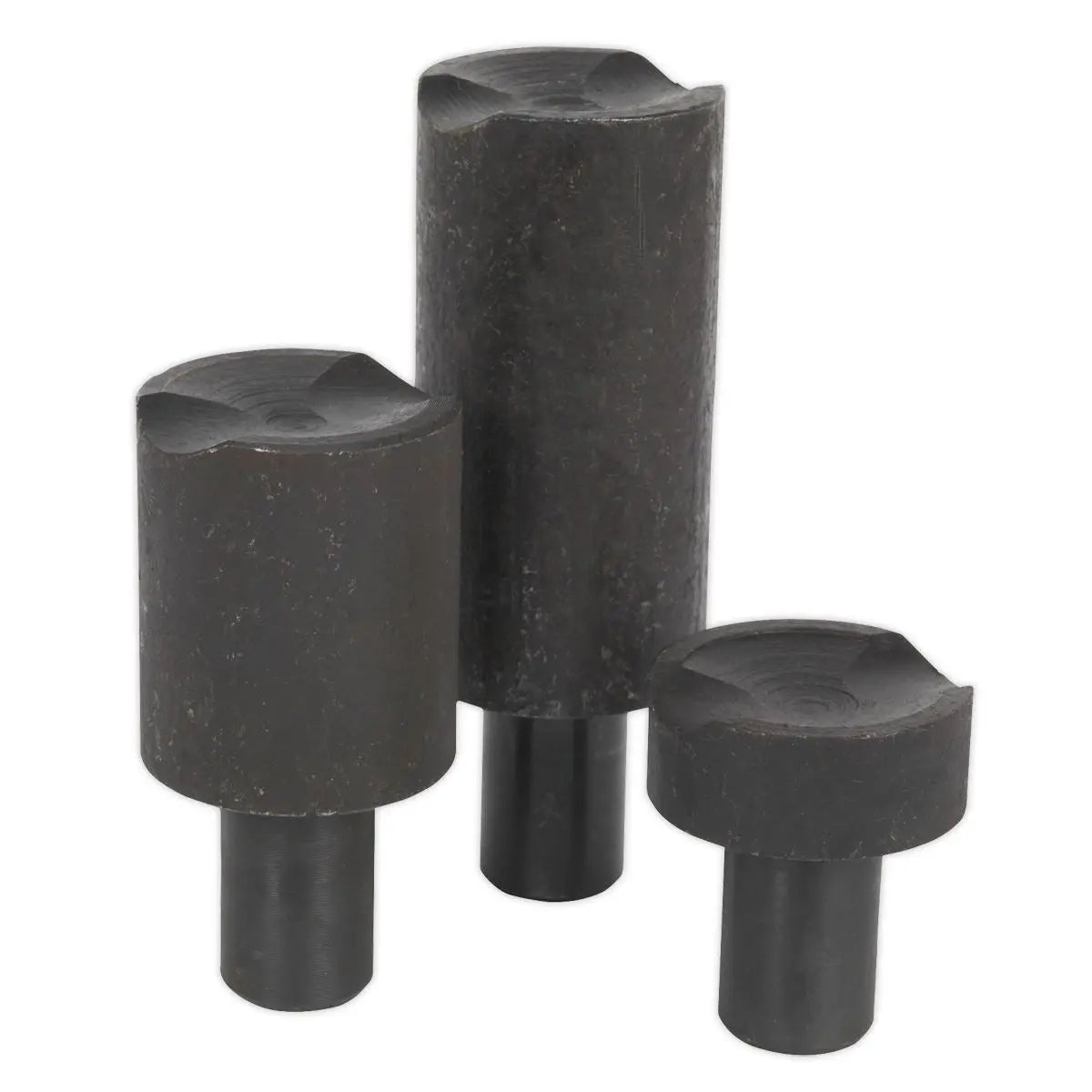

Supplied with 20mm, 50mm and 100mm extensions.

This jack will require a compressor of above 3hp.

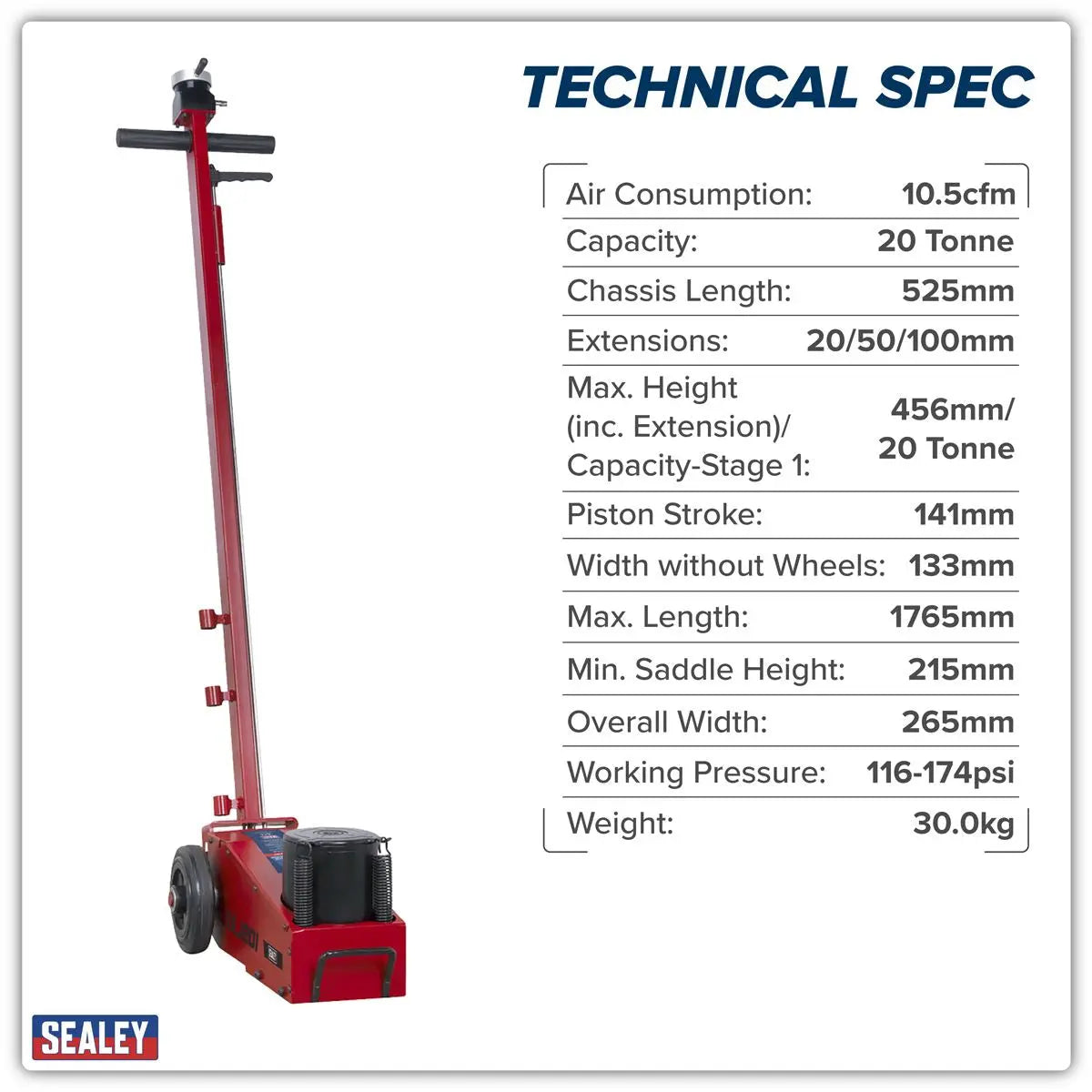

Specification:

• Model No YAJ201
• Air Consumption: 10.5cfm
• Brand: Sealey
• Capacity: 20 Tonne
• Chassis Length: 525mm
• Extensions: 20/50/100mm
• Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): 456/20mm
• Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): n/a
• Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne): n/a
• Maximum Length: 1765mm
• Minimum Saddle Height: 215mm
• Nett Weight: 30kg
• Overall Width: 265mm
• Piston Stroke: 141mm
• Screw Extension: n/a
• Width without Wheels: 133mm
• Working Pressure: 116-174psi

Product Guarantee: 1 Year
Catalogue Page: Page 290

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
