Sealey Air Operated Trolley Jack 20 Tonne - Single Stage

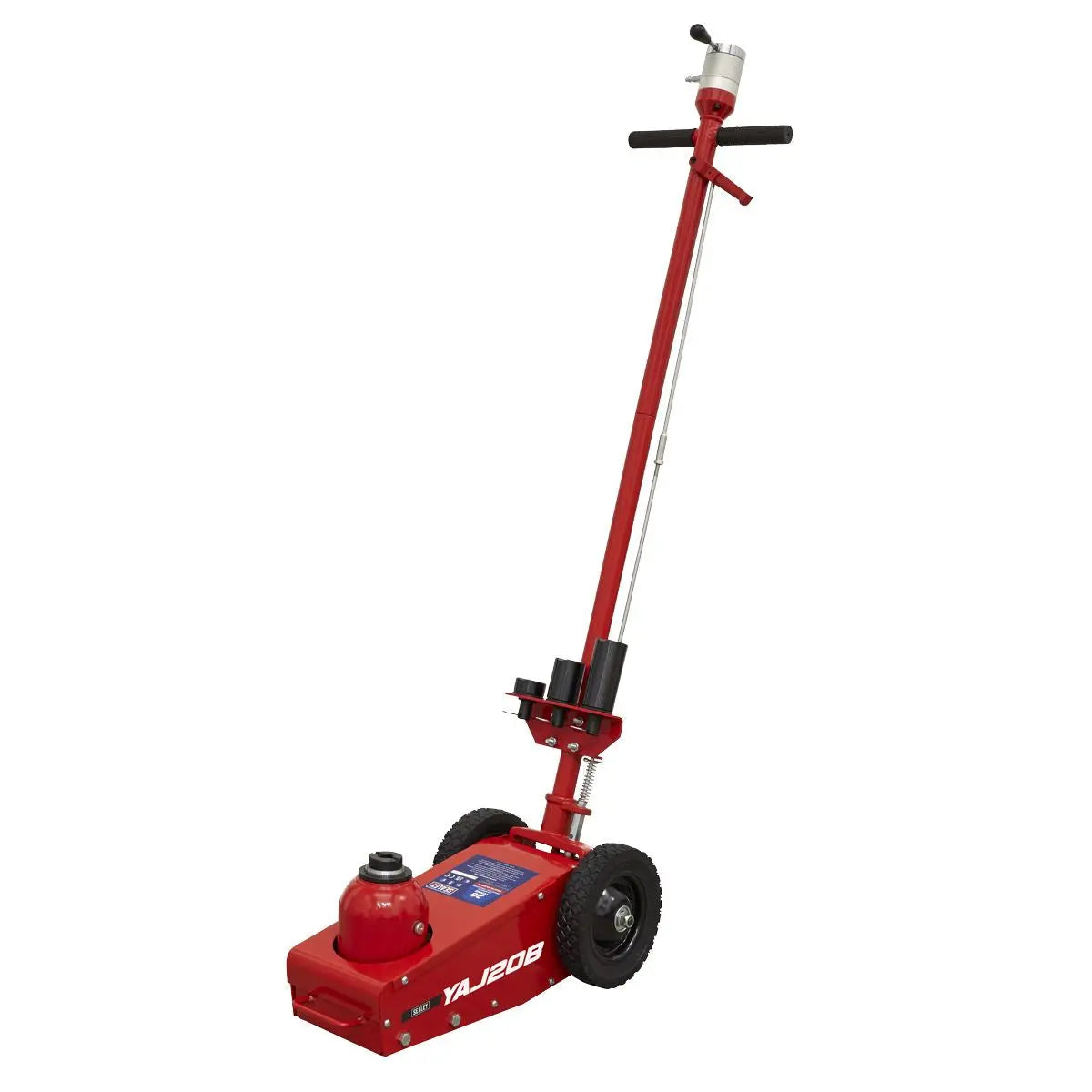

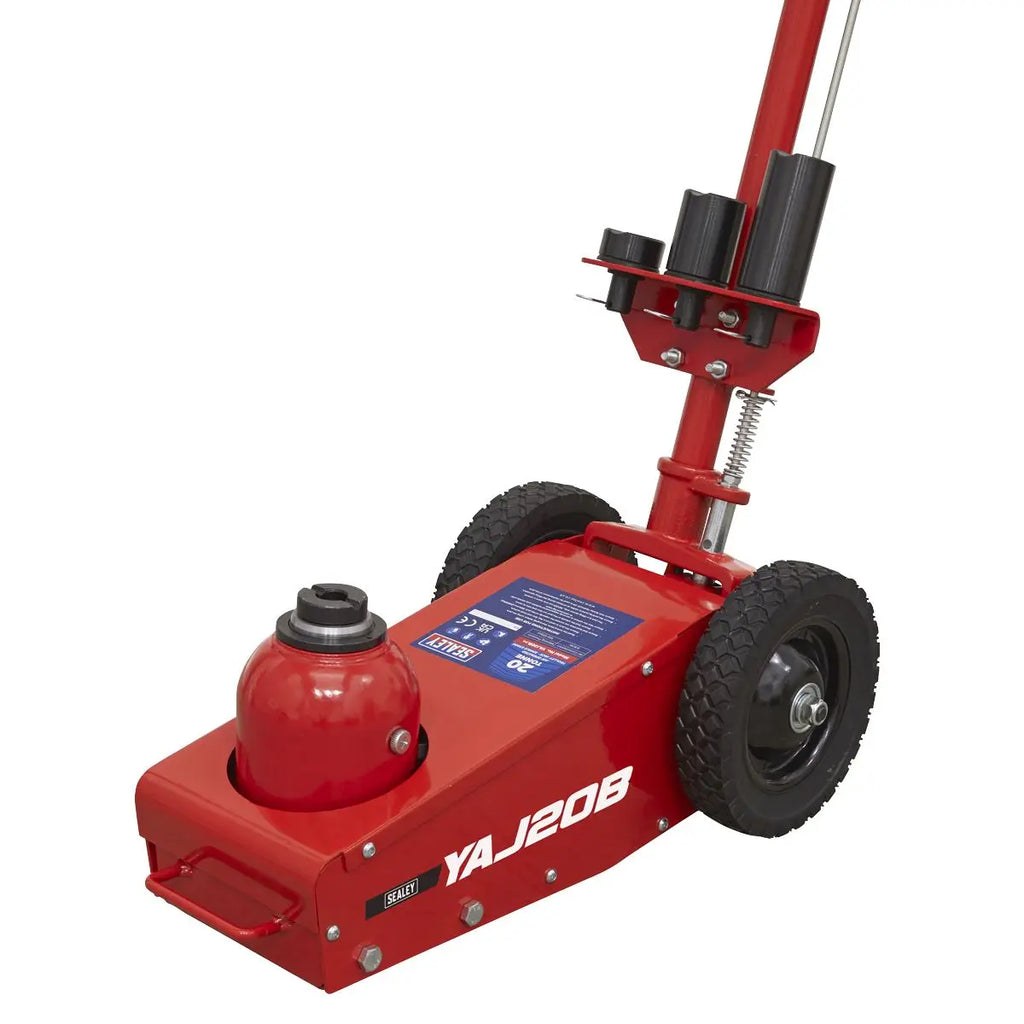

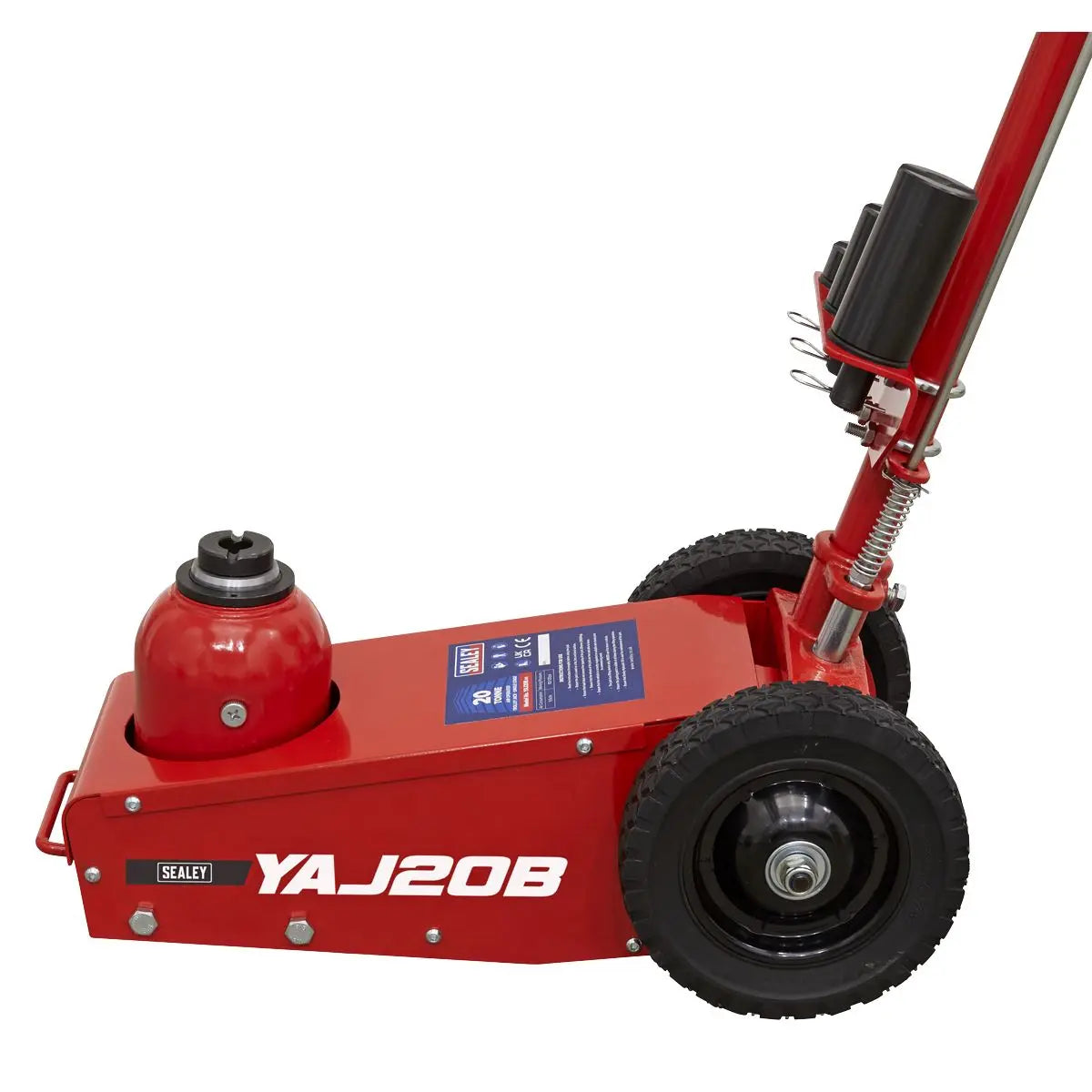

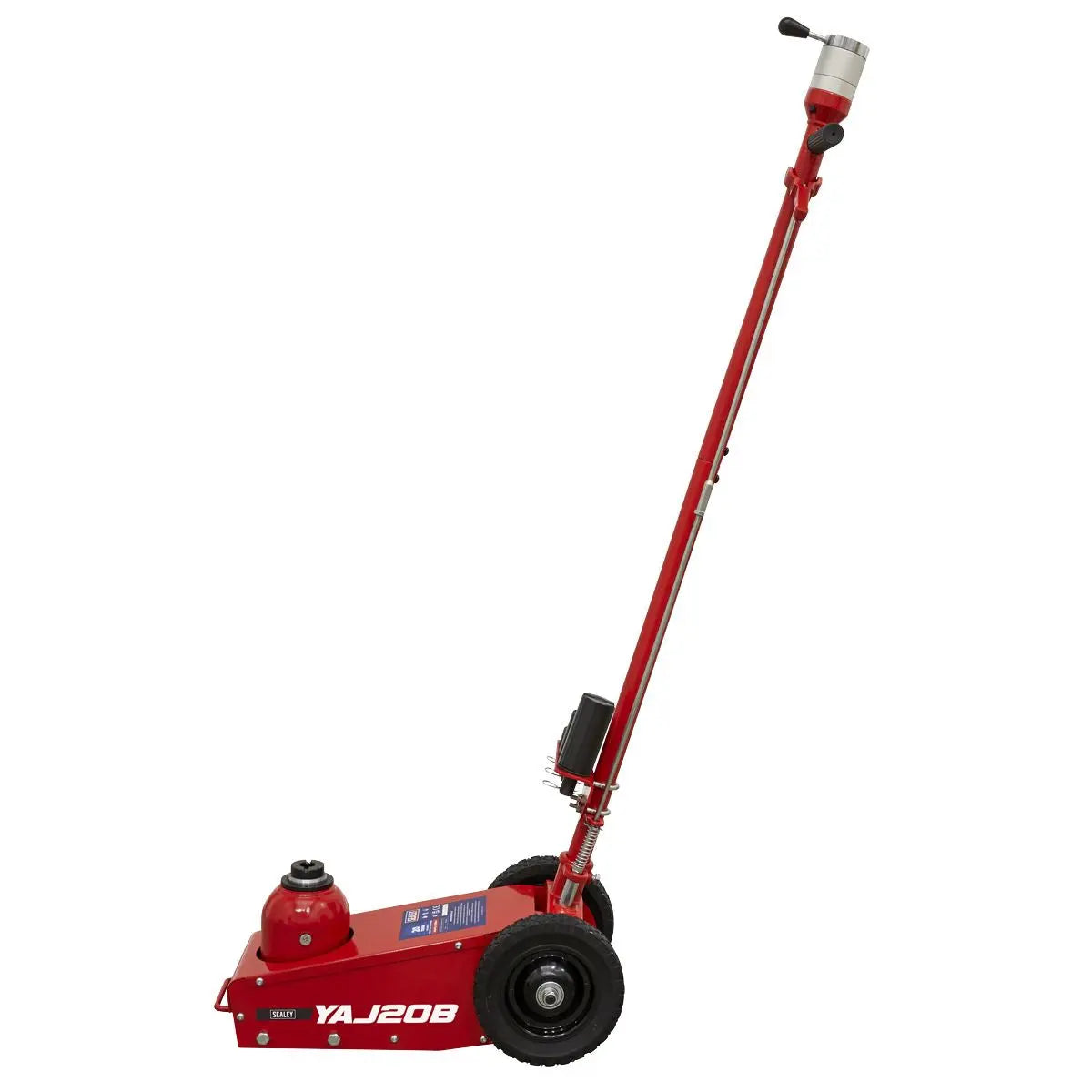

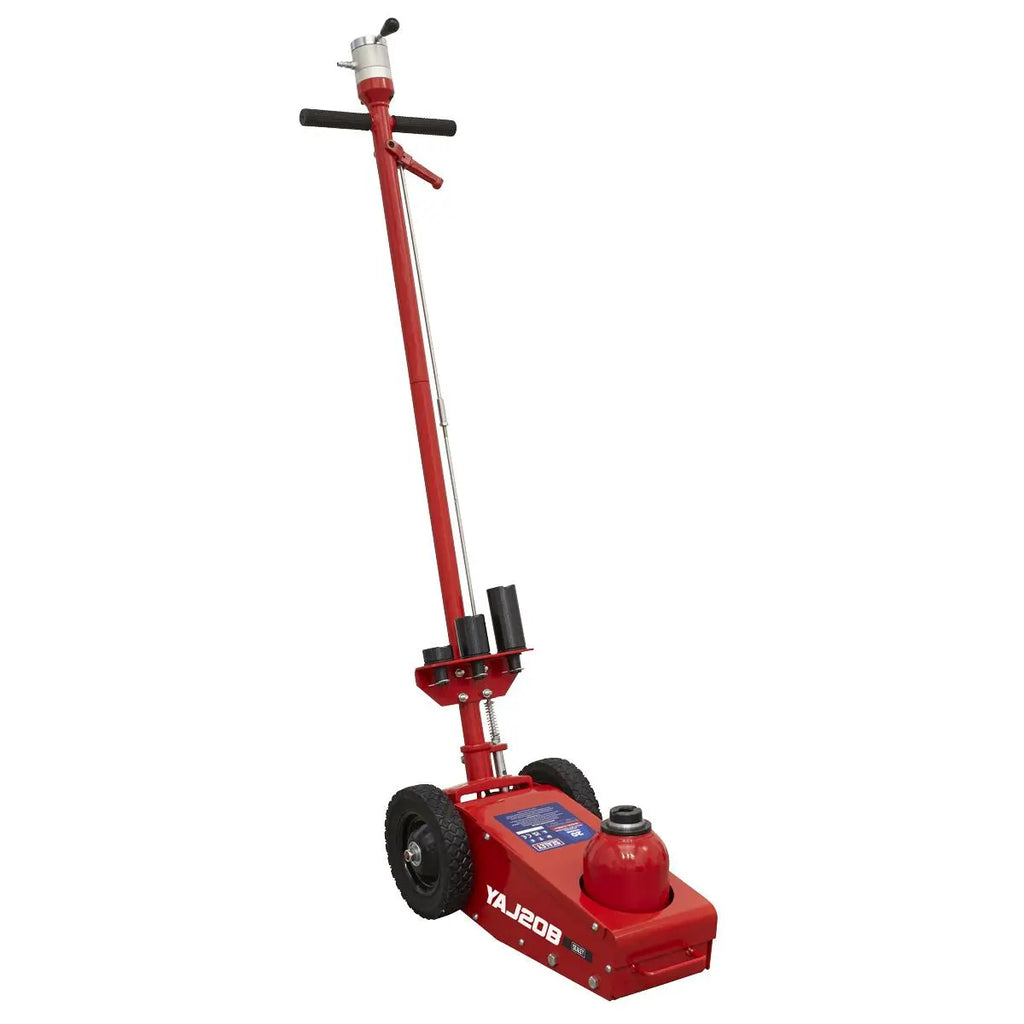

Sealey Air Operated Single Stage Trolley Jack 20 Tonne

Powerful and reliable, ideal for workshop or roadside use.

At modest cost, it takes the effort out of lifting heavy plant, tractors and commercial vehicles.

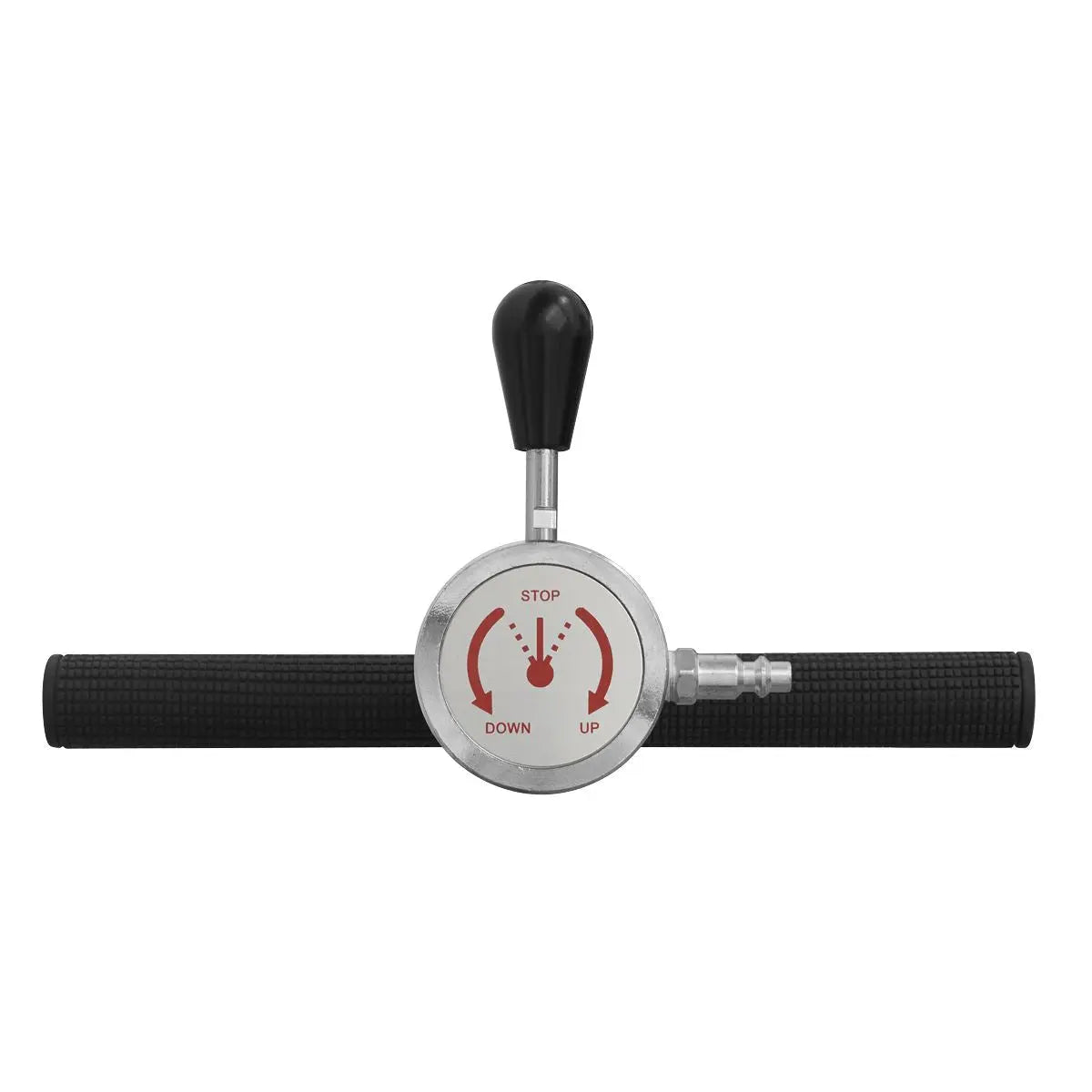

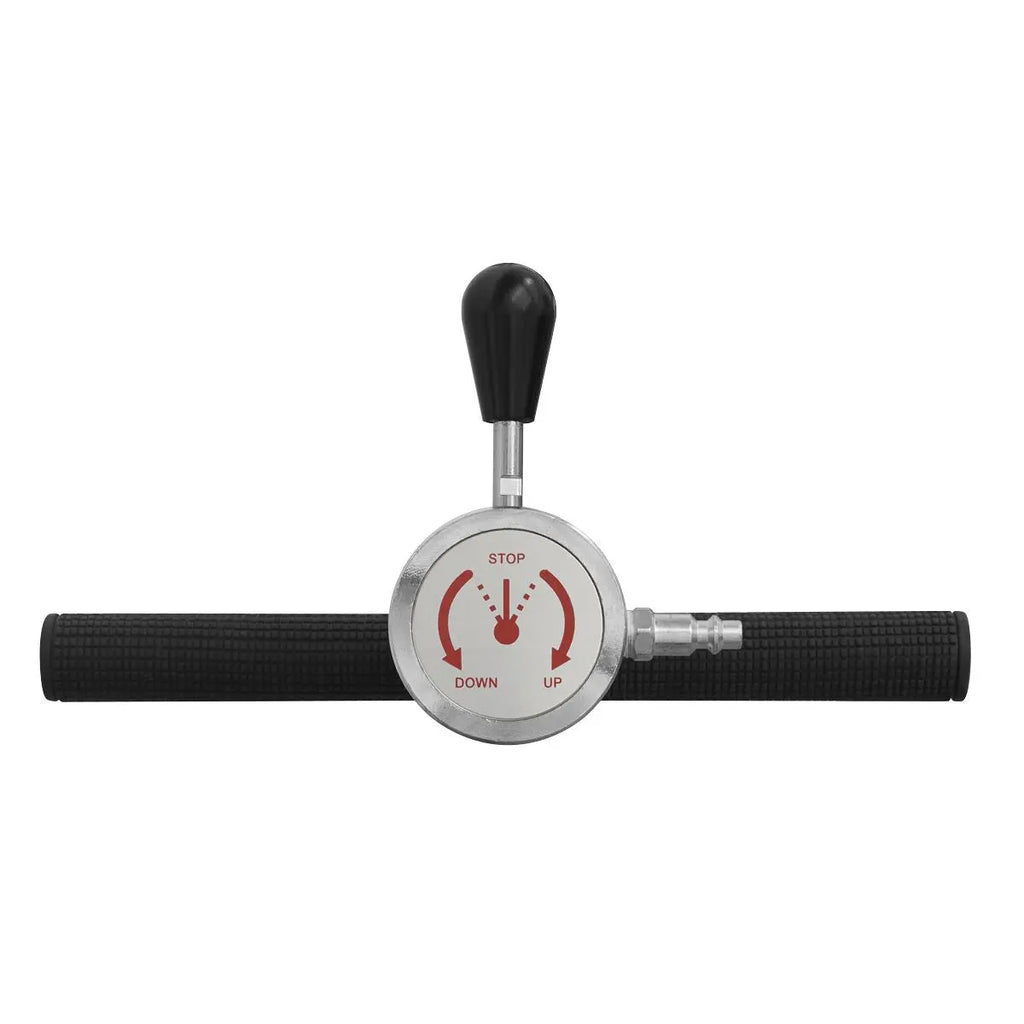

Features dead man’s controls and multi-position locking handle.

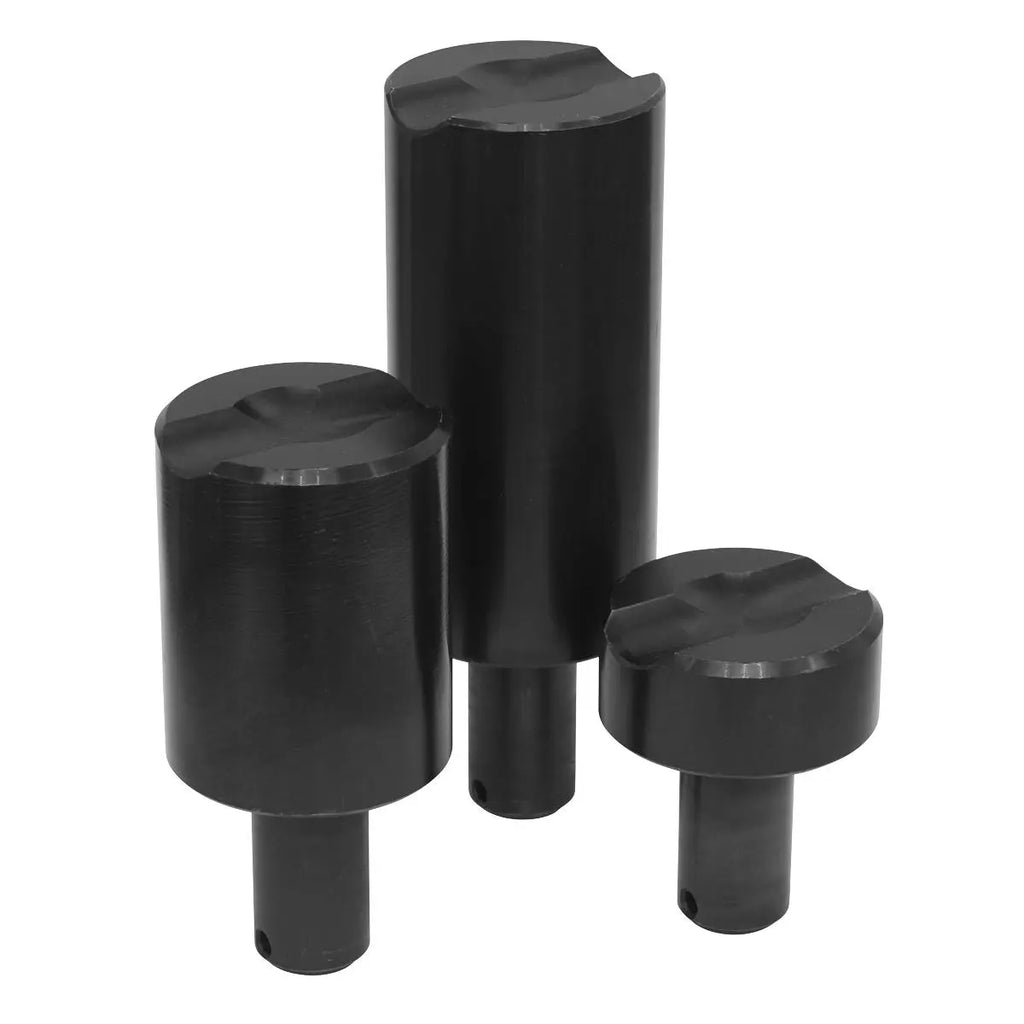

Supplied with 20/60/90mm extensions to close the gap between the saddle of the jack and the jacking point.

Specification:

• Model No YAJ20B
• Air Consumption: 9.5cfm
• Brand: Sealey
• Capacity: 20 Tonne
• Chassis Length: 575mm
• Extensions: 20/60/90mm
• Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): 548/20
• Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): n/a
• Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne): n/a
• Maximum Length: 1270mm
• Minimum Saddle Height: 223mm
• Nett Weight: 38kg
• Overall Width: 322mm
• Piston Stroke: 122mm
• Screw Extension: 105mm
• Width without Wheels: 187mm
• Working Pressure: 100-120psi

Product Guarantee: 1 Year
Catalogue Page: Page 290

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
