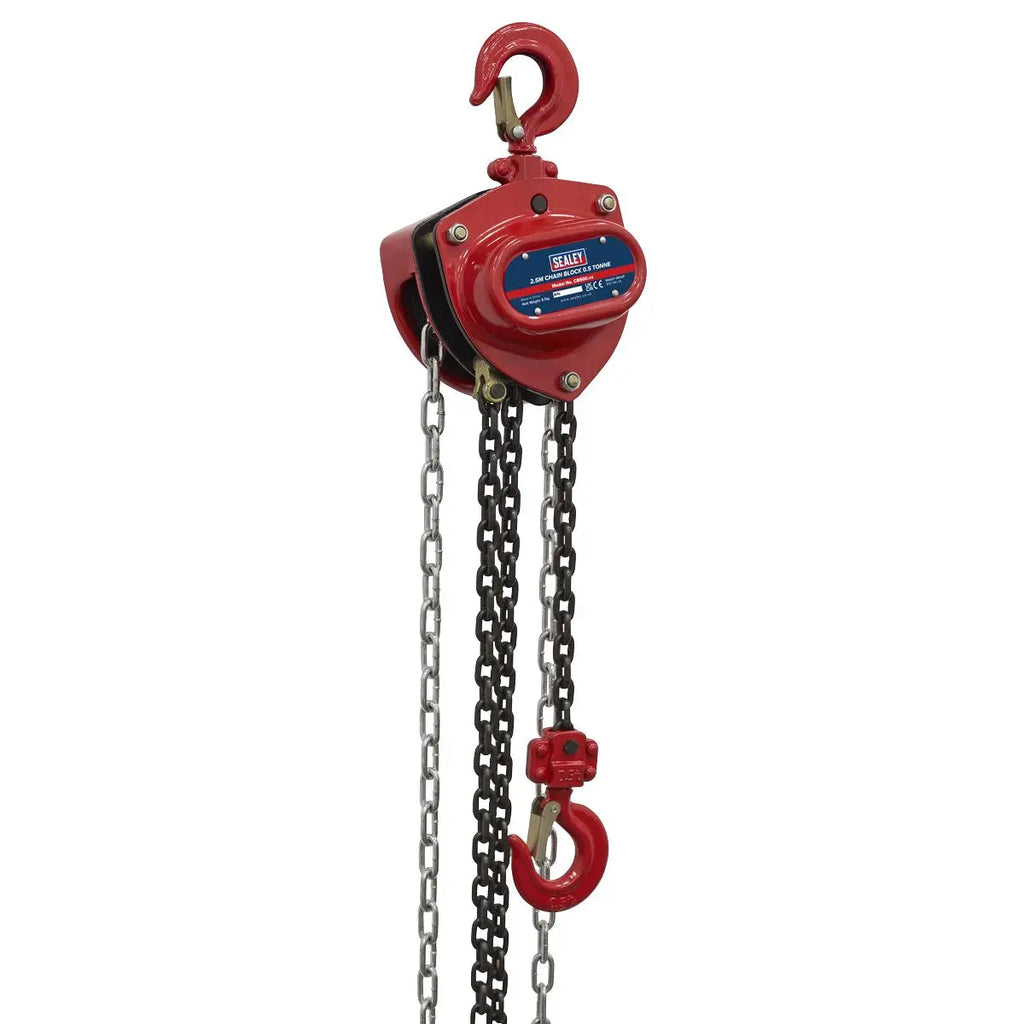

Sealey Chain Block 2.5m - 0.5 Tonne

Sealey 2.5m Chain Block 0.5 Tonne

HEAVY-DUTY GEARING - Fitted with heat treated and ground, triple-spur geared shaft and pinion.

LOAD BRAKE - Includes a double pawl and spring mechanical load brake for extra safety.

HARDENED CHAINS - All chains are manufactured from hardened alloy material

SAFETY HOOKS - Larger opening, forged steel load hooks feature safety latches.

REDUCED SIZE GEAR HOUSING - Compact gear housing allows use where headroom is limited.

Specification:

• Model No CB500
• Brand: Sealey
• Capacity: 500kg
• Head Room: 350mm
• Hook Aperture: 25mm
• Load Chain Diameter: Ø5mm
• Maximum Hook Capacity Ø: 35mm
• Nett Weight: 8.7kg
• Pulling Effort: 249N
• Safe Working Load: 500kg
• Size (W x D): N/A
• Standard Lift: 2.5m
• Test Load: 750kg

Product Guarantee: 1 Year
Catalogue Page: Page 893

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
