Description

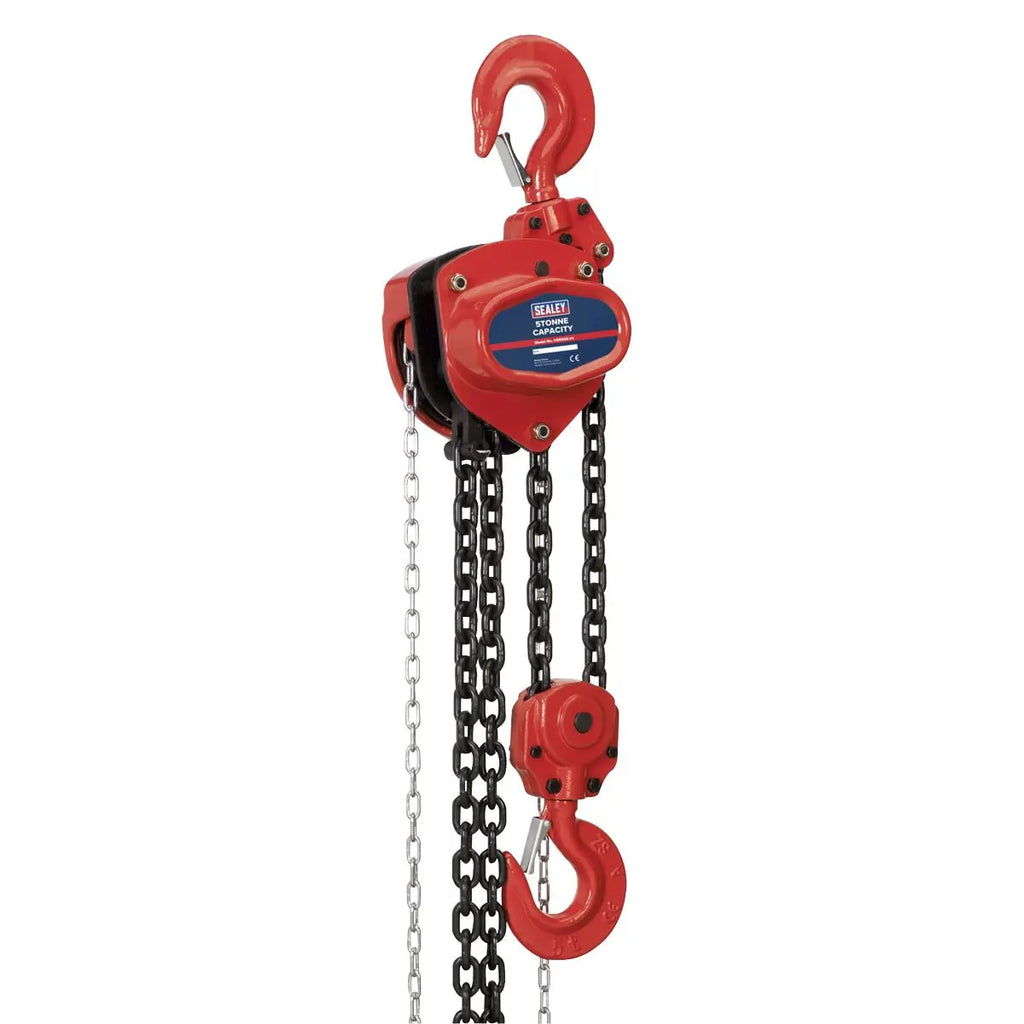

Sealey Chain Block 3m - 5 Tonne
Fitted with heat treated and ground, triple-spur geared shaft and pinion.
Also includes mechanical load brake for extra safety.
All chains are manufactured from hardened alloy material and load hooks feature safety latches.
Compact gear housing allows use where headroom is limited.
Specification:
- Model No CB5000
- Brand: Sealey
- Capacity: 5000kg
- Head Room: 588mm
- Hook Aperture: 50mm
- Load Chain Diameter: Ø10mm
- Maximum Hook Capacity Ø: 65mm
- Nett Weight: 43kg
- Pulling Effort: 42.22kgf
- Safe Working Load: 5000kg
- Size (W x D): 186 x 253mm
- Standard Lift: 3m
- Test Load: 7500kg
Catalogue Page: Page 325
