Description

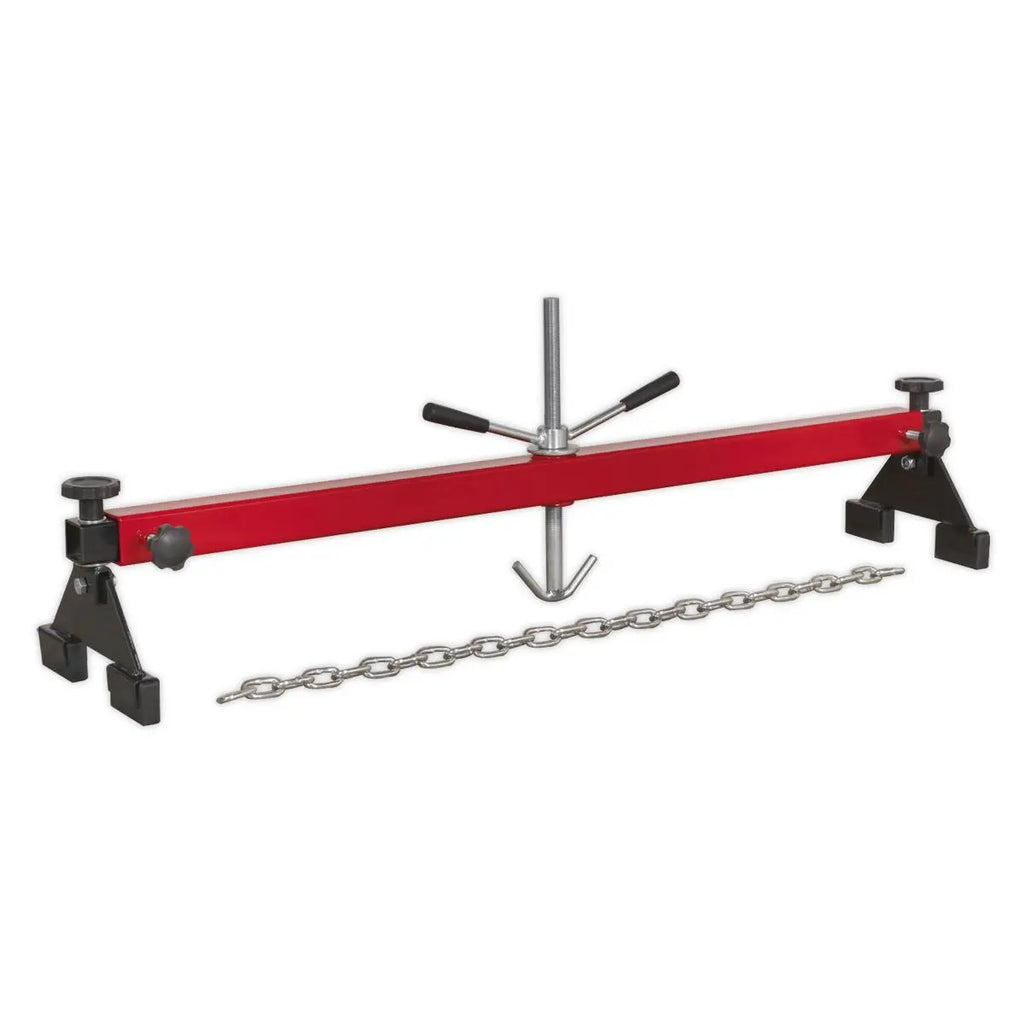

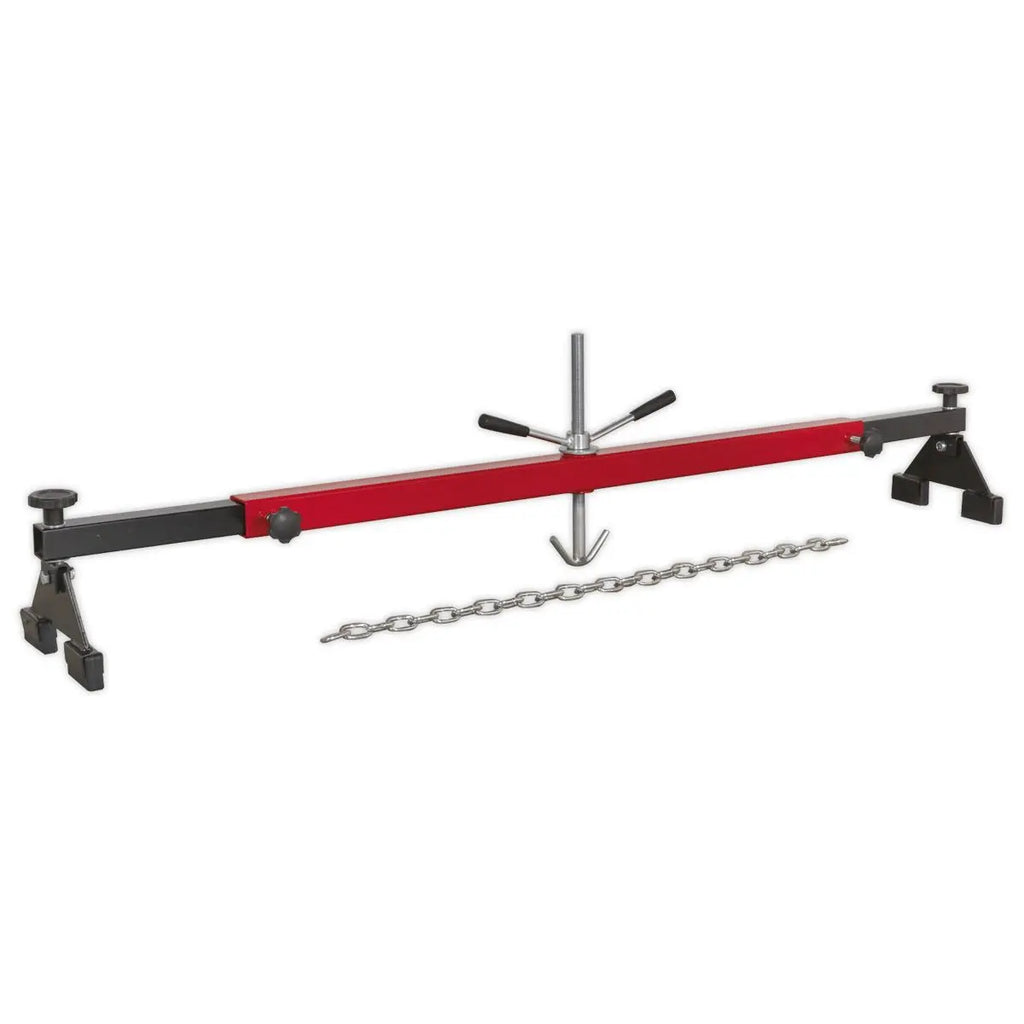

Sealey Engine Support Beam 500kg
Designed to support and accurately position engines during maintenance operations such as replacing anti-vibration mountings and certain body panels.
Also used as an aid for the removal of gearboxes and transmissions.
Beams supported on rubber feet and fine adjustment control is obtained by using a screw/hook mechanism.
Supplied with a short length of chain.
Specification:
- Model No ES500
- Brand: Sealey
- Capacity: 500kg
- Maximum Width: 1910mm
- Minimum Width: 1120mm
- Nett Weight: 12.9kg
- Screw Travel: 230mm
Catalogue Page: Page 321
