Description

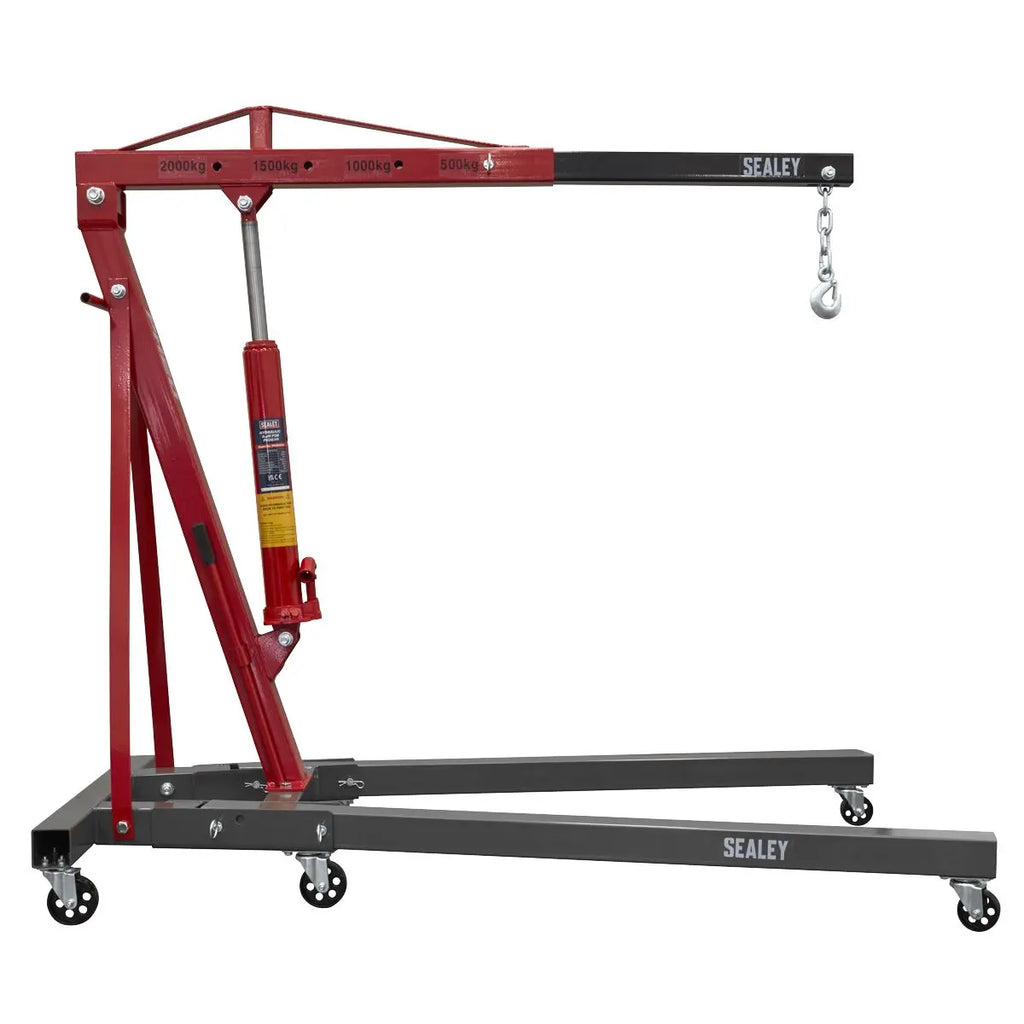

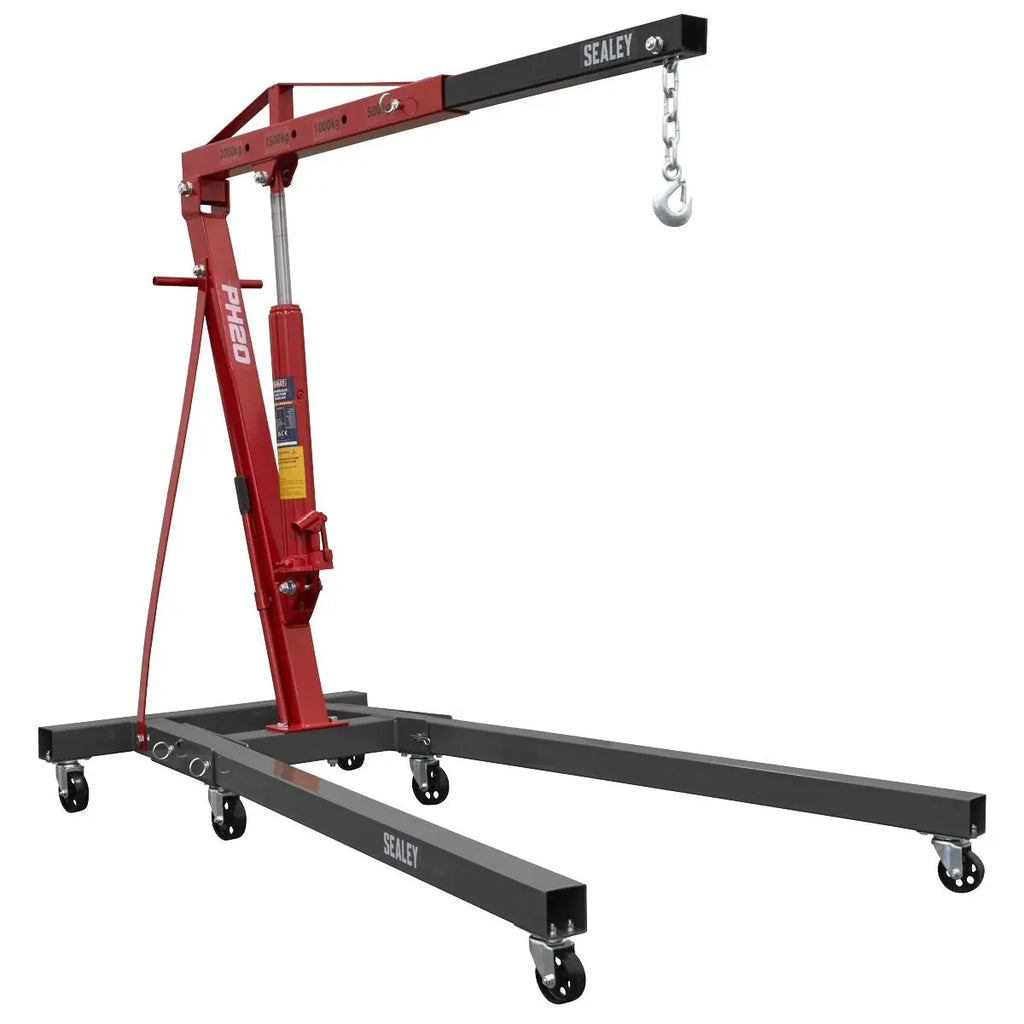

Sealey Folding Engine Crane 2 Tonne
HIGH CAPACITY - Lifts 2000kg at 860mm jib extension.

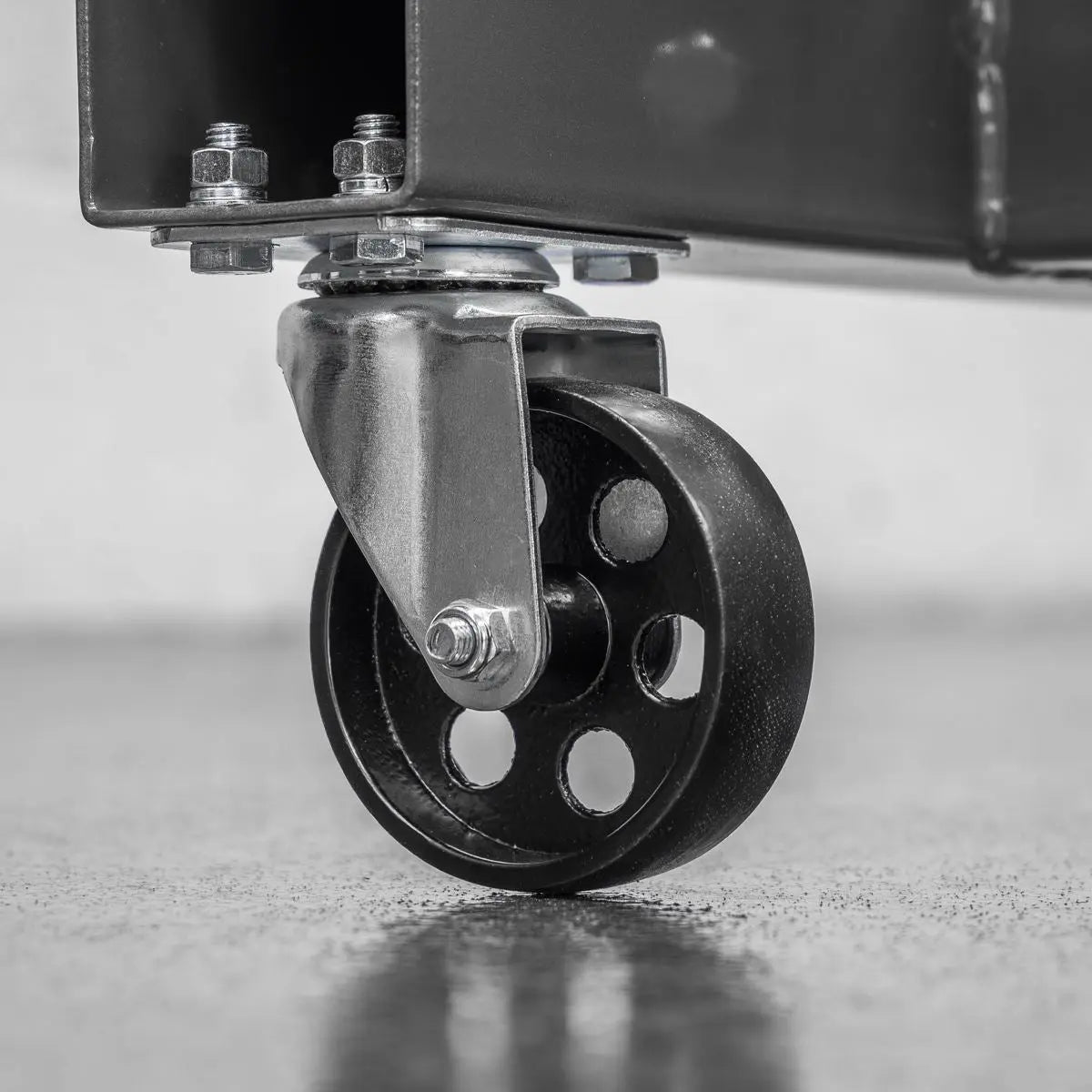

EASY MANOEUVRABILITY - Six heavy-duty castor wheels.

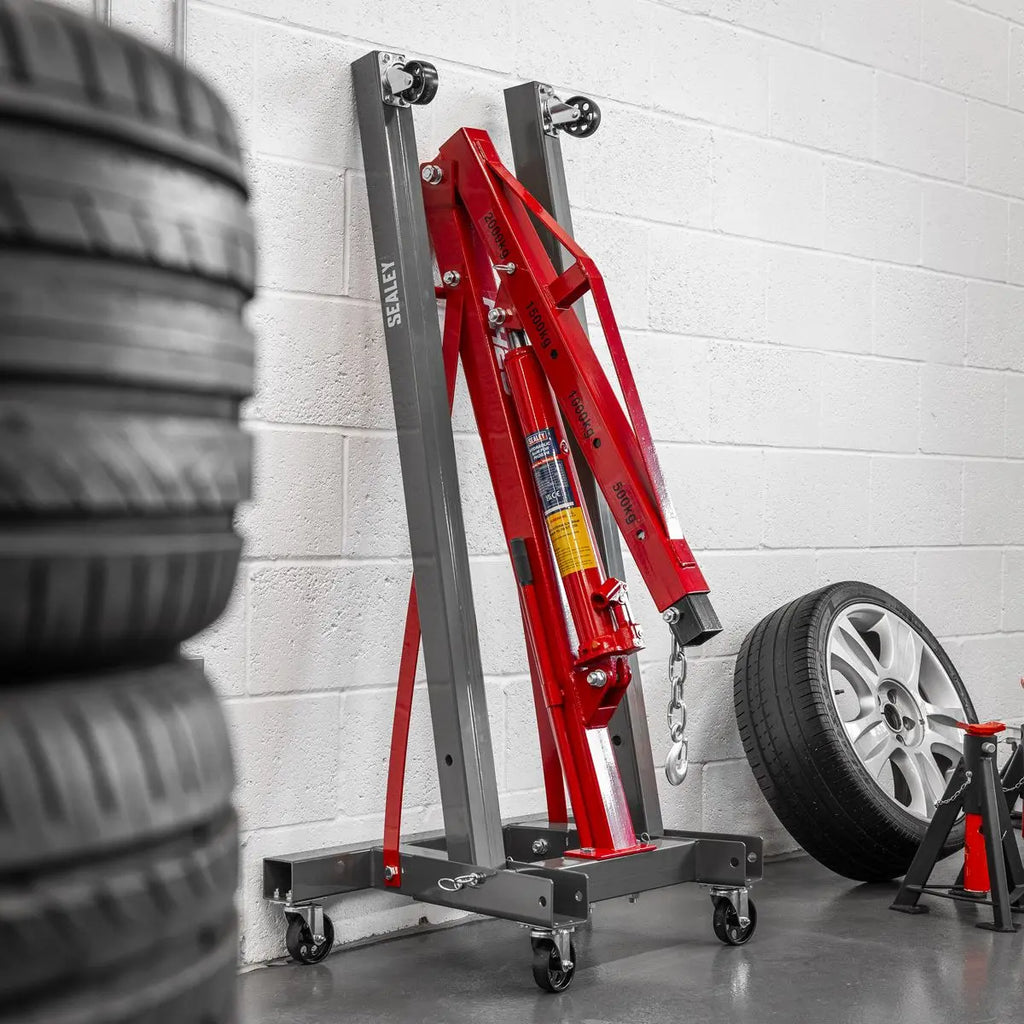

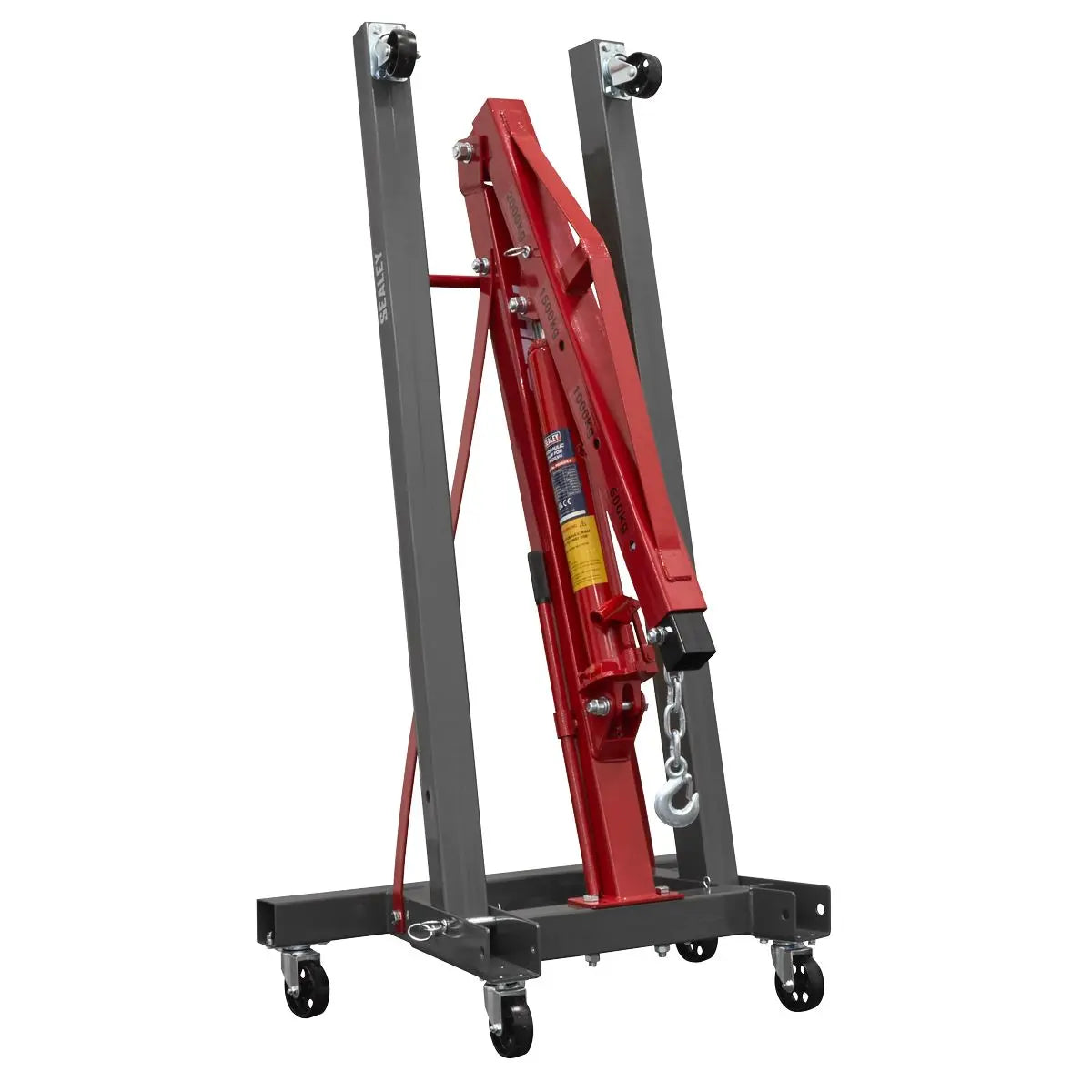

SPACE SAVING - Folds for easy storage, freeing valuable workshop space when not in use.

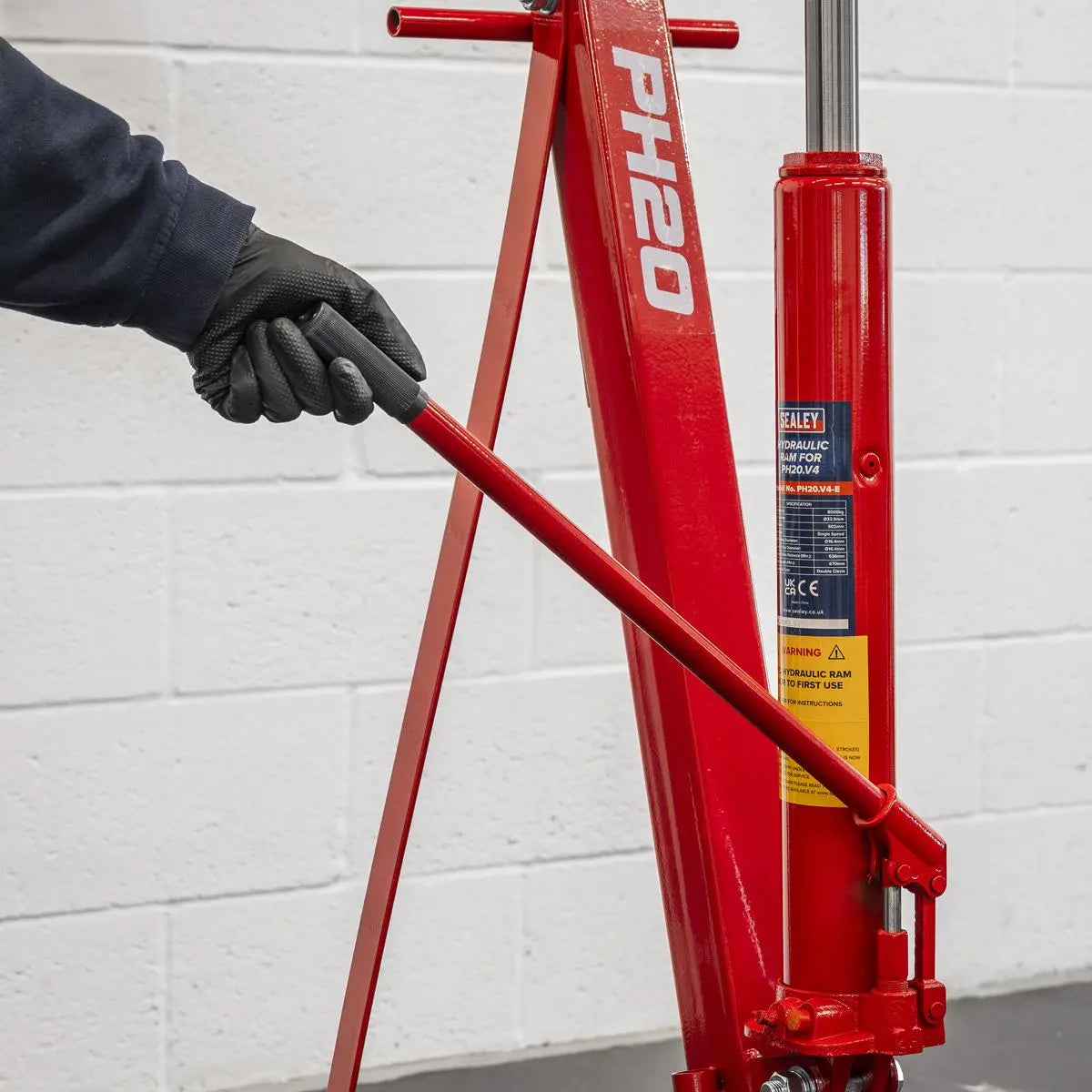

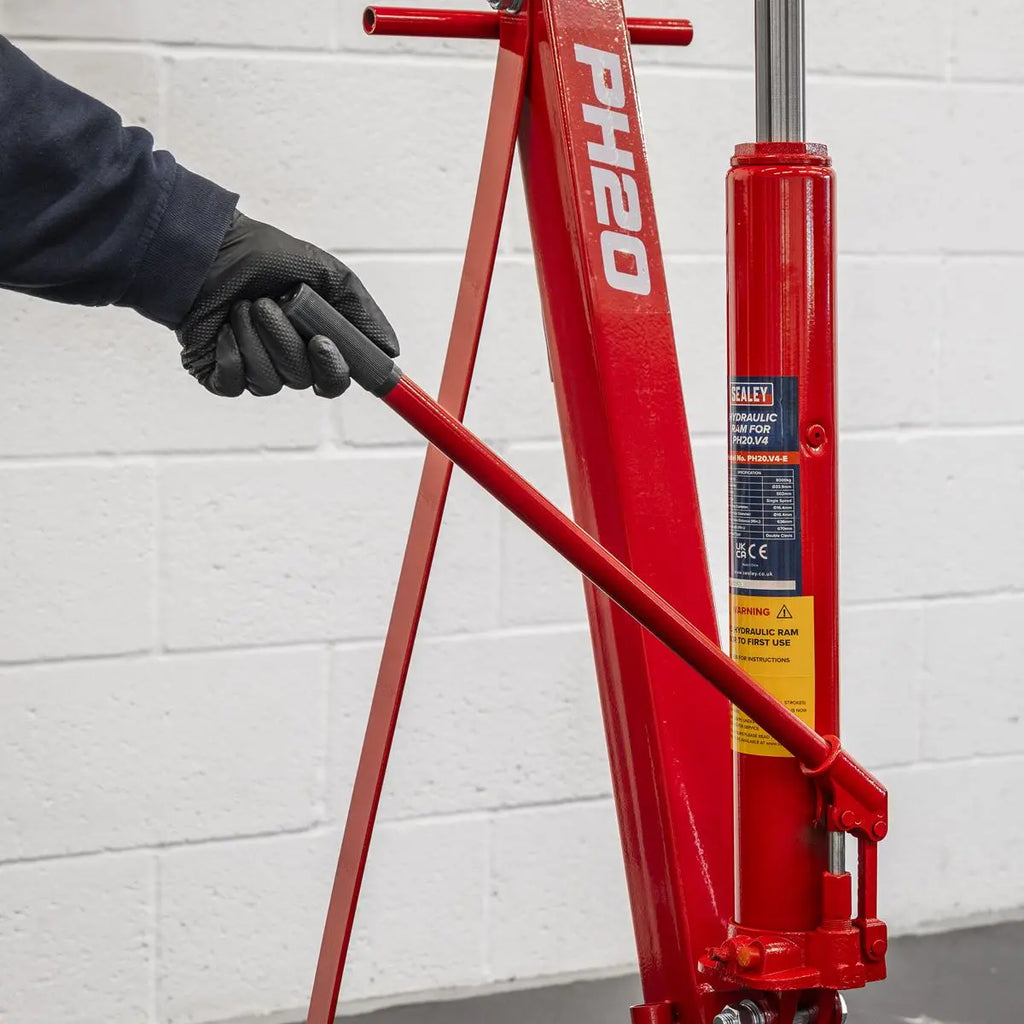

SIMPLE ACCESS - Pump access from the side for safe handling of heavy loads.
Delivered in knock-down form for reduced freight cost.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
- Model No PH20
- Brand: Sealey
- Height Jib Down: 1460mm
- Height Legs Folded: 1565mm
- Height of Frame: 185mm

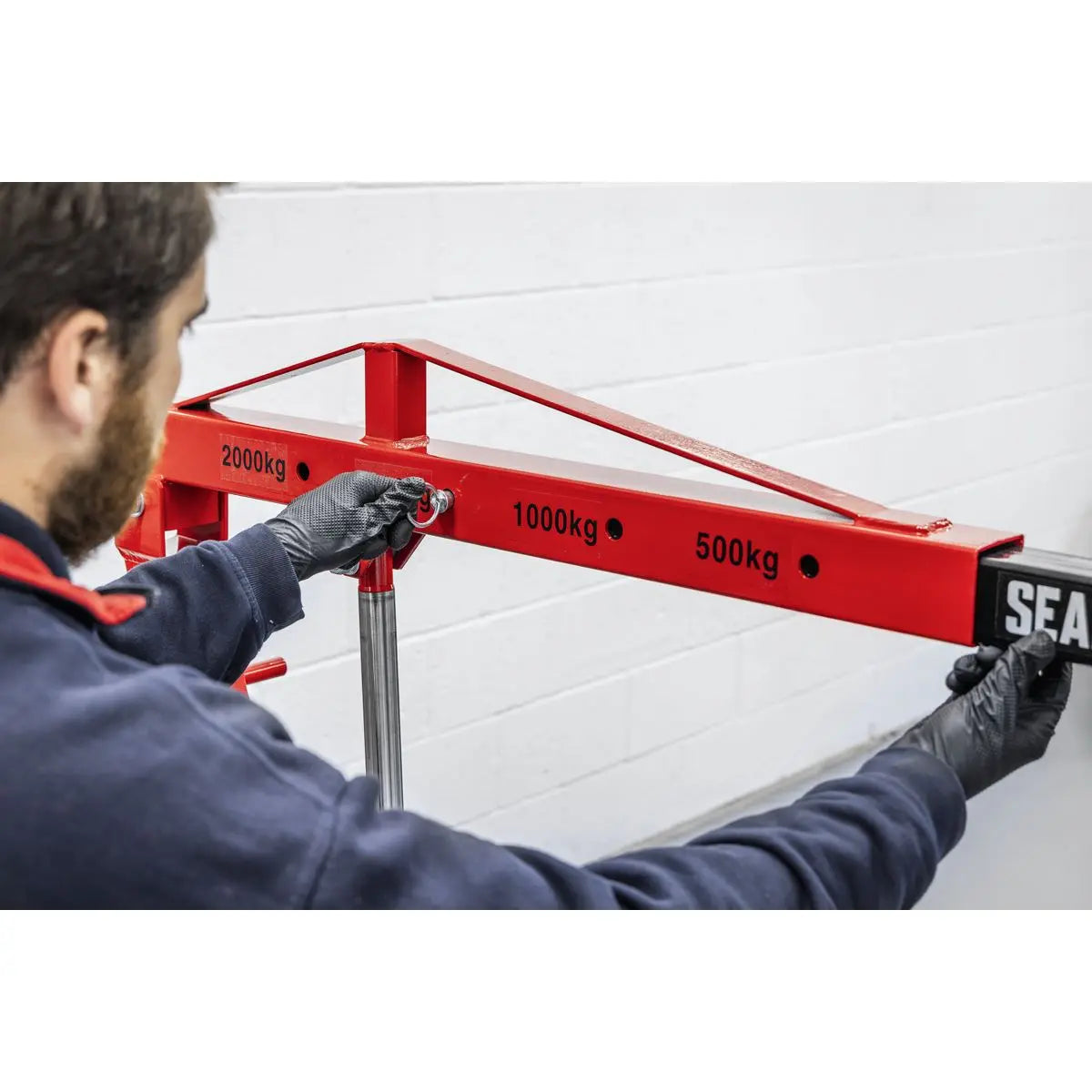

- Length of Jib Position 1: 860mm
- Length of Jib Position 2: 1020mm
- Length of Jib Position 3: 1180mm
- Length of Jib Position 4: 1340mm
- Length: 1750mm
- Lifting Capacity in Position 1: 2000kg
- Lifting Capacity in Position 2: 1500kg
- Lifting Capacity in Position 3: 1000kg
- Lifting Capacity in Position 4: 500kg
- Max. Lift Ht at Jib Position 1: 1820mm
- Max. Lift Ht at Jib Position 2: 1940mm
- Max. Lift Ht at Jib Position 3: 2080mm
- Max. Lift Ht at Jib Position 4: 2210mm
- Nett Weight: 79.65kg
- Rear Width: 850mm
- Width Front Frame: 1055mm
- Width Inside Front Frame: 915mm
- Nett Weight: 77kg
- Rear Width: 850mm
- Width Front Frame: 1055mm
- Width Inside Front Frame: 915mm
Catalogue Page: Page 887
