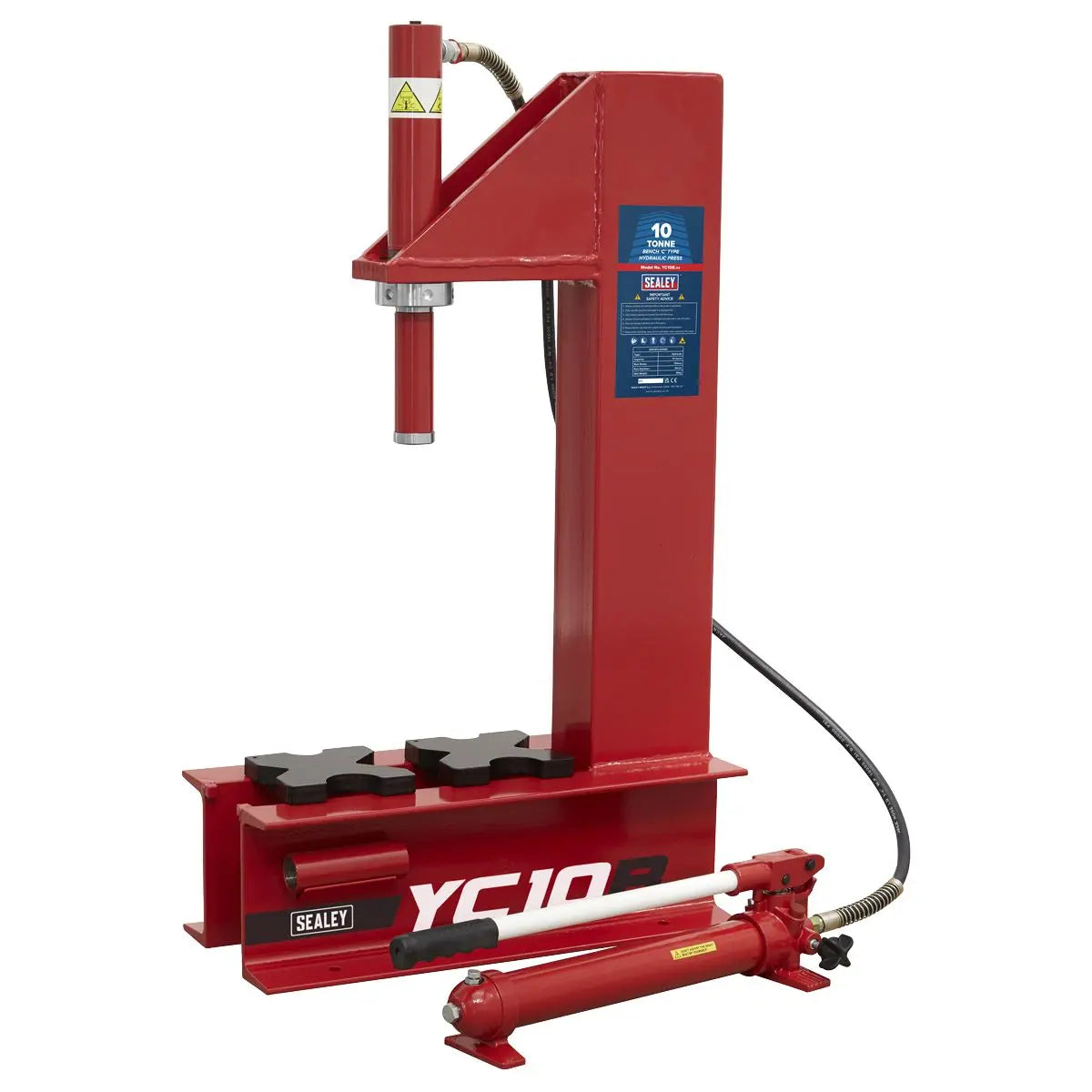

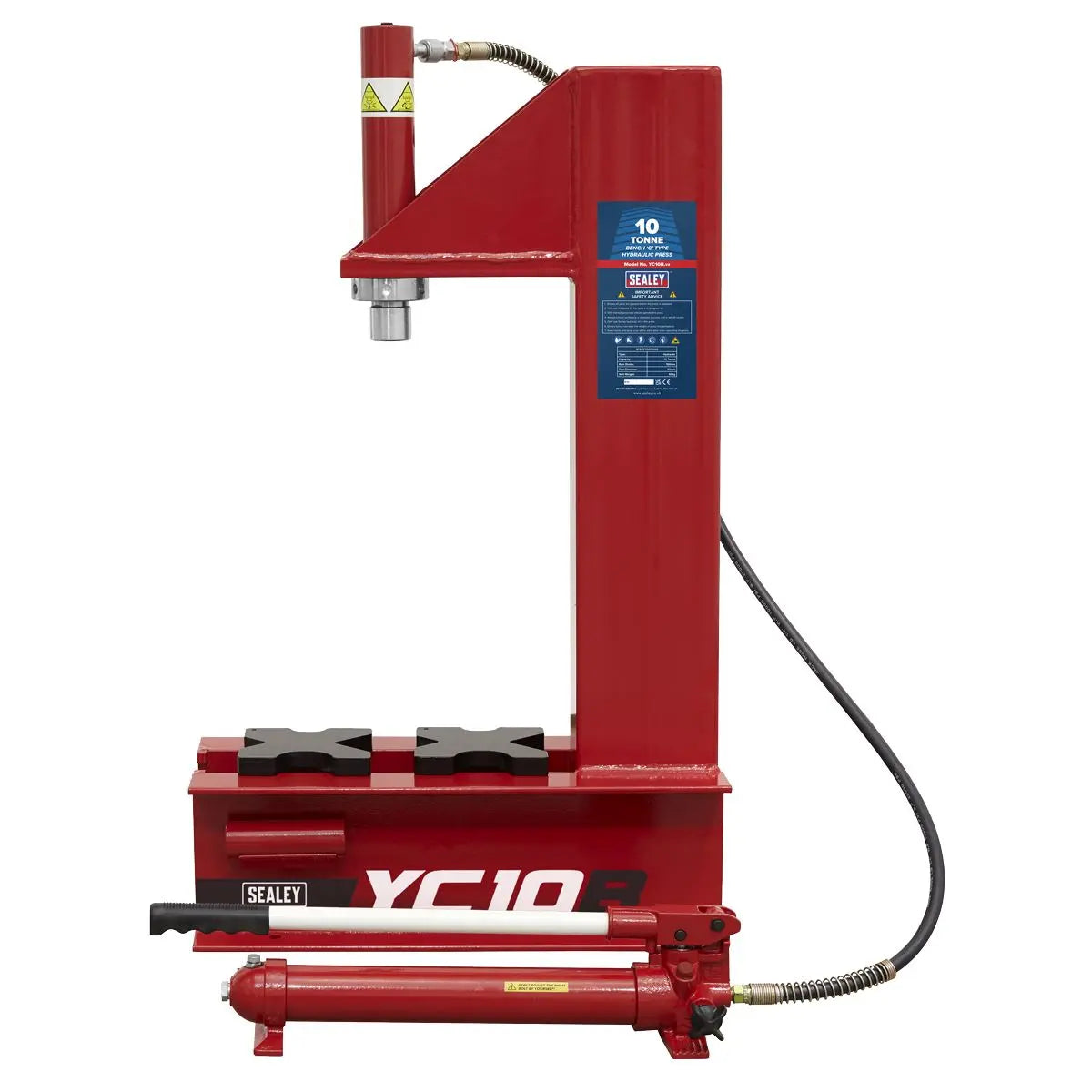

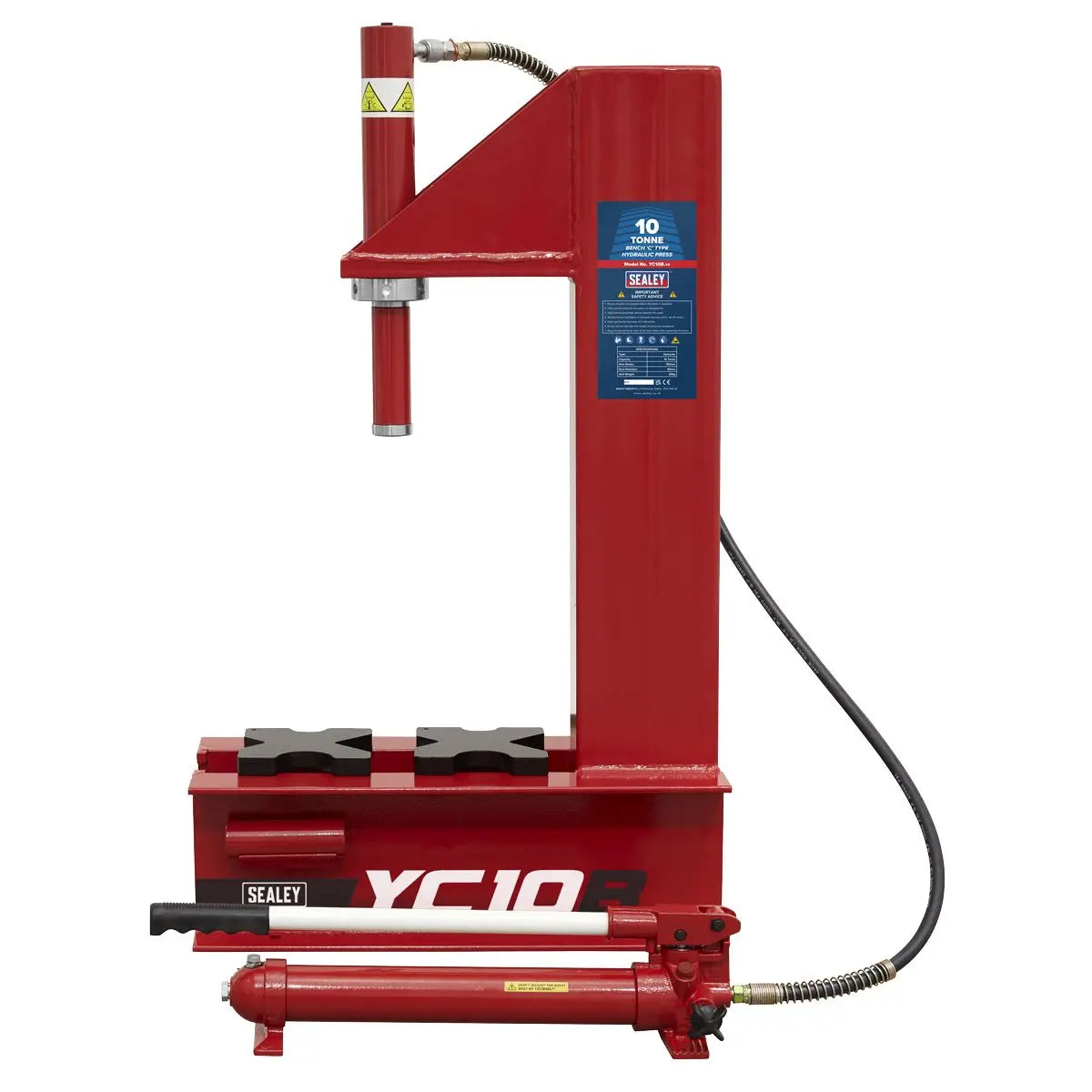

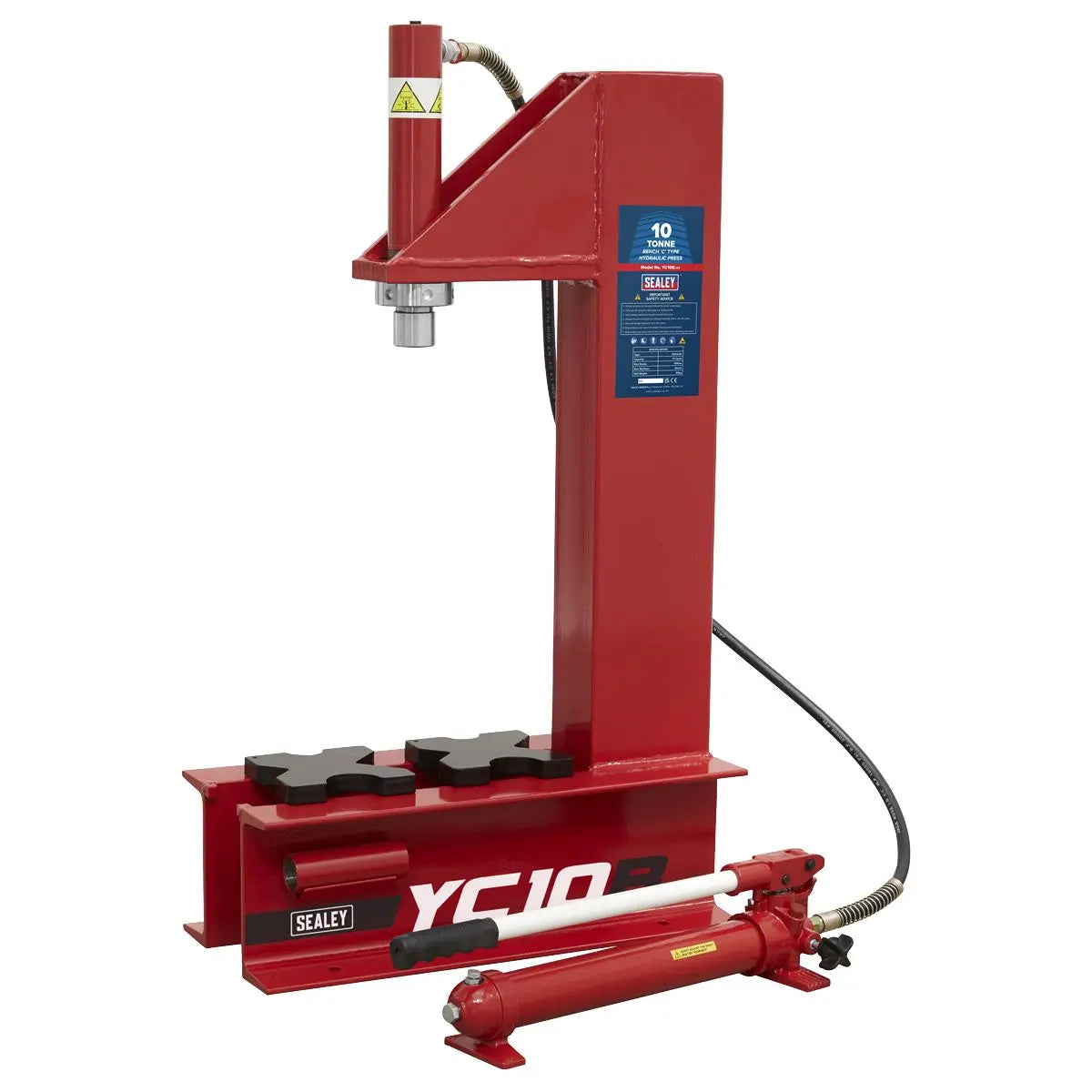

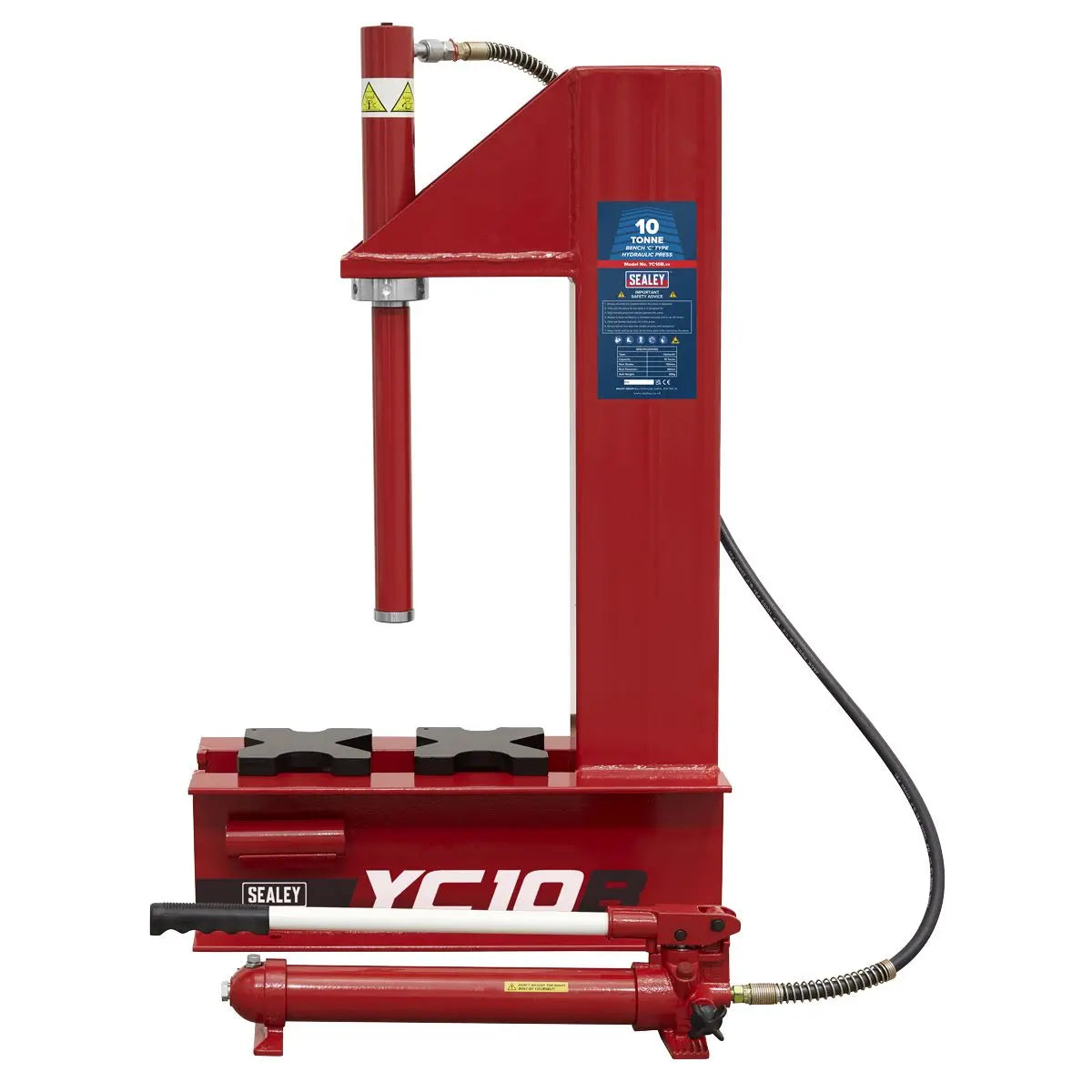

Sealey Hydraulic Bench 'C' Type Press 10 Tonne

Sealey Hydraulic Press 10 Tonne Bench 'C' Type

HEAVY-DUTY FRAME - Made from high quality steel with a powder coated paint finish to help corrosion resistance.

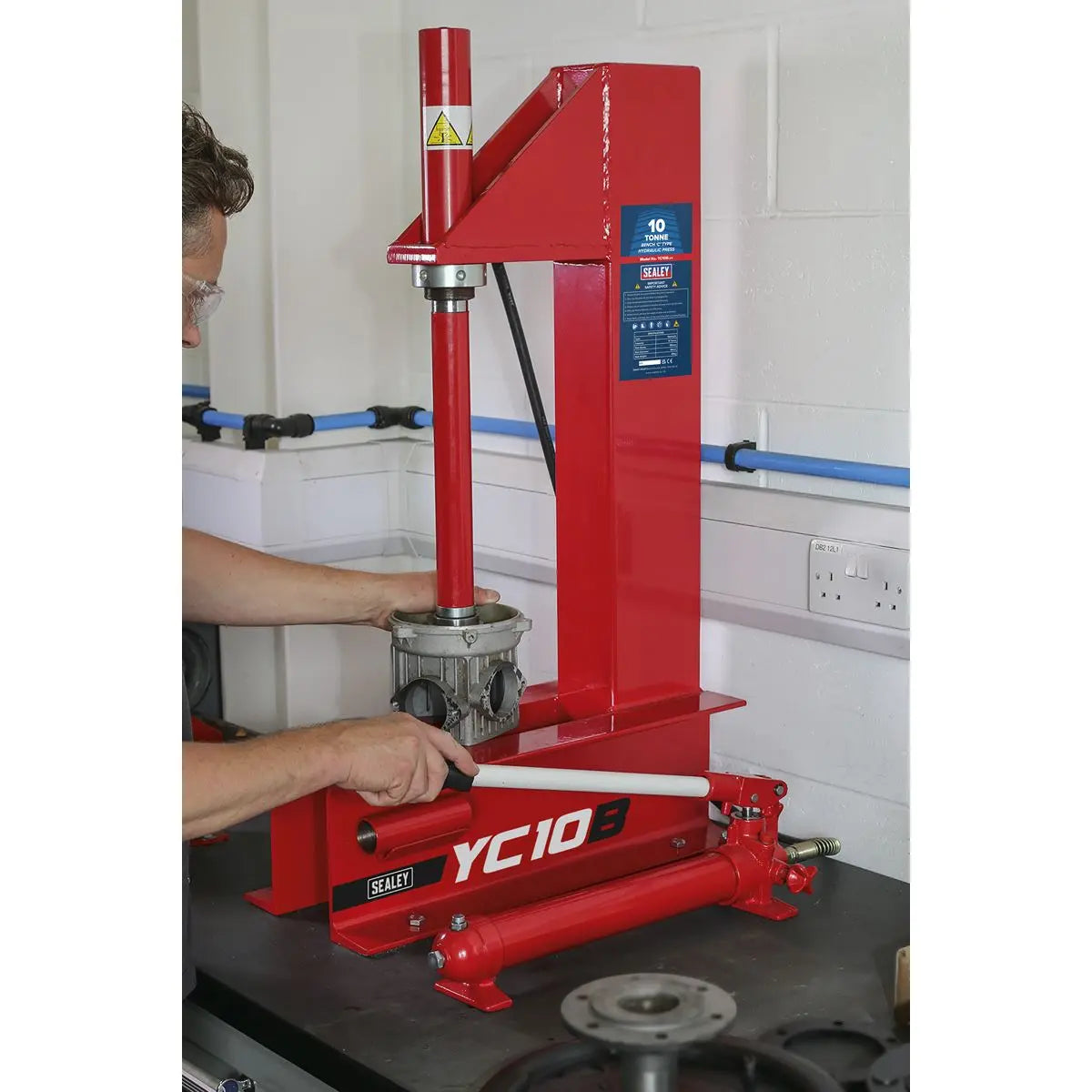

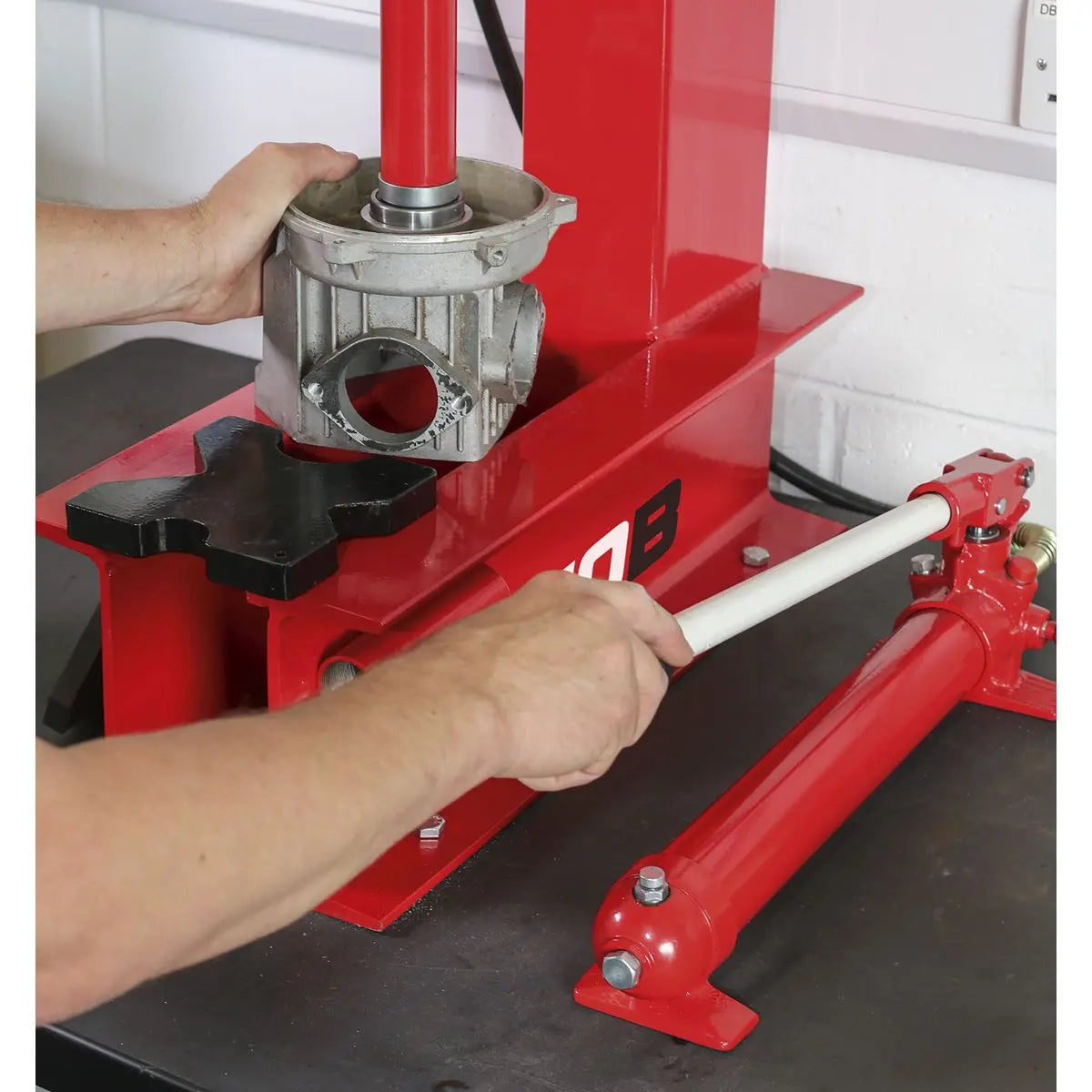

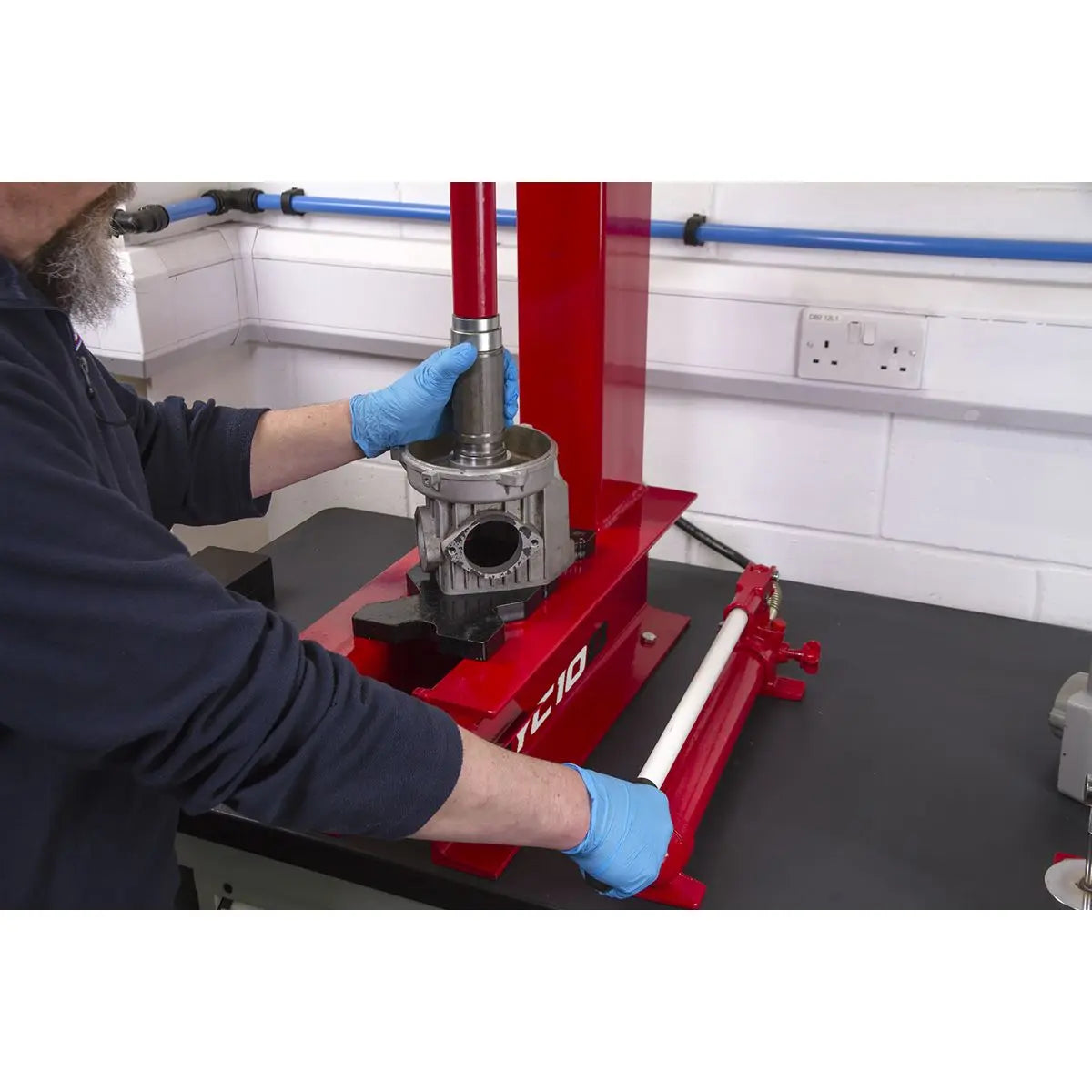

EASY-ACCESS - The C-frame design provides easy-access to die from three sides, as well as permitting loading and unloading of wide and irregular workpieces.

MULTIPURPOSE HYDRAULIC SYSTEM - Detachable pump and ram allowing hydraulics to be used for other purposes when press is not in use.

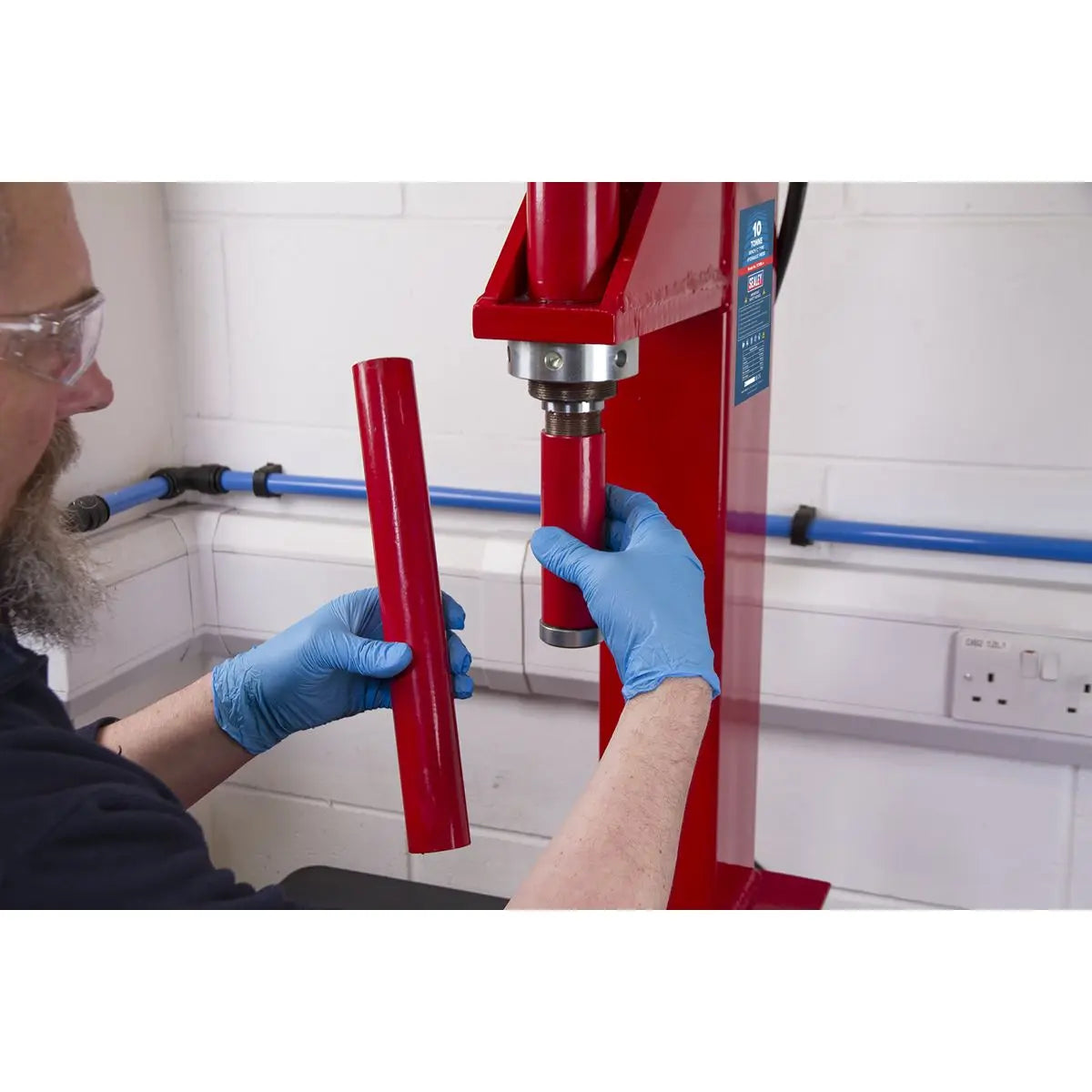

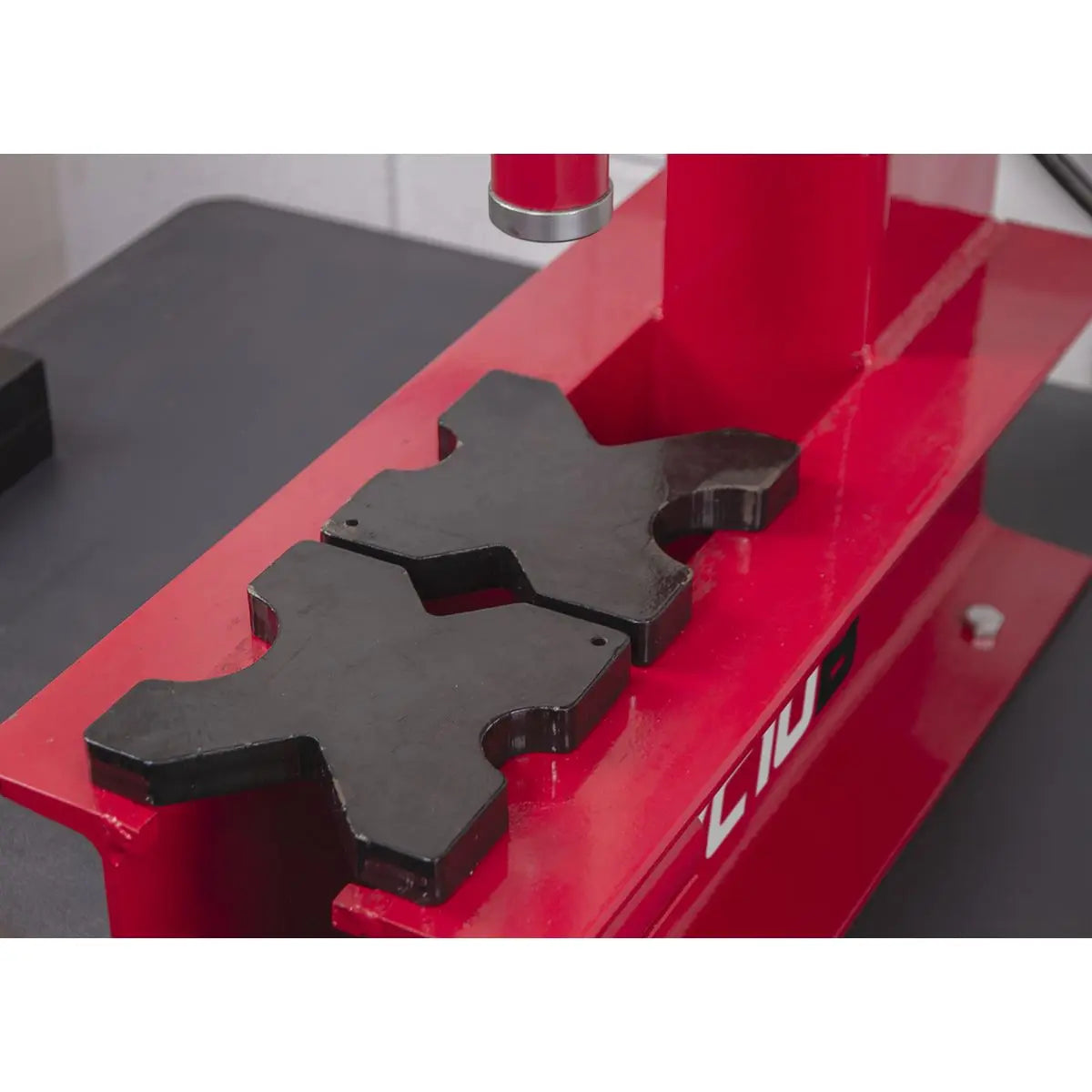

TABLE ACCESSORIES - Includes flat pressing plates and extension tubes.

Supplied without gauge.

Specification:

• Model No YC10B
• Bench or Floor Mounting: Bench
• Brand: Sealey
• Capacity: 10 Tonne
• Gauge Included: No
• Lateral Ram Travel: 0
• Maximum Height - Ram to Table: 450mm
• Minimum Height - Ram to Table: 150mm
• Nett Weight: 60kg
• Optional Accessories: n/a
• Overall Height: 960mm
• Ram Diameter: Ø40mm
• Ram Stroke: 130mm
• Table Aperture: 100mm
• Type: Hydraulic
• Working Table Depth: 240mm
• Working Table Depth: 230mm
• Working Table Width: 406mm

Product Guarantee: 1 Year
Catalogue Page: Page 896

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
