Description

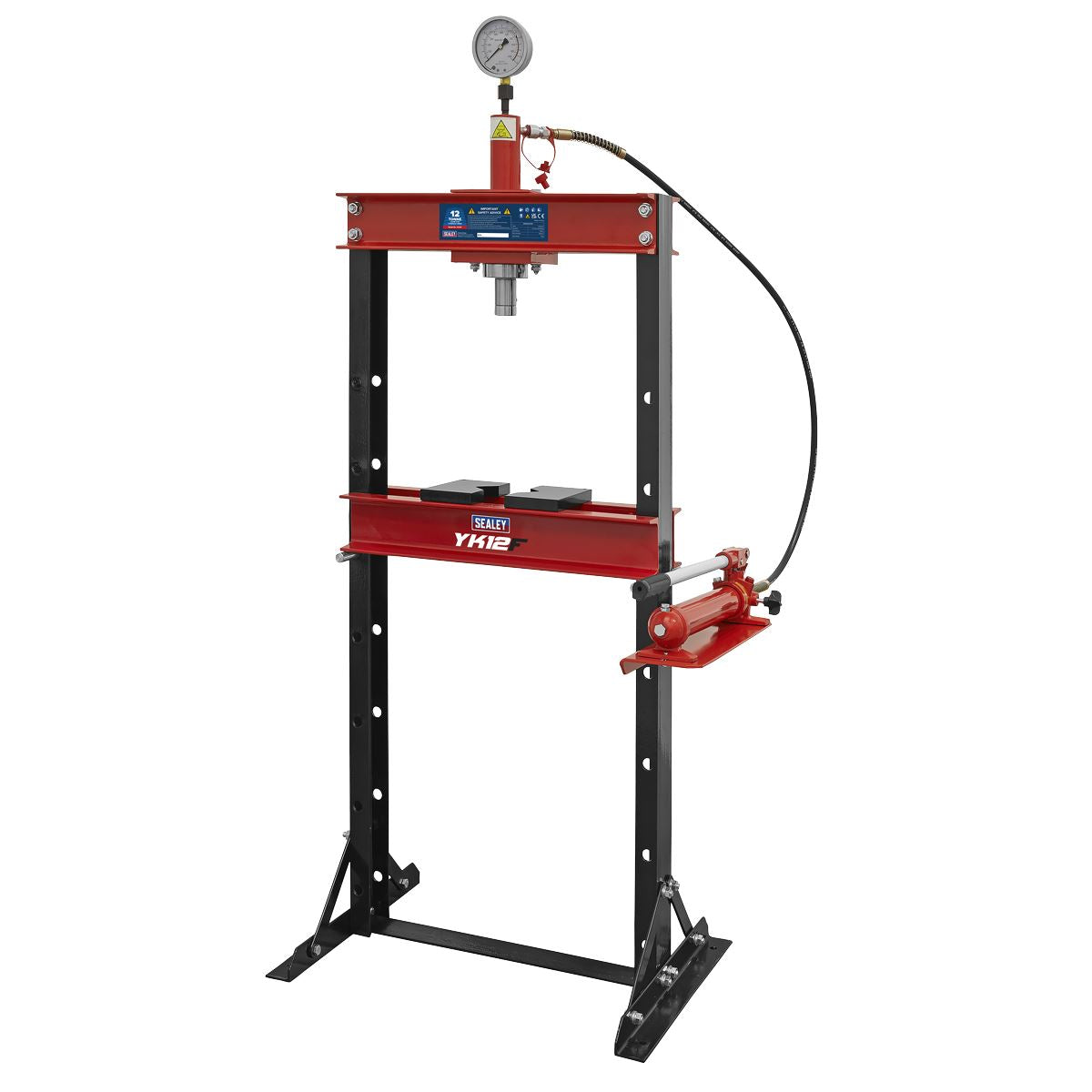

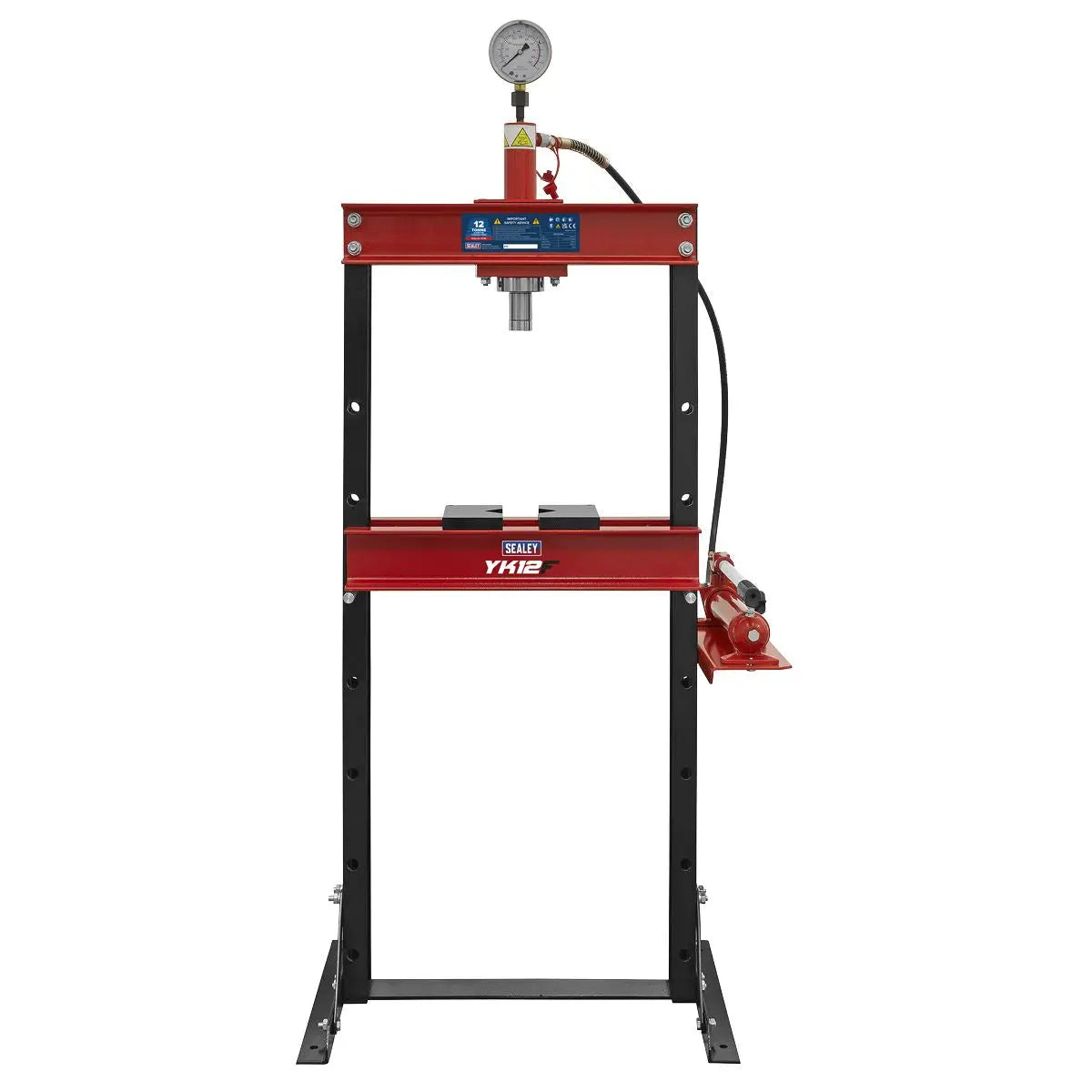

Sealey Hydraulic Floor Type Press 12 Tonne
SOLID FRAME/TABLE - Made from high quality steel with a powder coated paint finish to help corrosion resistance.
DETACHABLE PUMP AND RAM - Allowing hydraulics to be used for other purposes when press is not in use.

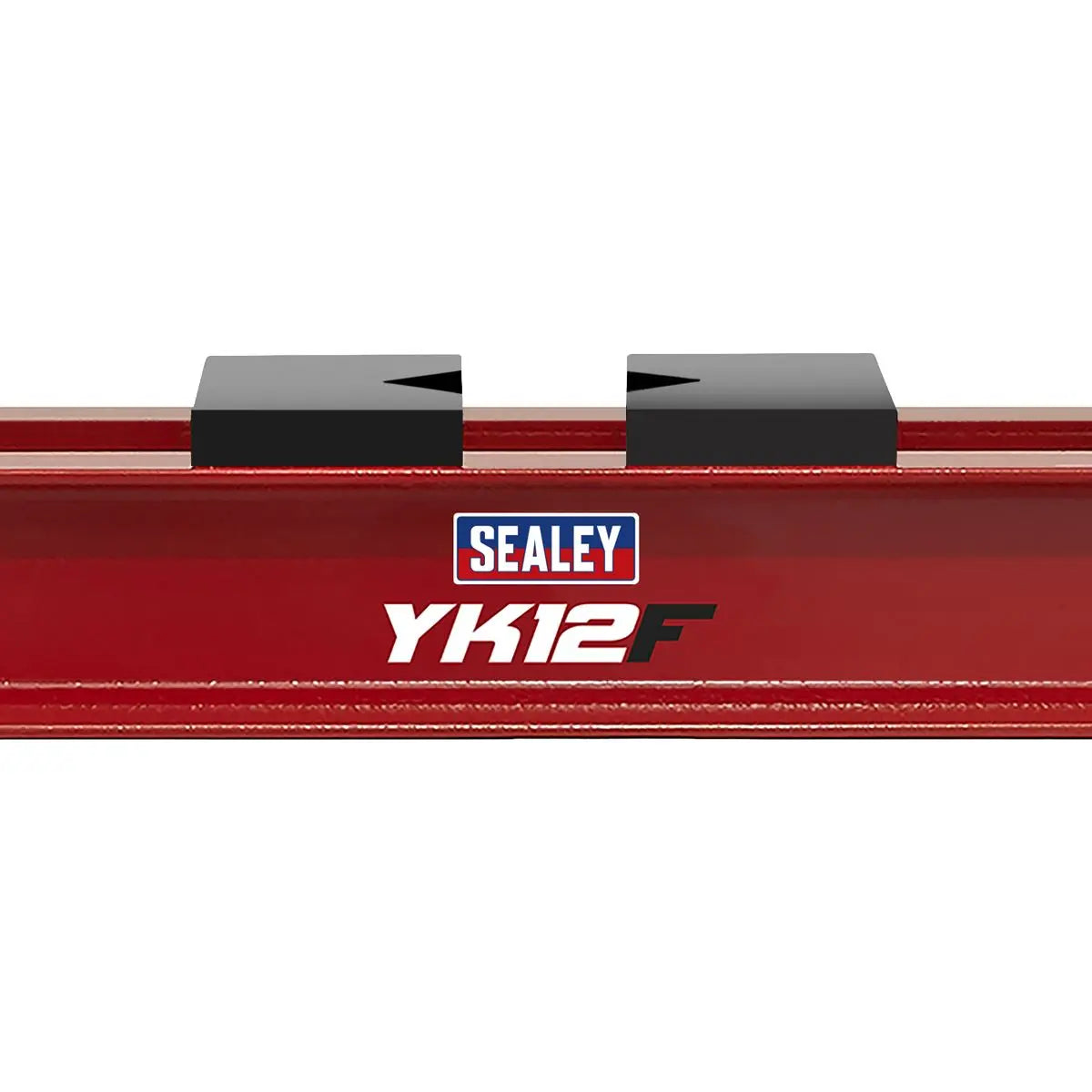

INCLUDES - Two table plates.

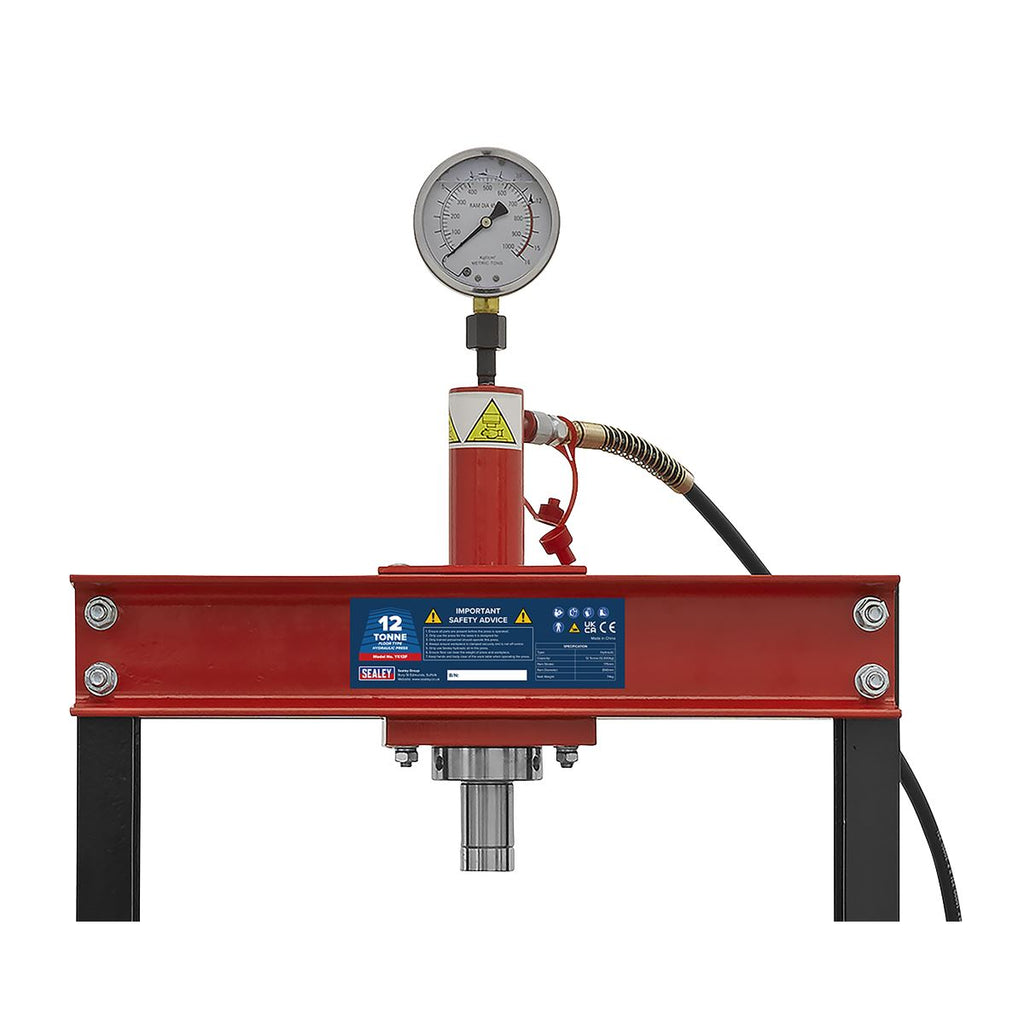

SUPPLIED - With gauge.
Specification:
- Model No YK12F

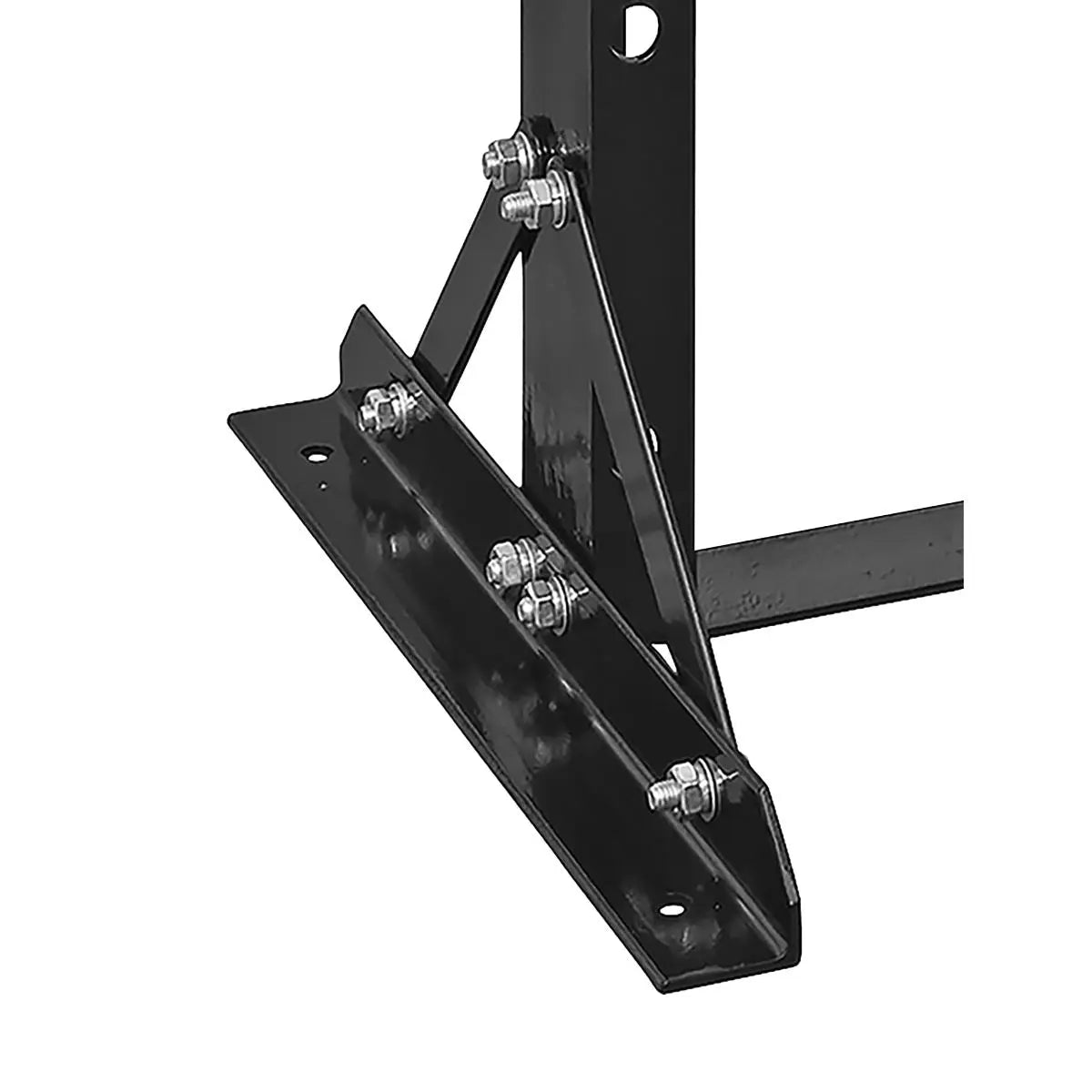

- Bench or Floor Mounting: Floor
- Brand: Sealey
- Capacity: 12 Tonne
- Gauge Included: Yes
- Lateral Ram Travel: 305mm
- Maximum Height - Ram to Table: 800mm
- Minimum Height - Ram to Table: 80mm
- Nett Weight: 74kg
- Optional Accessories: n/a
- Overall Height: 1657mm
- Overall Width: 800mm
- Ram Diameter: 40mm
- Ram Stroke: 175mm
- Screw Extension: n/a
- Table Aperture: 80mm
- Type: Hydraulic
- Working Table Depth: 180mm
- Working Table Width: 455mm
Catalogue Page: Page 327
