Description

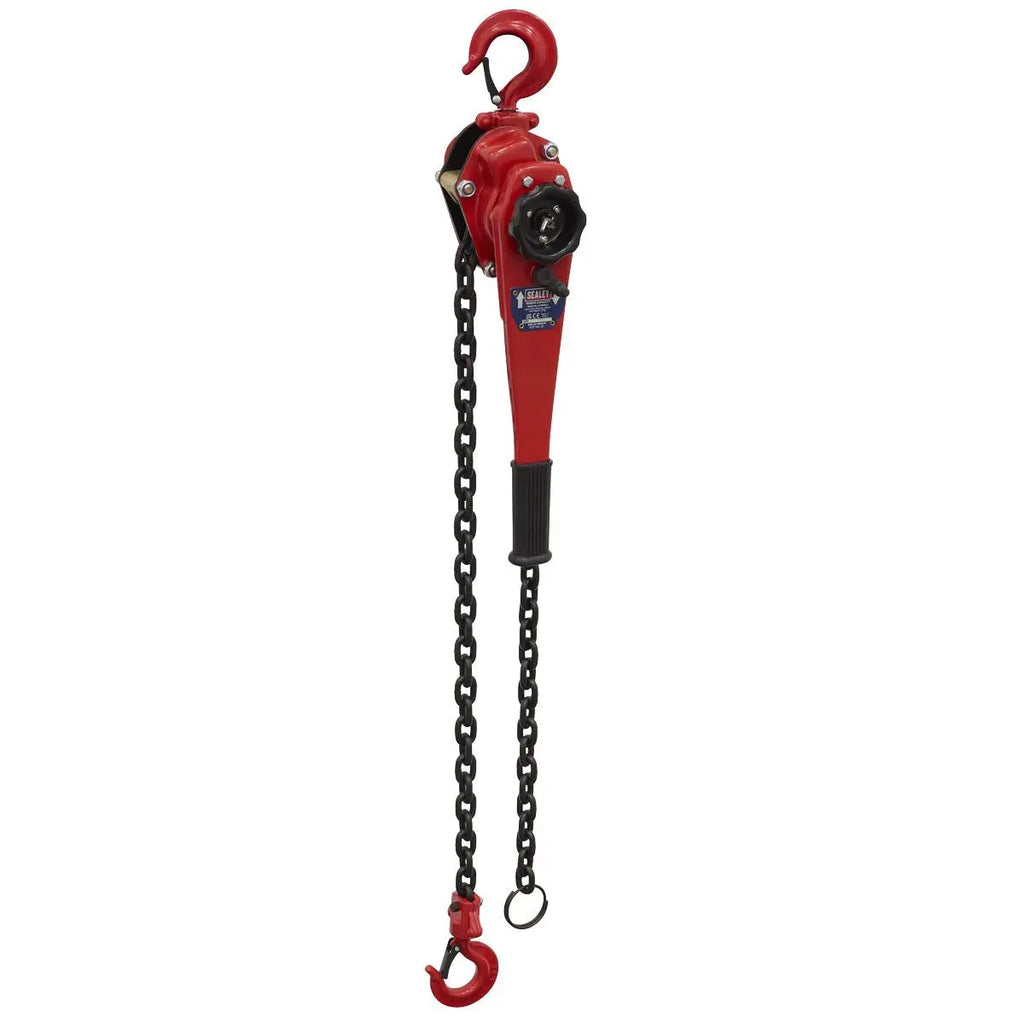

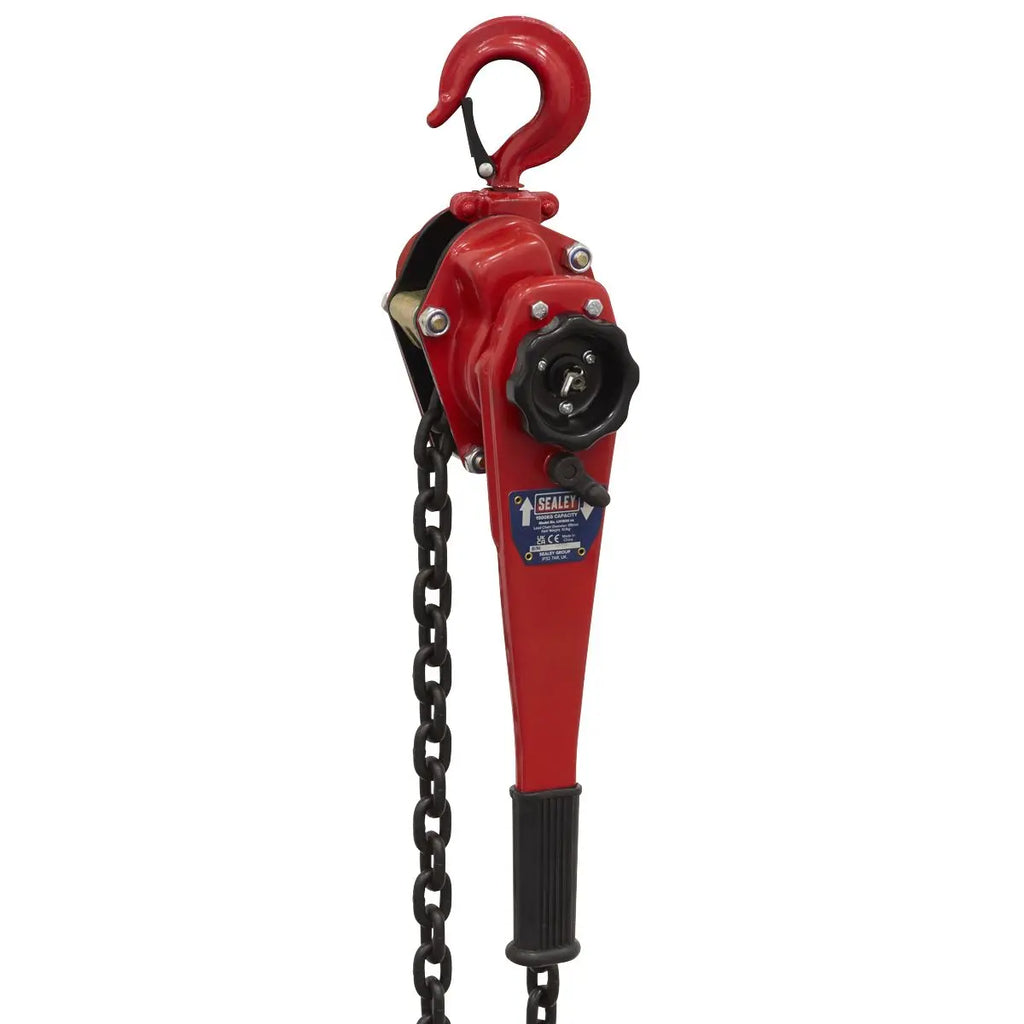

Sealey Lever Hoist Steel 1500kg
HEAVY-DUTY GEARING - Rugged construction features drop-forged and heat treated pinion gear with totally enclosed mechanisms.
DURABLE SAFE OPERATION - Equipped with heavy-duty brake and high quality alloy steel chain.

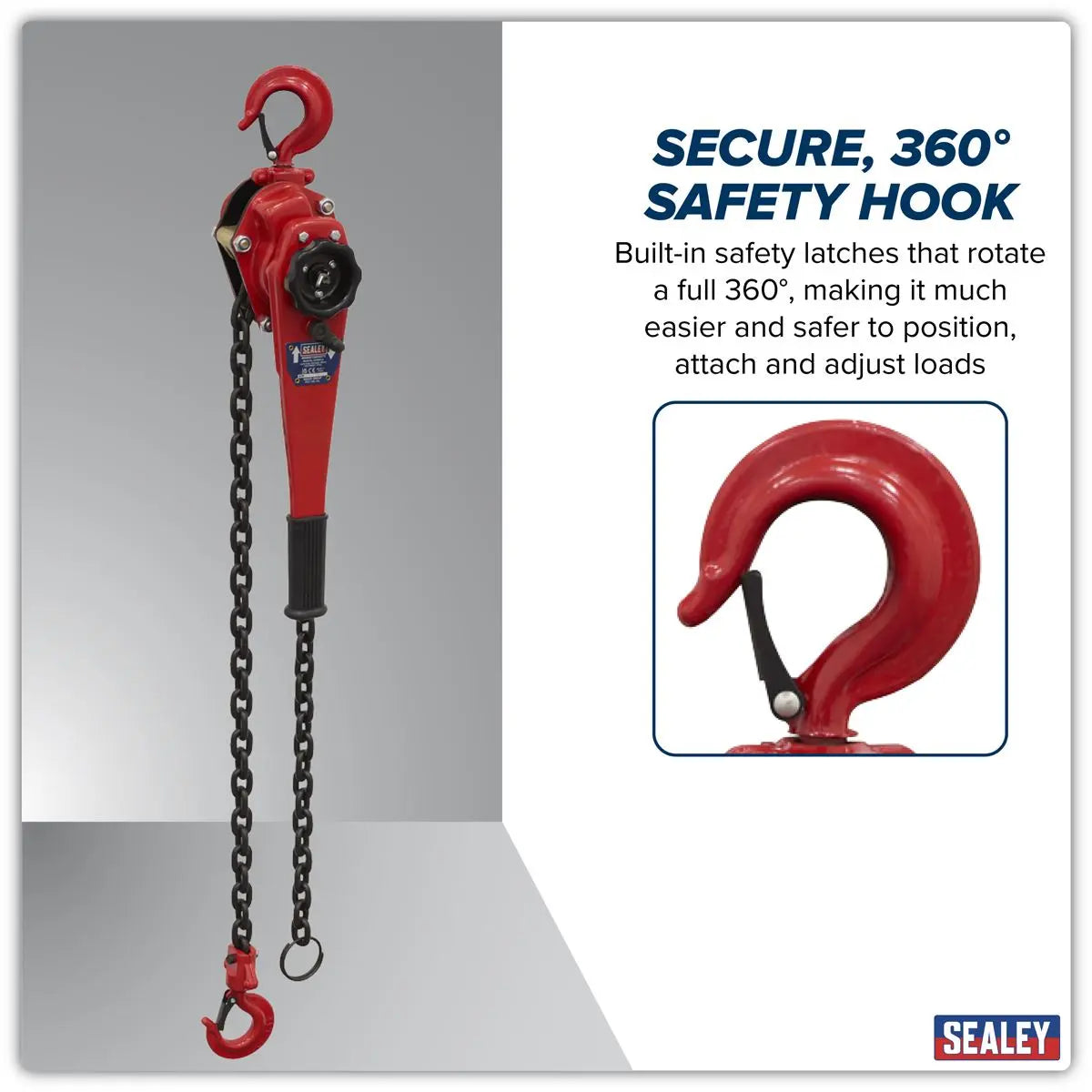

SAFE AND ANTI-TWIST - Hooks fitted with safety latches and rotate 360°.
QUICK AND SIMPLE - Free-chaining feature permits slack in the load chain to be taken up by hand before engaging the ratchet arm.
PRECISE - Provides total control on the load position.

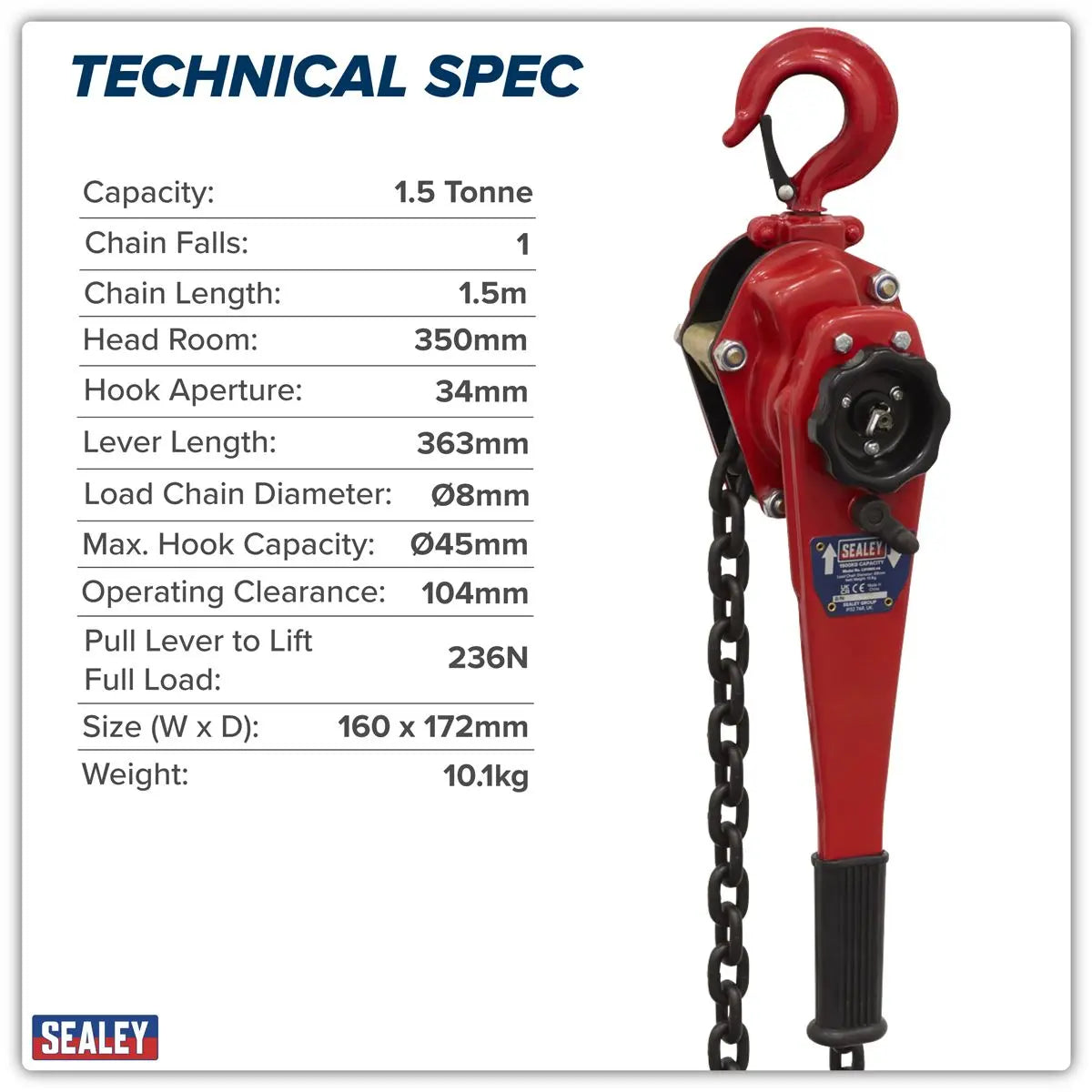

Specification:
- Model No LH1500
- Brand: Sealey
- Capacity: 1500kg
- Chain Falls: 1
- Chain Length: 1.5m
- Head Room: 350mm
- Hook Aperture: 34mm
- Lever Length: 363mm
- Load Chain Diameter: Ø8mm
- Maximum Hook Capacity Ø: 45mm
- Nett Weight: 10.1kg
- Operating Clearance: 104mm
- Pull on Lever to Lift Full Load: 236N
- Size (W x D): 160 x 172mm
- Test Load: 2250kg
Catalogue Page: Page 893
