Description

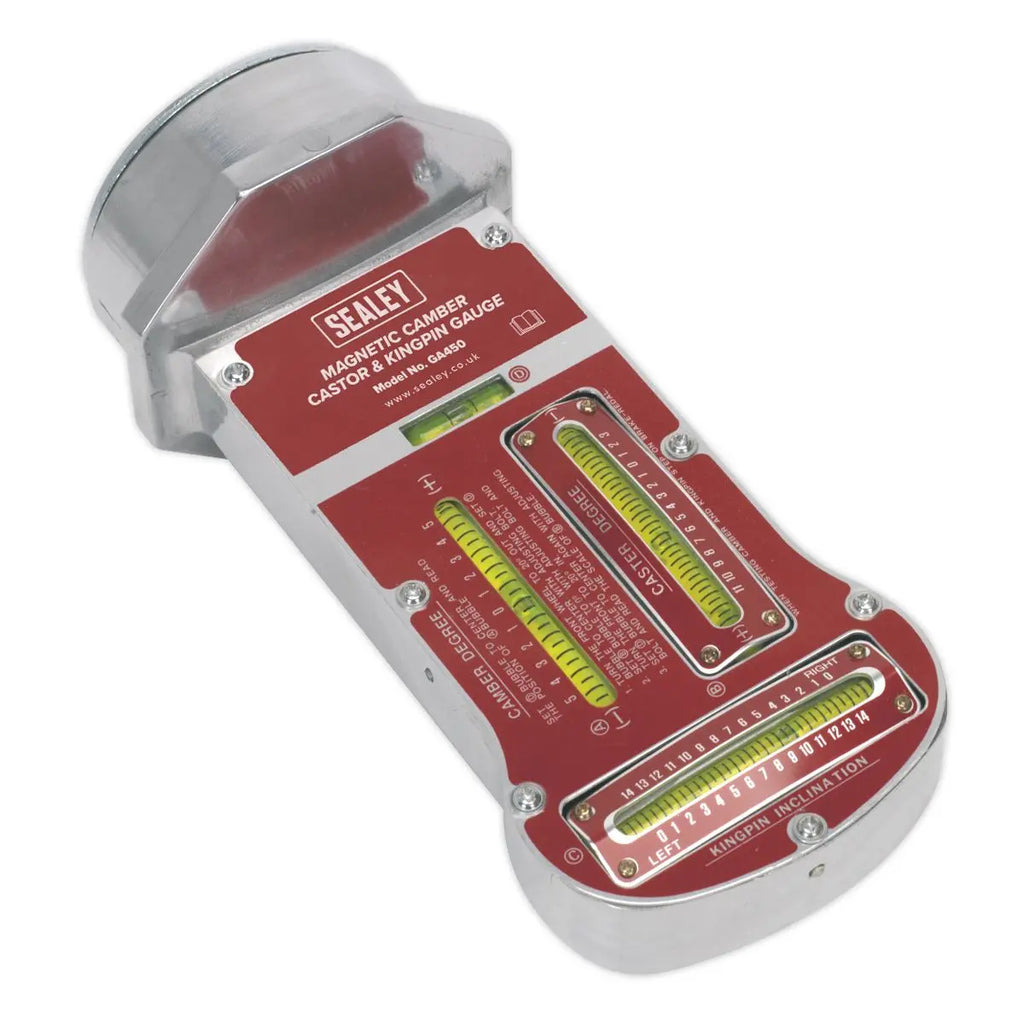

Sealey Magnetic Camber Castor & Kingpin Gauge

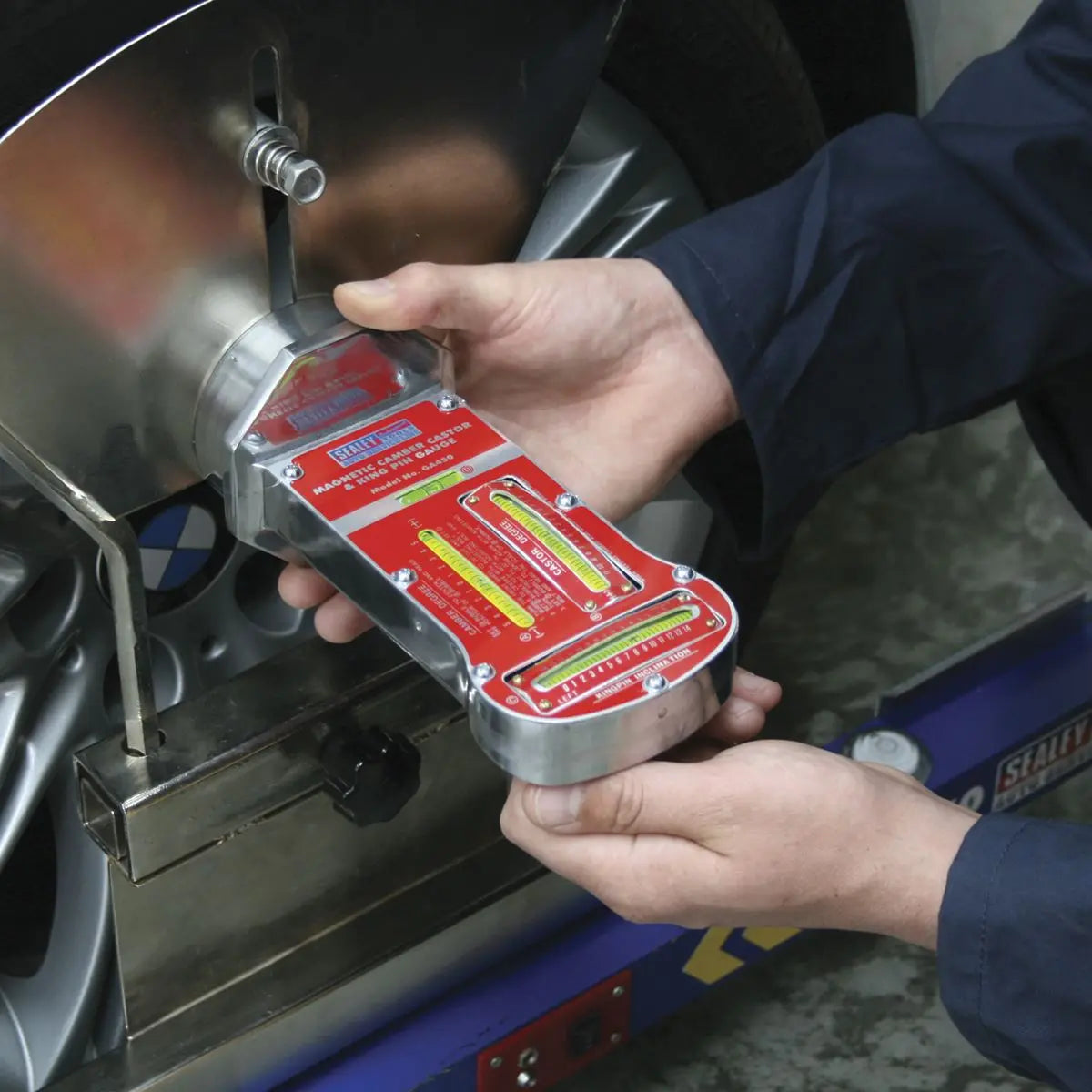

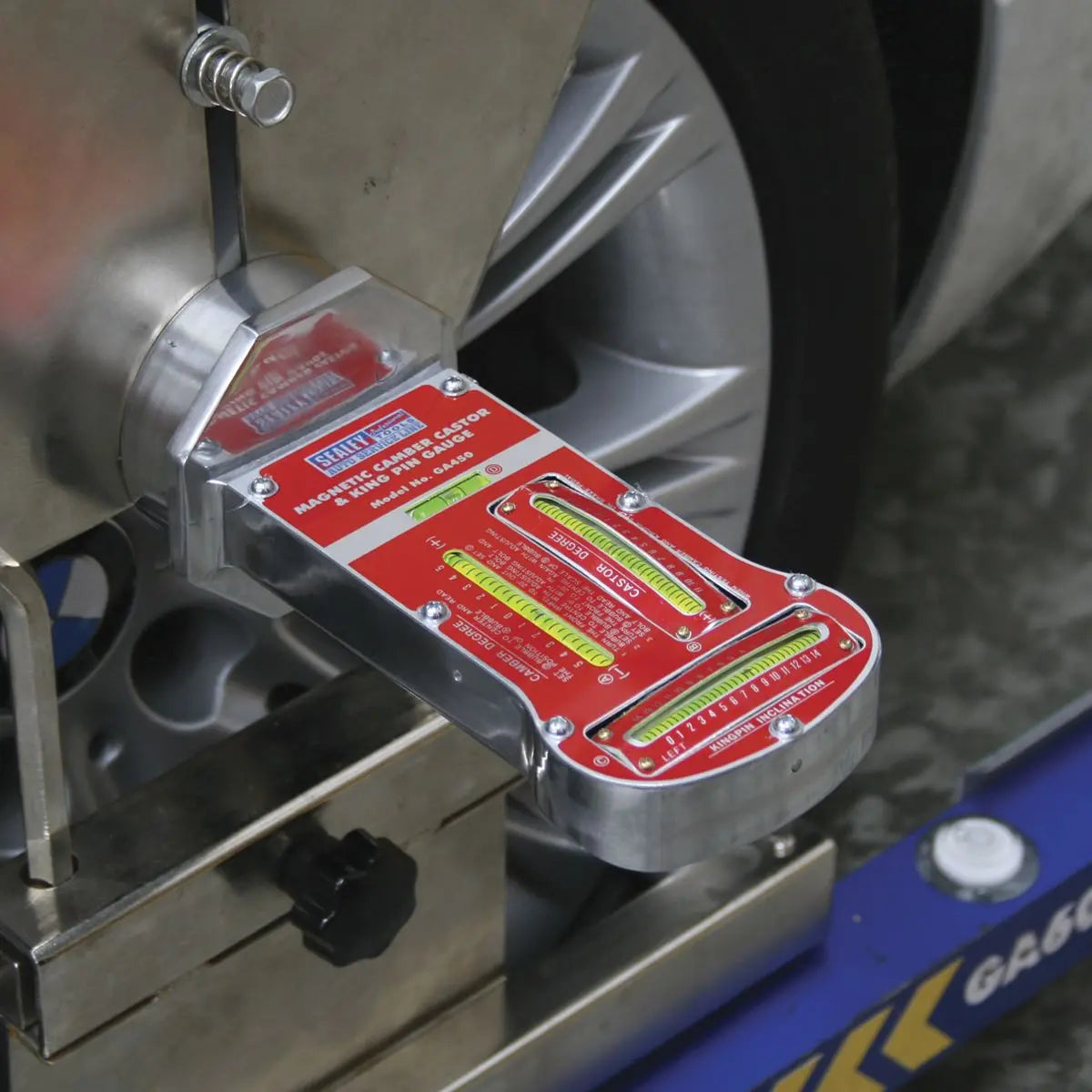

Robust, magnetic gauge mounts onto hub for quick and accurate measurement of camber, castor angles and kingpin inclination.
Two large adjuster knobs, one for conveniently zeroing bubble during angle measurement, and one for adjusting kingpin inclination.
Camber gauge with fixed graduation from -5° to +5°.
Adjustable castor gauge graduated from -3° to +11°.
Kingpin gauge graduated from 0° to 14° left to right.

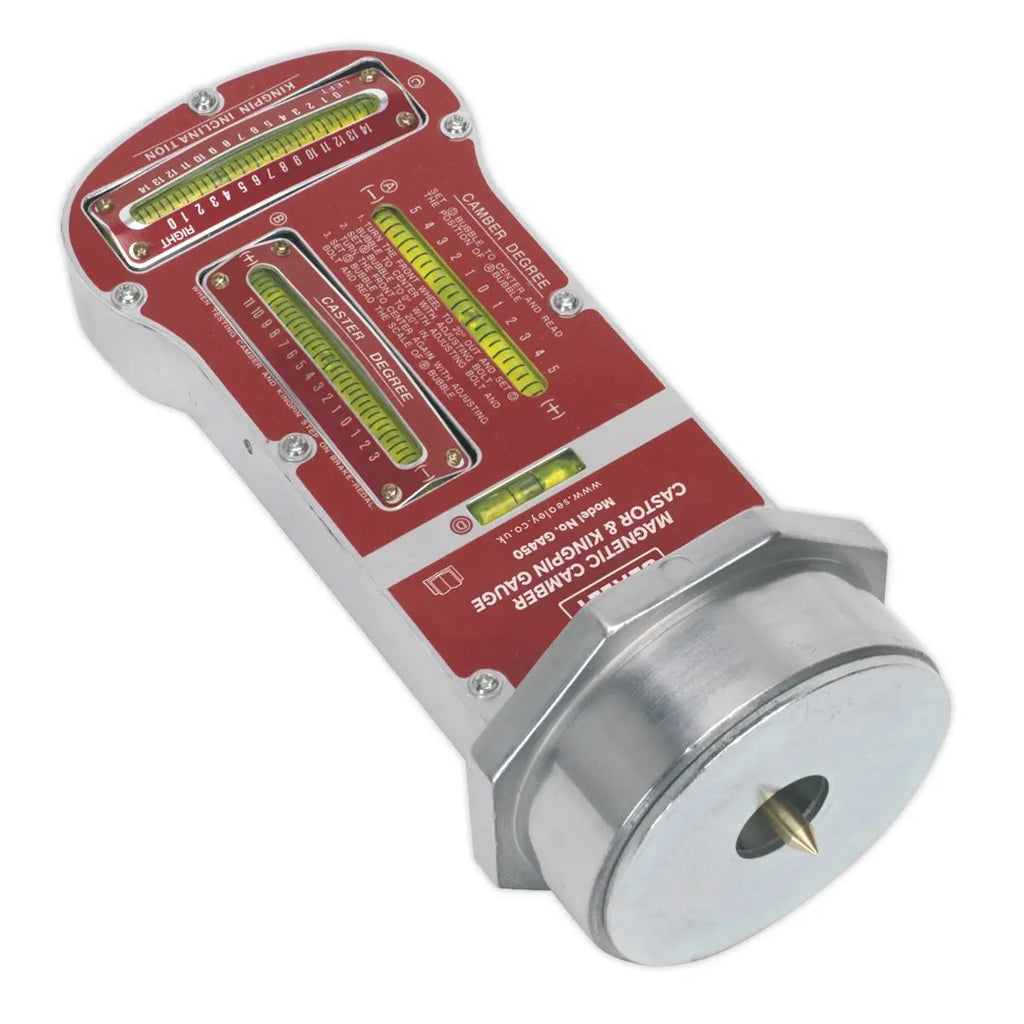

Magnetic plate Diameter: Ø85mm.

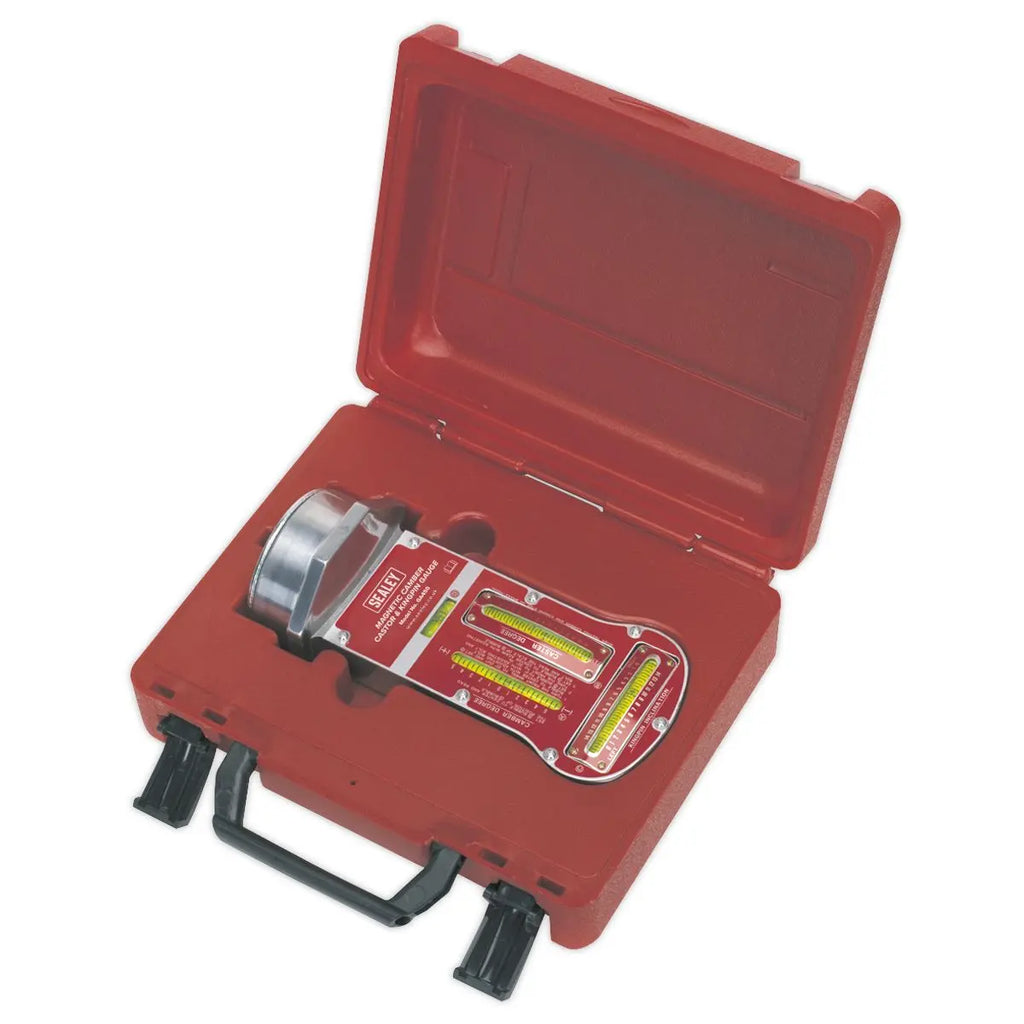

Supplied in storage case.
Specification:
- Model No GA450
- Brand: Sealey
- Camber Gauge Graduations: -5° to +5°
- Castor Gauge Graduations: -3° to +11°
- Kingpin Gauge Graduations: 0° to 14°
- Magnetic Plate Diameter: Ø85mm
- Nett Weight: 1.68kg
Catalogue Page: Page 521
Downloadable Files:
- Instructions: View Here
