Description

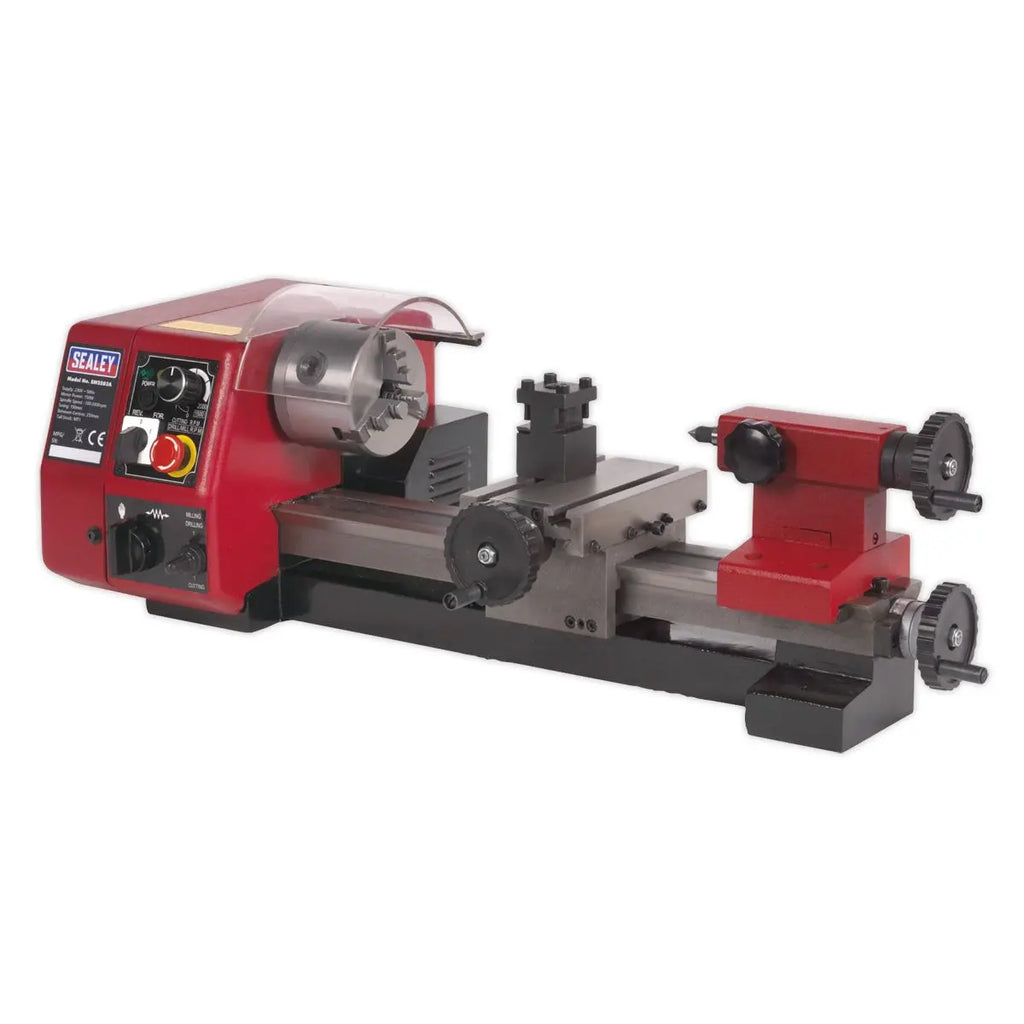

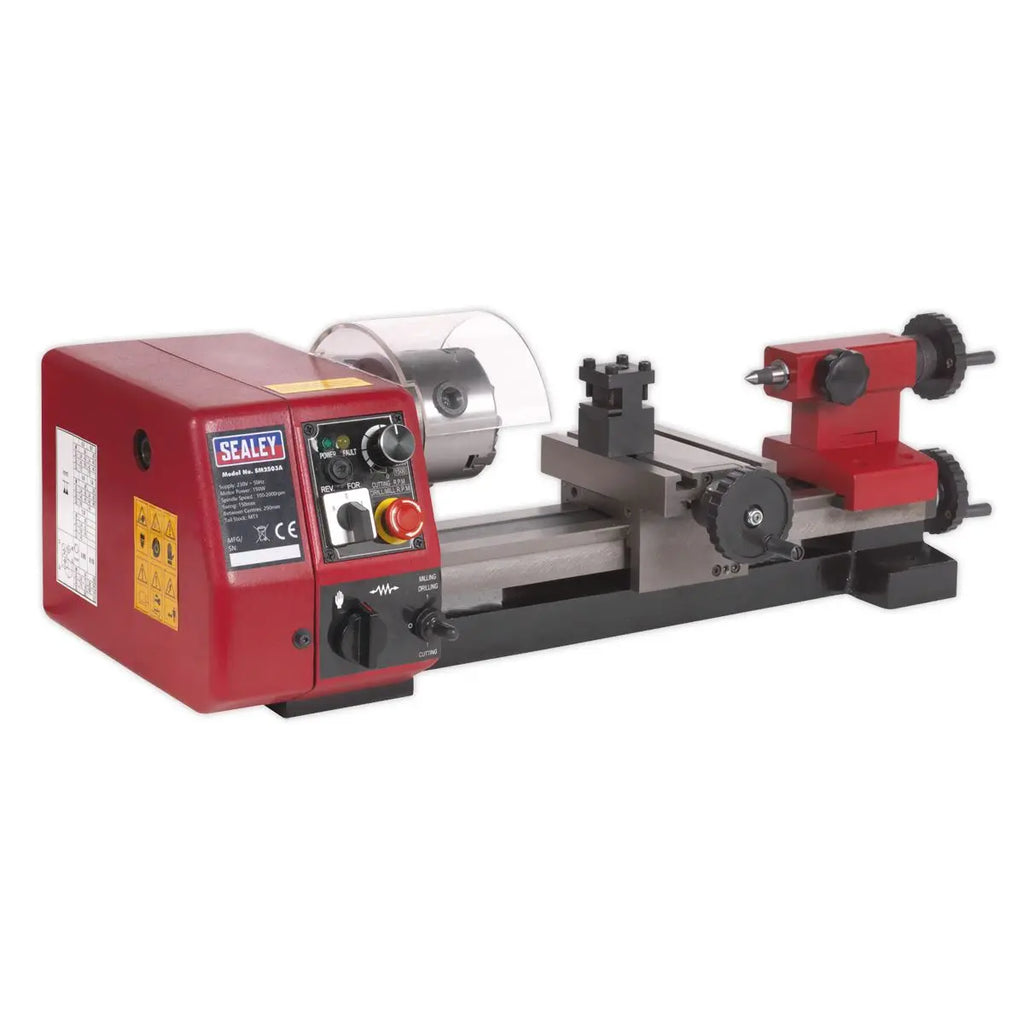

Sealey Metalworking Mini Lathe 250mm
Bench mounting miniature lathe, small enough to fit into the corner of a workshop.
Light enough to be truly portable.
Construction is predominately cast iron and steel.
Fitted with 150W high torque motor.
Capacities: 150mm swing over bed and 250mm between centres.
Features variable speed control, manual or powered lead screw feed, over-load protection.
Extensive range of accessories available.
Supplied with Ø80mm 3-jaw self-centring chuck, tailstock centre and service tools.
Specification:
- Model No SM2503A
- Brand: Sealey
- Nett Weight: 26.2kg
- Swing Over Bed: 150mm
- Distance Between Centres: 250mm
- Spindle Hole Taper: MT2
- Cross Slide Travel: 50mm
- Tailstock Taper: MT1
- Spindle Speed (Variable): 100-2000rpm
- Range of Metric Threads: 5 Pitches (0.5-1.25mm)
- Motor Power: 150W - 230V
- Weight: 26.2kg
Catalogue Page: Page 1196
