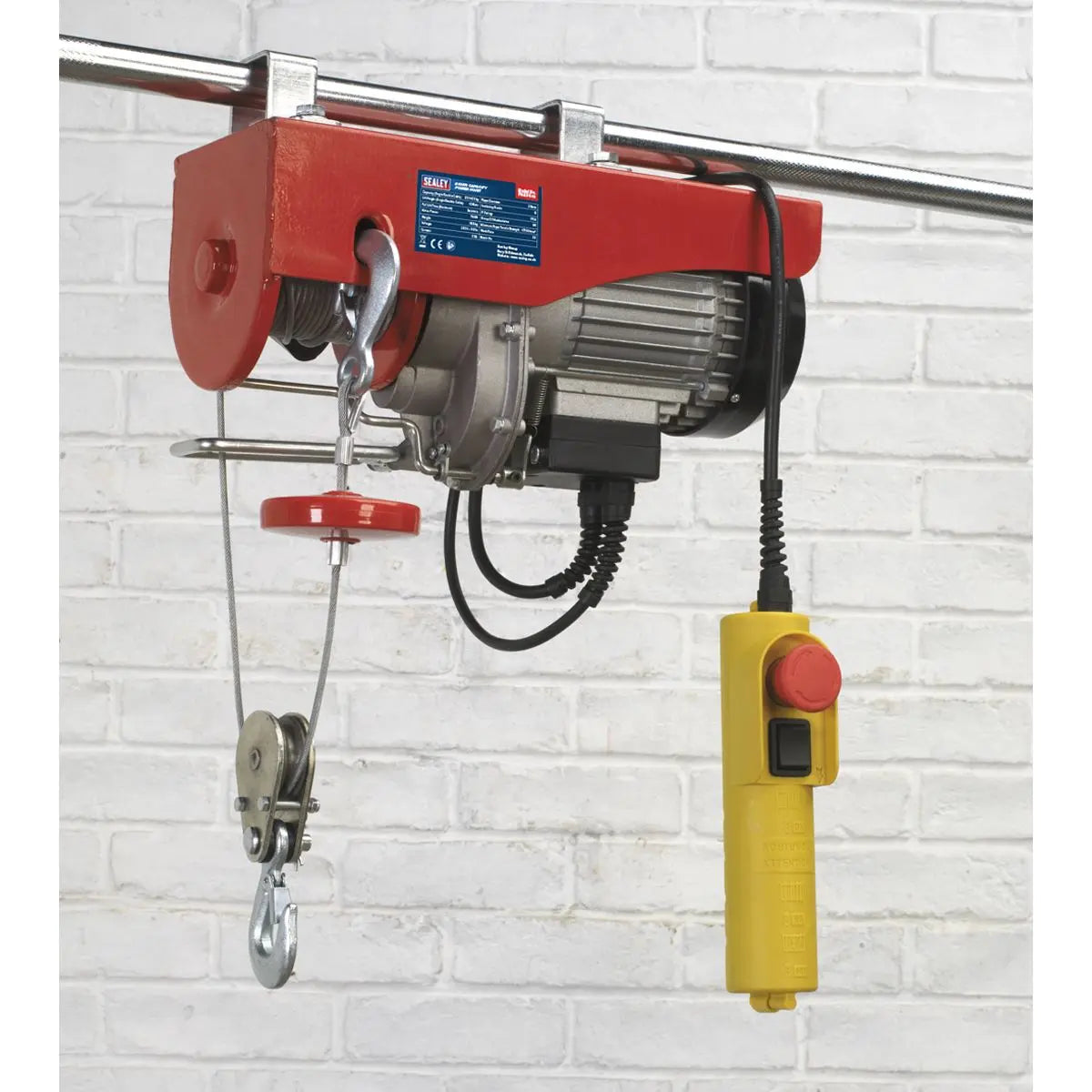

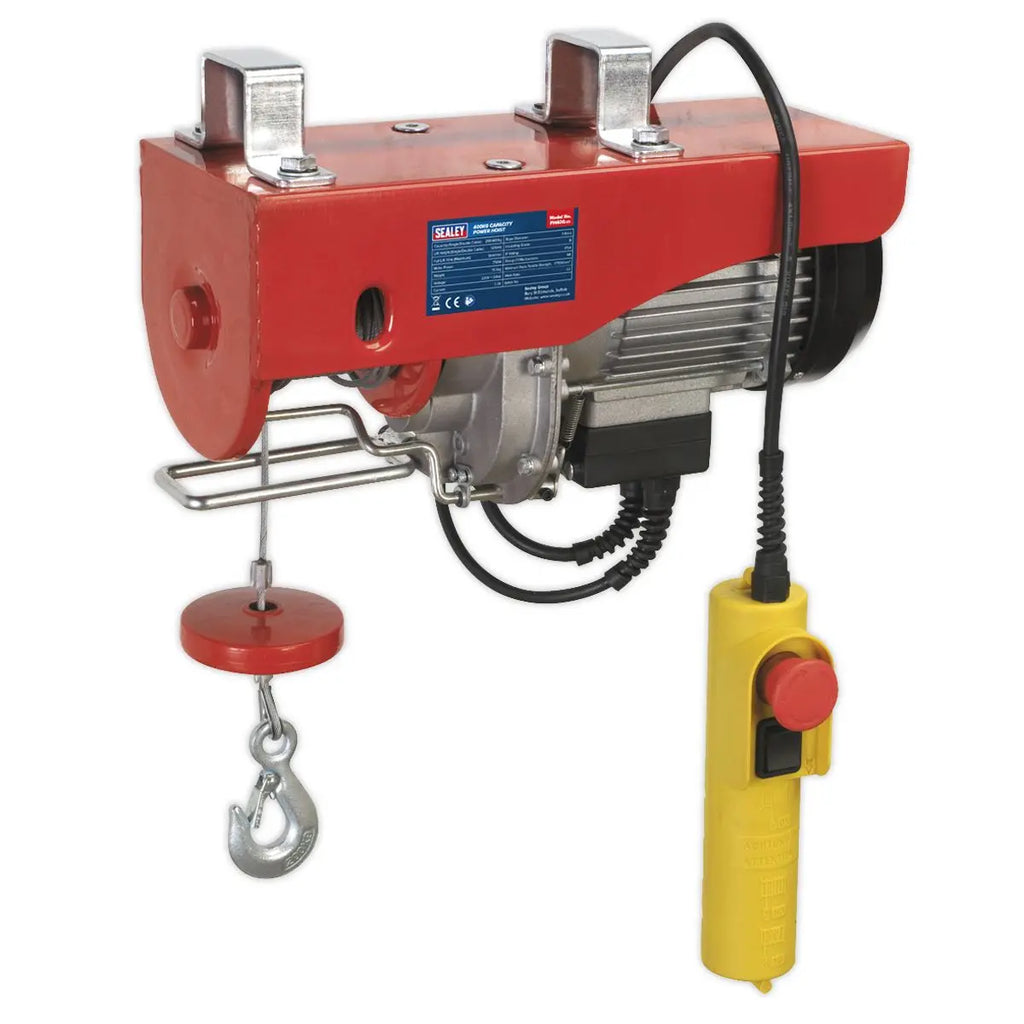

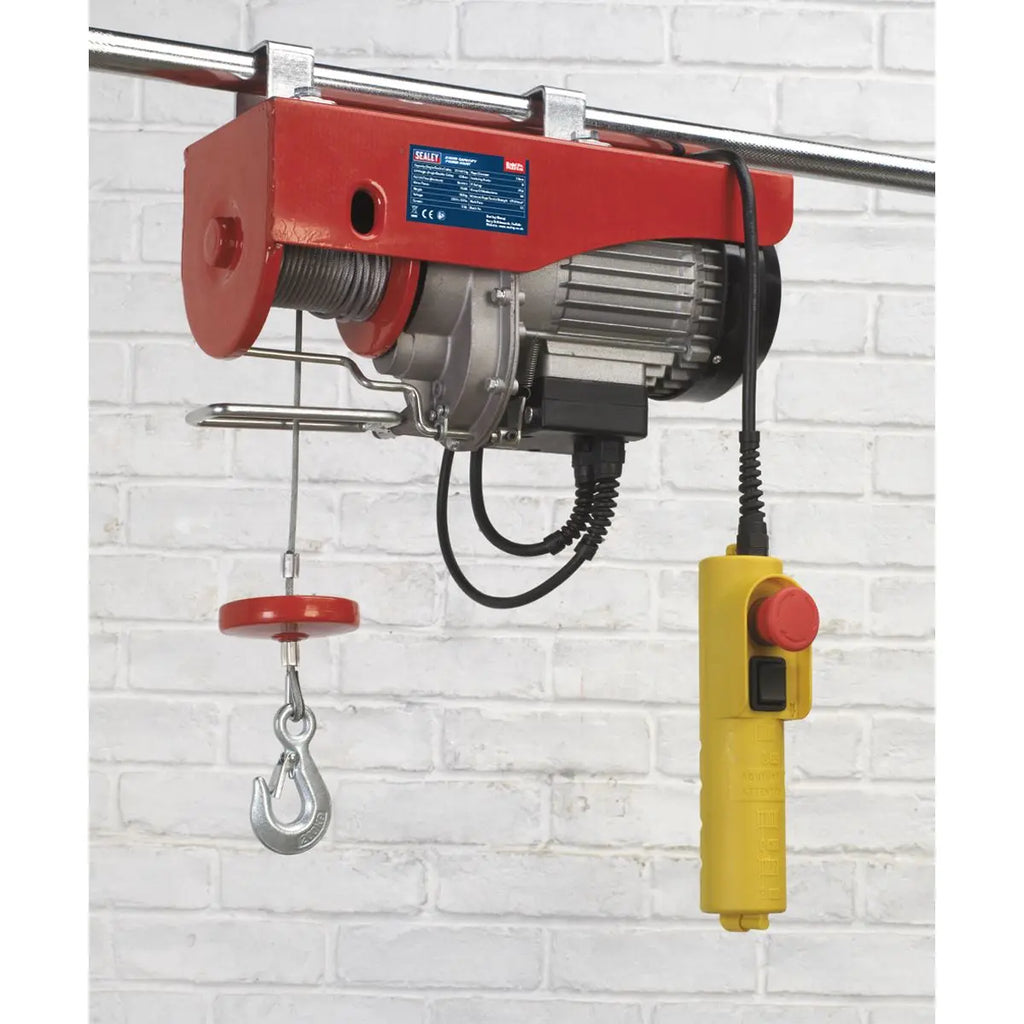

Sealey Power Hoist 230V/1ph 400kg Capacity

Sealey Power Hoist 230V/1ph 400kg Capacity

Approved to EU and UK Lifting Gear Regulations.

This hoist is intended for use where a suitable support facility exists.

Support brackets are included with the equipment.

The support bar is not included.

Specification:

• Model No PH400
• Brand: Sealey
• Capacity (Double Cable): 400kg
• Capacity (Single Cable): 200kg
• Current: 3.3A
• Group of Mechanisms: M1
• Insulating Grade: B
• IP Rating: IP54
• Lift Height (Double Cable): 6m
• Lift Height (Single Cable): 12m
• Lift Speed (Maximum): 8m/min
• Minimum Rope Tensile Strength: 1770N/mm²
• Motor Power: 750W
• Nett Weight: 16.0kg
• Rope Diameter: 3.8mm
• Work Rate: S3

Product Guarantee: 1 Year
Catalogue Page: Page 323

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
