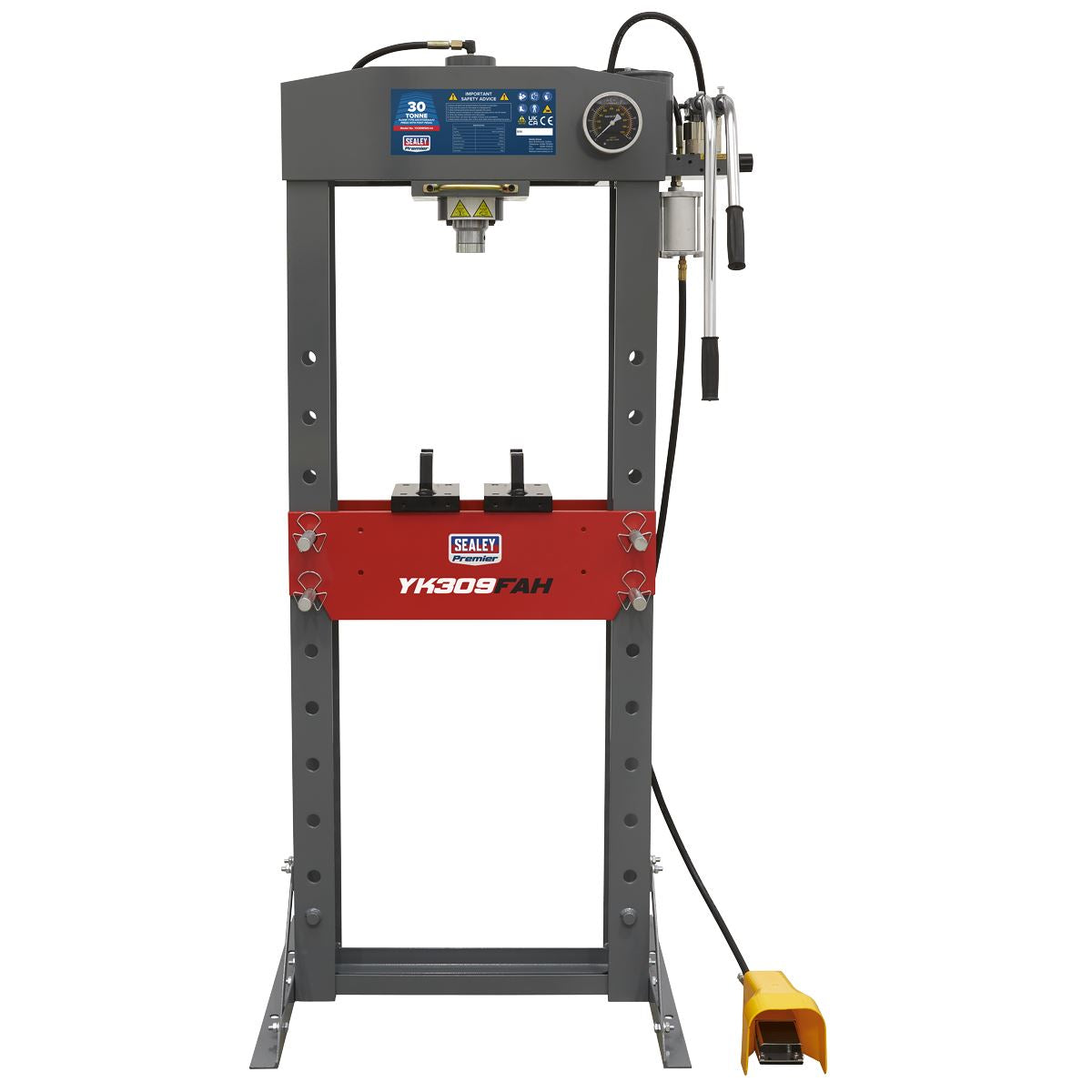

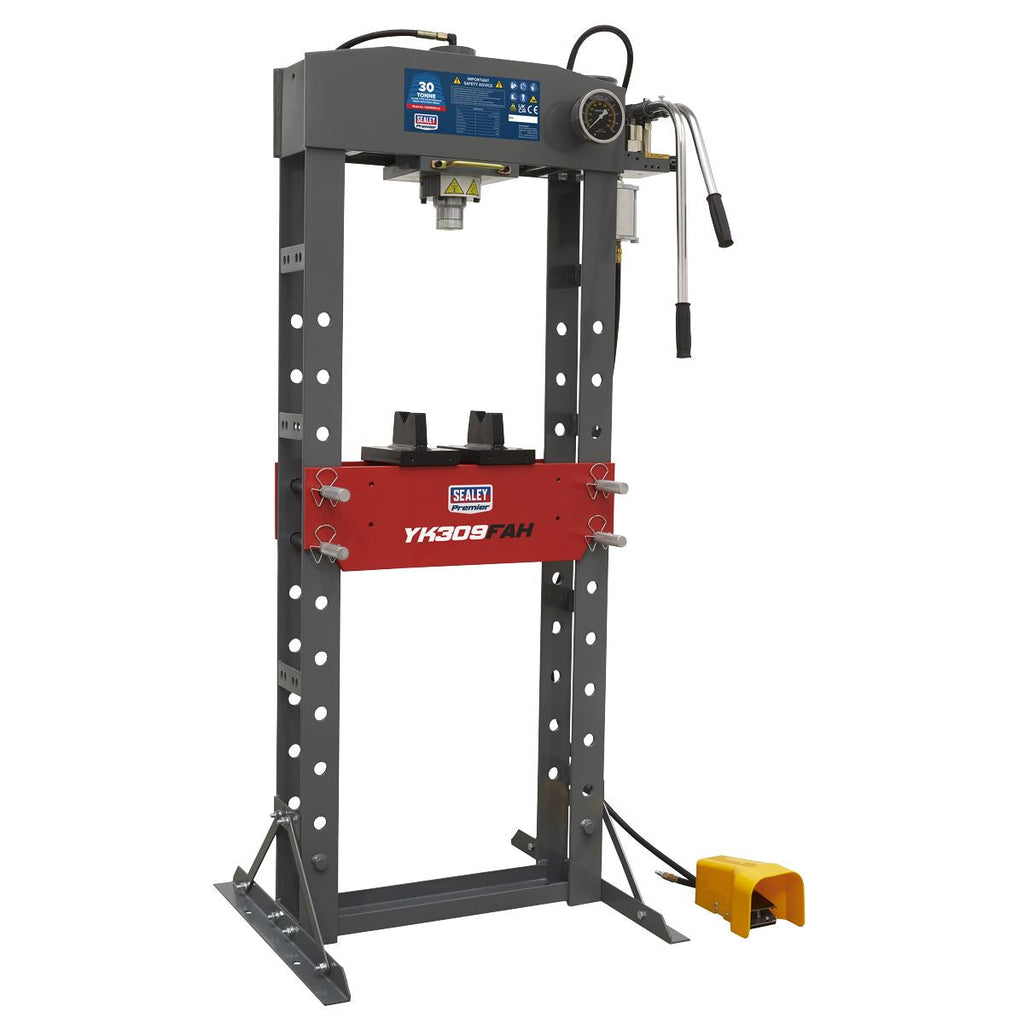

Sealey Premier Premier Air/Hydraulic Floor Type Press with Foot Pedal 30 Tonne

Sealey Premier Premier Air/Hydraulic Floor Type Press with Foot Pedal 30 Tonne

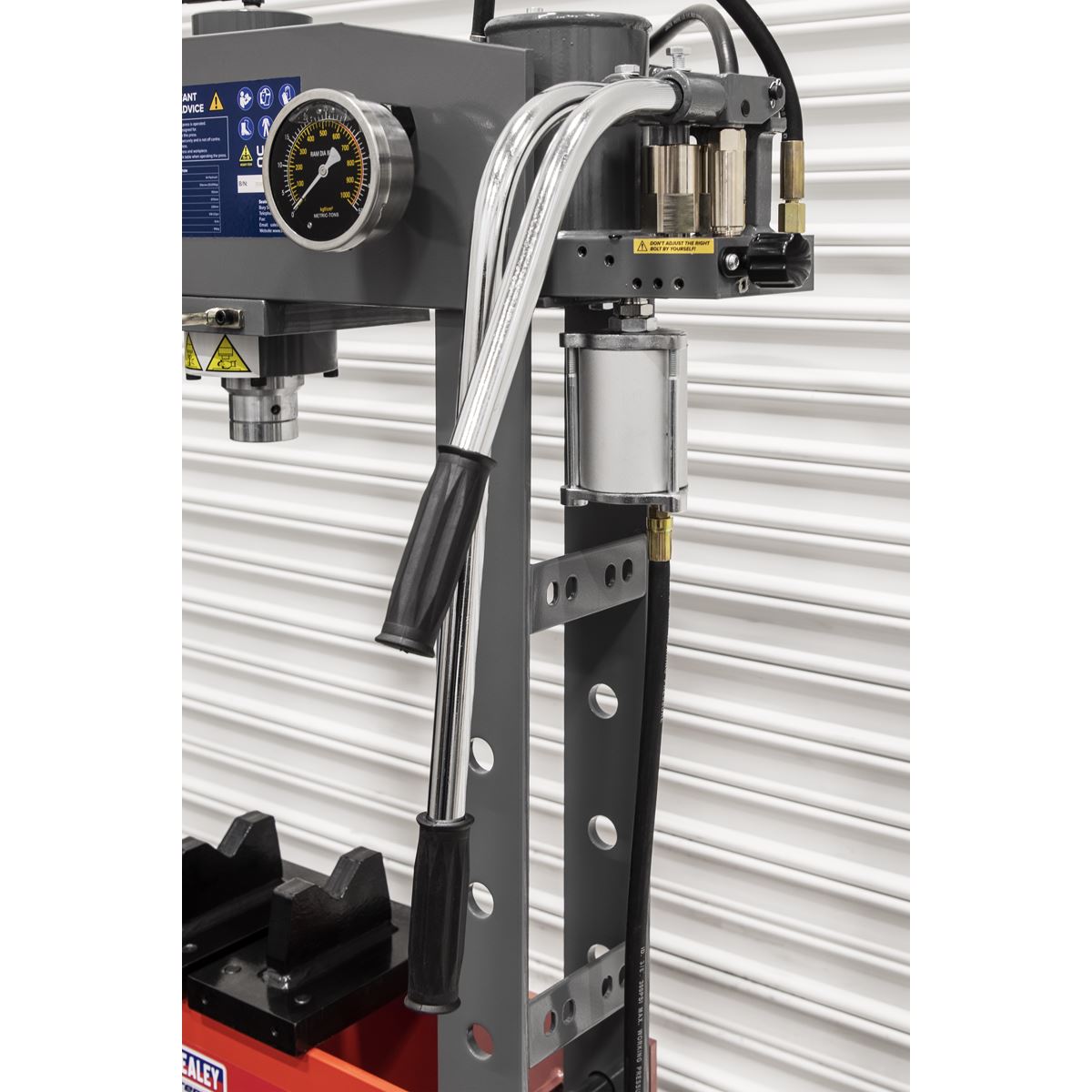

Heavy-duty steel frame construction with side mounted air motor powering hydraulic pump unit.

2-Speed manual operation.

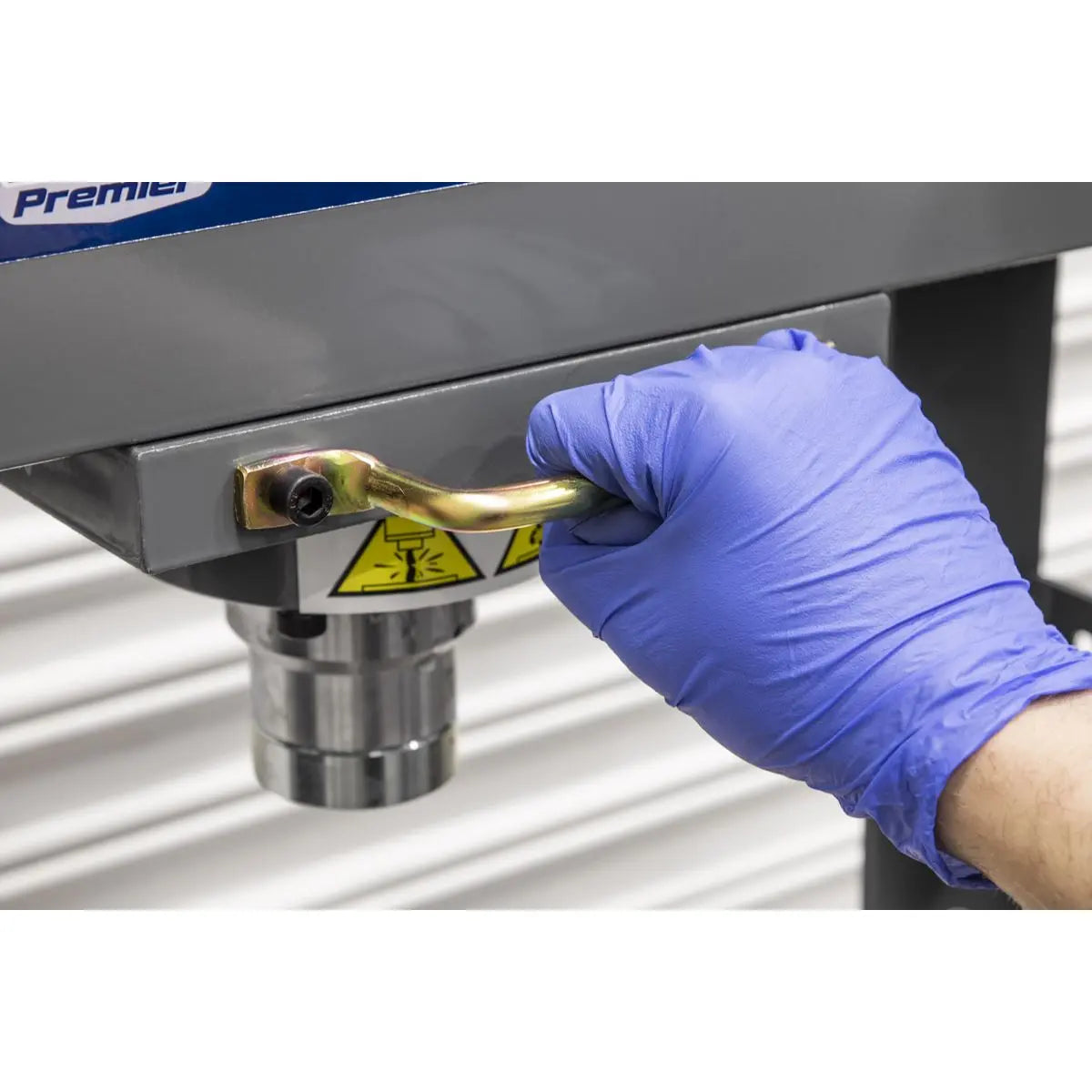

Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications.

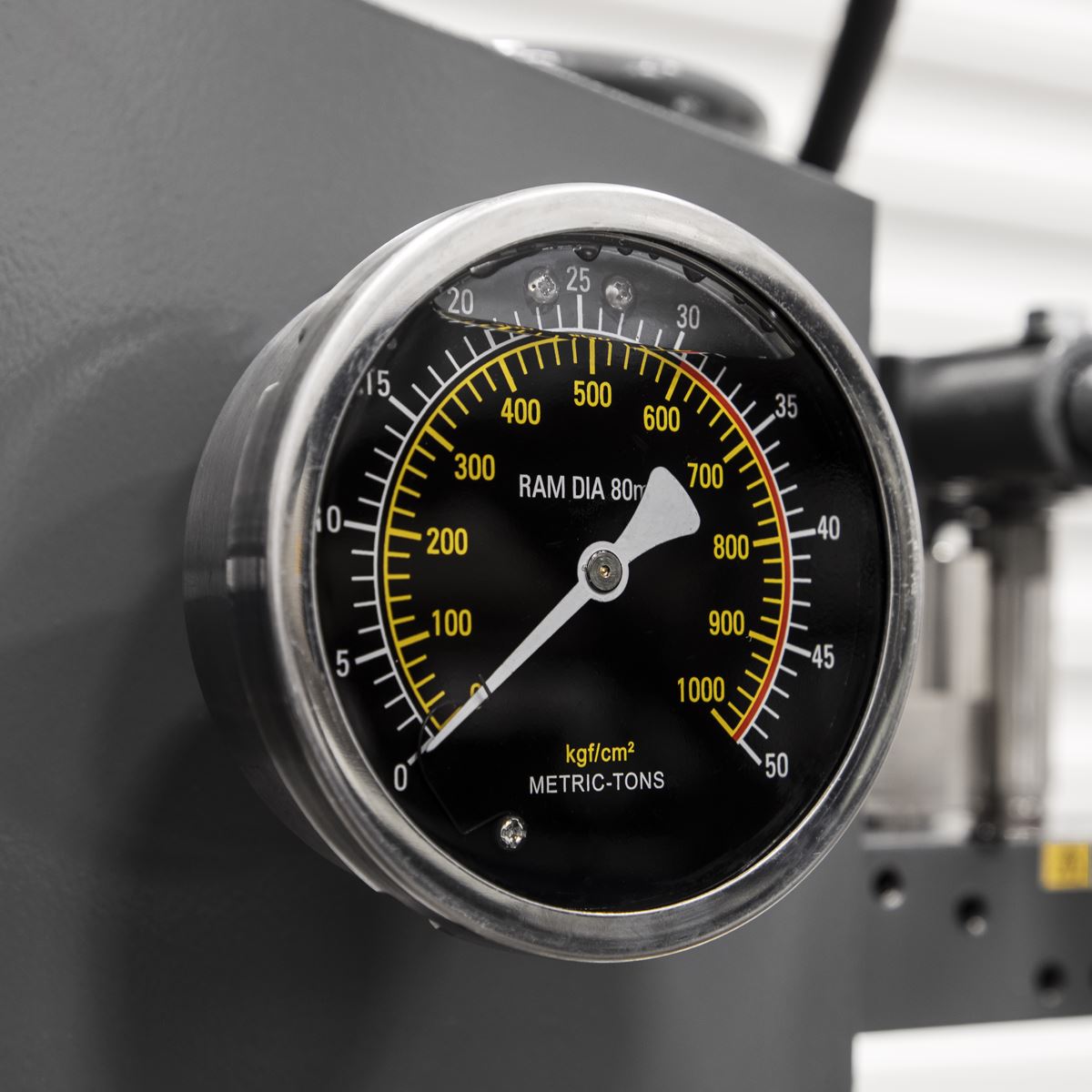

Fitted with ram pressure gauge.

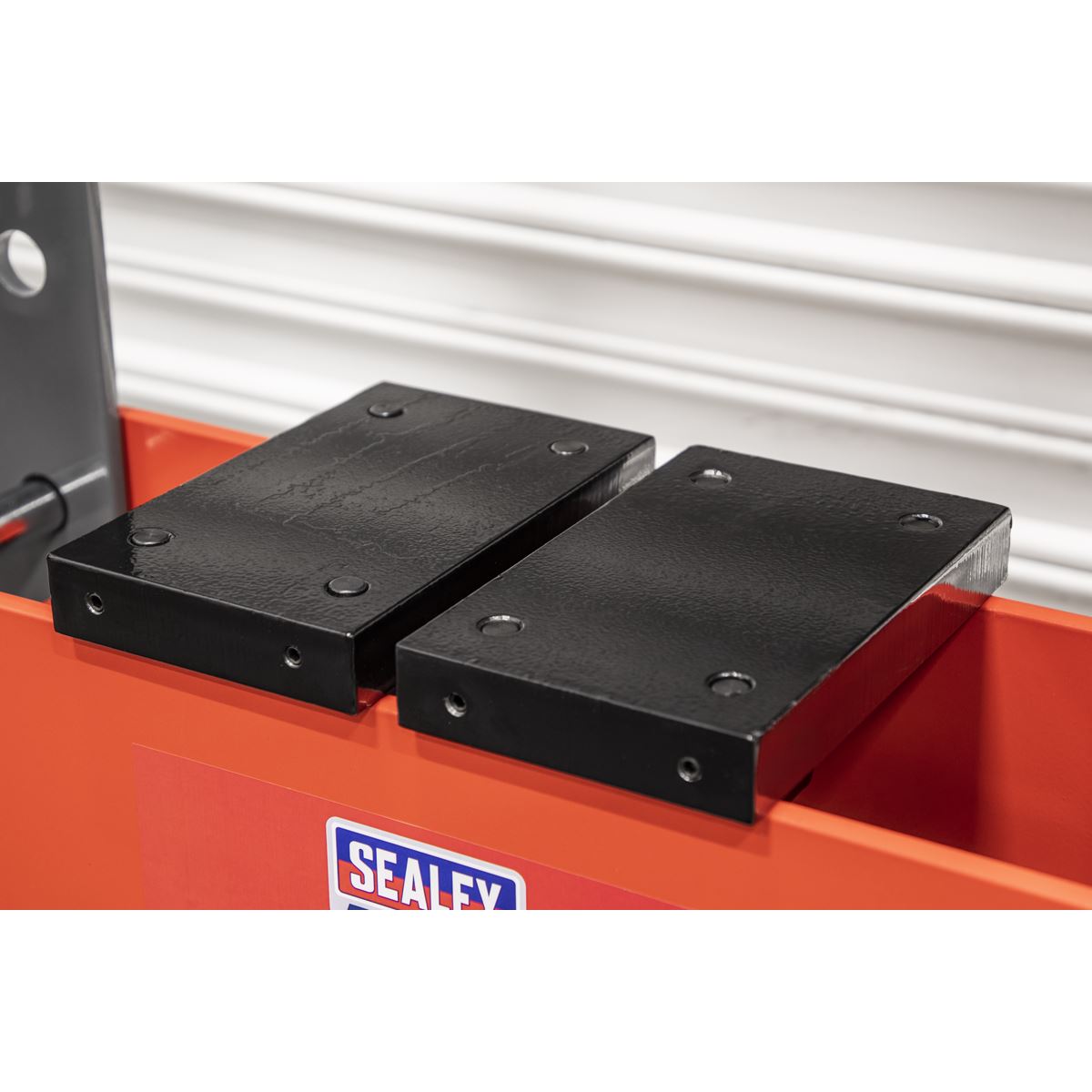

Supplied with flat pressing plate/V-blocks.

5 Year guarantee*.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No YK309FAH
• Air Consumption: 9cfm
• Bench or Floor Mounting: Floor
• Brand: Sealey Premier
• Capacity: 30 Tonne
• Gauge Included: Yes
• Lateral Ram Travel: 200mm

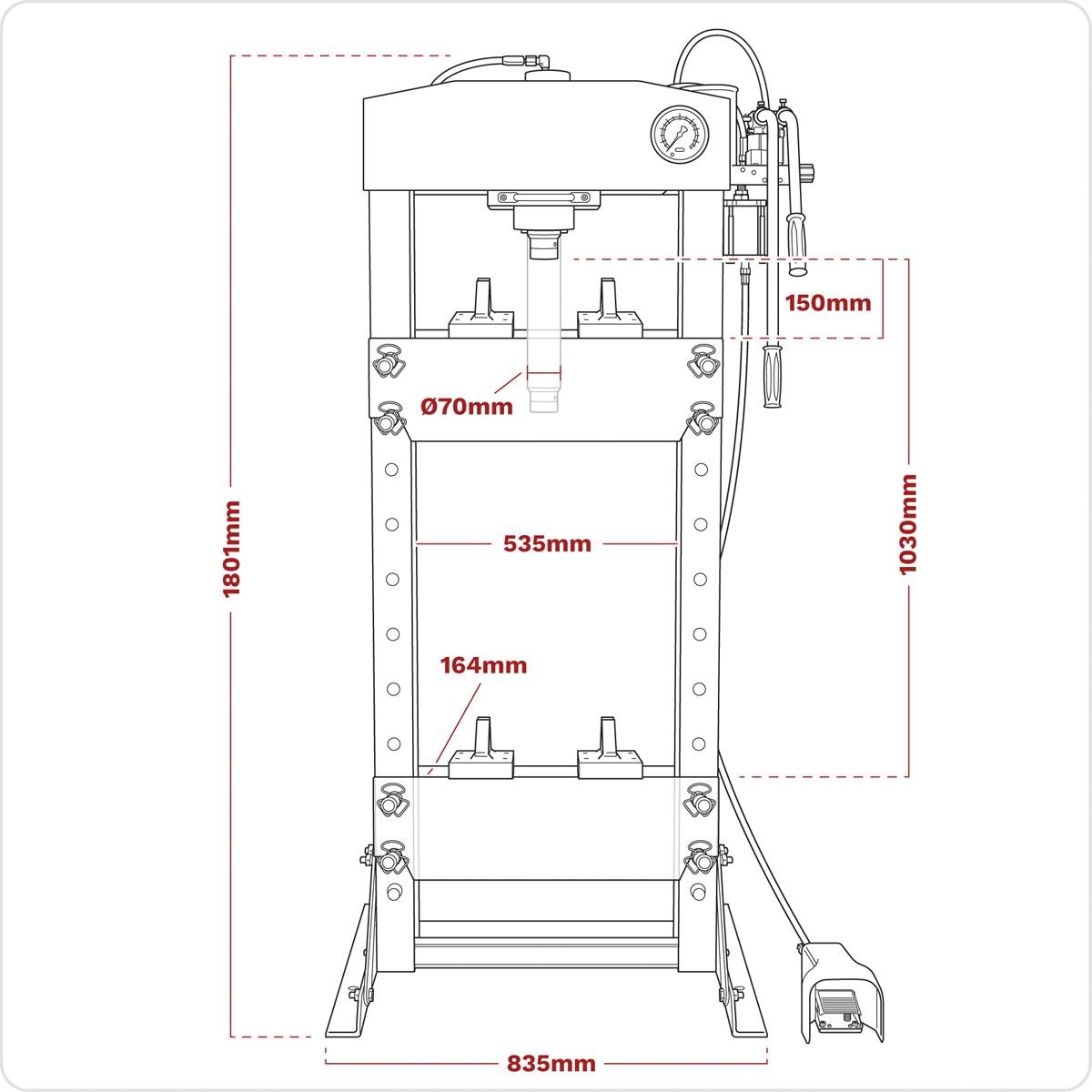

• Maximum Height - Ram to Table: 1030mm
• Minimum Height - Ram to Table: 150mm
• Nett Weight: 166kg

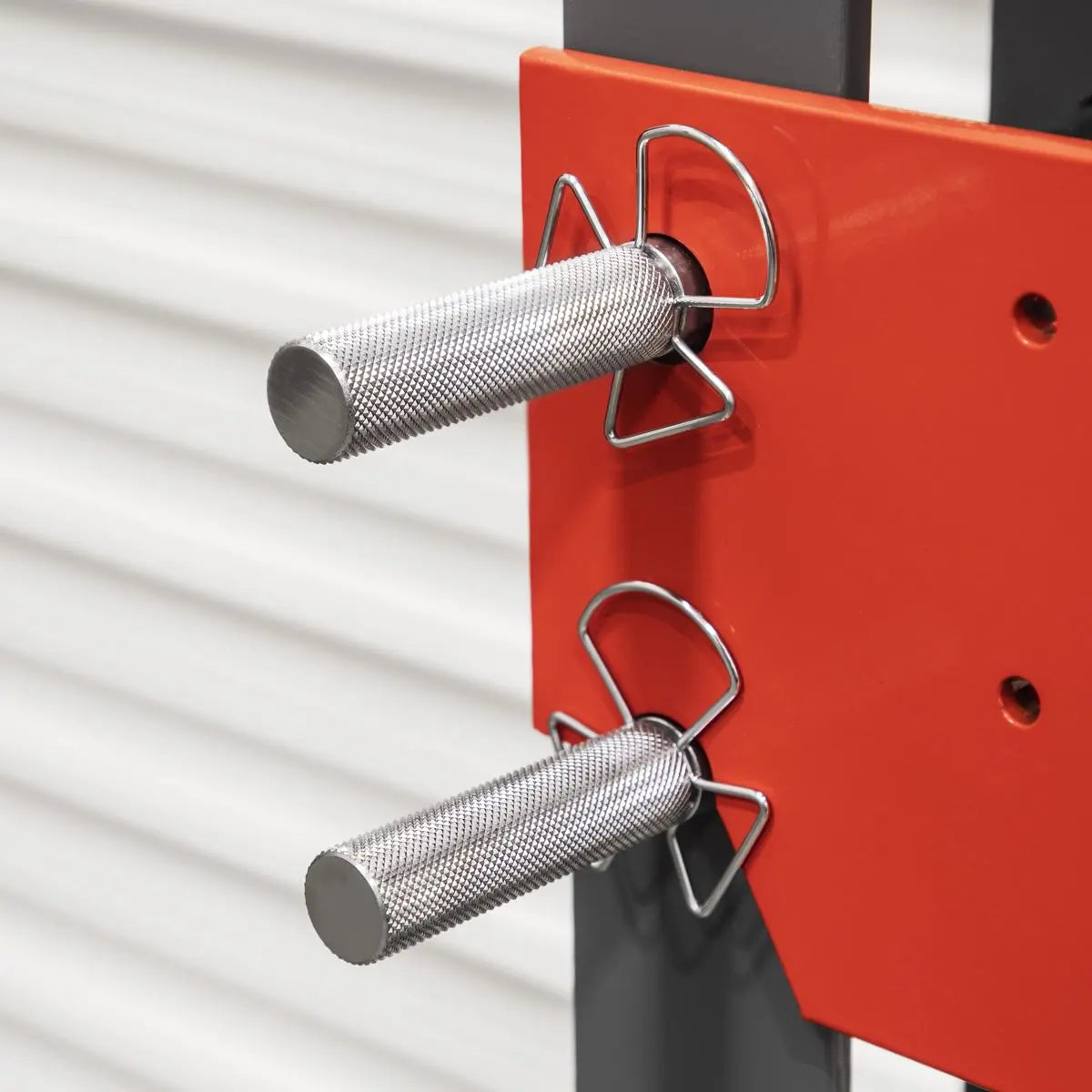

• Optional Accessories: YKSG30 - Safety Guard, YKPP8 - Press Pin Set
• Overall Height: 1801mm
• Overall Width: 835mm
• Ram Diameter: Ø70mm
• Ram Stroke: 150mm
• Table Aperture: 164mm
• Type: Air/Hydraulic
• Working Table Depth: 184mm
• Working Table Width: 535mm
• Working Table Width: 535mm

Product Guarantee: 5 Years
Catalogue Page: Page 328

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
