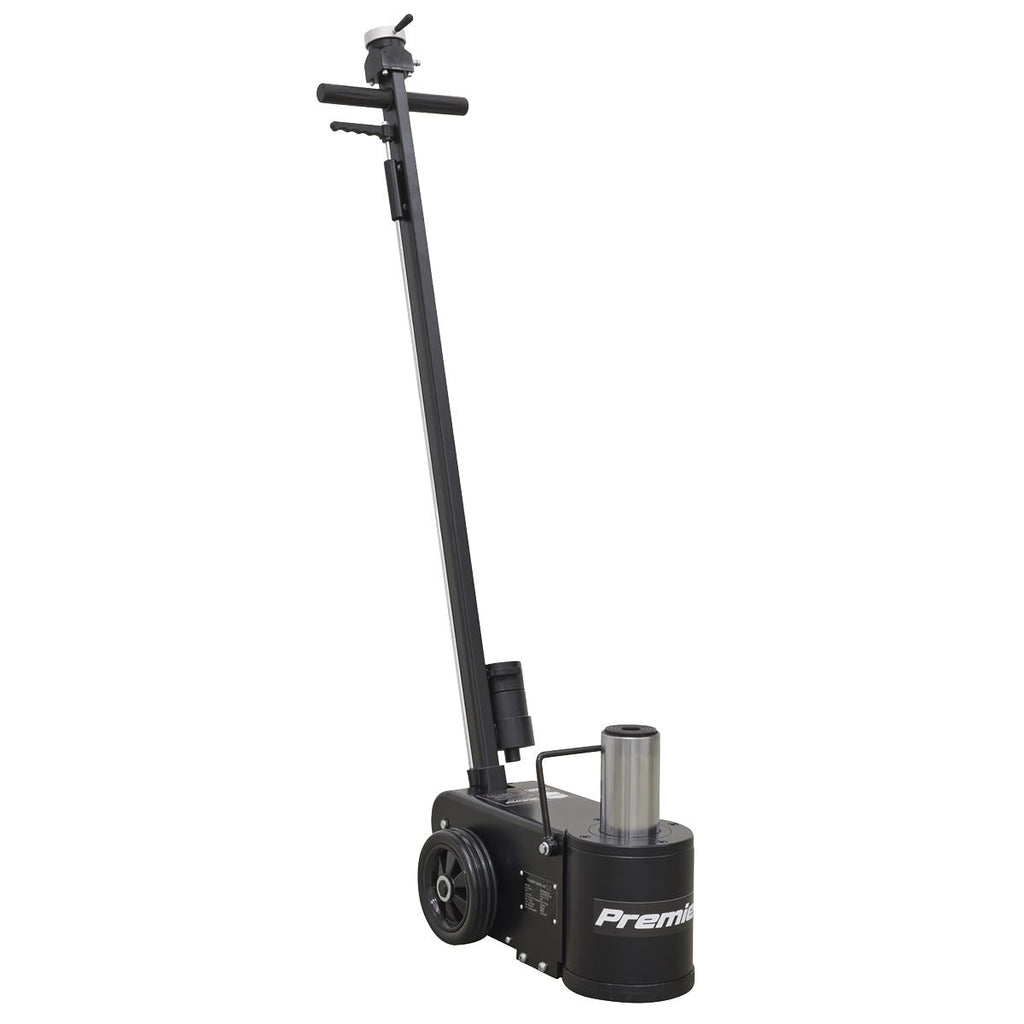

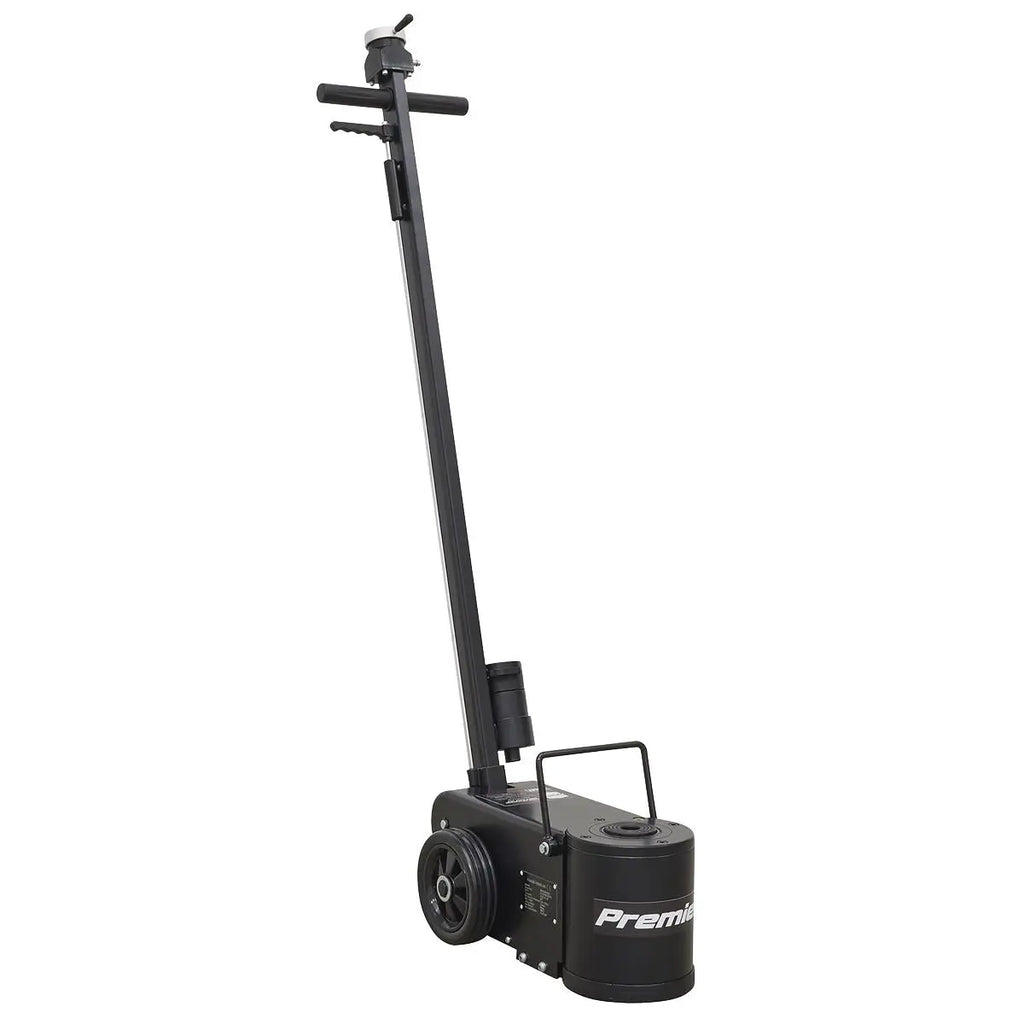

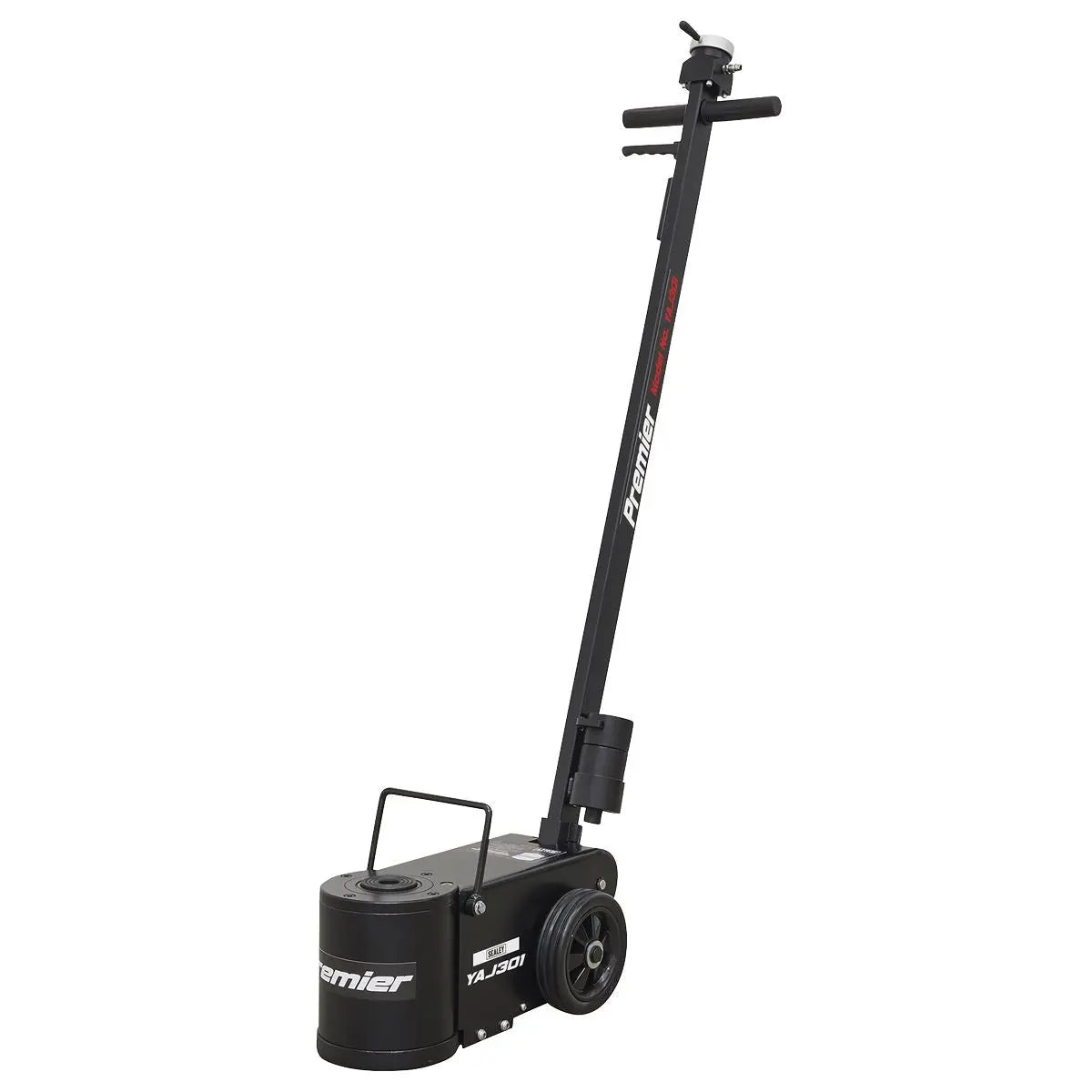

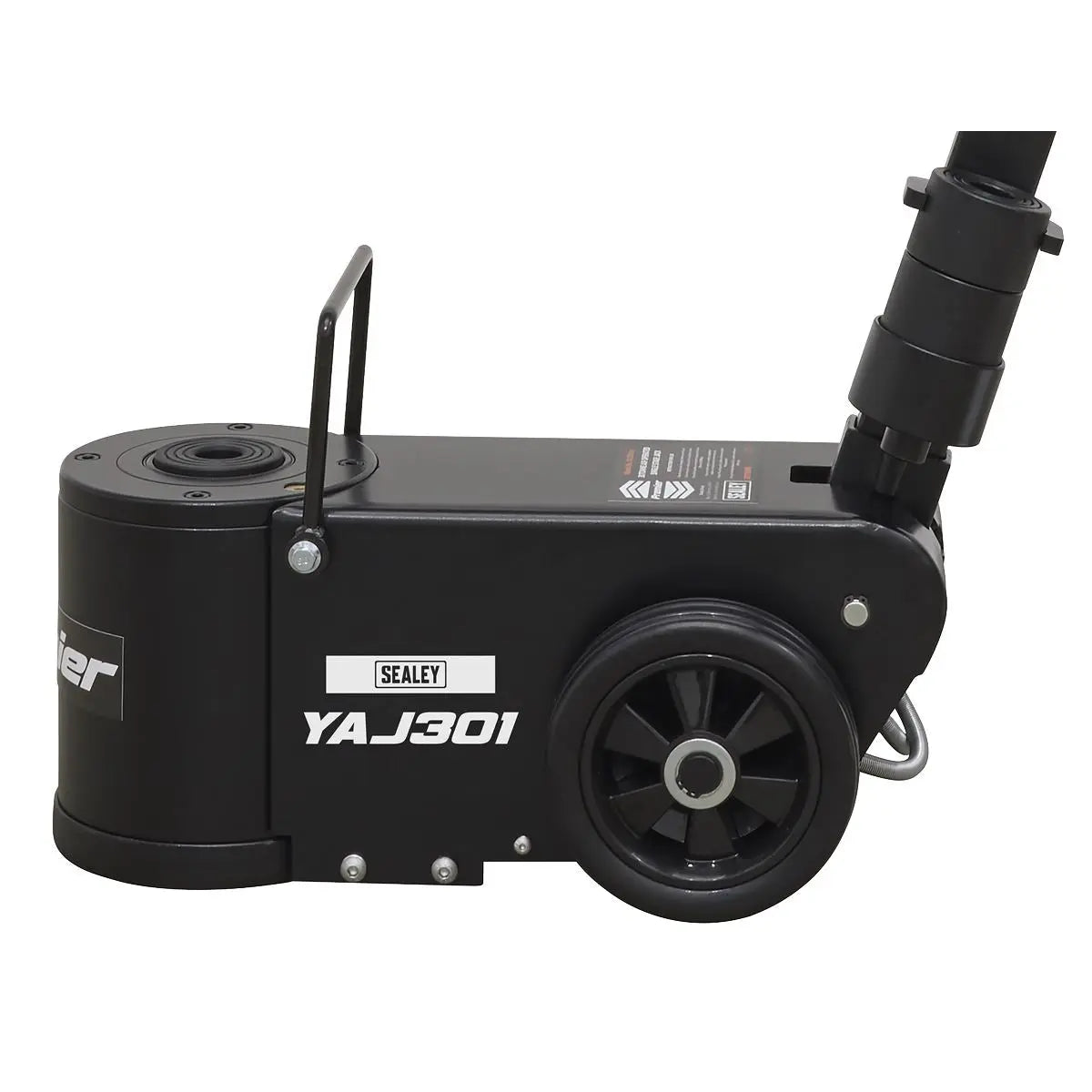

Sealey Premier Premier Air Operated Single Stage Jack 30 Tonne

Sealey Premier Air Operated Single Stage Jack 30 Tonne

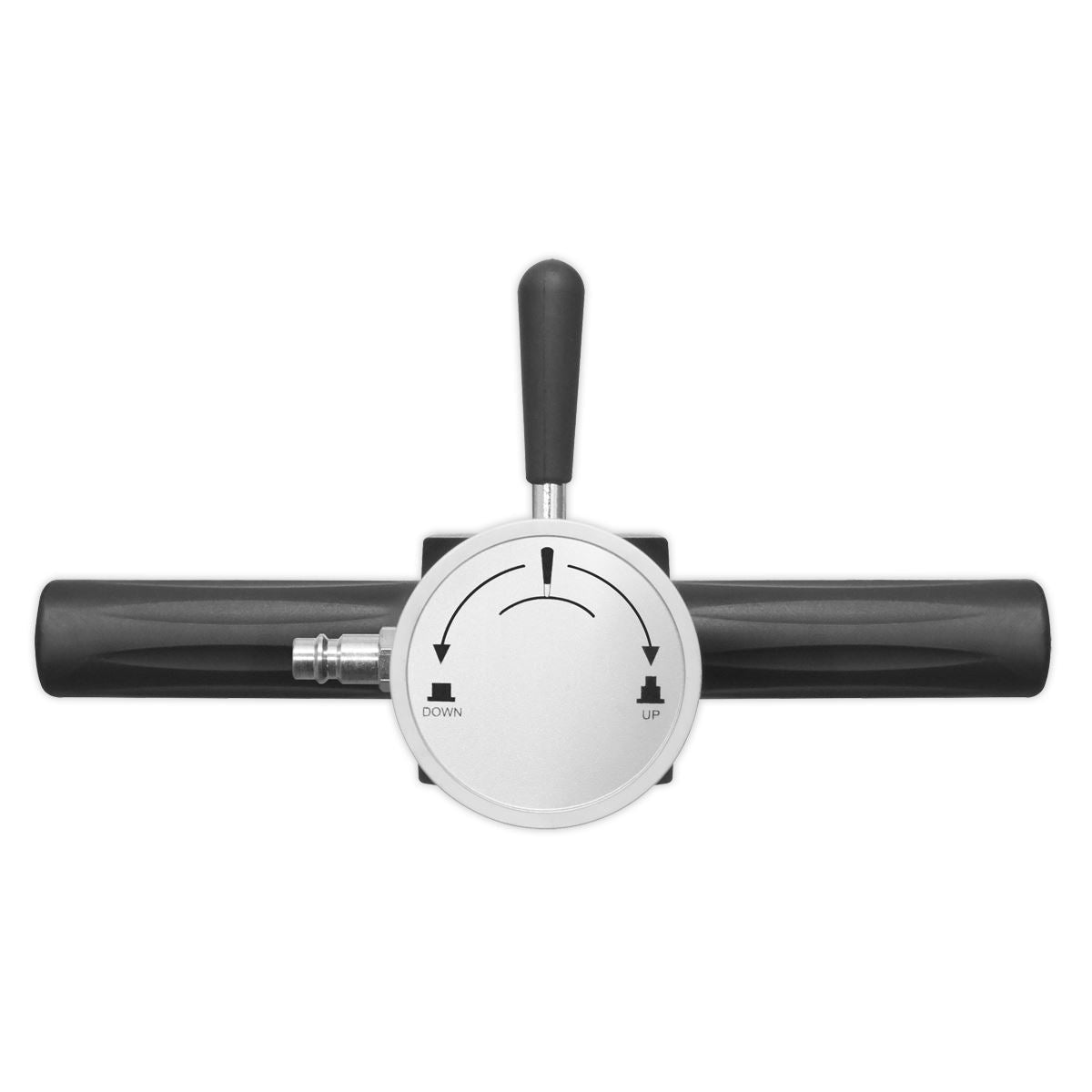

Spring loaded dead man's control enables safe, controlled lifting/lowering of vehicle.

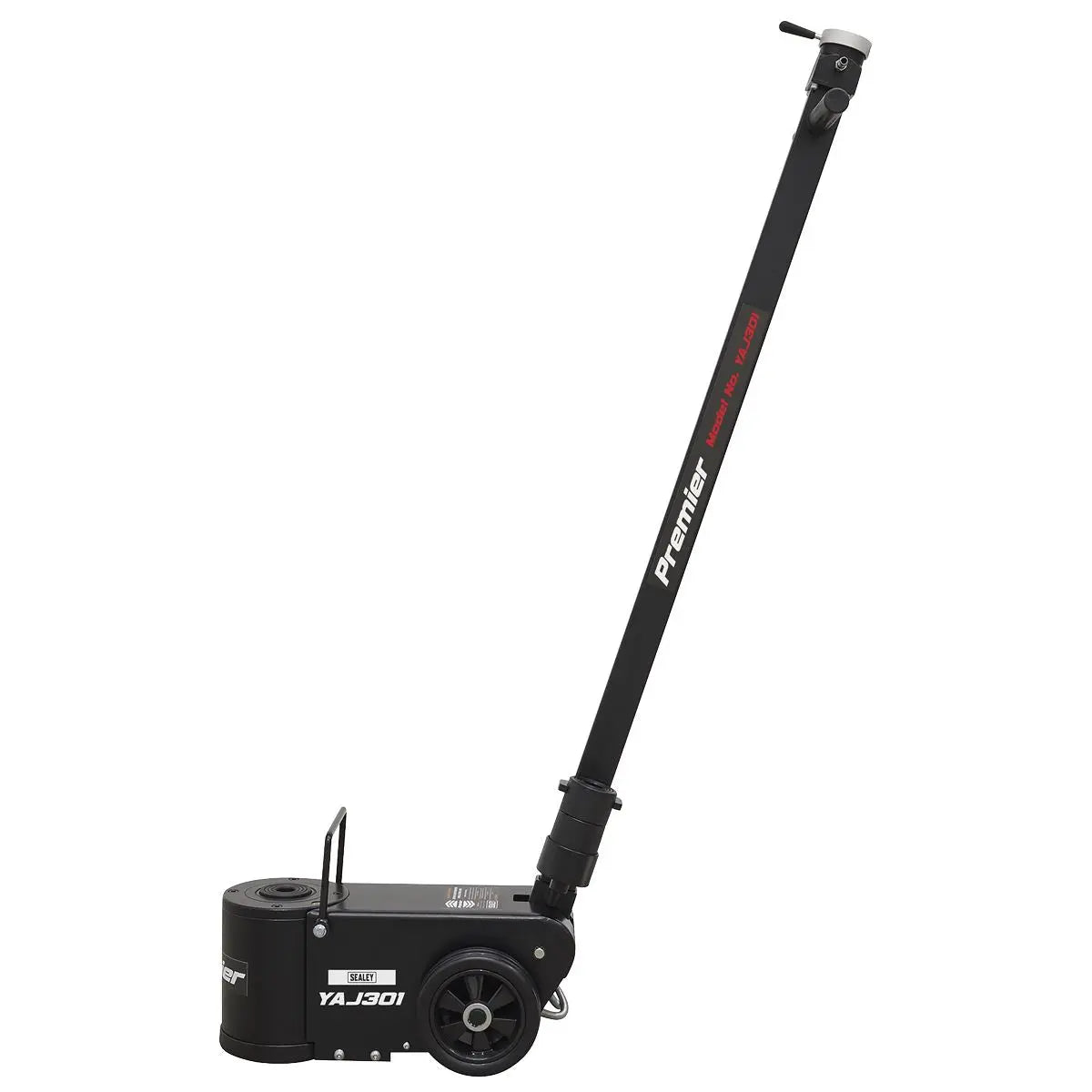

Handle locks in position and can be used at three different angles to allow improved manoeuvrability and access around the vehicle.

Ideal for workshop or roadside use, takes the effort out of lifting heavy plant, tractors and commercial vehicles.

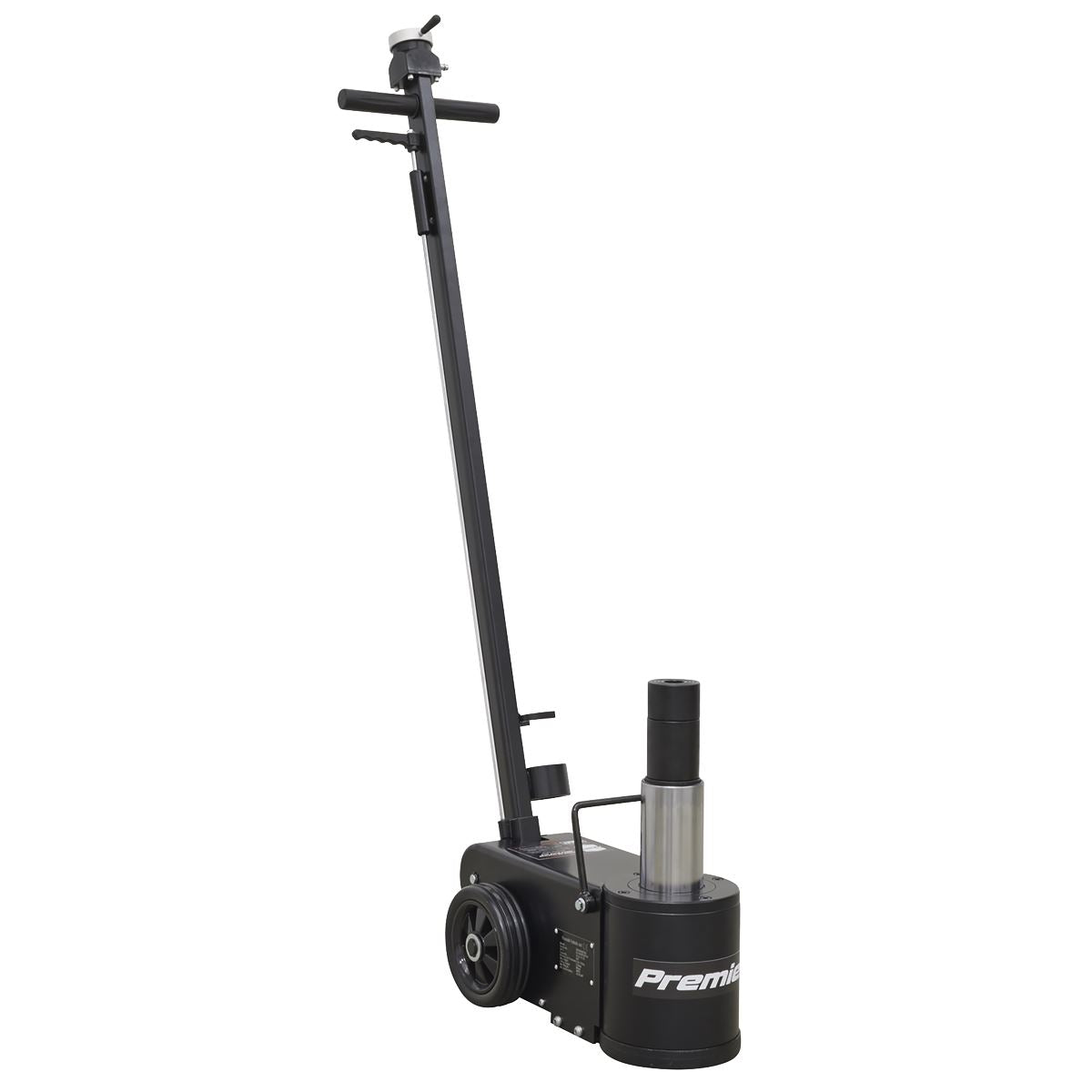

Supplied with 45mm and 75mm extensions to help close the gap between the saddle of the jack and the jacking point.

3 Year Guarantee*.

Specification:

• Model No YAJ301
• Air Consumption: 10.5cfm
• Brand: Sealey Premier
• Capacity: 30 Tonne
• Chassis Length: 490mm
• Extensions: 45/75mm
• Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): 463/30
• Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): n/a
• Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne): n/a
• Maximum Length: 1700mm
• Minimum Saddle Height: 210mm
• Nett Weight: 47kg
• Overall Width: 290mm
• Piston Stroke: 133mm
• Screw Extension: n/a
• Width without Wheels: 176mm
• Working Pressure: 116-174psi

Product Guarantee: 3 Years
Catalogue Page: Page 846

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
