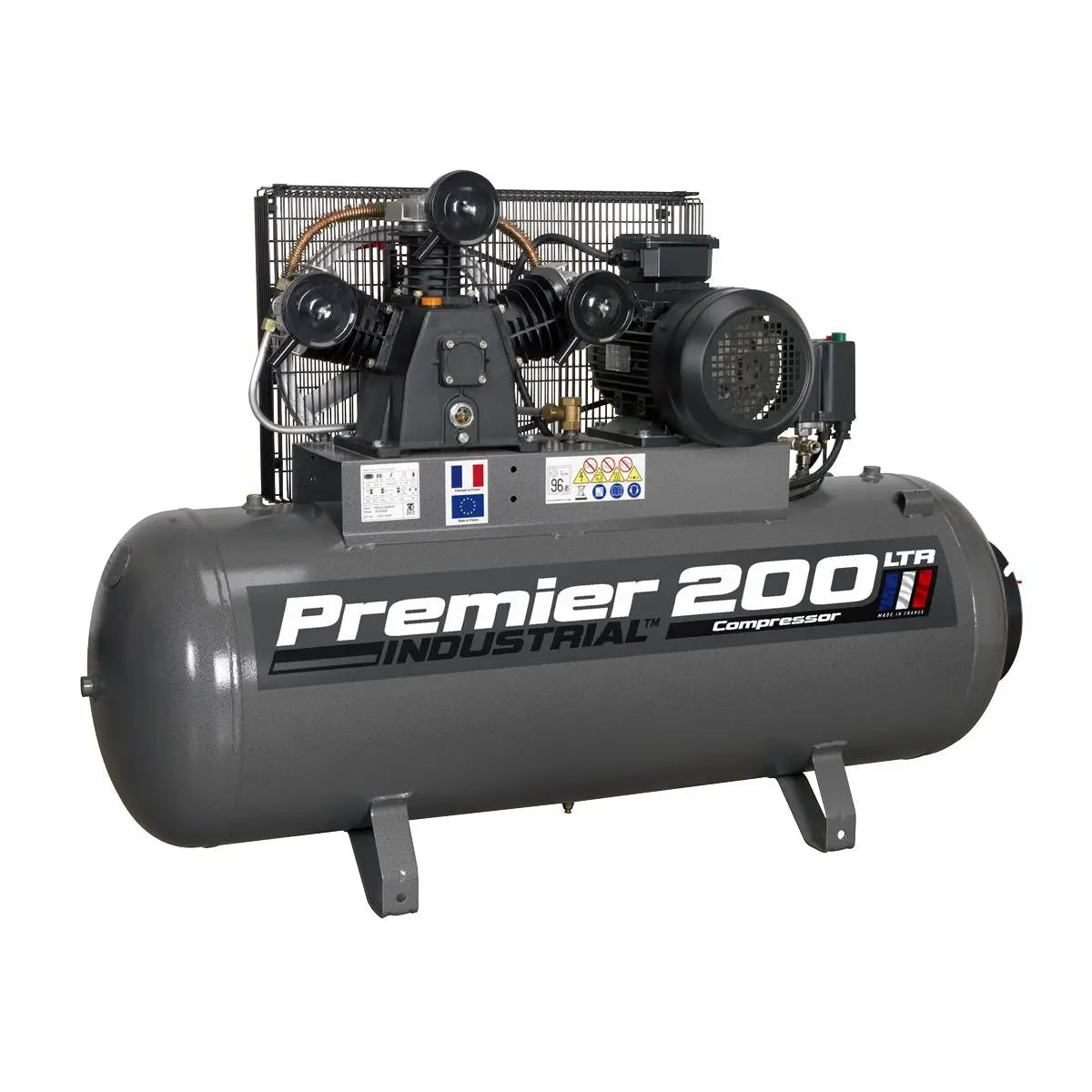

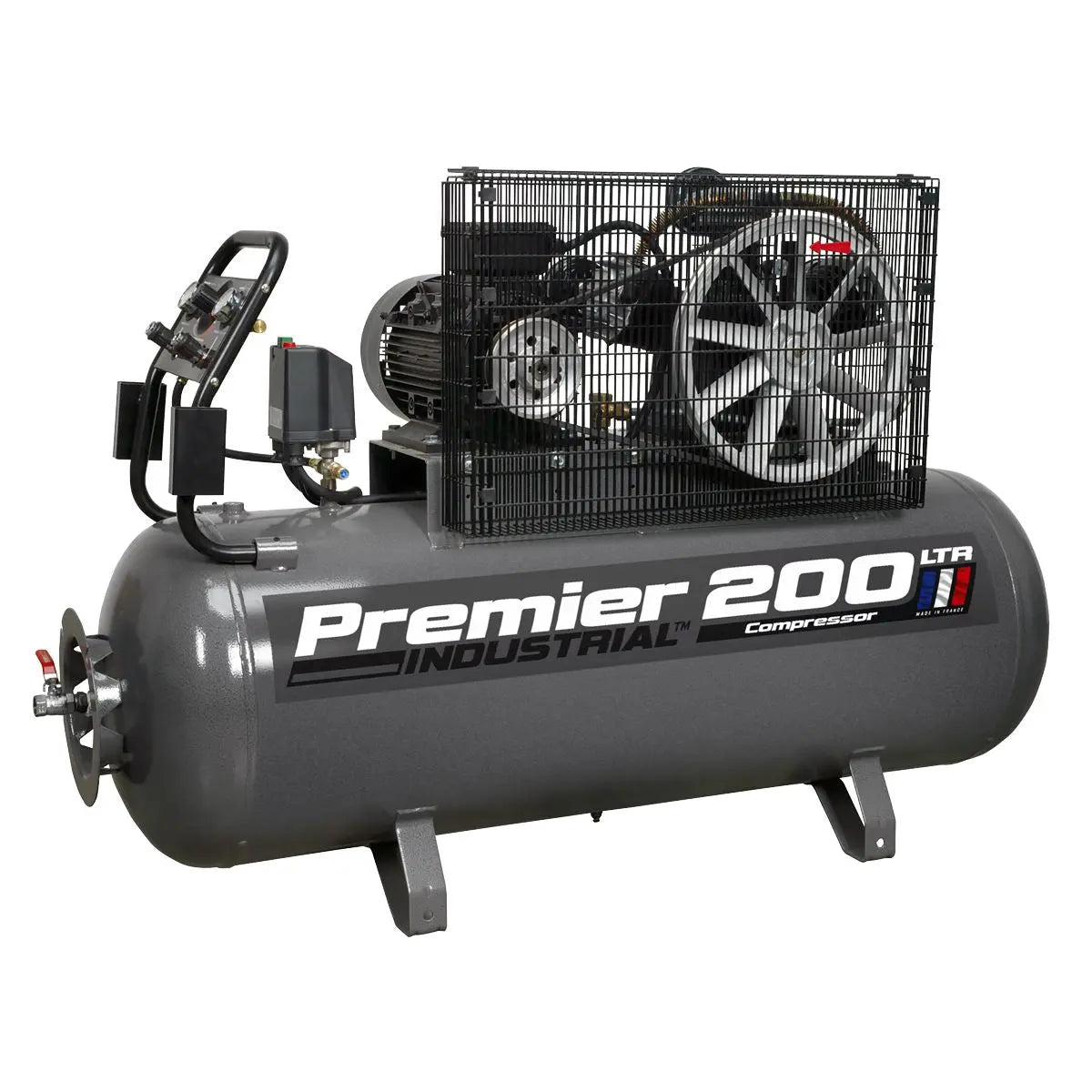

Sealey Premier Air Compressor 200L Belt Drive 5.5hp 3ph

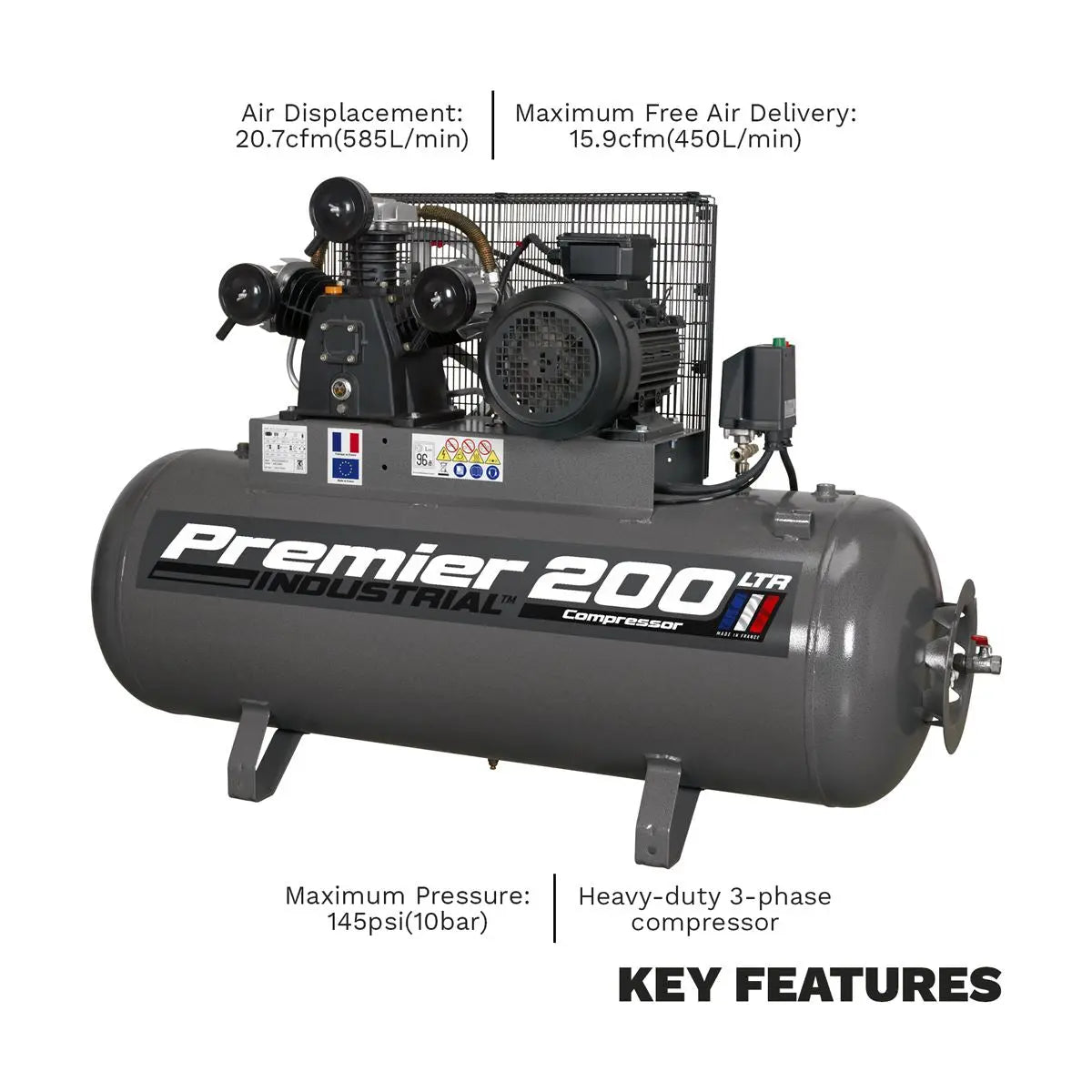

Air Displacement: 20.7cfm(585L/min).
Maximum Free Air Delivery: 15.9cfm(450L/min).
Maximum Pressure: 145psi(10bar).
Heavy-duty 3-phase compressor suitable for the professional workshop.

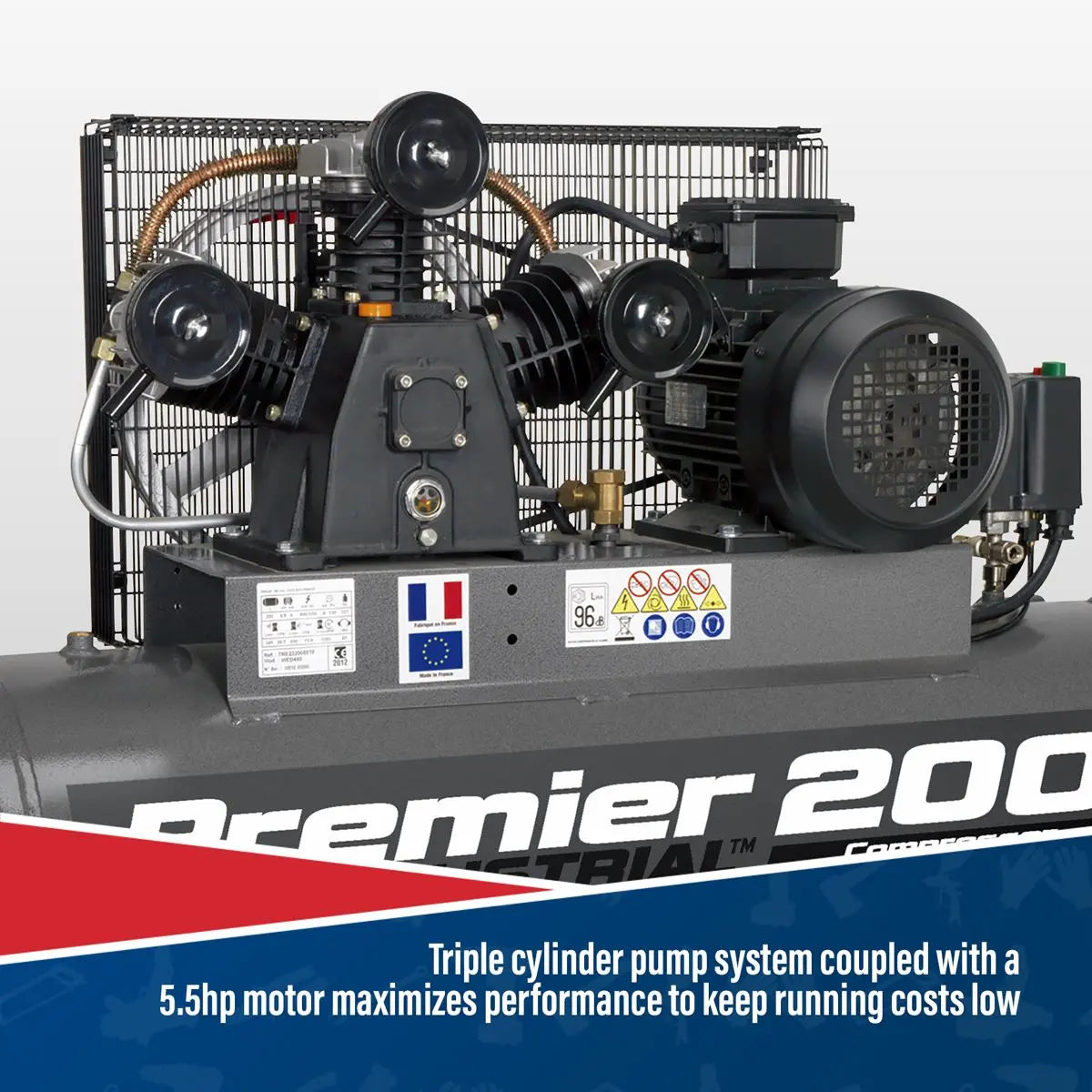

Triple cylinder pump system coupled with a 5.5hp motor maximizes performance to keep running costs low compared to single stage, single phase models.

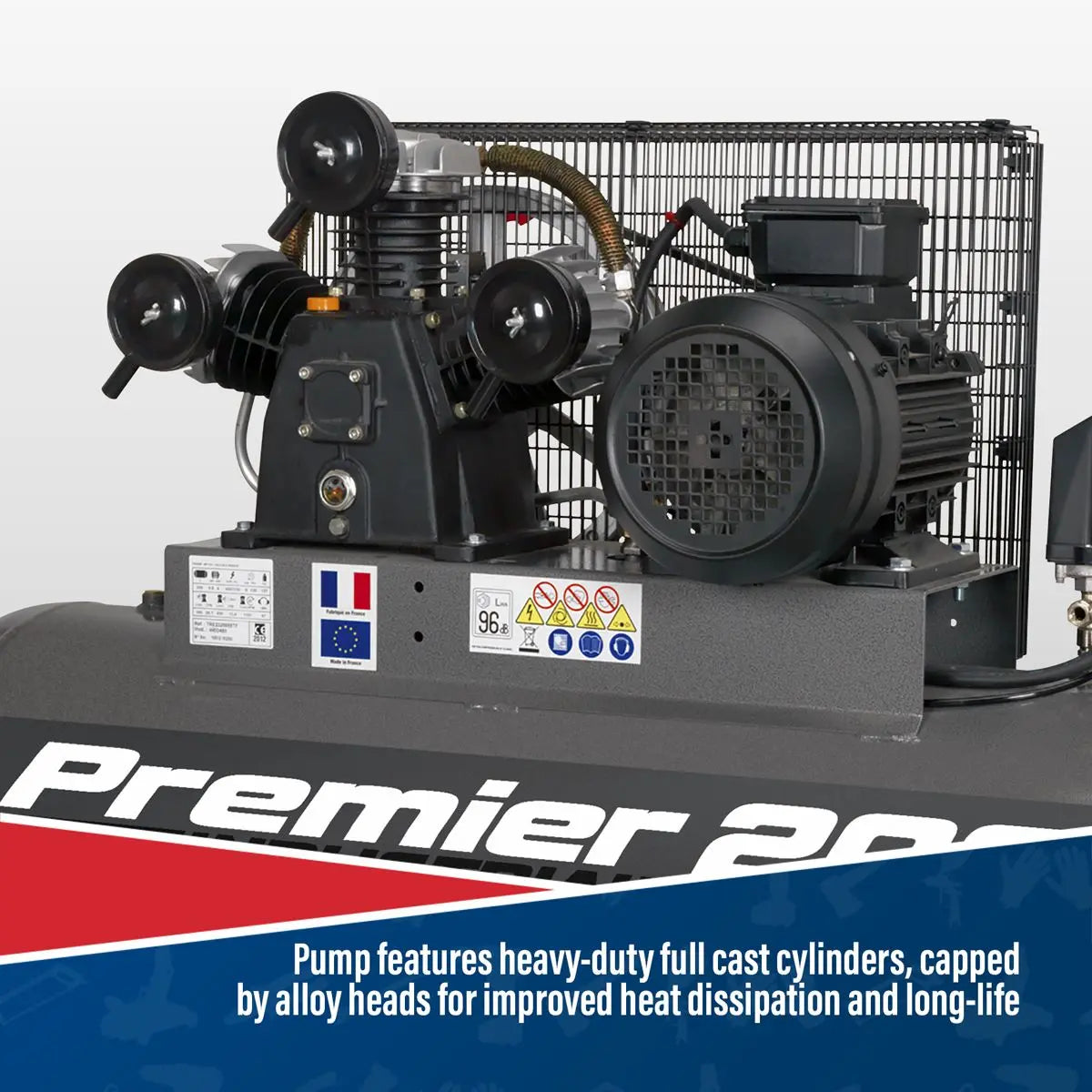

Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.

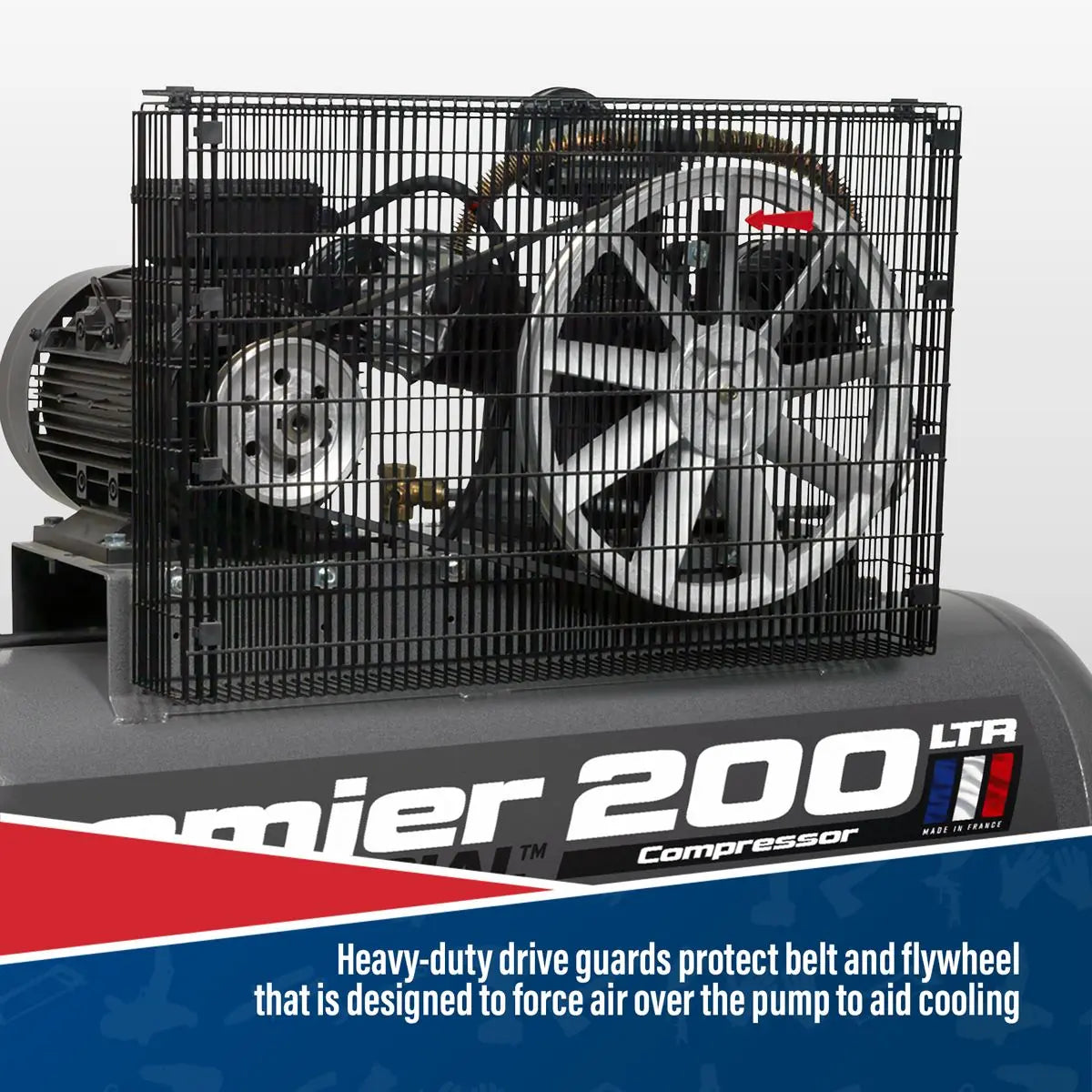

Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
Supplied with full CE certification, test certificates and operating/maintenance manual.

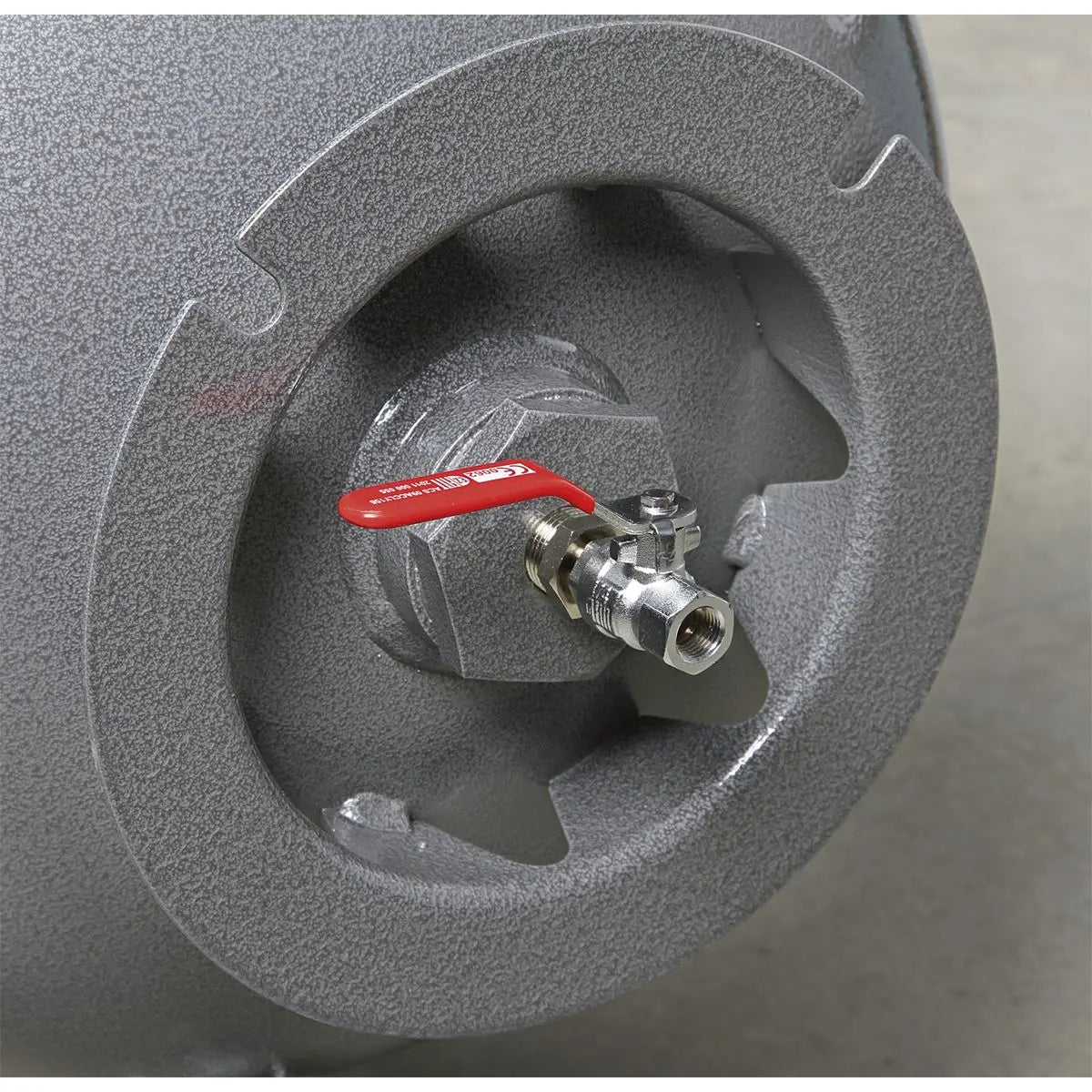

Includes a drain valve for easy release of condensed water build-up in the tank.
3 Year guarantee*.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
- Model No SAC32055B
- Air Displacement cfm(L/min): 20.7(585)
- Brand: Sealey Premier
- Maximum Free Air Delivery cfm(L/min): 15.9(450)
- Maximum Pressure: 145psi(10bar)
- Minimum Rated Supply: 32A
- Motor Output: 5.5hp
- Nett Weight: 121kg
- Oil Capacity: 1.3L
- Outlet: 1/4"BSP
- Phase: 3ph
- Receiver Capacity: 200L
- Size (W x D x H): 1430 x 500 x 970mm
- Speed: 1181rpm
- Supply: 415V/32A
Catalogue Page: Page 779
