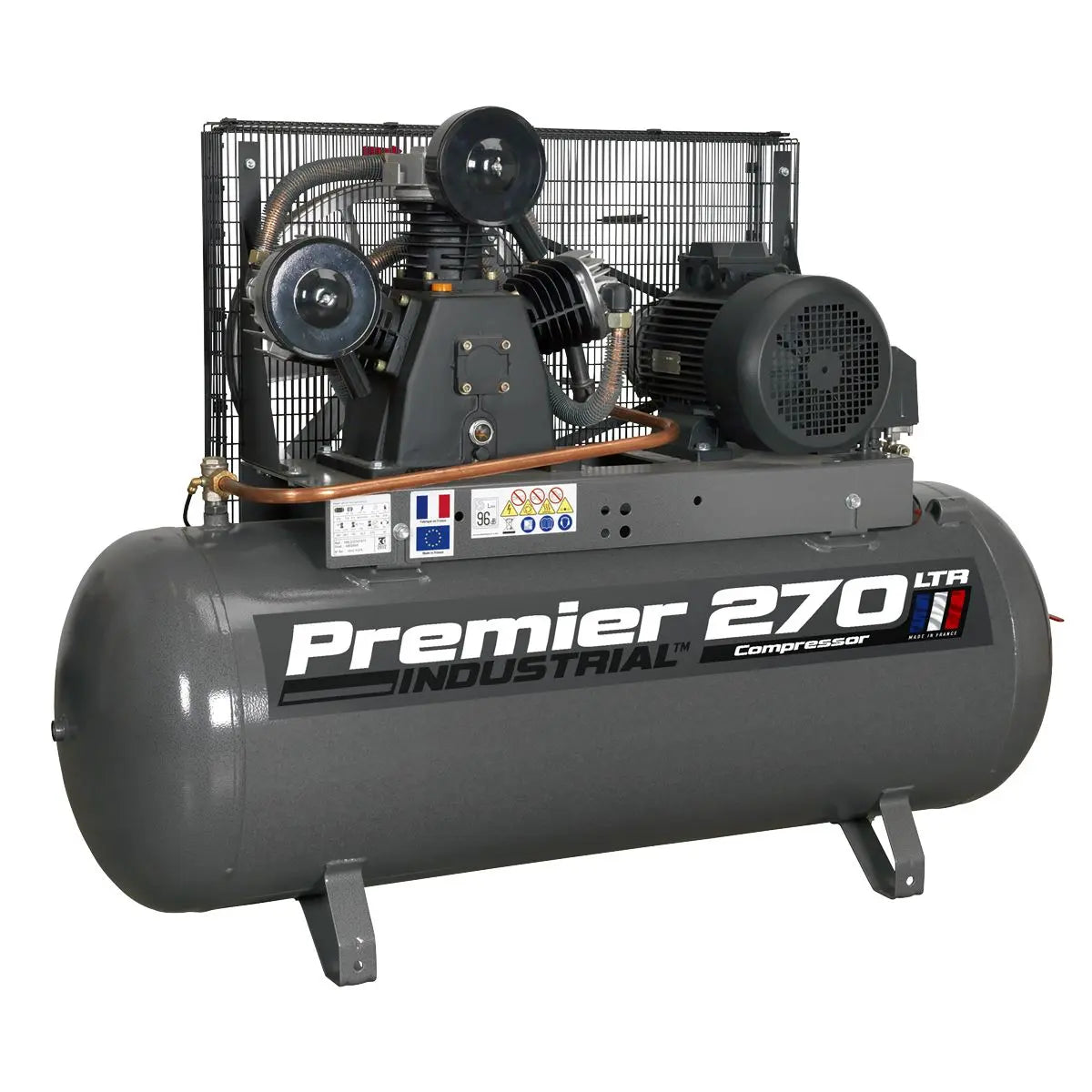

Sealey Premier Air Compressor 270L Belt Drive 7.5hp 3ph

Sealey Premier Air Compressor 270L Belt Drive 7.5hp 3ph

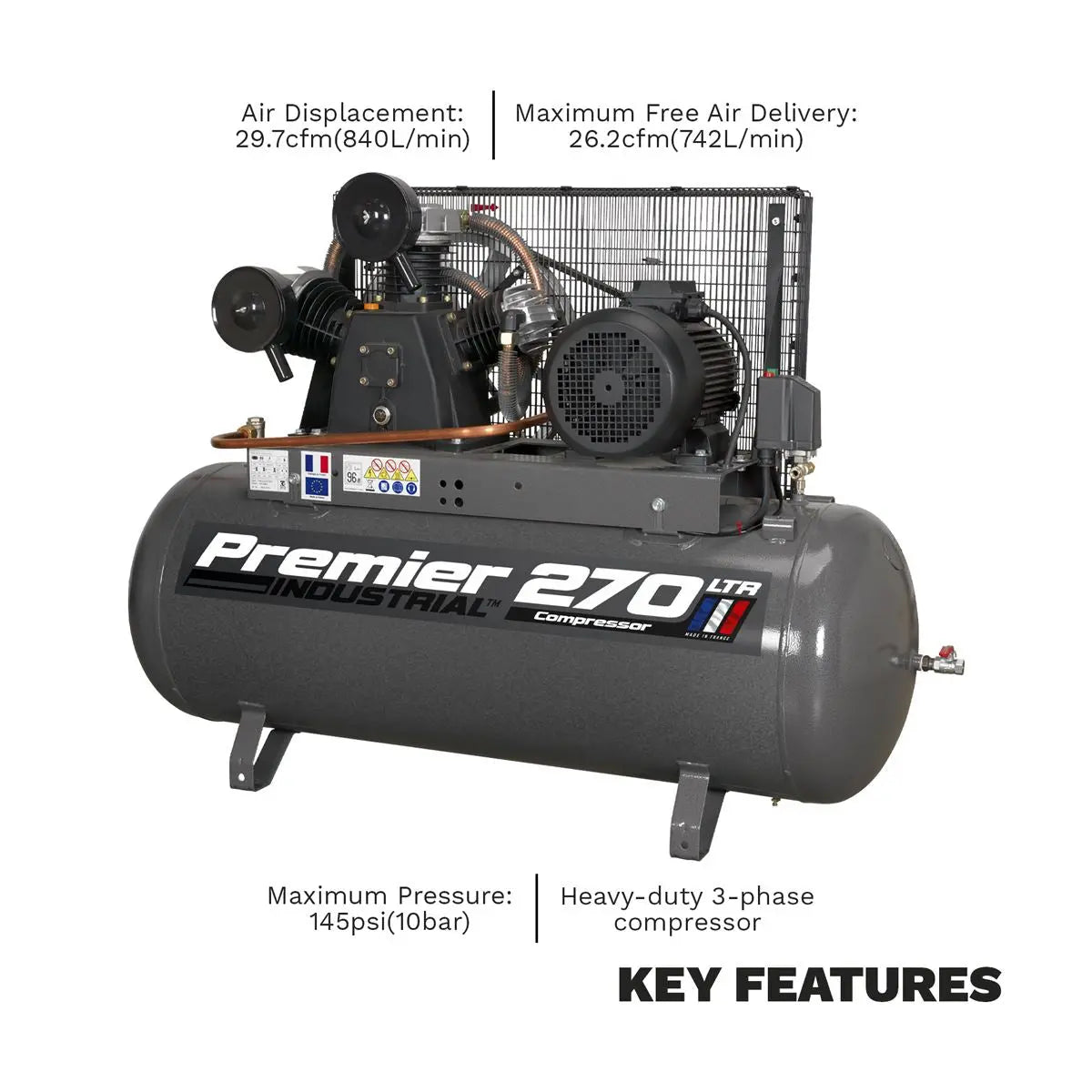

Air Displacement: 29.7cfm(840L/min).

Maximum Free Air Delivery: 26.2cfm(742L/min).

Maximum Pressure: 145psi(10bar).

Heavy-duty 3-phase compressor suitable for the professional workshop.

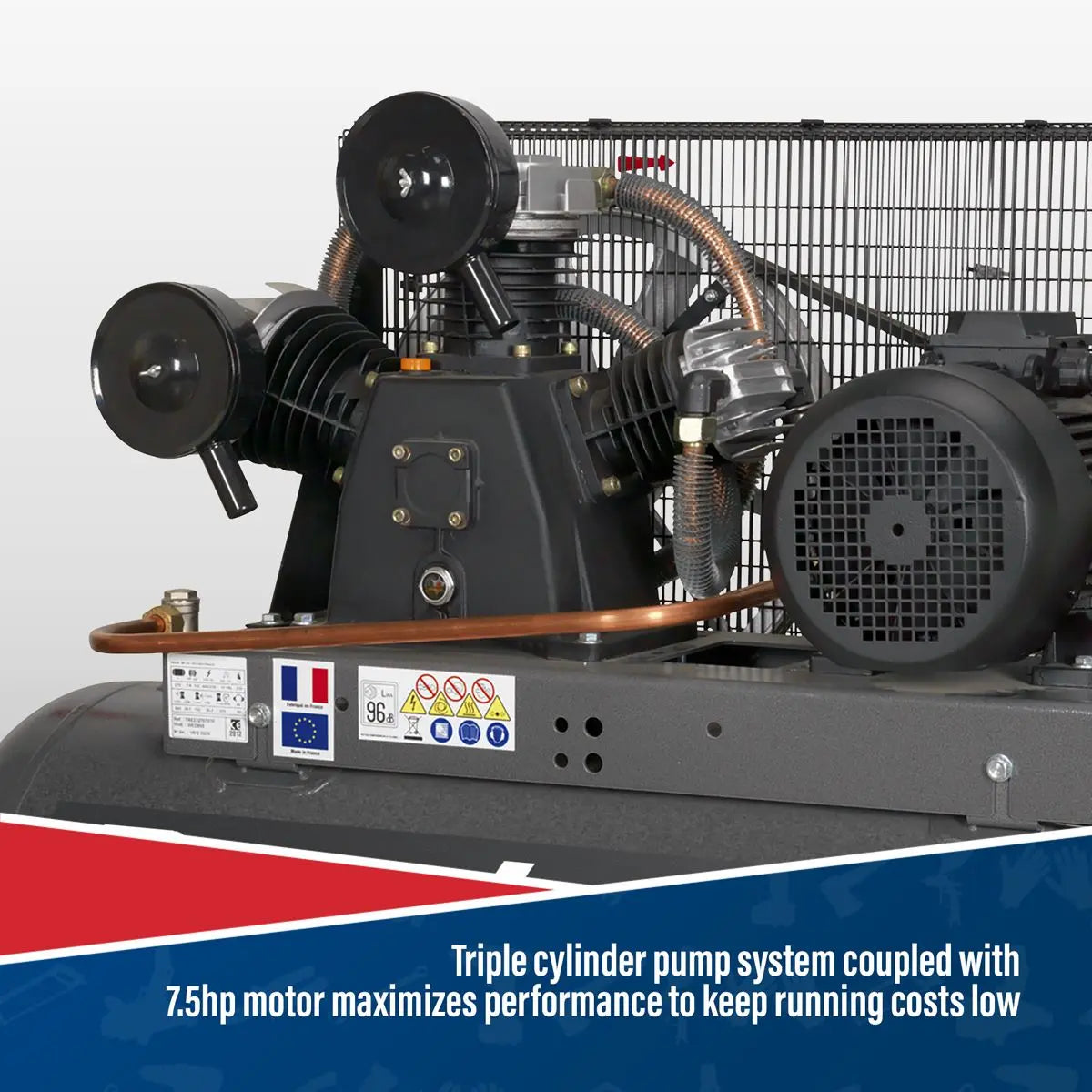

Triple cylinder pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase models.

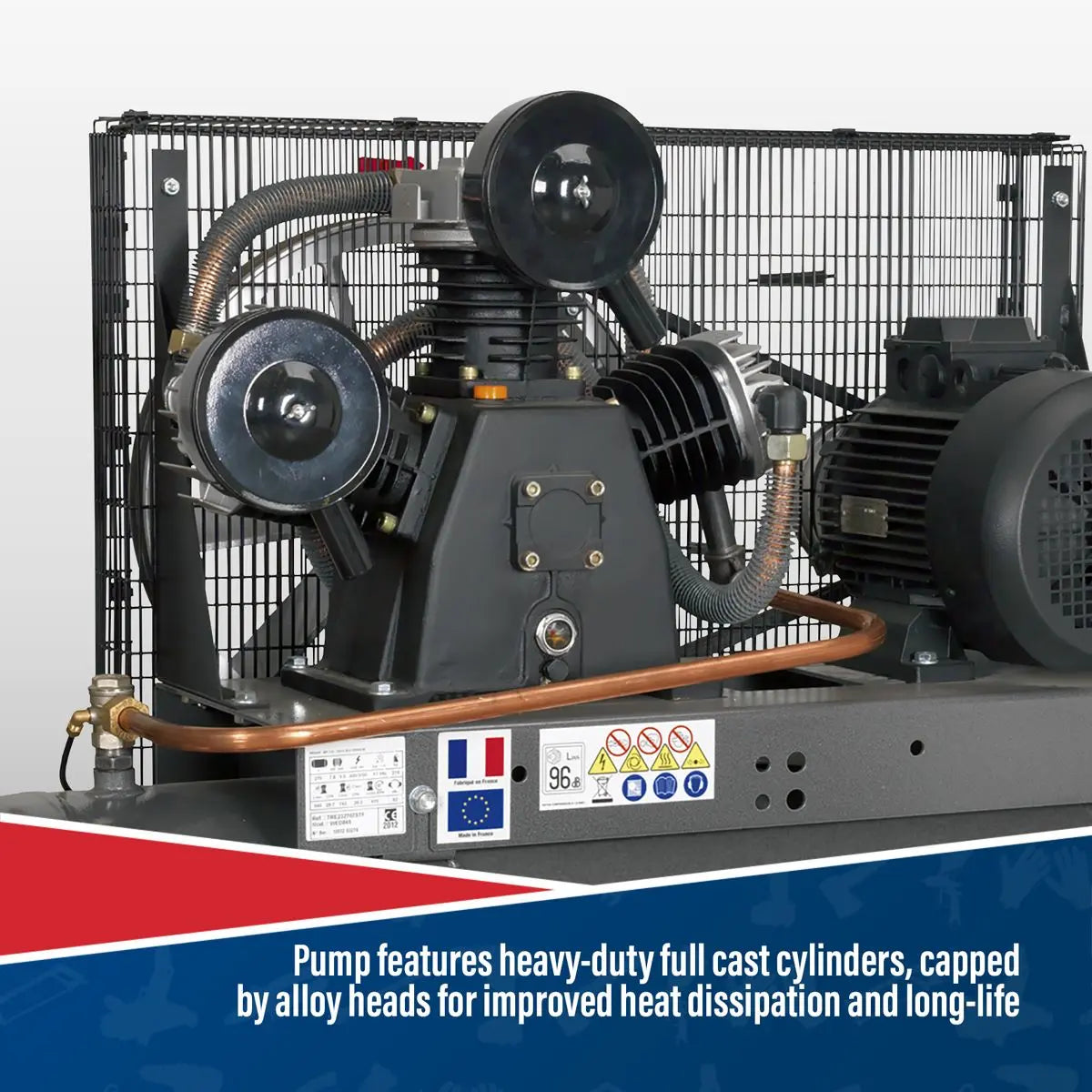

Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.

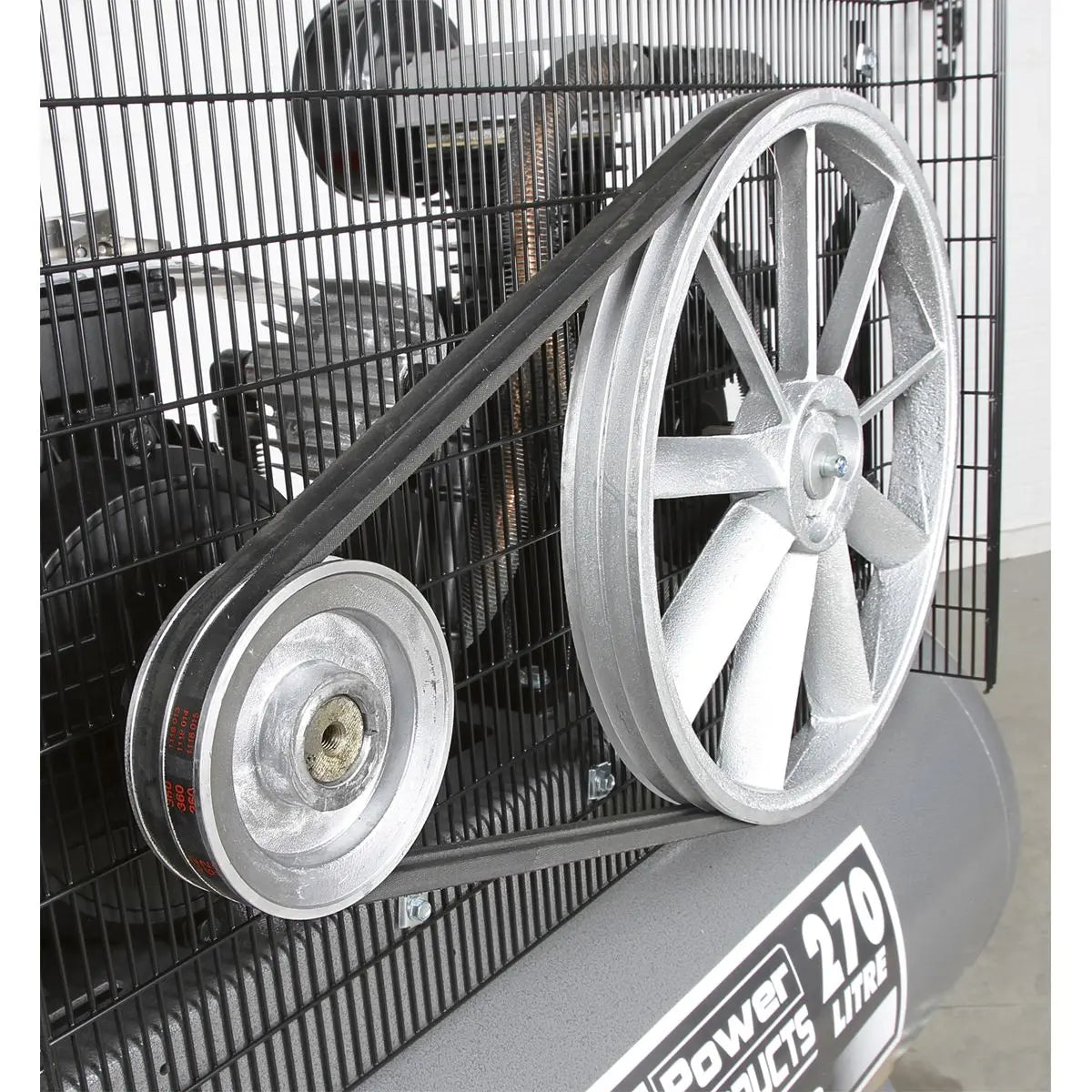

Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.

Supplied with full CE certification, test certificates and operating/maintenance manual.

Includes a drain valve for easy release of condensed water build-up in the tank.

3 Year guarantee*.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No SAC32775B
• Air Displacement cfm(L/min): 29.7(840)
• Brand: Sealey Premier
• Maximum Free Air Delivery cfm(L/min): 26.2(742)
• Maximum Pressure: 145psi(10bar)
• Minimum Rated Supply: 32A
• Motor Output: 7.5hp
• Nett Weight: 193kg
• Oil Capacity: 1.7L
• Outlet: 1/2"BSP
• Phase: 3ph
• Receiver Capacity: 270L
• Size (W x D x H): 1500 x 620 x 1080mm
• Speed: 970rpm
• Supply: 415V/32A

Product Guarantee: 3 Years
Catalogue Page: Page 779

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
