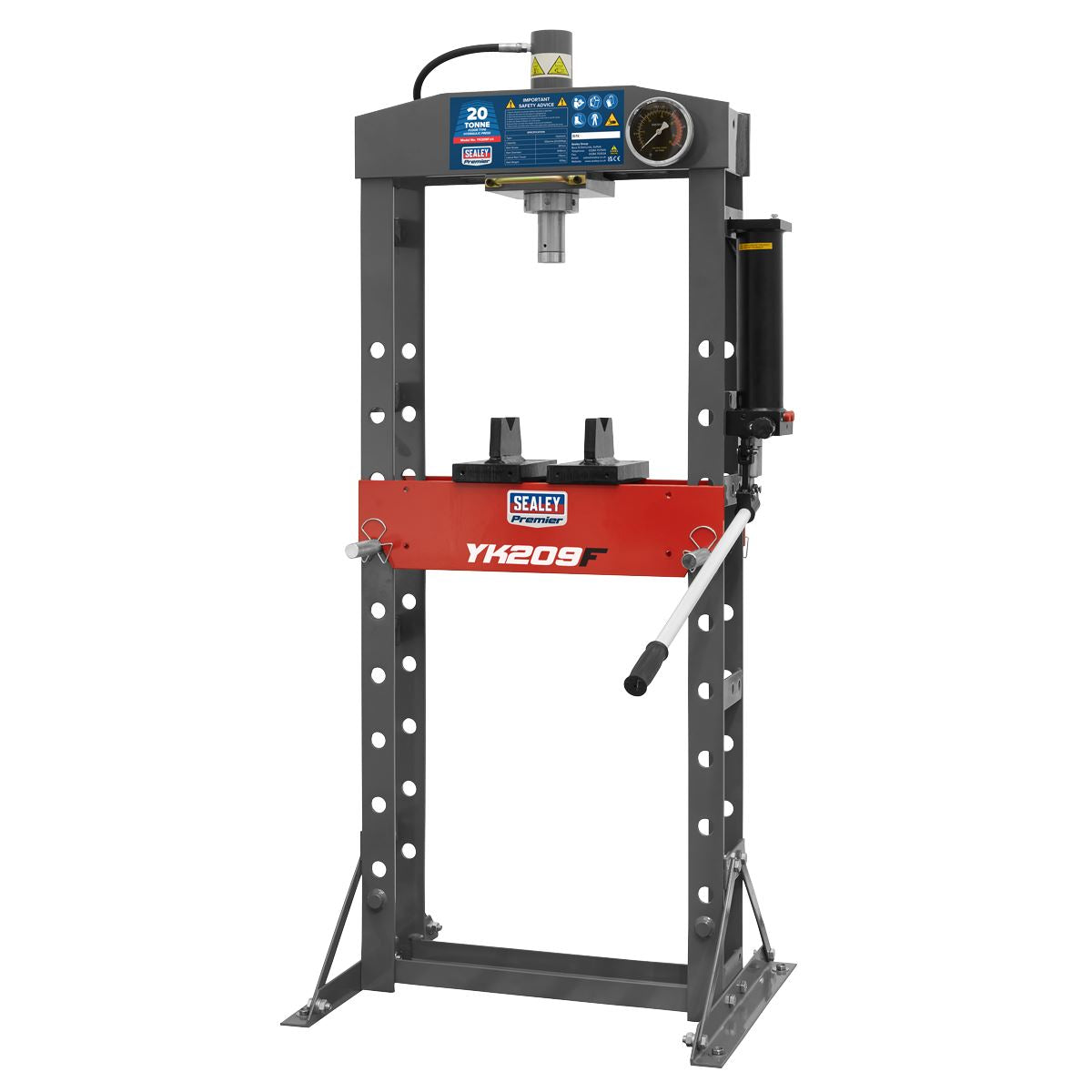

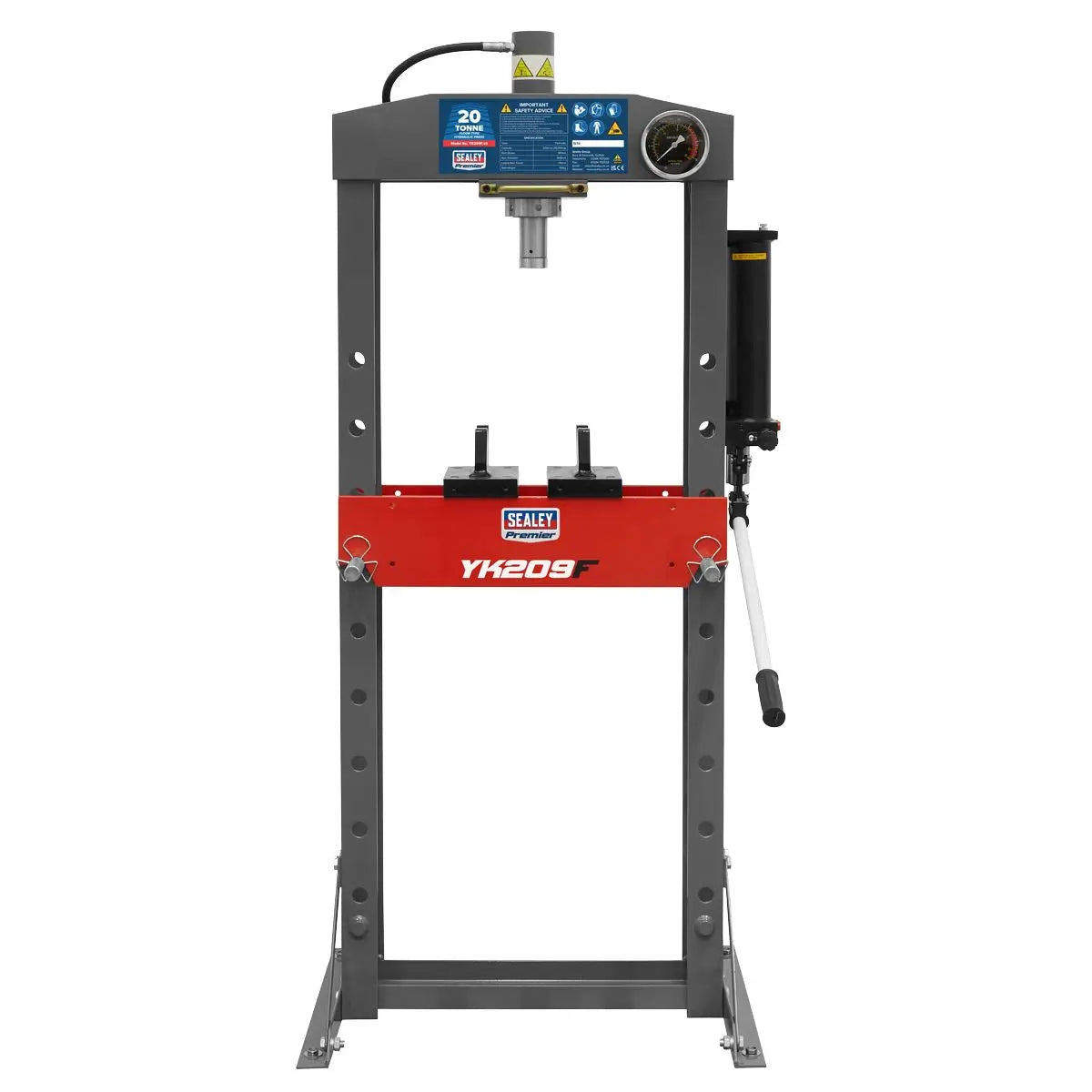

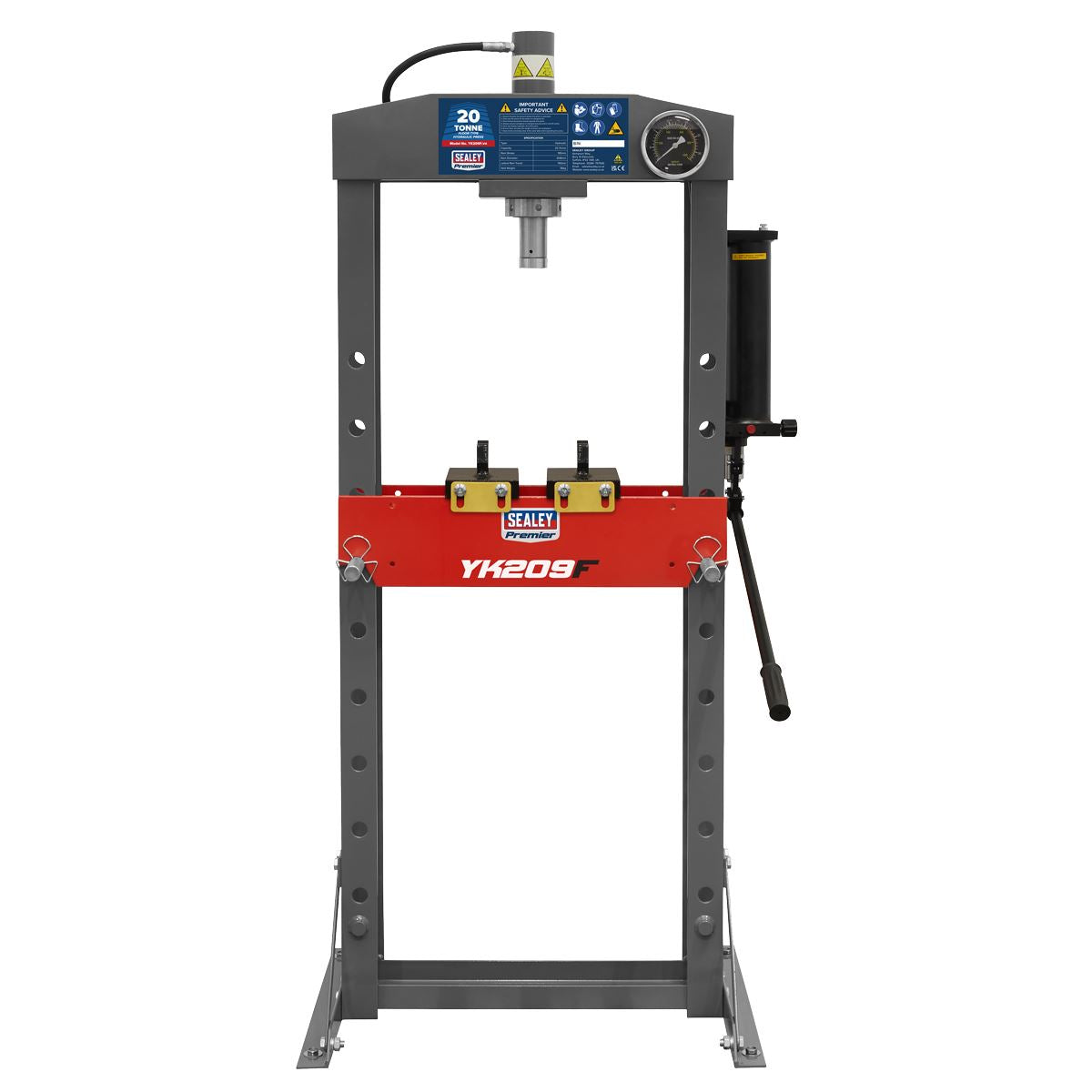

Sealey Premier Heavy-Duty Floor Type Hydraulic Press 20 Tonne

Sealey Premier Heavy-Duty Floor Type Hydraulic Press 20 Tonne

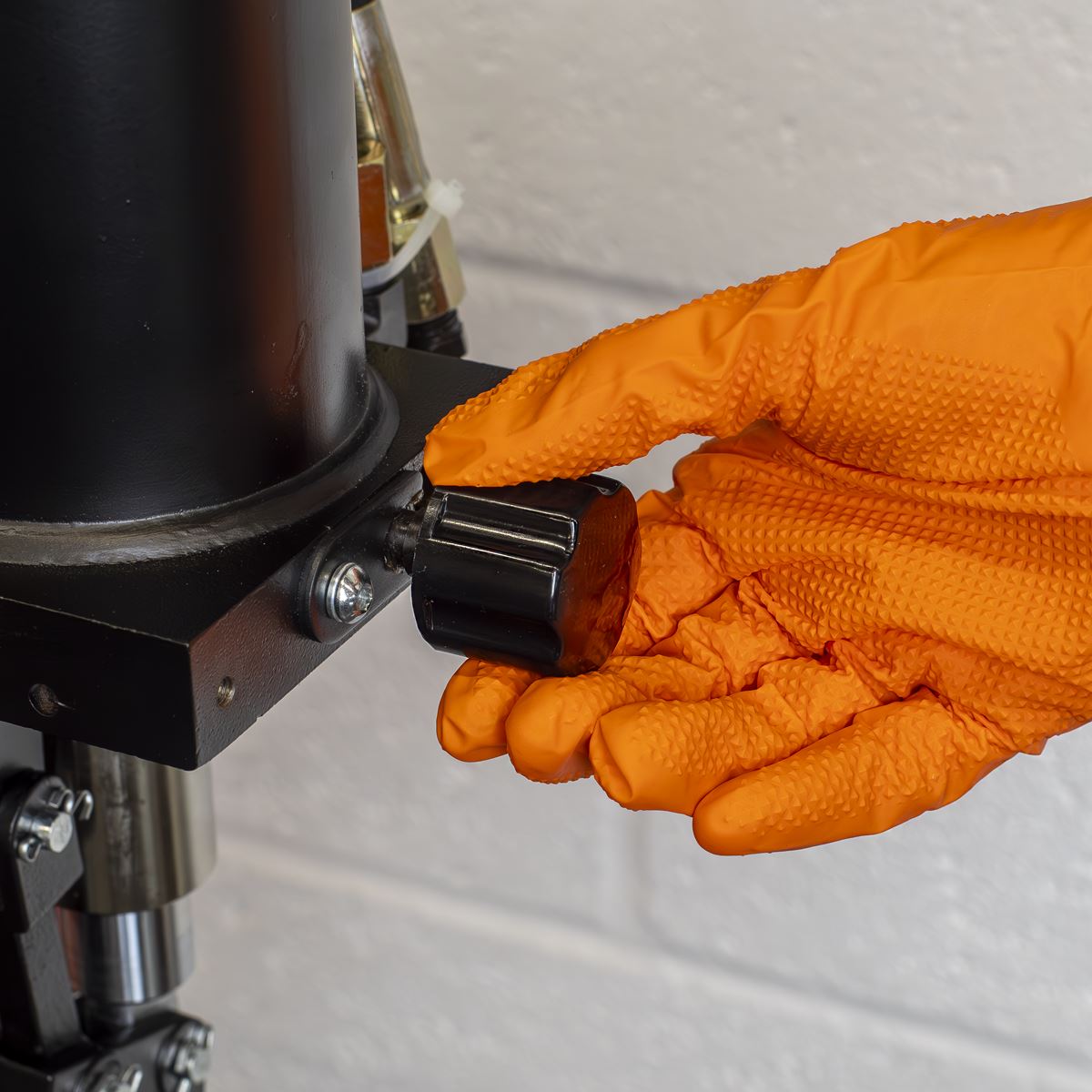

PREMIER - Heavy-duty steel frame construction with hydraulic pump unit.

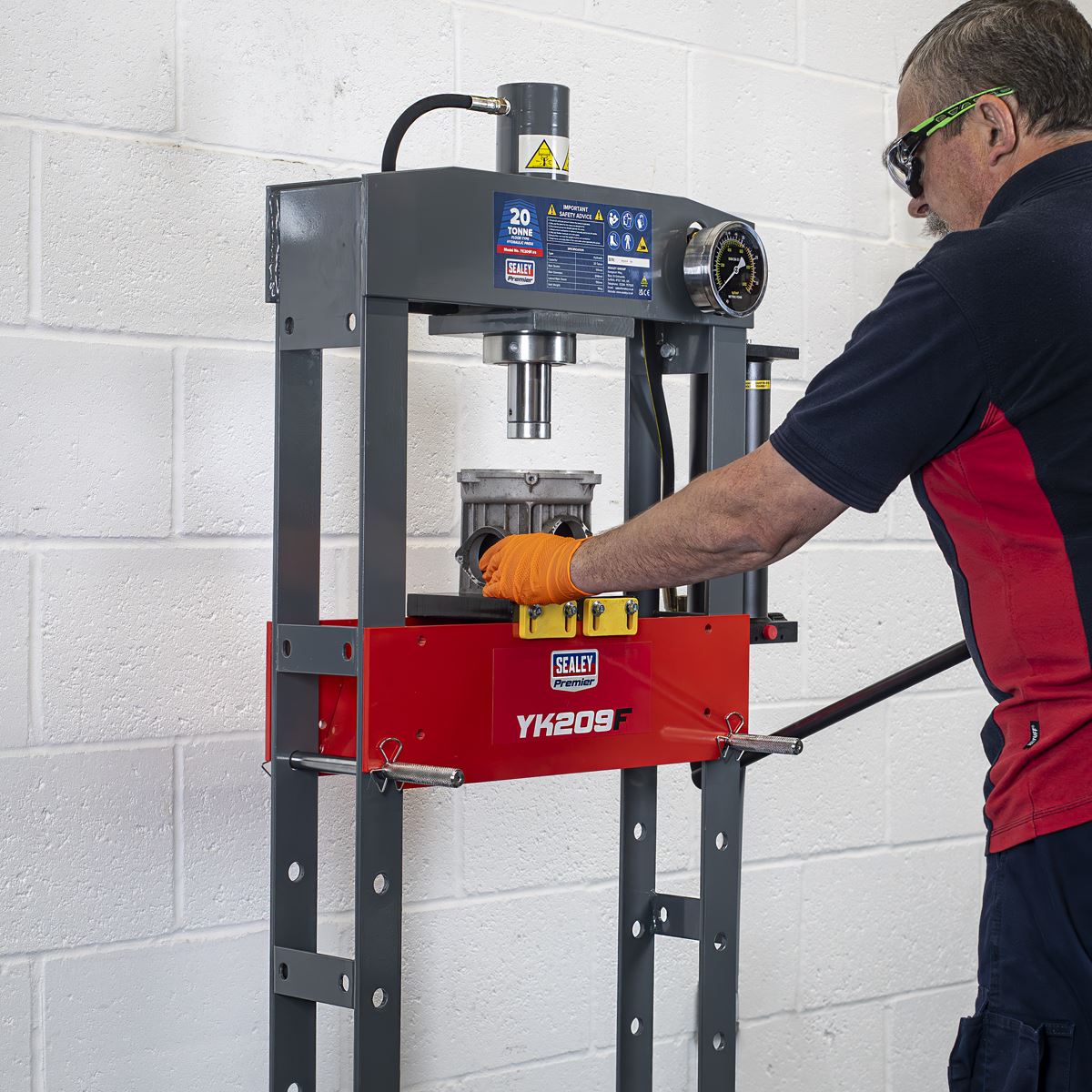

VERSATILE - Sliding hydraulic ram assembly gives 190mm of lateral travel for off-centre pressing applications.

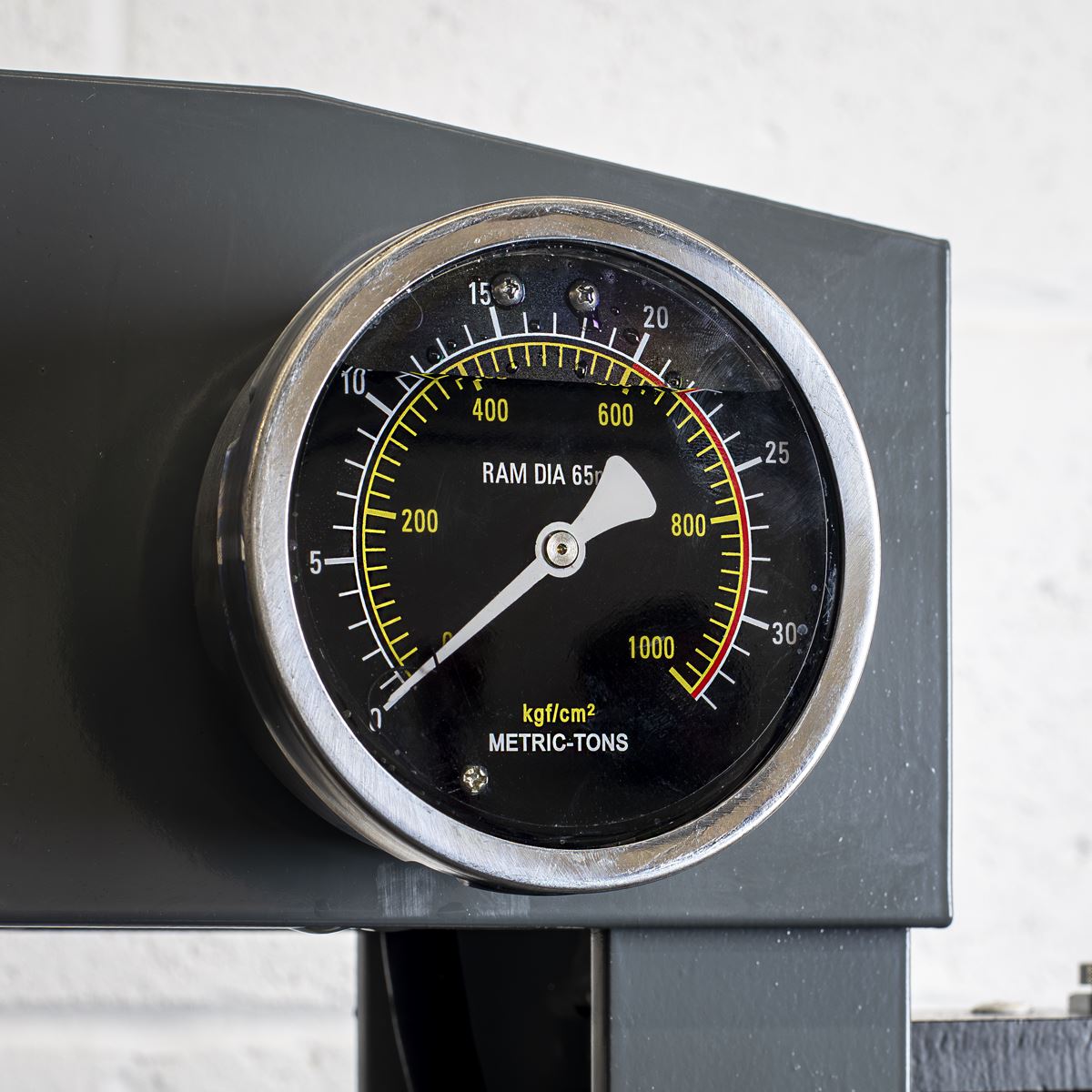

ACCURATE - Frame head fitted with ram pressure gauge.

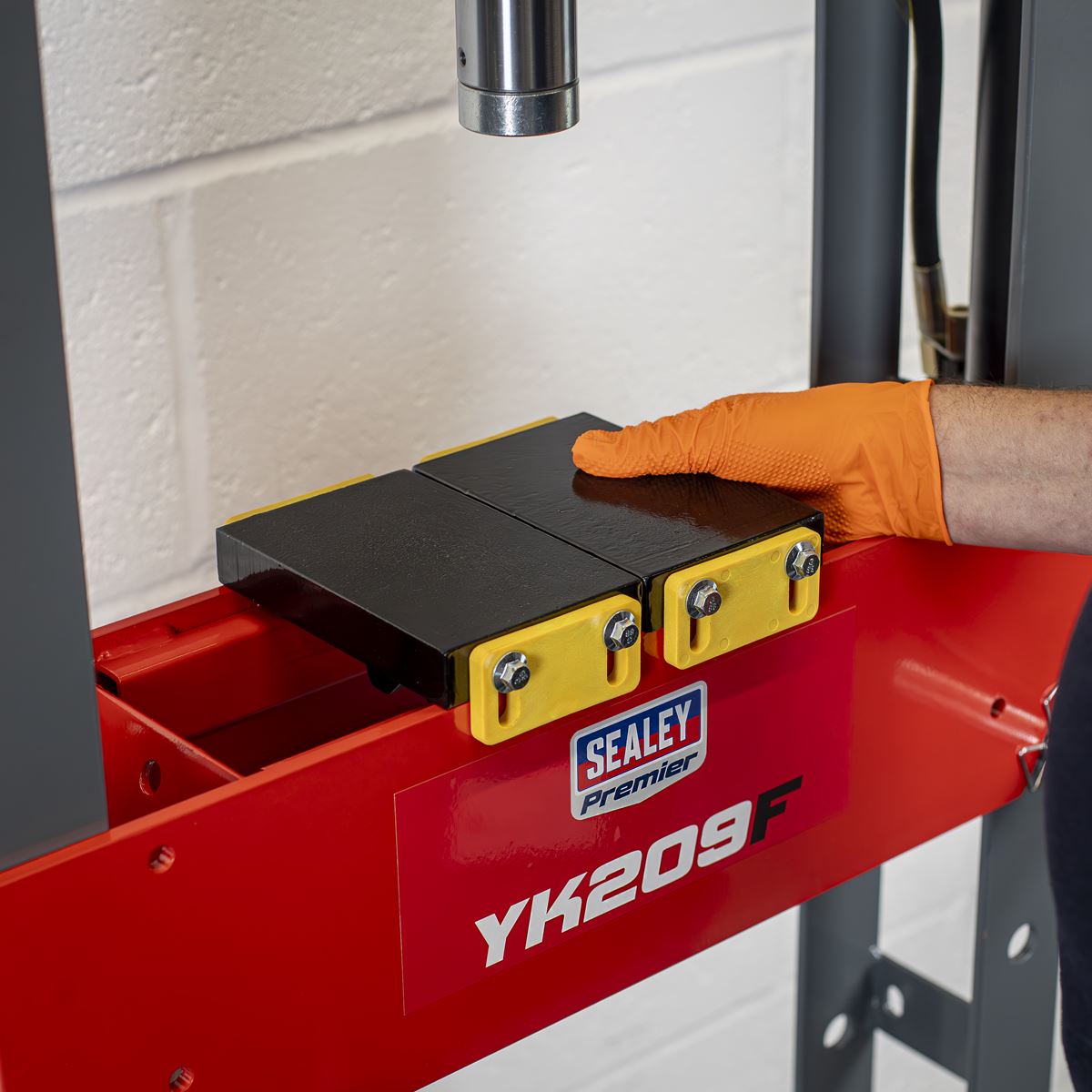

ACCESSORIES - Supplied with flat pressing plate/V-blocks.

WARRANTY - 5 Year guarantee*.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

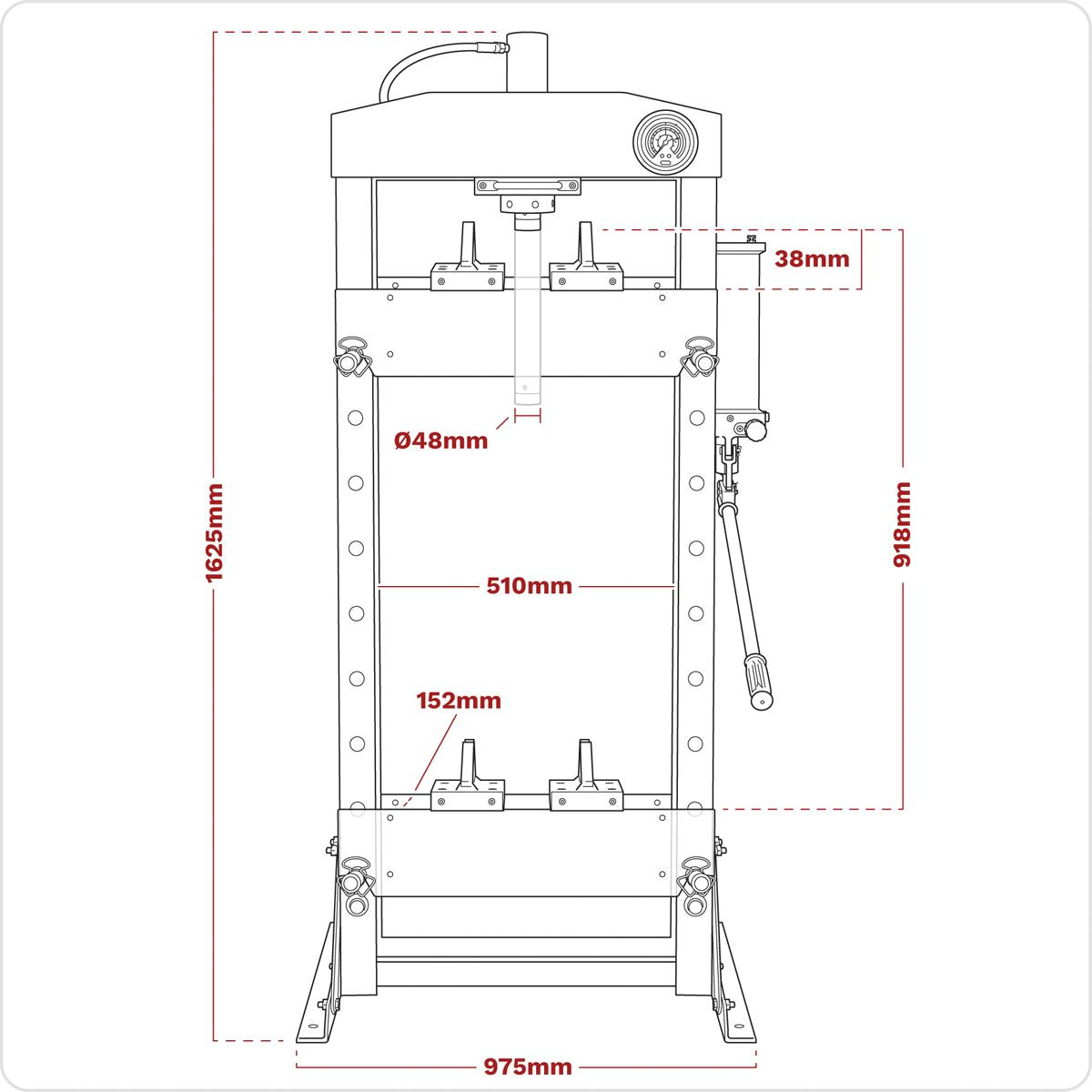

Specification:

• Model No YK209F
• Bench or Floor Mounting: Floor
• Brand: Sealey Premier
• Capacity: 20 Tonne
• Gauge Included: Yes
• Lateral Ram Travel: 190mm
• Maximum Height - Ram to Table: 890mm
• Minimum Height - Ram to Table: 78mm
• Nett Weight: 96kg
• Operating Table Width: 480mm
• Optional Accessories: YKSG20 - Safety Guard, YKPP8 - Press Pin Set
• Overall Height: 1660mm
• Ram Diameter: Ø48mm
• Ram Stroke: 185mm
• Table Aperture: 138mm
• Type: Hydraulic
• Working Table Depth: 154mm
• Working Table Width: 600mm
• Working Table Width: 510mm

Product Guarantee: 5 Years
Catalogue Page: Page 898

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
