Description

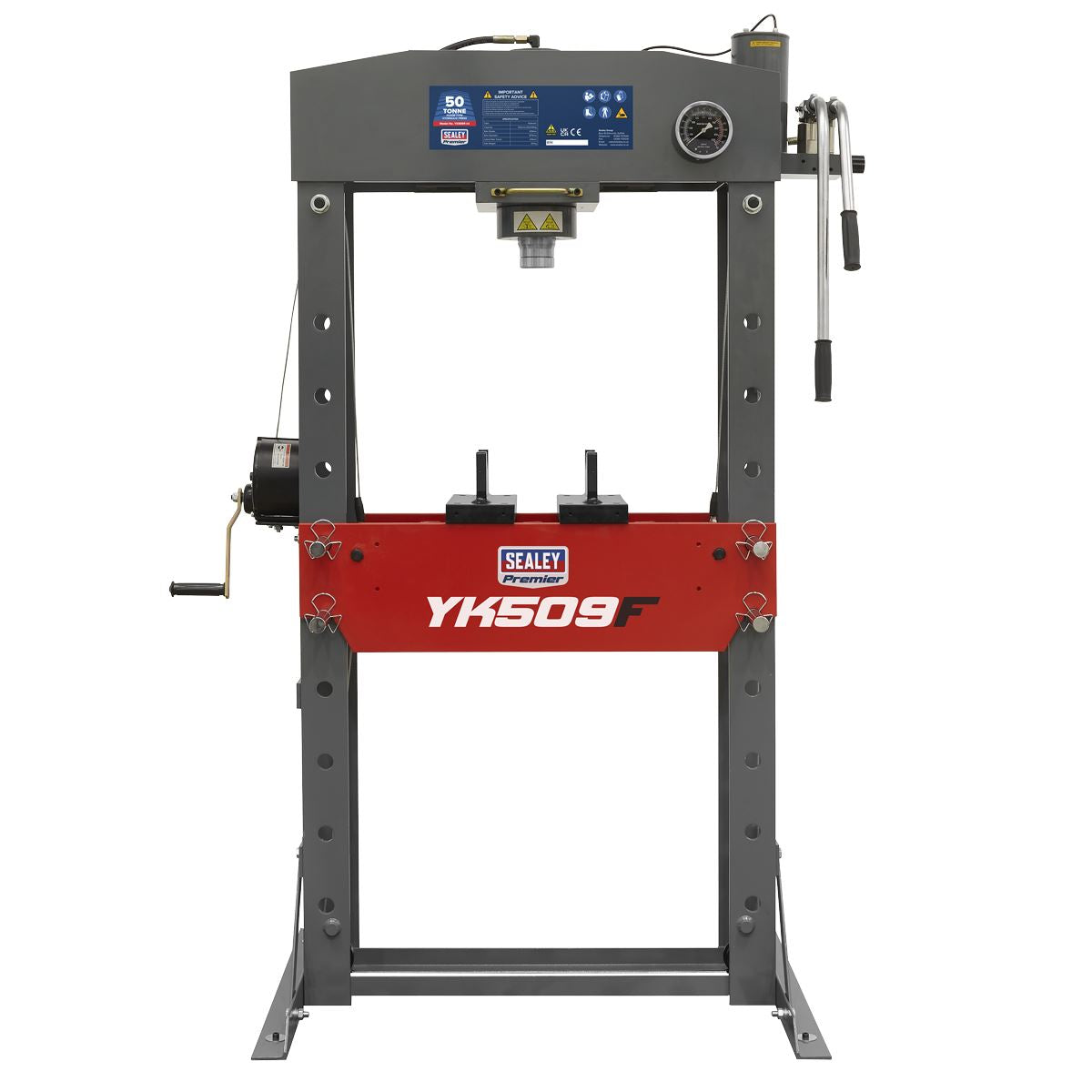

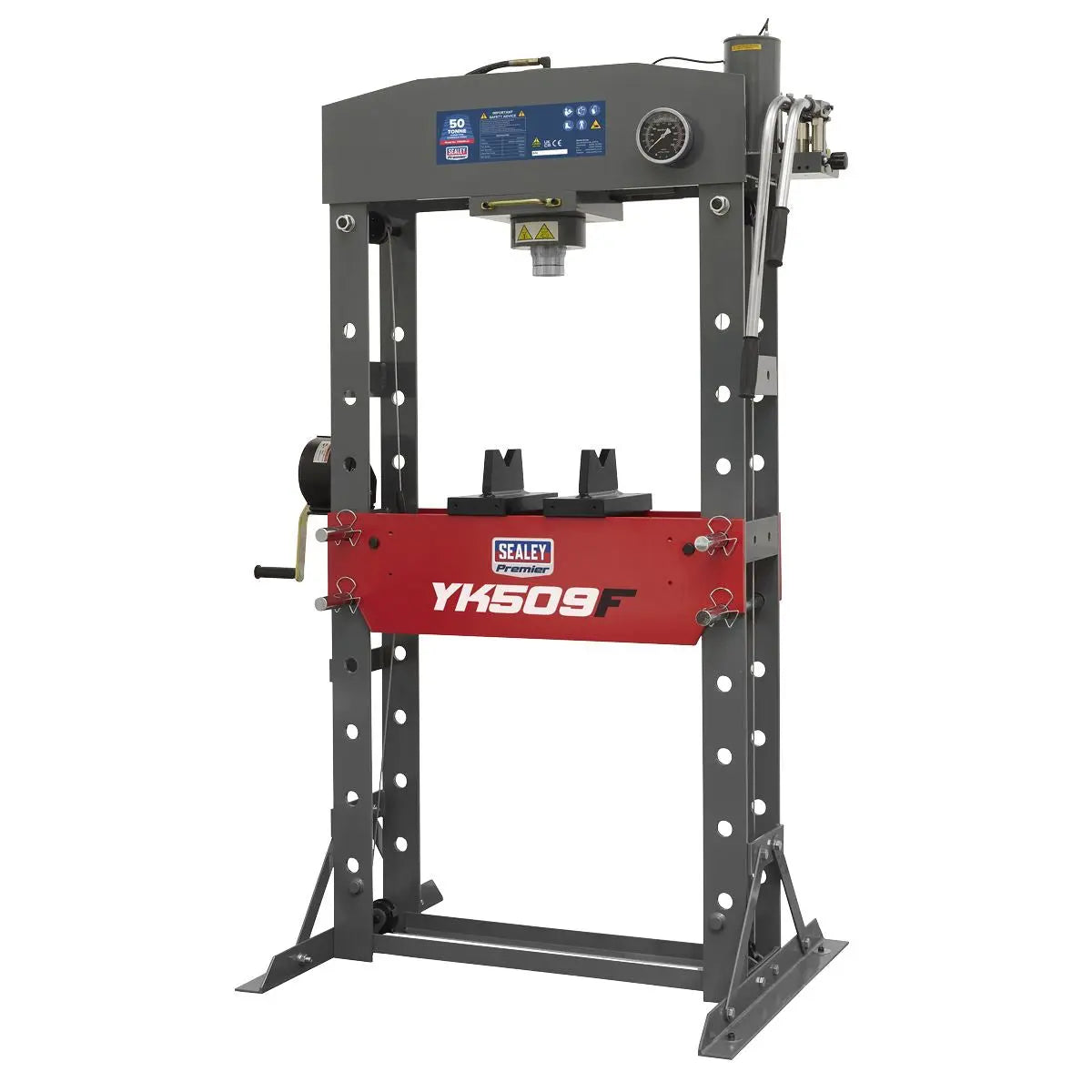

Sealey Premier Hydraulic Press 50 Tonne Floor Type
Heavy-duty steel frame construction with 2-speed hydraulic pump unit.
Sliding hydraulic ram assembly gives 245mm of lateral travel for off-centre pressing applications.
Frame head fitted with ram pressure gauge.
Supplied with table winch and flat pressing plate/V-blocks.
5 Year guarantee*.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

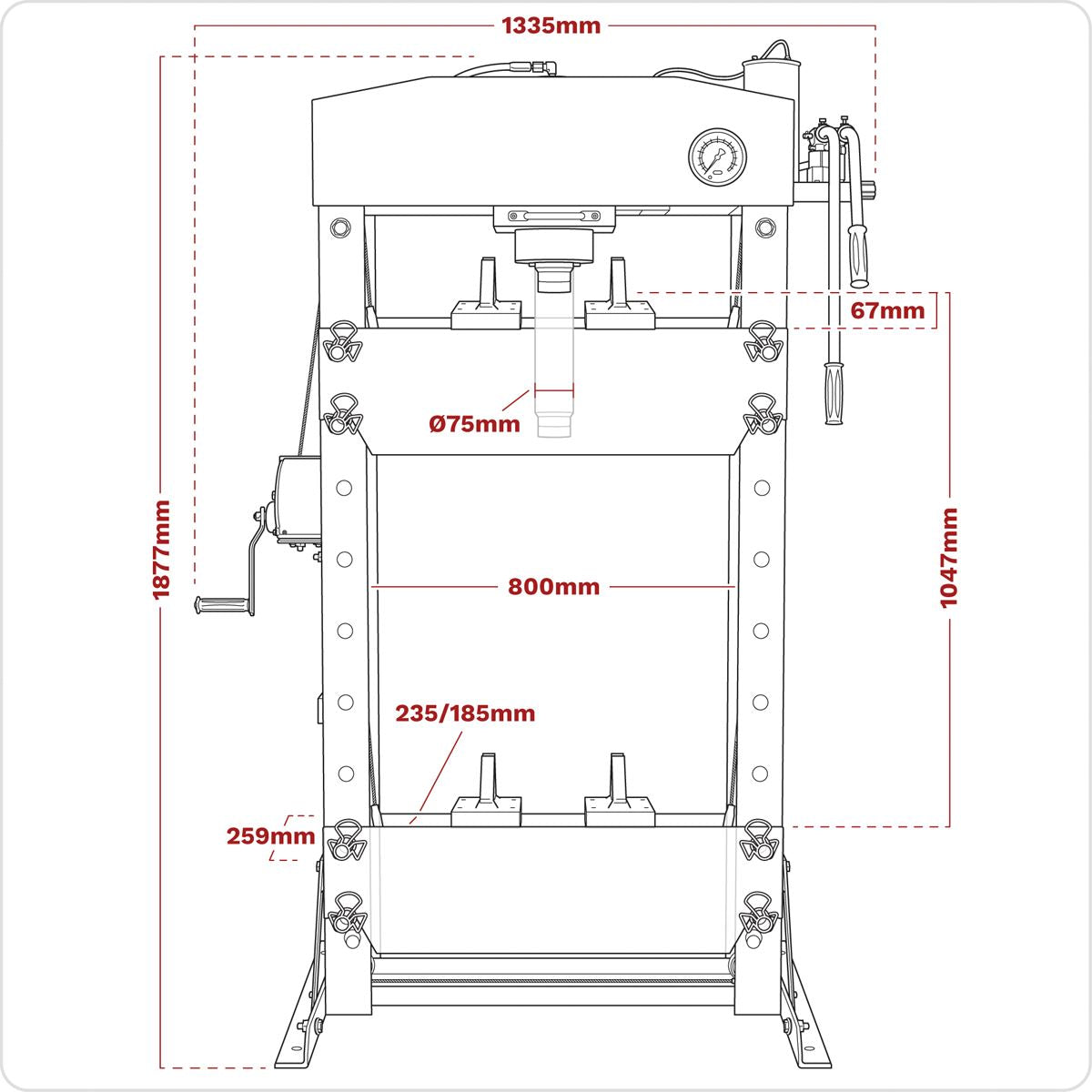

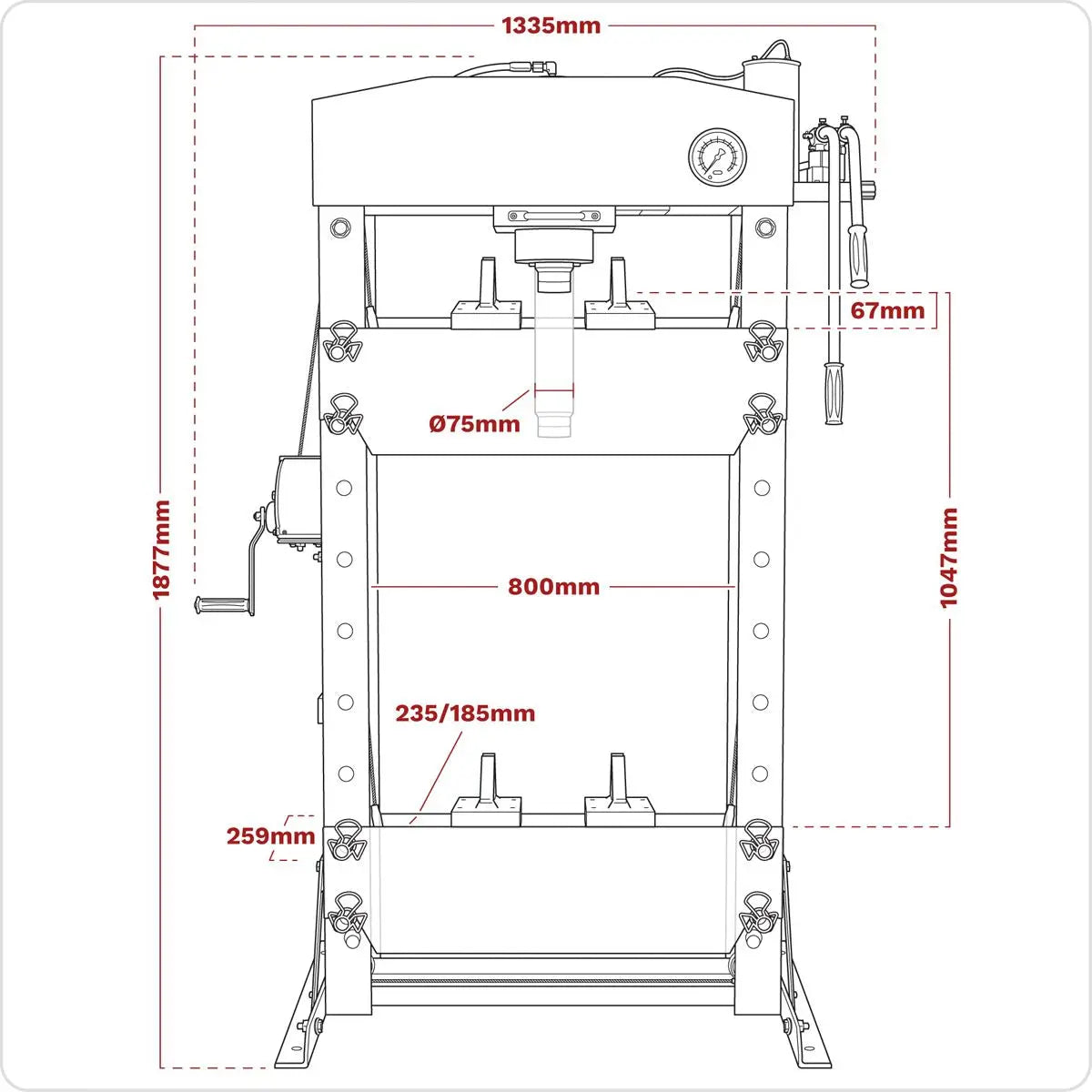

Specification:
- Model No YK509F
- Bench or Floor Mounting: Floor
- Brand: Sealey Premier
- Capacity: 50 Tonne
- Gauge Included: Yes
- Lateral Ram Travel: 245mm
- Maximum Height - Ram to Table: 1047mm
- Minimum Height - Ram to Table: 67mm
- Nett Weight: 297kg
- Optional Accessories: YKSG50 - Safety Guard, YKPP8 - Press Pin Set
- Overall Height: 1877mm
- Overall Width: 1335mm
- Ram Diameter: Ø75mm
- Ram Stroke: 200mm
- Table Aperture: 235/185mm
- Type: Hydraulic
- Working Table Depth: 259mm
- Working Table Width: 800mm
Catalogue Page: Page 329
