Description

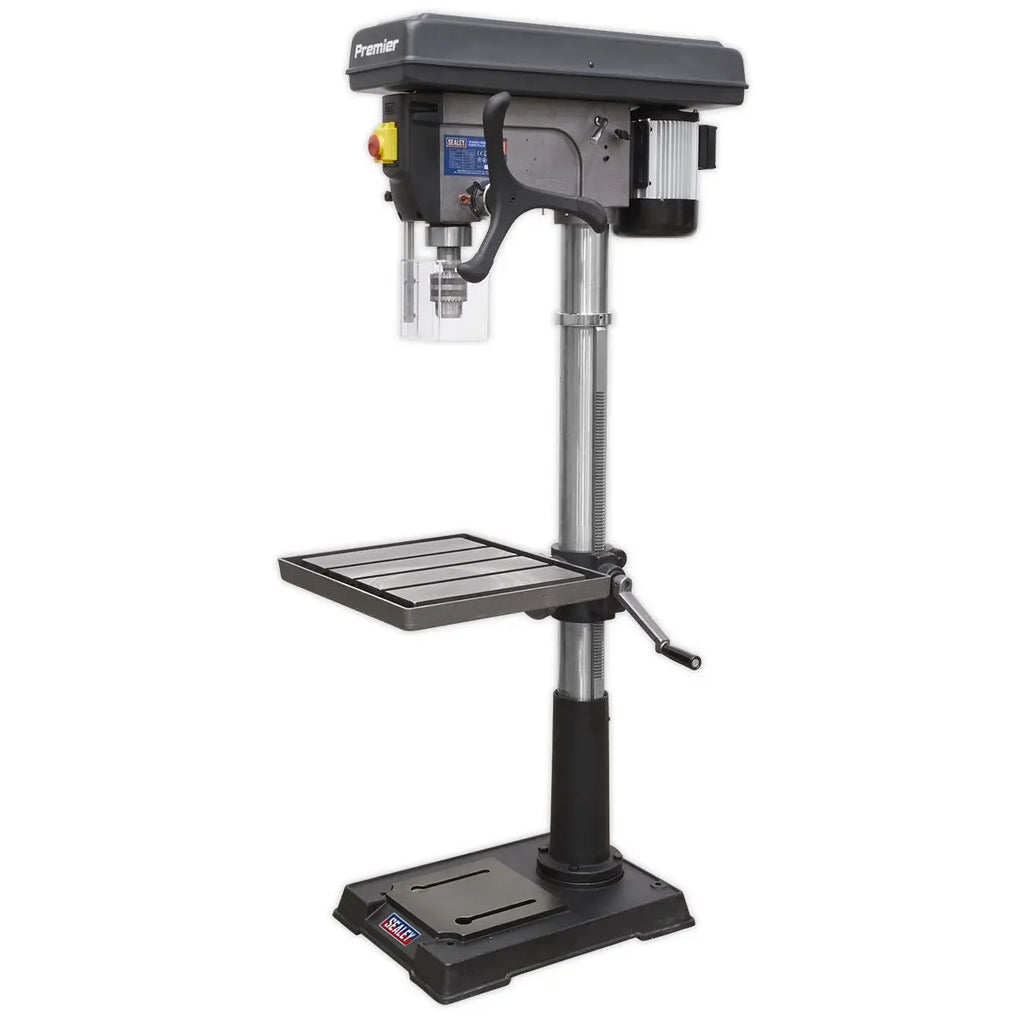

Sealey Premier Pillar Drill Floor 12-Speed 1100W 230V
One of a comprehensive range of Premier floor standing pillar drills for the professional workshop.
Features heavy-duty aluminium-bodied motor for long and reliable performance.
No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open.
Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process (bulb not included).
Supplied with an electrically inter-locked chuck guard.
Large sized square table fitted with precision rack and pinion height adjustment.
20mm(3/4") Capacity chuck, MT4.
Height: 1710mm.
Spindle Centre to Column: 260mm.
Motor Power: 1100W.
Column Diameter: Ø92mm.
Spindle Travel: 120mm.
Weight: 131kg.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
3 Year guarantee*.
Specification:
- Model No PDM260F
- Base Size: 575 x 455mm
- Brand: Sealey Premier
- Collar Diameter: Ø85mm
- Column Diameter: Ø92mm
- Drilling Capacity (Chuck Size): 20mm
- Integral Work Light: Yes
- Maximum Distance Spindle to Base: 1160mm
- Maximum Distance Spindle to Table: 680mm
- Motor Power (Start): 1100W(1500W)
- Nett Weight: 110kg
- Number of Speeds: 12
- Optional Accessories: PDM/KC - Keyless Pillar Drill Chuck 16mm
- Overall Height: 1710mm
- Speed Range: 120-3480rpm
- Spindle Centre to Column: 260mm
- Spindle Nose Taper: MT4
- Spindle Travel: 120mm
- Supply: 230V
- Swing: 520mm
- Working Base Surface Size: 410 x 330mm
- Working Table Surface Size: 425 x 475mm
Catalogue Page: Page 1192
