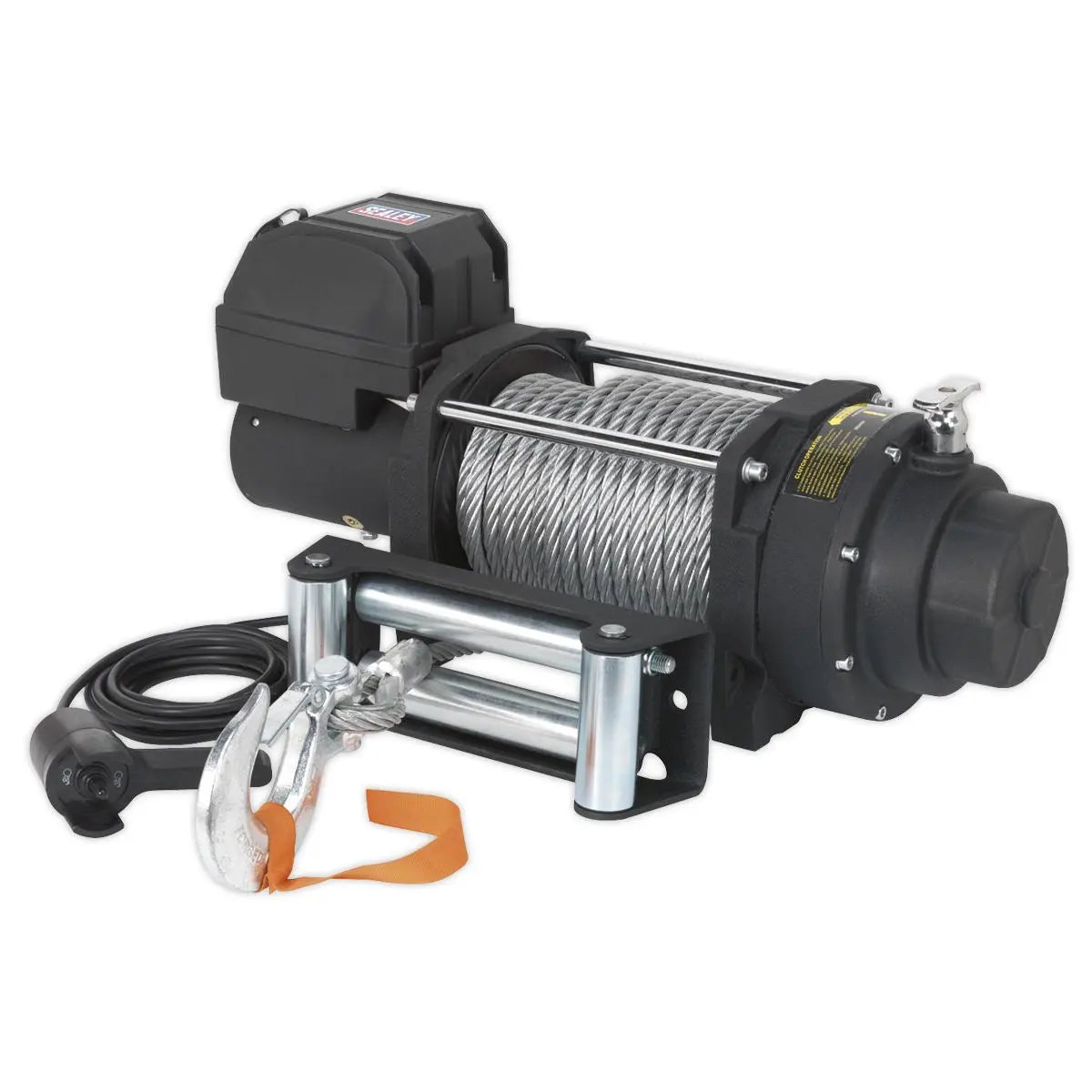

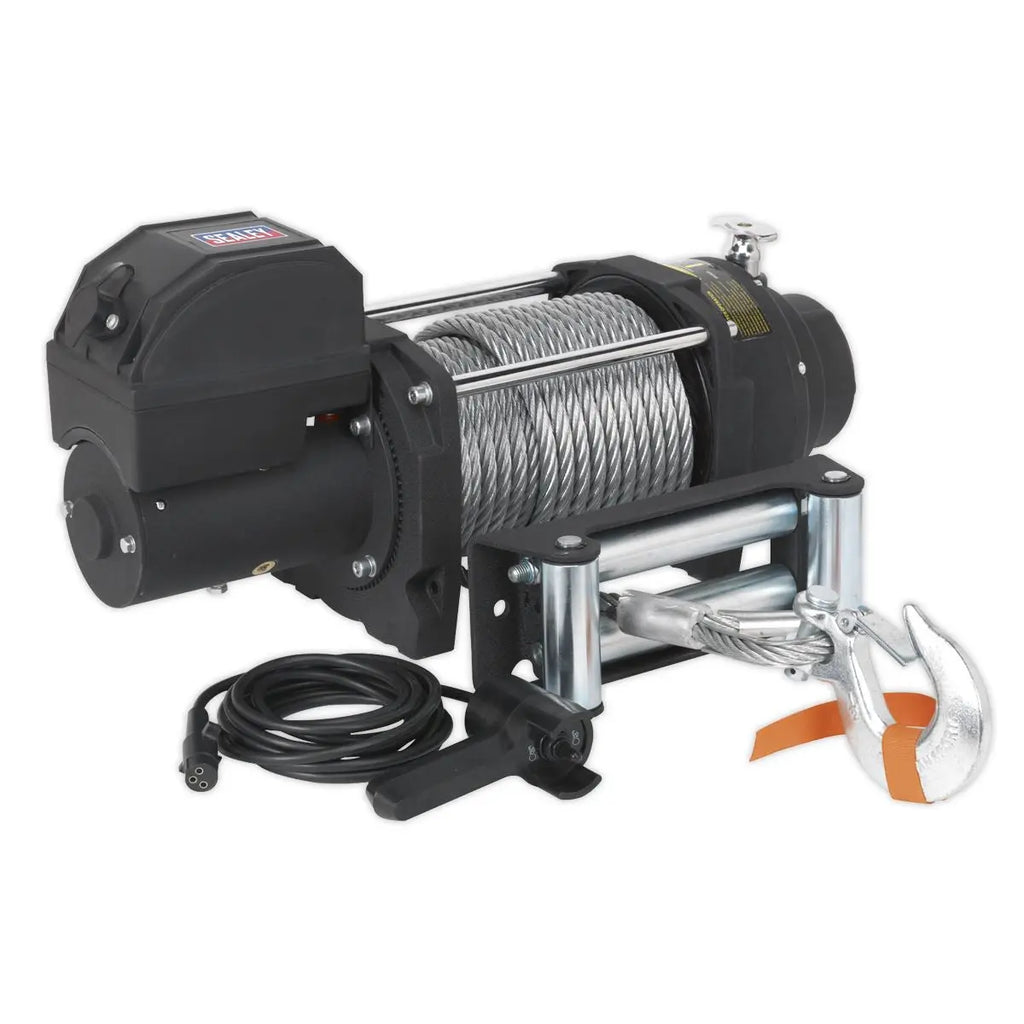

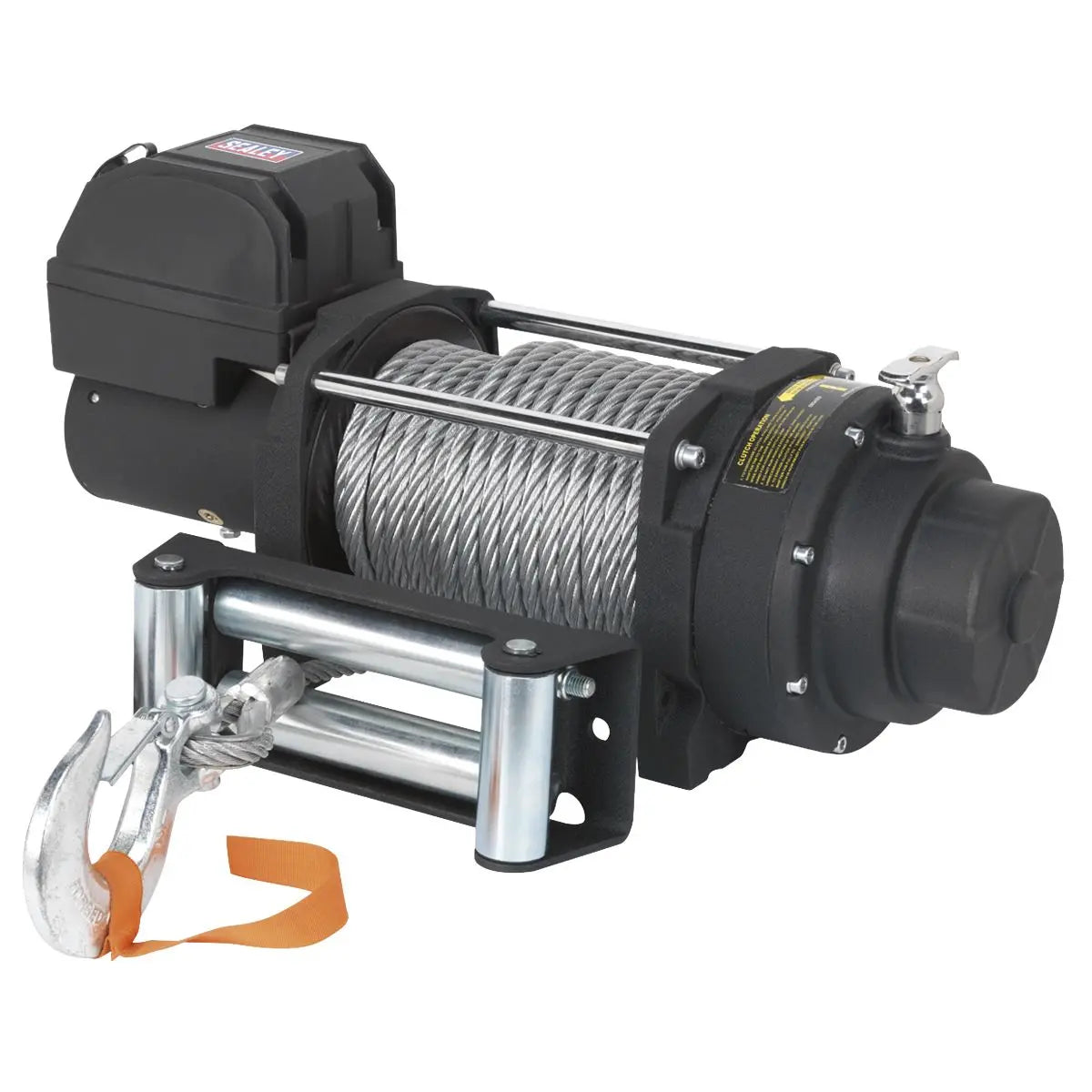

Sealey Premier Recovery Winch 8180kg(18000lb)Line Pull 12V Industrial

Sealey Premier Recovery Winch 8180kg(18000lb)Line Pull 12V Industrial

Suitable for industrial recovery and off-road use.

Designed and built with the toughest jobs in mind.

Heavy-duty all-weather housing.

High power 2.3kW 12V DC series wound motor gives first class pulling power.

4-Stage planetary gears using oversized components for greater torque plus 'in drum' brake.

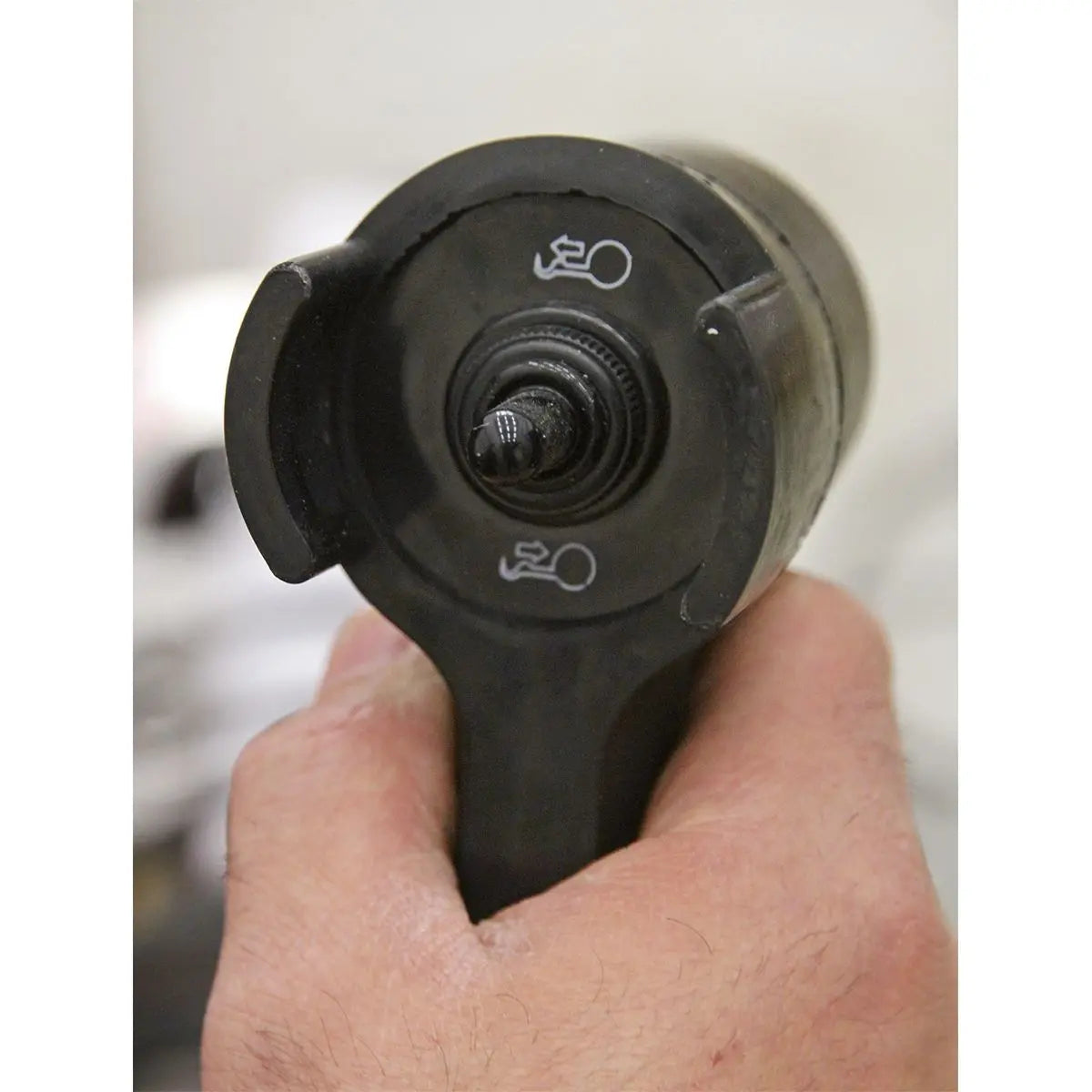

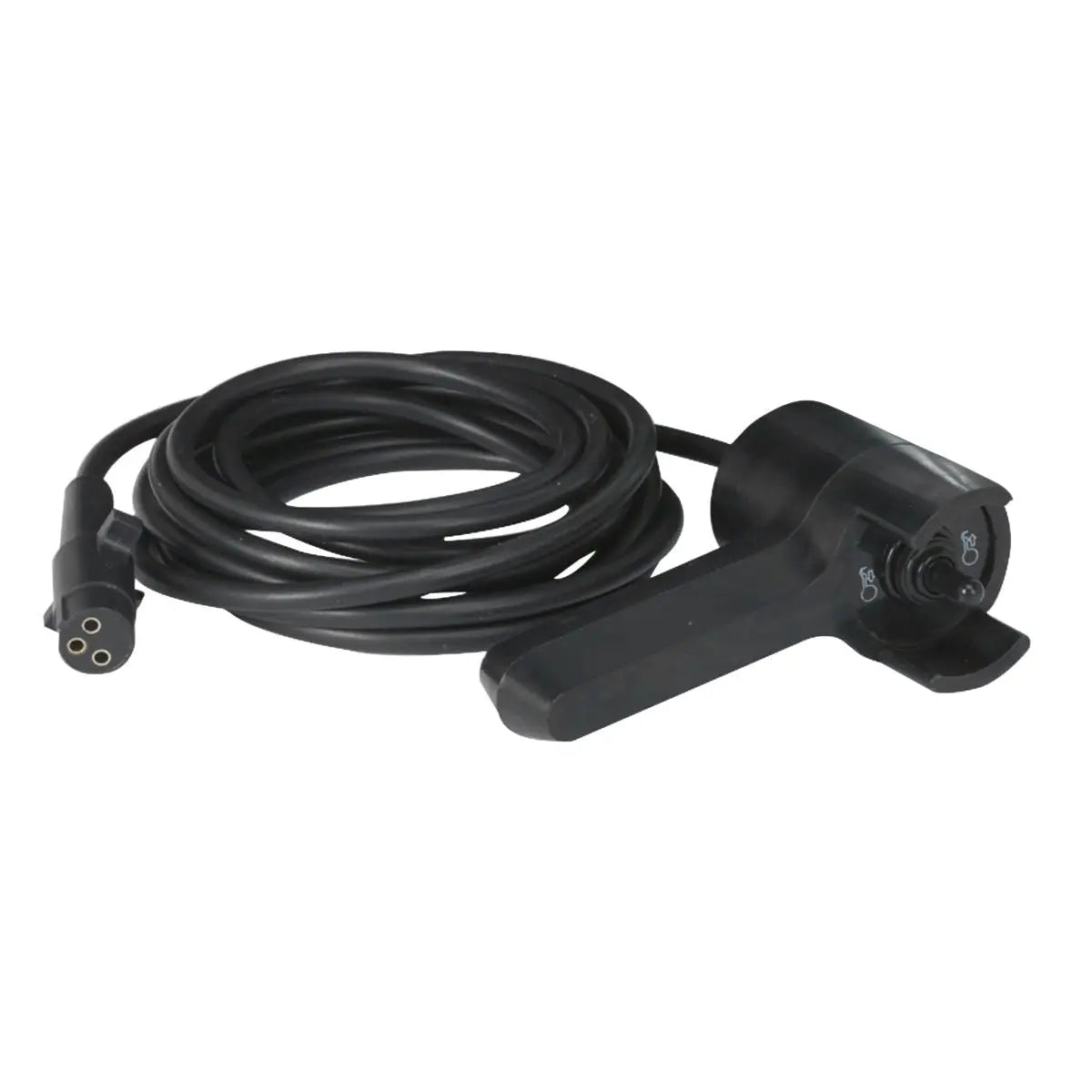

Remote control allows power in and power out of cable from a safe distance.

Ergonomic 'lift & turn' free spool clutches.

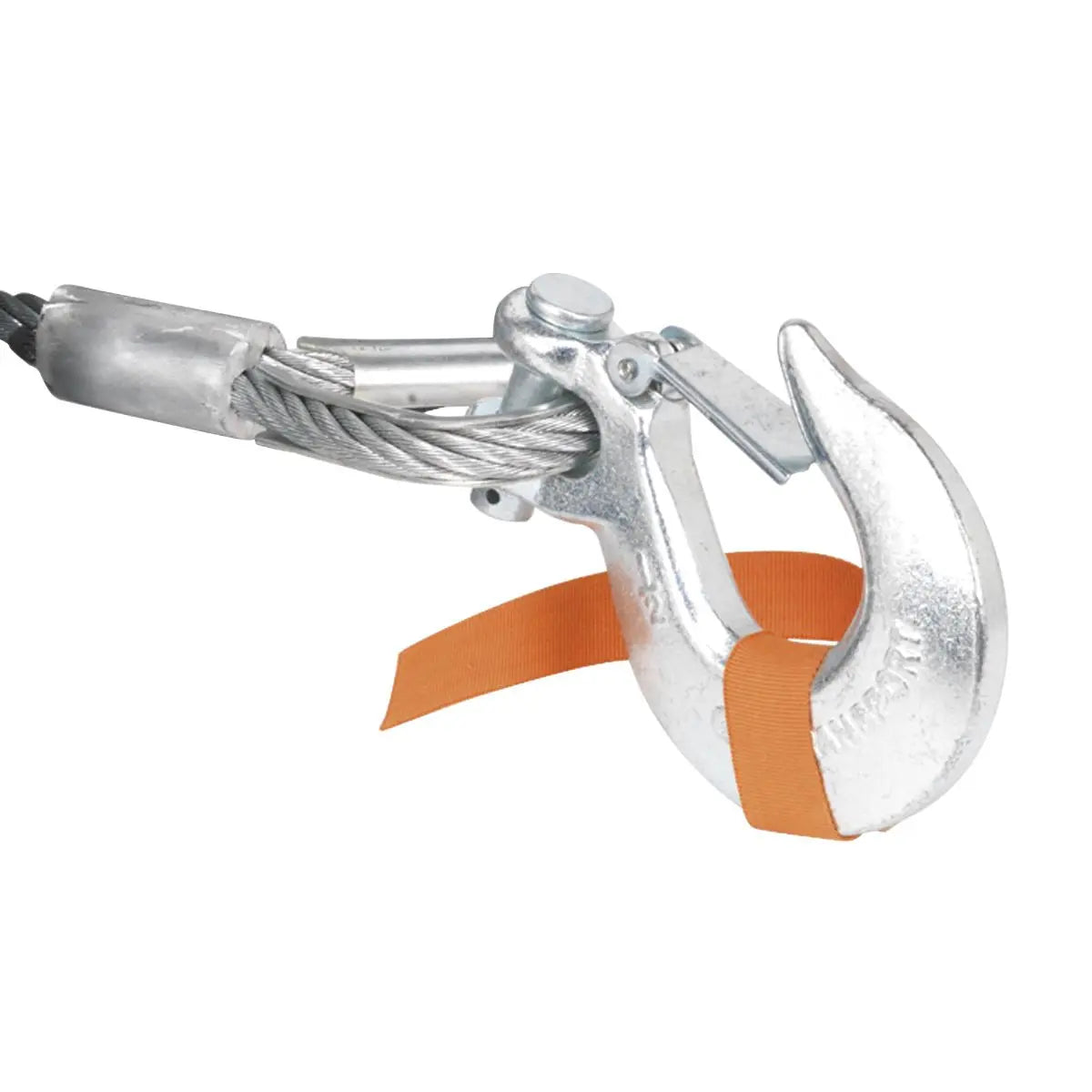

High quality wire rope with a 4-way roller fairlead for smooth and even distribution of cable onto drum.

Cable Length: 25m.

Line Pull*: 8180kg(18000lb).

Gear Ratio: 516:1.

3 Year Guarantee*.

Specification:

• Model No RW8180
• Brand: Sealey Premier
• Consumable Parts: RW8180.WR - Wire Rope (Ø13mm x 25m) for RW8180
• Current Draw: No-Load - 95A, Maximum Load - 420A
• Gear Ratio: 516:1
• Line Pull*: 8180kg(18000lb)
• Line Speed*: No Load - 3.5m/min, Maximum Load - 0.8m/min
• Motor Power: 2.3kW
• Nett Weight: 69kg
• Note: *Performance quoted at first layer of cable on drum
• Supply: 12V
• Wire Rope Diameter: 13mm
• Wire Rope Length: 25m

Product Guarantee: 3 Years
Catalogue Page: Page 1365

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
