Sealey Professional Auto-Ranging Digital Multimeter

Sealey Professional Auto-Ranging Digital Multimeter

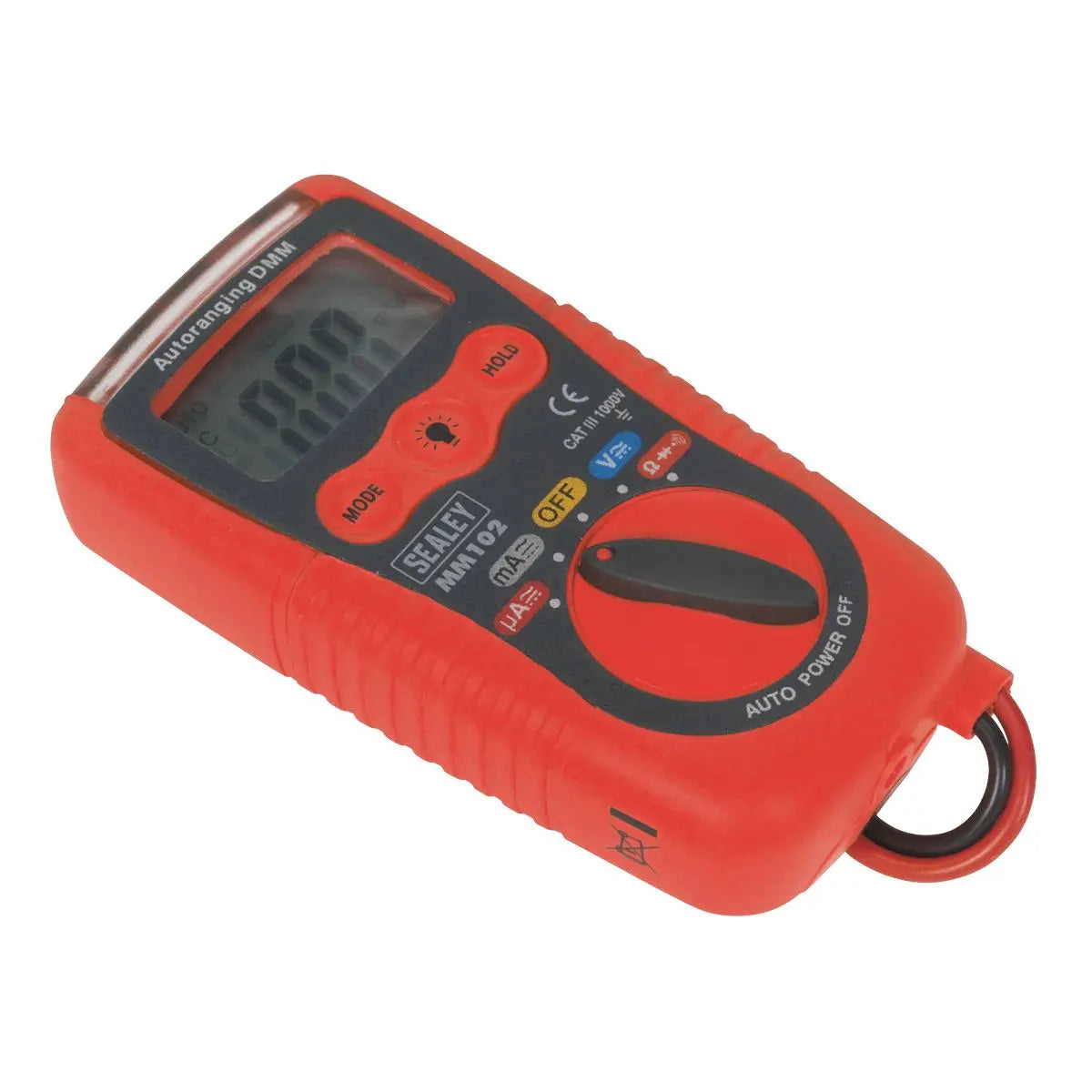

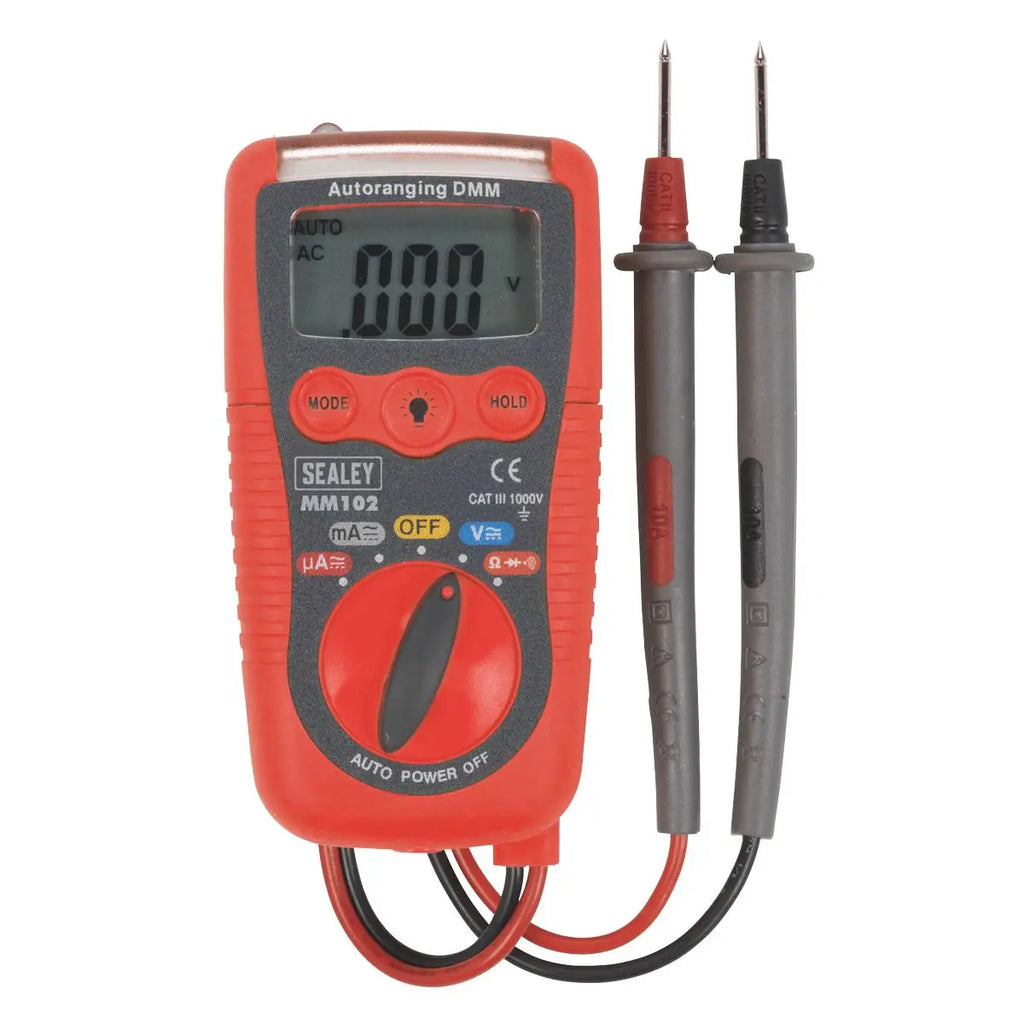

Lightweight, auto-ranging digital multimeter with double moulded plastic housing and a 2000 counts LCD display.

Features forward facing worklight, data-hold and non-contact voltage detection.

Conforms to EN 61010-1 CAT IV 600V safety standard.

Specification:

• Model No MM102
• Brand: Sealey
• Nett Weight: 160g
• AC Voltage (Accuracy): 2V, 20V (±1%), 200V, 600V (±2.3%)
• DC Voltage (Accuracy): 200mV (±0.5% + 3-digits), 2V, 20V, 200V, 600V (±1.2%)
• AC Current (Accuracy): 200µA, 2000µA, 20mA, 200mA (±2.5%)
• DC Current (Accuracy): 200µA, 2000µA, 20mA, 200mA (±2%)
• Resistance (Accuracy): 200Ω (±0.8% + 5-digits), 2KΩ, 20KΩ, 200KΩ (±1.2%), 2MΩ (±5%), 20MΩ (±10%)
• Capacitance (Accuracy): No
• Frequency (Accuracy): No
• Duty Cycle: No
• Continuity Audible: Yes
• Diode Test: Yes
• Transistor Test: No
• Hi-Impact Case: No
• Digits x Height: 4 x 14mm
• Low Battery Indicator: Yes
• Battery (Supplied): 2 x 1.5V
• Size (L x W x D): 105 x 57 x 34mm
• Weight: 160g
• Conformity: EN61010-1
• Non-Contact Voltage Detection VAC: 100V - 600V

Product Guarantee: 1 Year
Catalogue Page: Page 452

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
