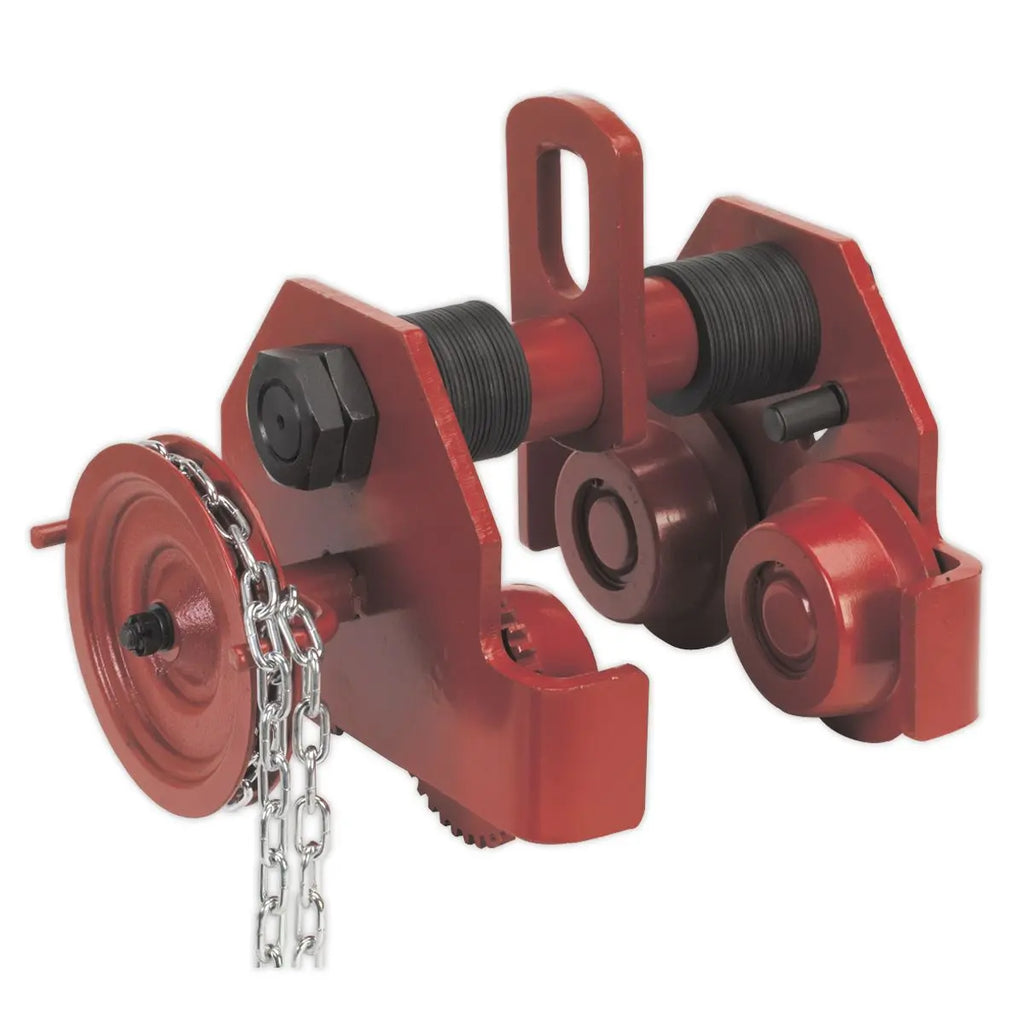

Sealey Geared Trolley 3 Tonne

Sealey Geared Trolley 3 Tonne

Suitable for use with our lever hoists or chain blocks.

Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.

Geared block trolleys make it easier to move heavy loads along the gantry by using chain rather than manual handling.

Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.

Specification:

• Model No PT3000G
• Brand: Sealey
• Nett Weight: 41kg
• Capacity: 3000kg
• Track Width Adjustable Range: 76-203mm
• Minimum Curve Radius: 1500mm
• A: 344mm
• B: 250mm
• C: 180mm
• D: 150mm
• E: 200mm
• Weight: 41kg
• Minimum Standard I-Beam Dimensions (D x W x Web): 200 x 100 x 7mm
• Maximum Distance Between Spans: 2700mm
• Maximum Standard I-Beam Dimensions (D x W x Web): 850 x 150 x 9mm
• Maximum Distance Between Spans: 4500mm
• Refer to catalogue for diagram:
• Refer to catalogue for diagram:

Product Guarantee: 1 Year
Catalogue Page: Page 894

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
