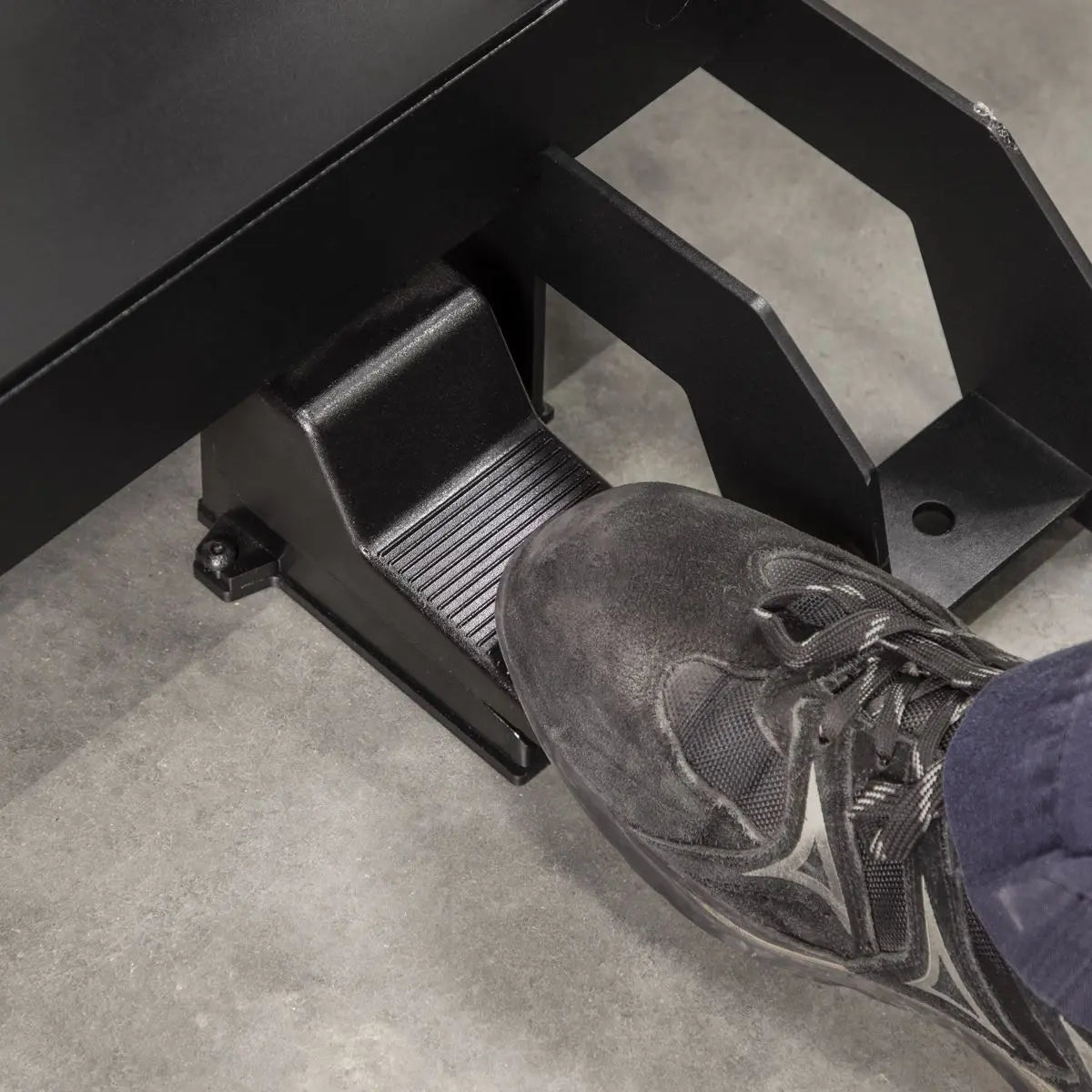

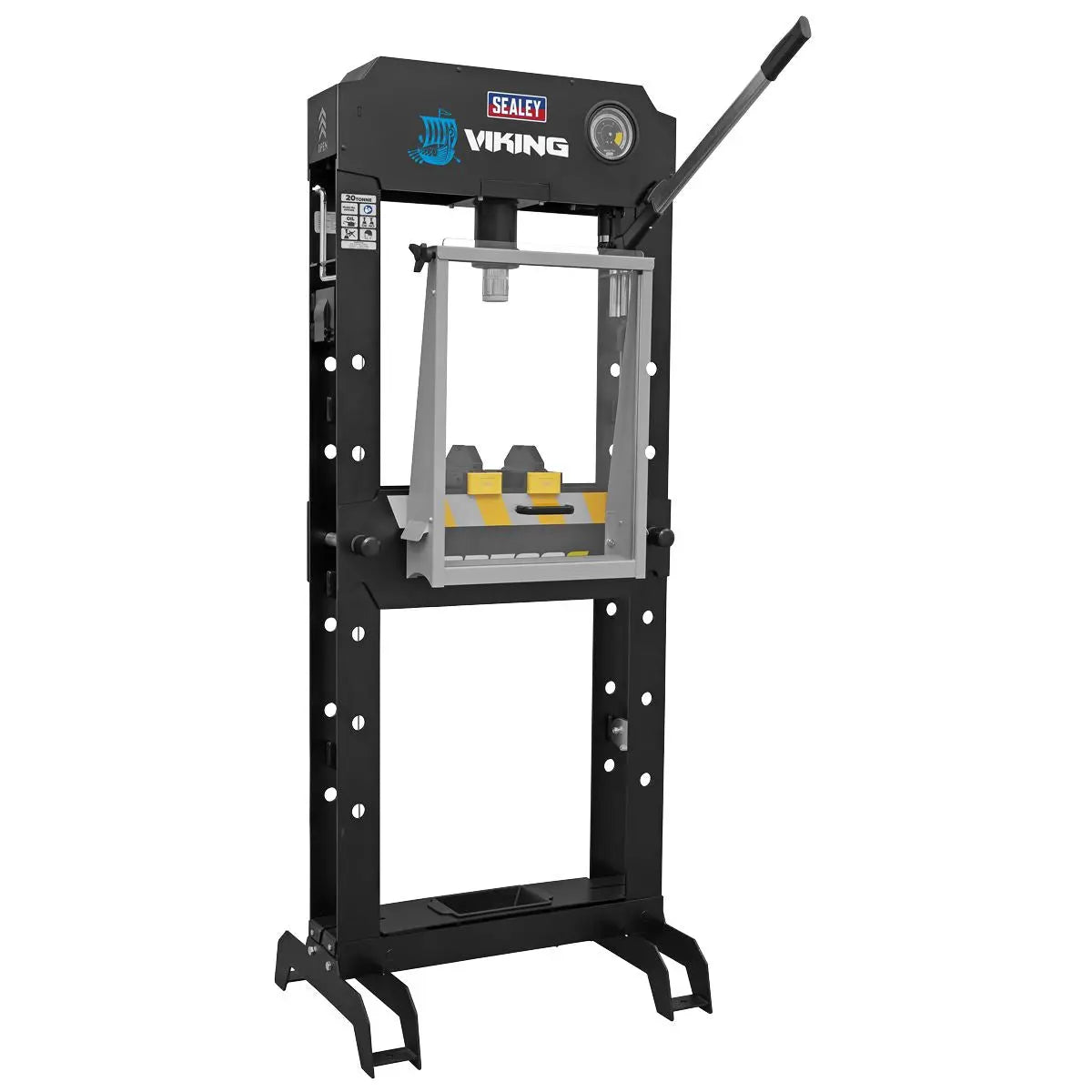

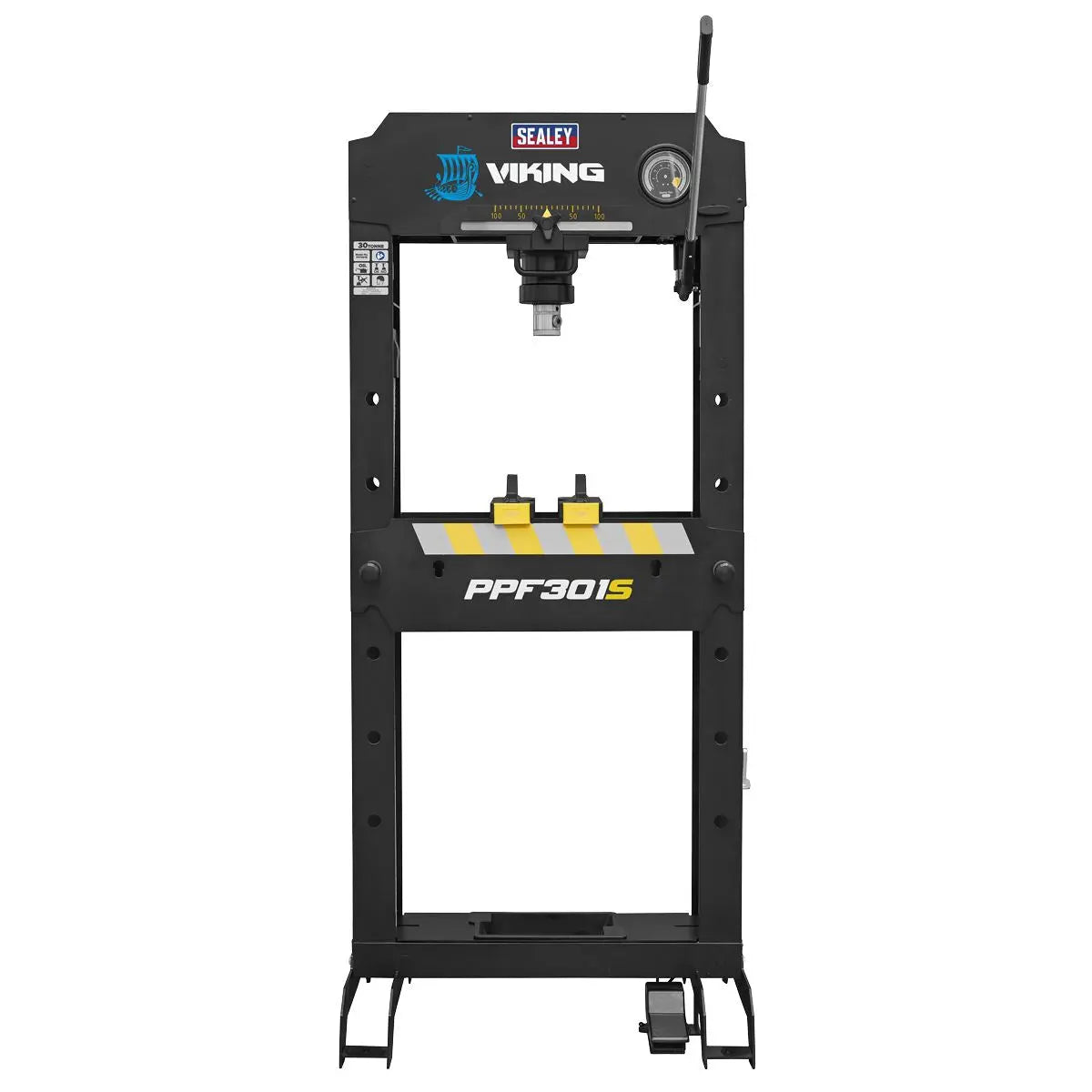

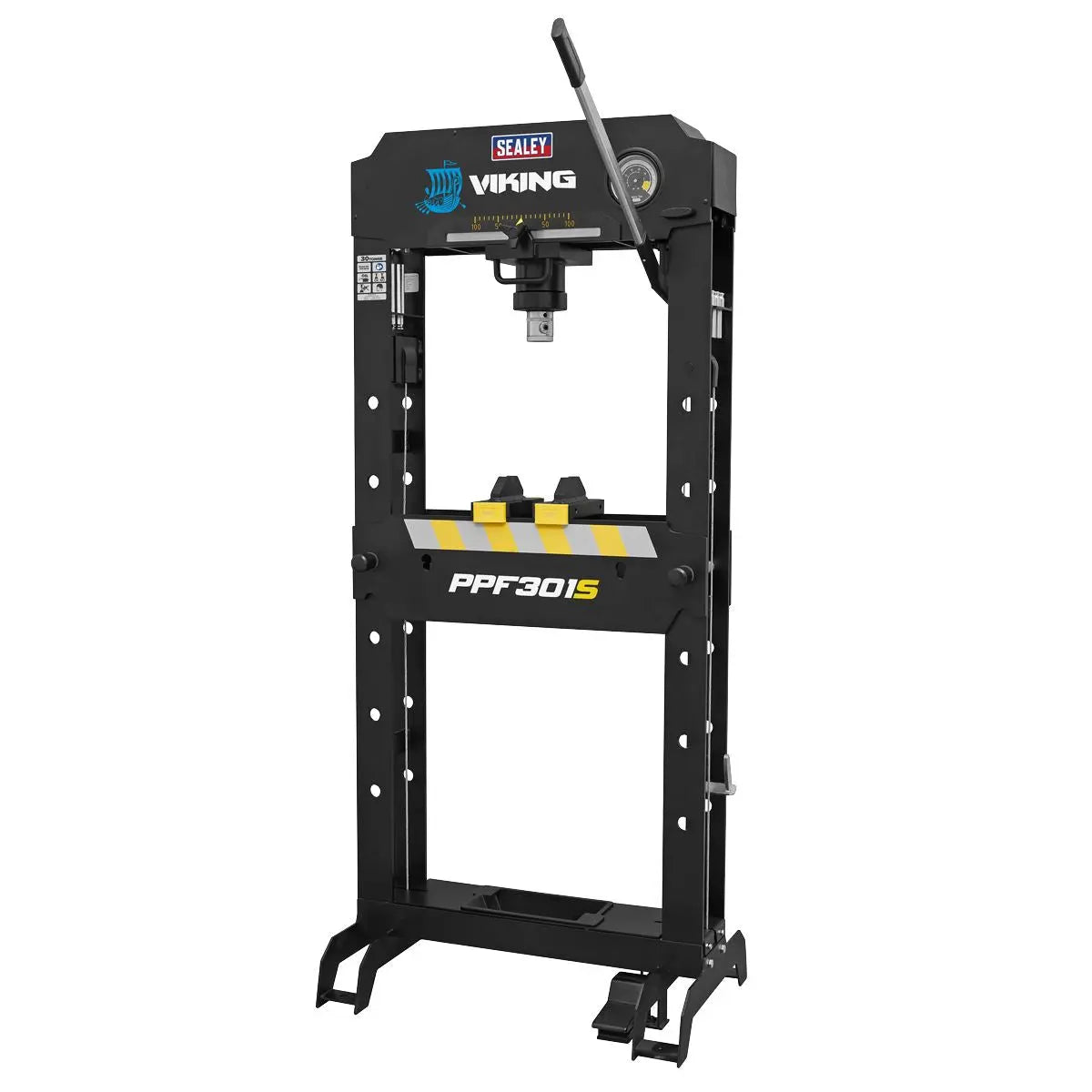

Sealey Viking Floor Type Air/Hydraulic Press with Sliding Ram & Foot Pedal 30 Tonne

Sealey Viking Floor Type Air/Hydraulic Press with Sliding Ram & Foot Pedal 30 Tonne

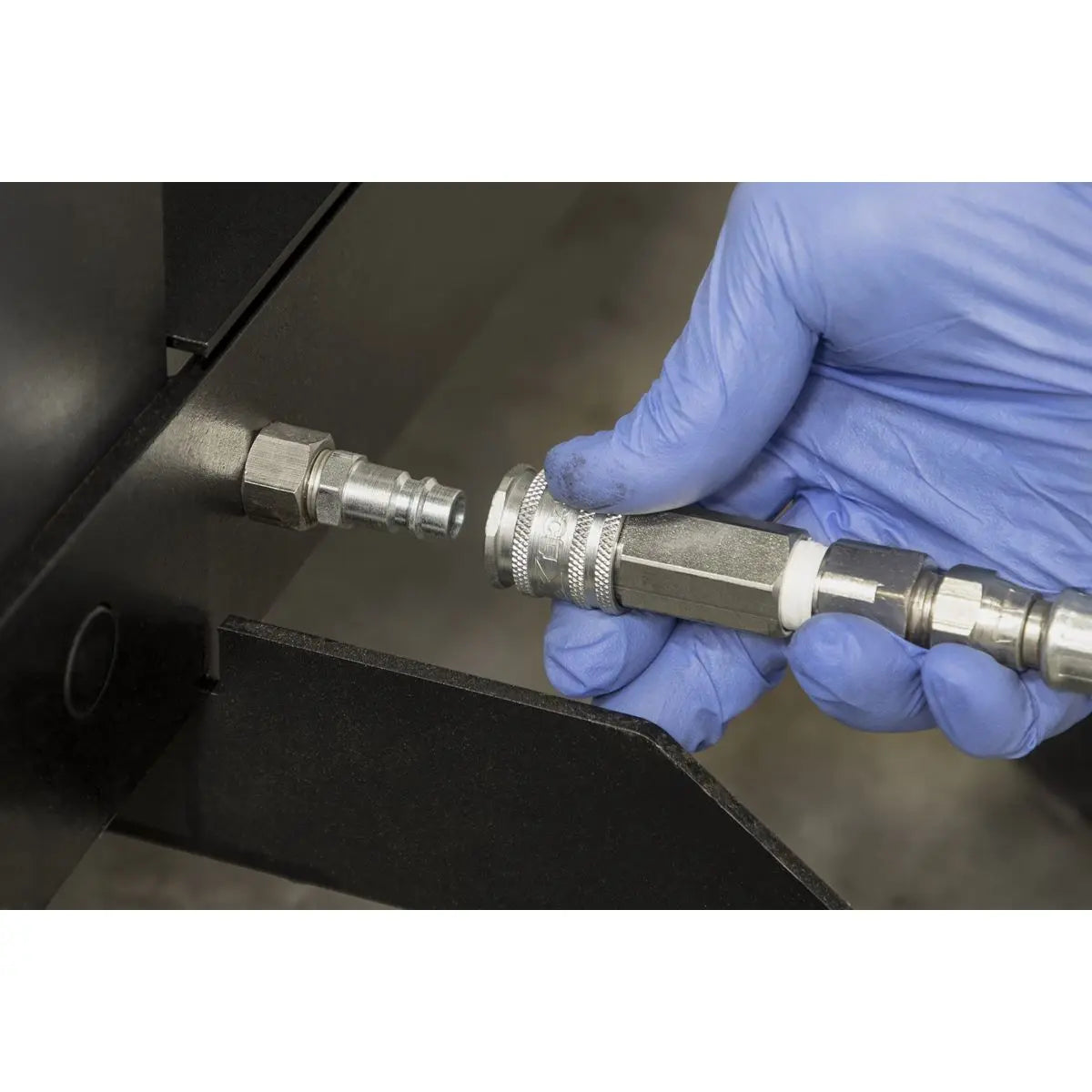

Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit.

Screw adjustable ram and adjustable work area with removable tray.

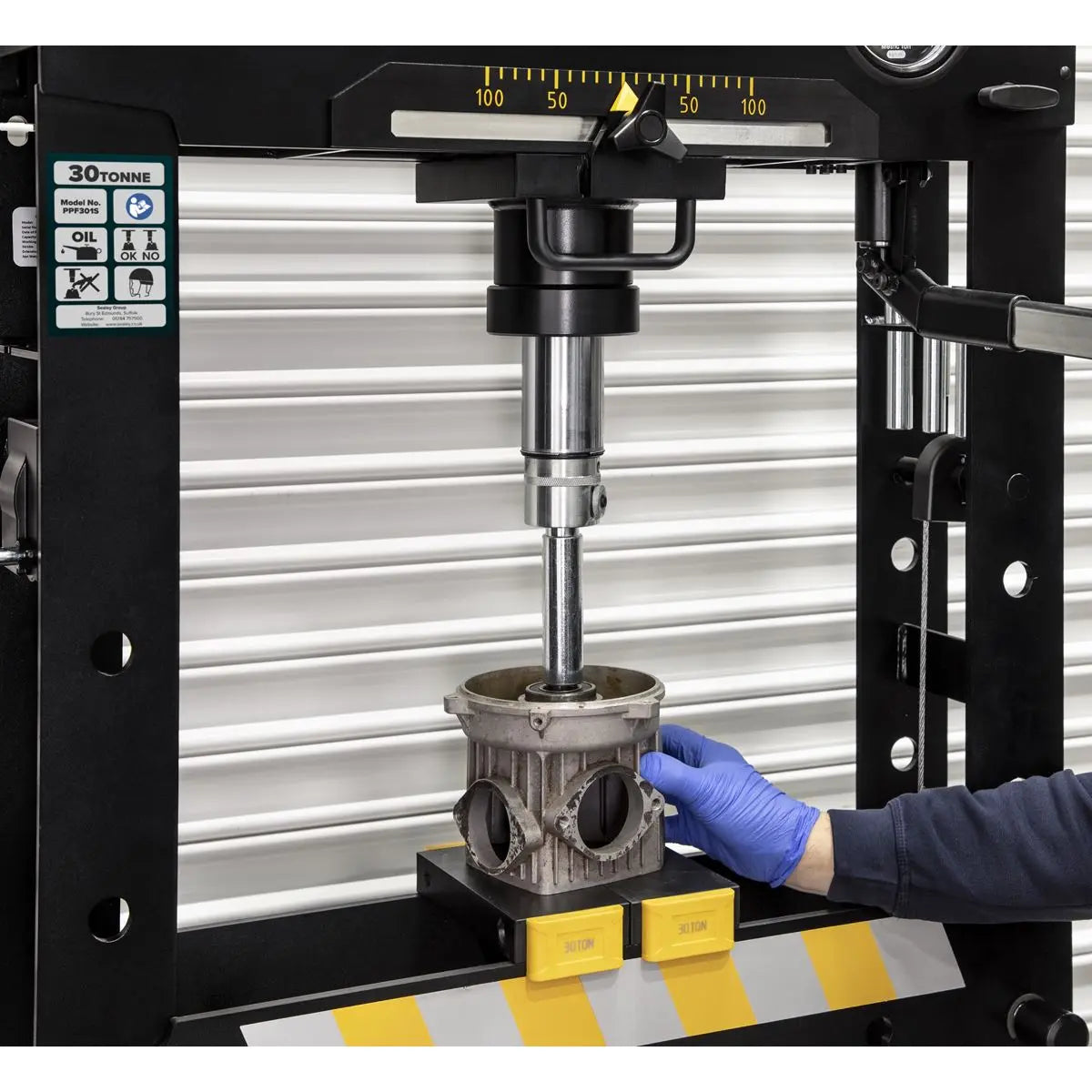

Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications.

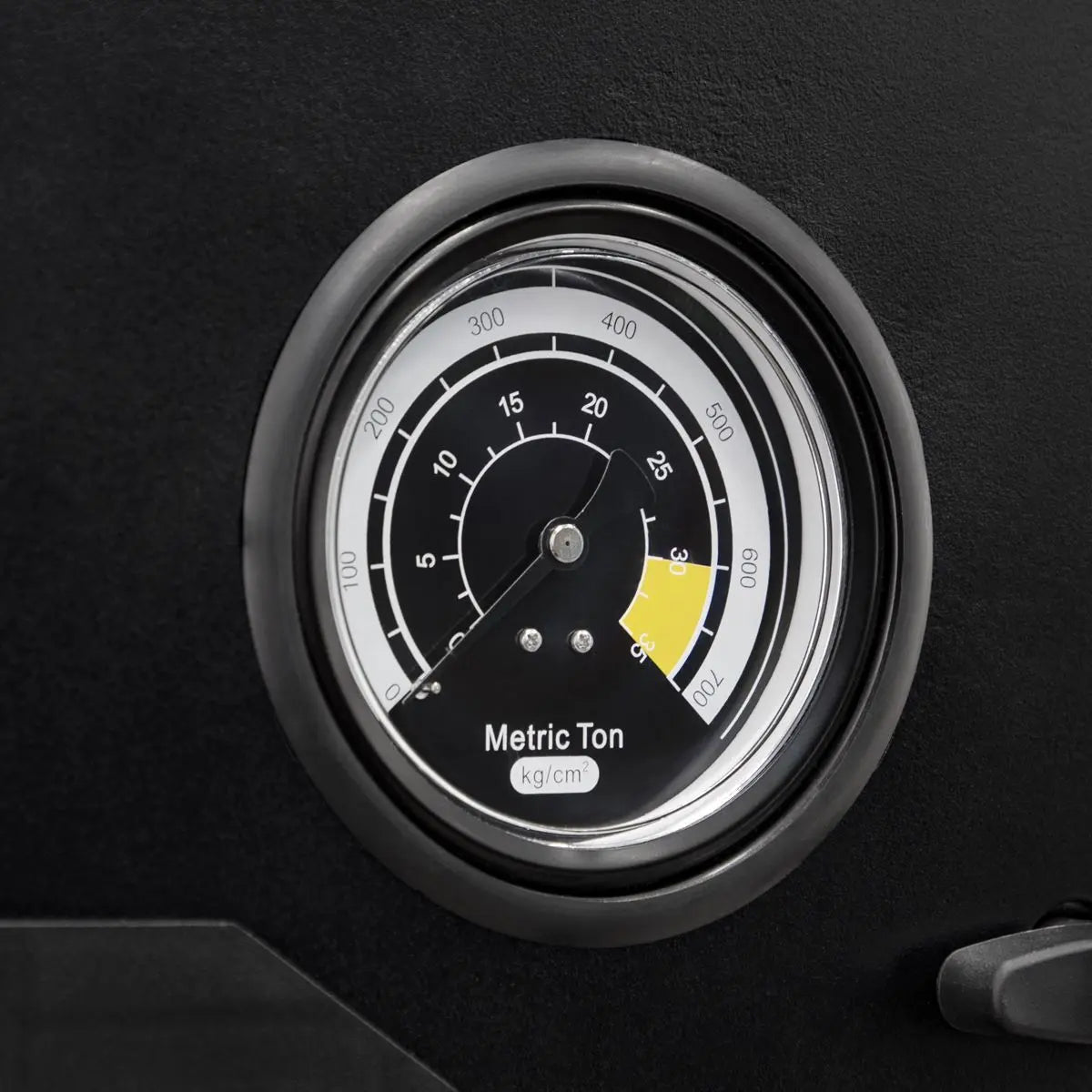

Frame head fitted with ram pressure gauge.

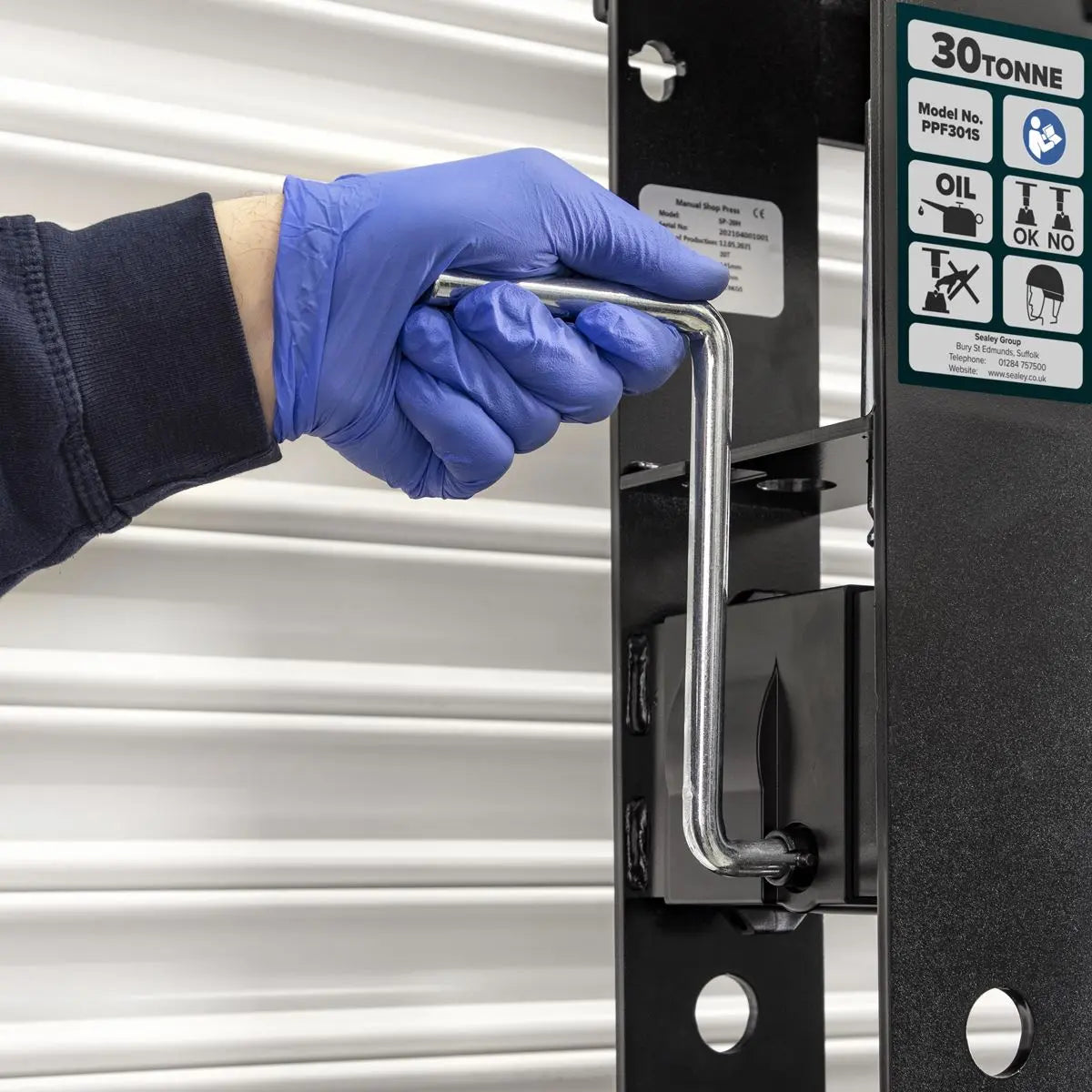

Winch assisted press table adjustment.

Storage for press pins included in frame.

Supplied with press pins, flat pressing plate/V-blocks.

5 Year guarantee*.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

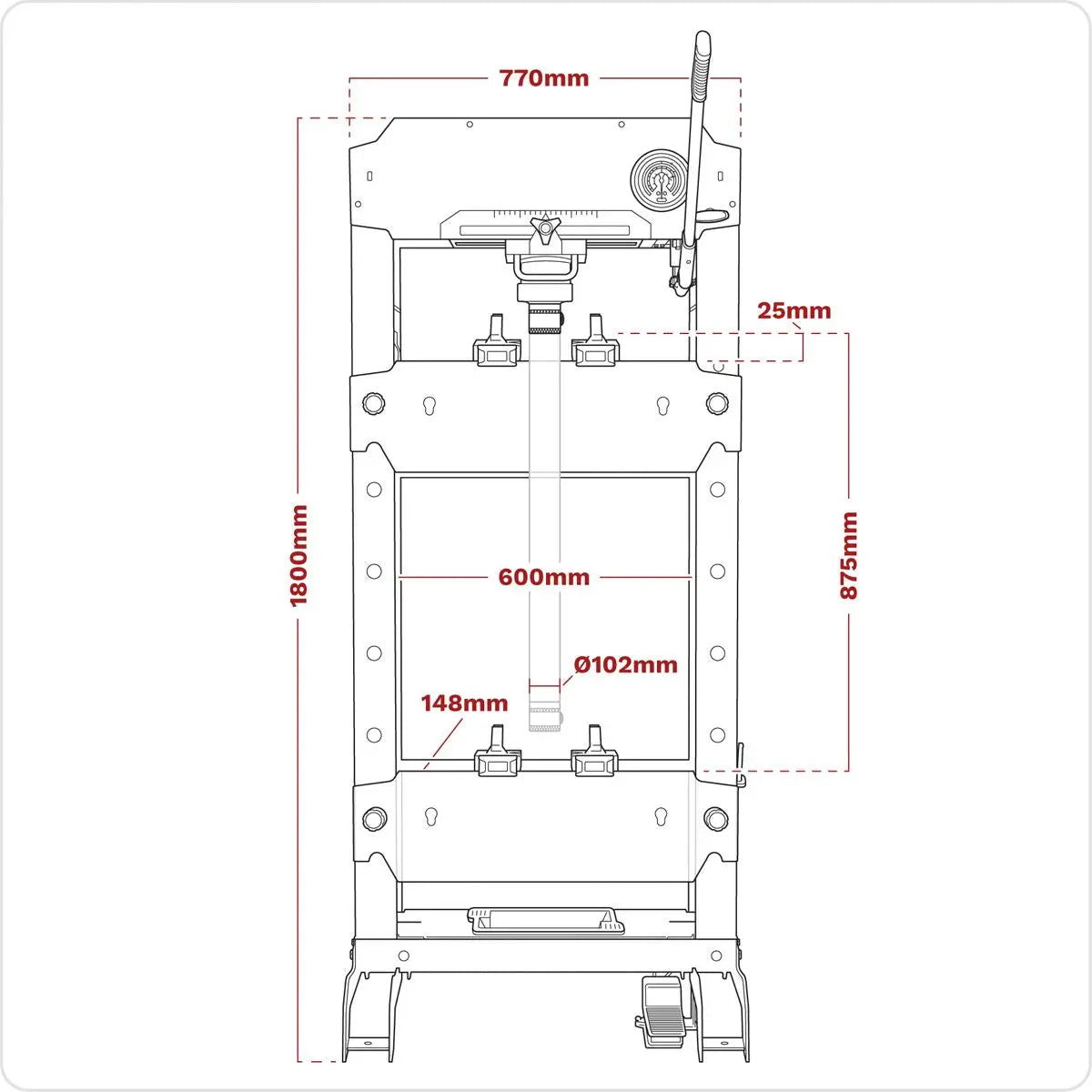

Specification:

• Model No PPF301S
• Air Consumption: 4.5cfm
• Bench or Floor Mounting: Floor
• Brand: Viking
• Capacity: 30 Tonne
• Gauge Included: Yes
• Lateral Ram Travel: 200mm
• Maximum Height - Ram to Table: 875mm
• Minimum Height - Ram to Table: 25mm
• Nett Weight: 162.5kg
• Overall Height: 1800mm
• Overall Width: 770mm
• Ram Diameter: Ø102mm
• Ram Stroke: 145mm
• Screw Extension: 75mm
• Table Aperture: 168mm
• Type: Floor
• Working Table Depth: 188mm
• Working Table Width: 710mm
• Working Table Width: 710mm

Product Guarantee: 5 Years
Catalogue Page: Page 330

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
