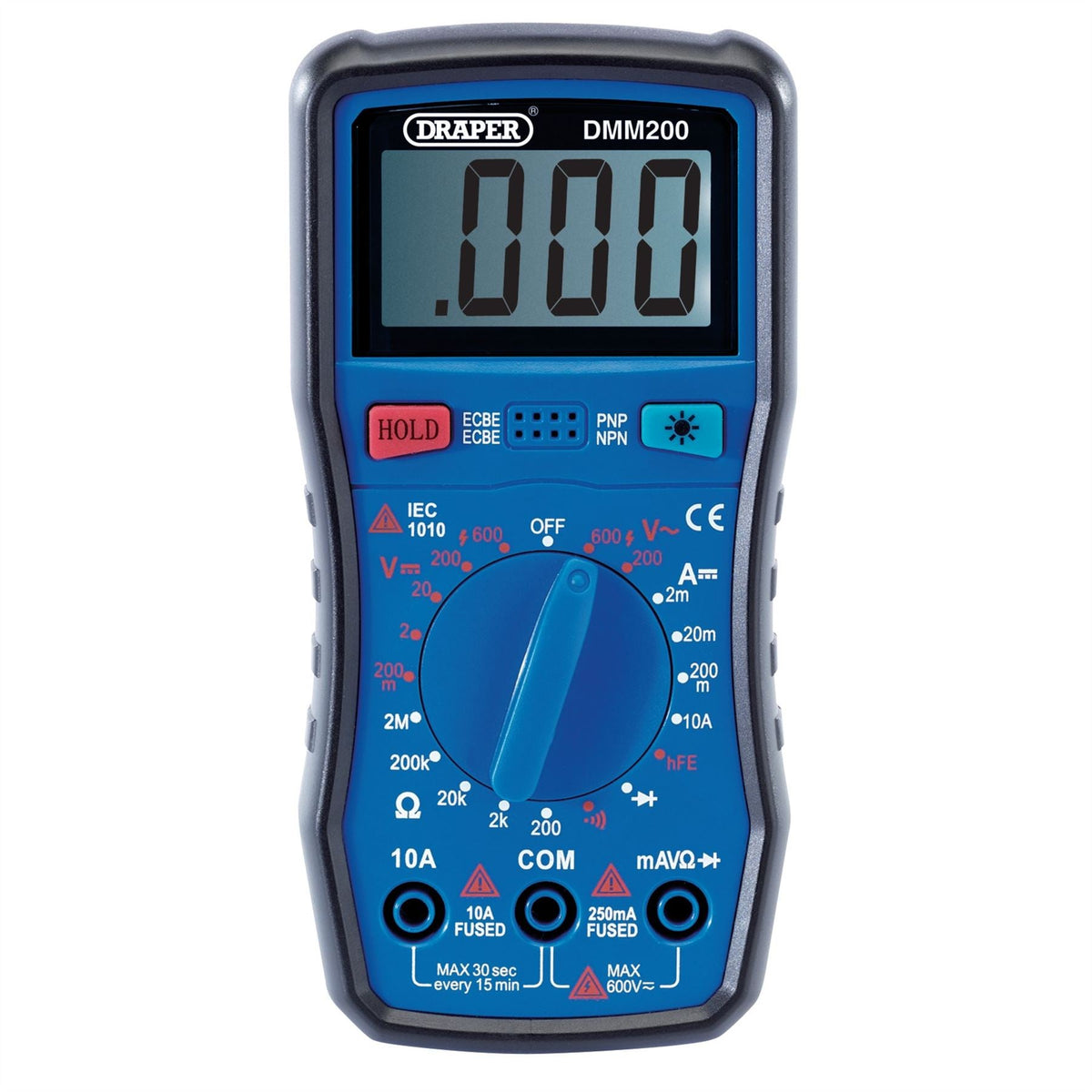

Draper 200 Series Manual Ranging Digital Multimeter 600V AC/DC 41817

Draper 200 Series Manual Ranging Digital Multimeter 600V AC/DC 41817

Manual ranging capable of voltage, current, hEF and resistance testing. Fitted with a backlit LCD screen, auto power off, continuity buzzer and data hold features. Supplied with test leads.
Features:

• Manual ranging capable of voltage, current, hEF and resistance testing
• Fitted with a backlit LCD screen, auto power off, continuity buzzer and data hold features
• Supplied with test leads

Product Contents:

• 1 x Manual-Ranging Digital Multimeter, 1 x Test Leads, 1 x Case

Brand: Draper
Stock No: 41817
Part No: DMM200
Warranty: 12 months

Specification:

• Weight: 233g (approx.)
• Resistance (Ohms): 200Ω/2kΩ/20kΩ/200kΩ/2MΩ
• Frequency: N/A
• Dwell: N/A
• Duty Ratio: Yes
• DC Current: 2mA/20mA/200mA/10A
• Diode on/off Test: Yes
• DC Voltage: 200mV/2V/20V/200V/600V
• Symbol Unit Data Hold: Yes
• DC Amps: 2mA/20mA/200mA/10A
• Capacitance: N/A
• Automatic Power Off: Yes
• Dimensions: 150mm x 74mm x 43mm
• TACH: N/A
• AC Voltage: 200V/600V
• AC Current: N/A
• Battery Type: 1 x PP3 9V (not supplied)
• Temperature Range: -20°C - 1000°C

Downloads:

• Product Data Sheet: View Here
• Instruction Manual: View Here
• Declaration of Conformity UK CA: View Here
• Declaration of Conformity CE: View Here
