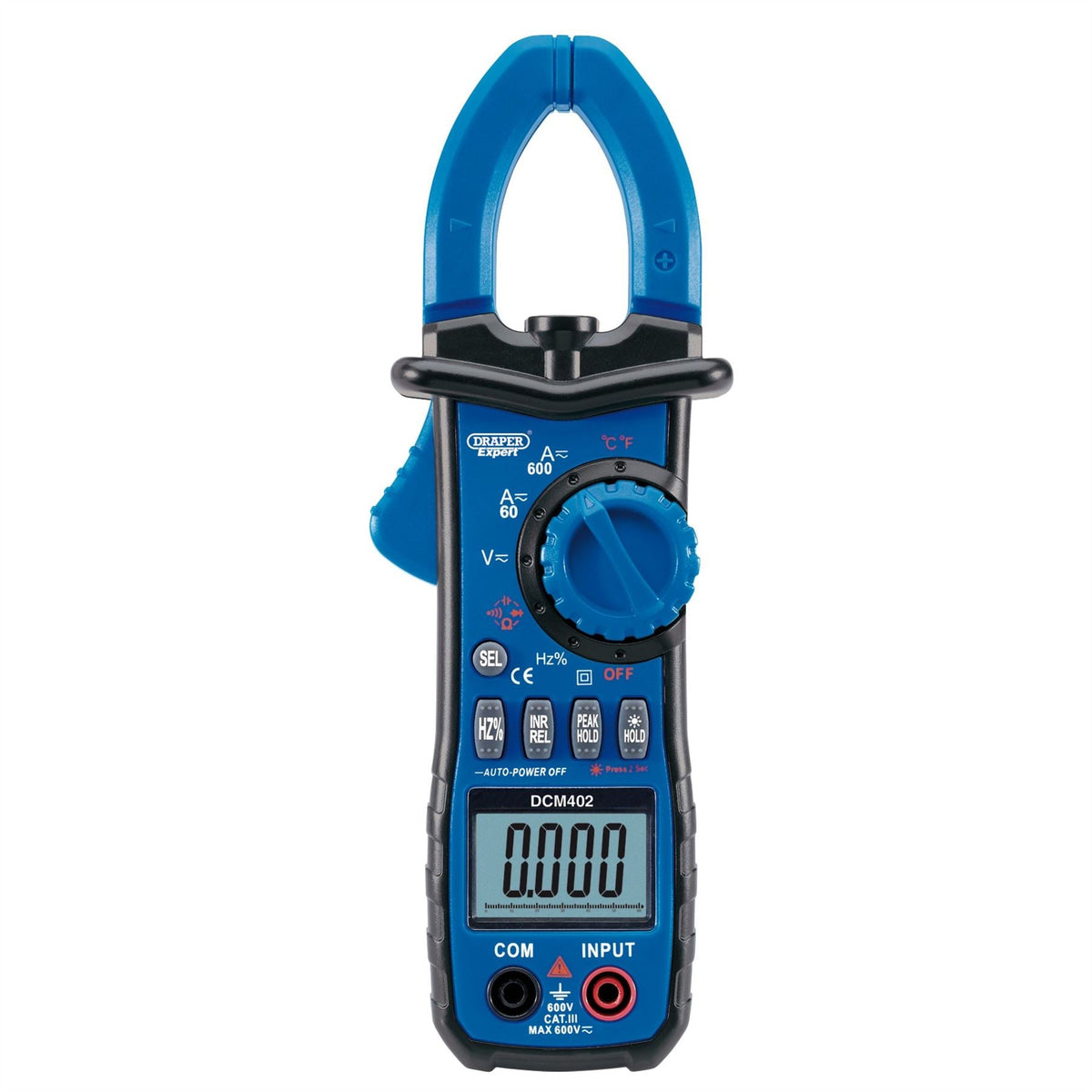

Draper Expert Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function 41967

Draper Expert Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function 41967

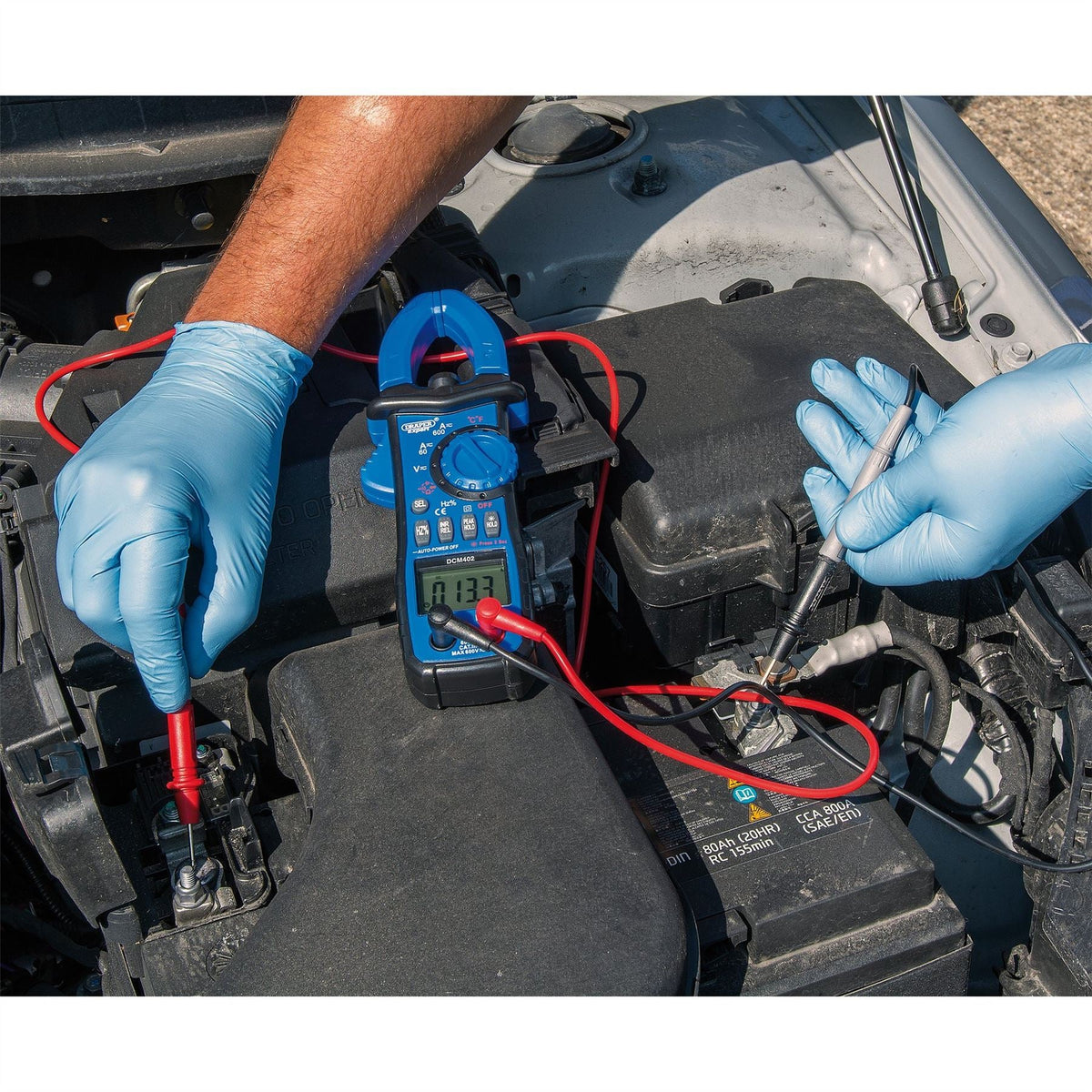

Auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and temperature testing. Maximum jaw - opening diameter of 36mm, backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light. Supplied with test leads, temp probe and a case.
Features:

• Auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and
• Temperature testing
• Maximum jaw-opening diameter of 36mm
• Backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light
• Supplied with test leads, temp probe and a case

Product Contents:

• 1 x Draper Expert Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function

Brand: Draper Expert
Stock No: 41967
Part No: DCM402
Warranty: 12 months

Specification:

• AC Voltage: 6V/60V/600V
• Temperature Range: -50°C - 1000°C/-58°F - 1832°F
• AC Amps: 60A/600A
• AC Current: 60A/600A
• Automatic Power Off: Yes
• Temperature: -50 to 300ºC
• Capacitance: 999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF
• Battery: 3 x AAA (not supplied)
• Symbol Unit Data Hold: N/A
• Resistance (Ohms): 6000Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
• Frequency: 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz
• Dwell: N/A
• Weight: 400g (approx.)
• Dimensions: 228mm x 158mm x 58mm
• Diode on/off Test: Yes
• DC Voltage: 600mV/6V/60V/600V
• DC Current: 60A/600A
• DC Amps: 60A/600A
• Duty Ratio: Yes
• TACH: N/A

Downloads:

• Product Data Sheet: View Here
• Instruction Manual: View Here
• Declaration of Conformity UK CA: View Here
• Declaration of Conformity CE: View Here
