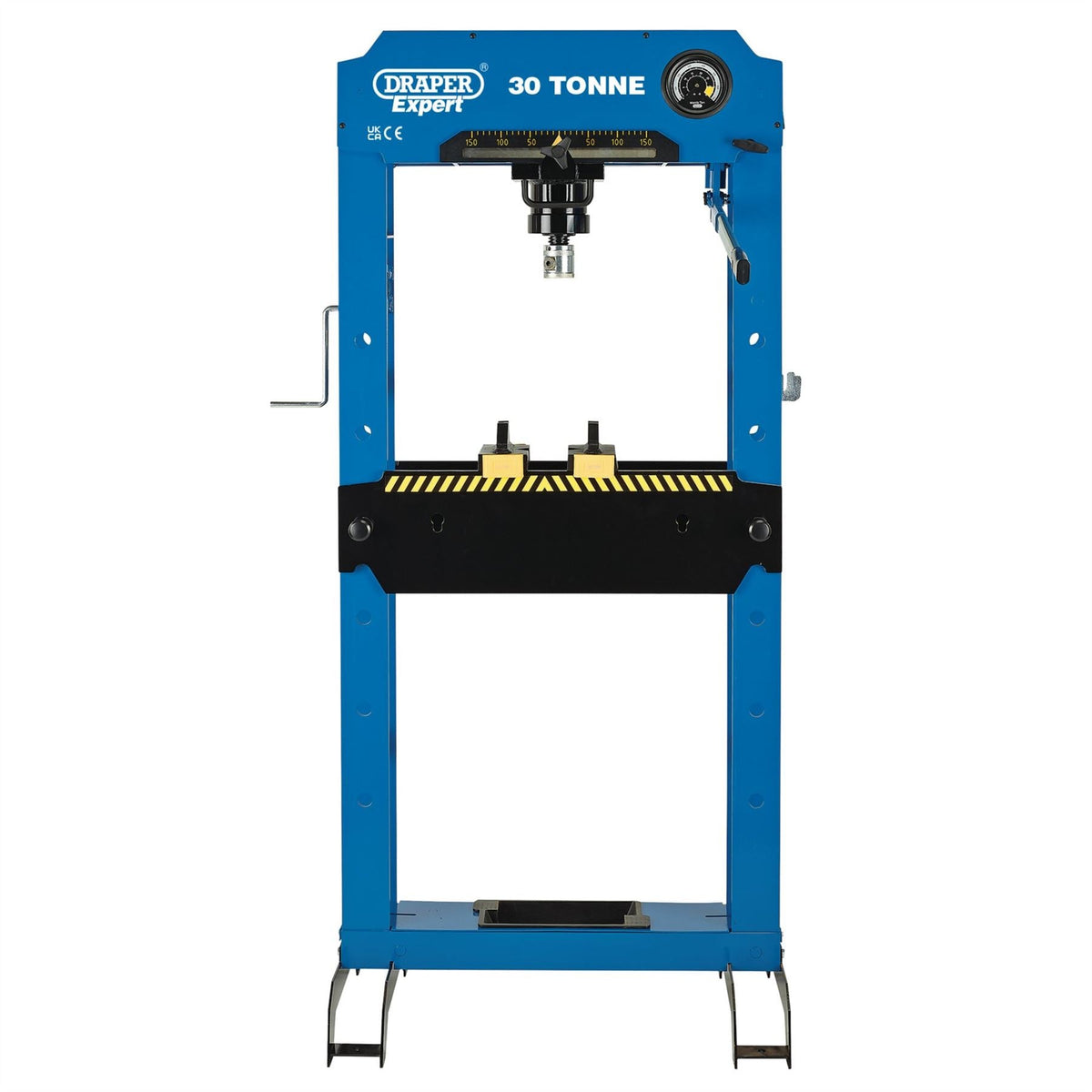

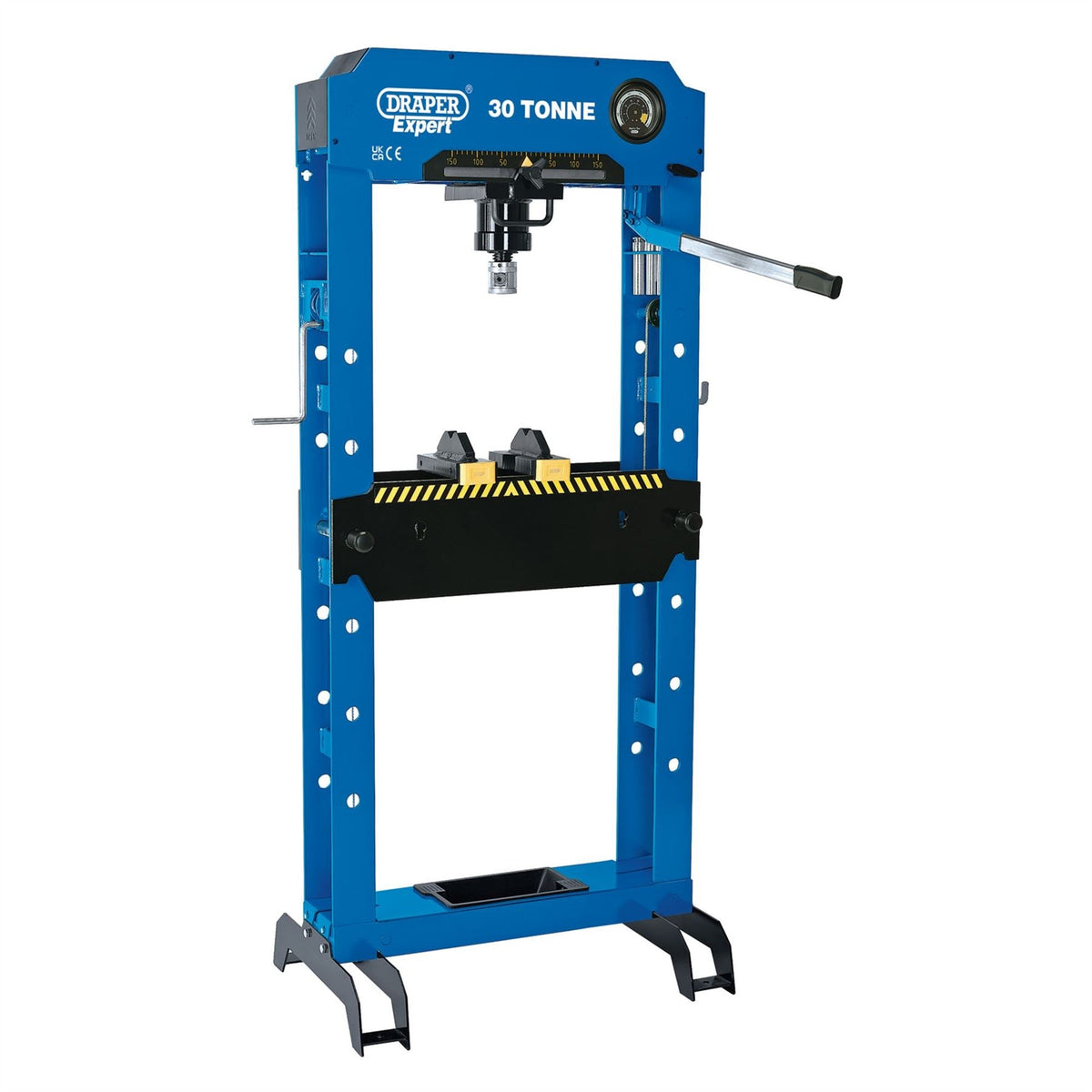

Draper Expert Hydraulic Floor Press 30 Tonne 70561
Robust hydraulic 30 tonne floor press with sliding ram for precise pressing. Fitted with hand pump for manual hydraulic operation. There are 12 adjustable table heights with a working range between 25-850mm. The table can be lifted or lowered using a winch. Robot welding one-piece frame for increased stability. There are dustproof covers fitted to the top of the frame to prevent dust entering the pump and ram, which helps to increase their service life. There is a removable parts tray located in the frame base. Supplied with eight press pins ranging from 2-15 tonnes and two flat v-shaped pressing blocks.
Features:
- Sliding ram
- Rack and pinion table
- Storage tray located in the base frame, which can be removed
- Supplied with press pins
Product Contents:
- 1 x Draper Expert Hydraulic Floor Press, 30 Tonne
Brand: Draper Expert
Stock No: 70561
Part No: HFP/30
Warranty: 12 months
Specification:
-
Overall height: 1800mm
-
Frame dimensions: (H) 1685 x (W) 600 x (D) 148mm
-
Weight (net): 157kg
-
Table height: 25-850mm
-
Press pin capacity: 2-15 Tonnes
-
Ram diameter: 50mm
-
Ram stroke: 220mm
-
Capacity: 30 Tonne
-
Gauge diameter: 100mm
-
Ram scale: 145mm - 0mm - 145mm
