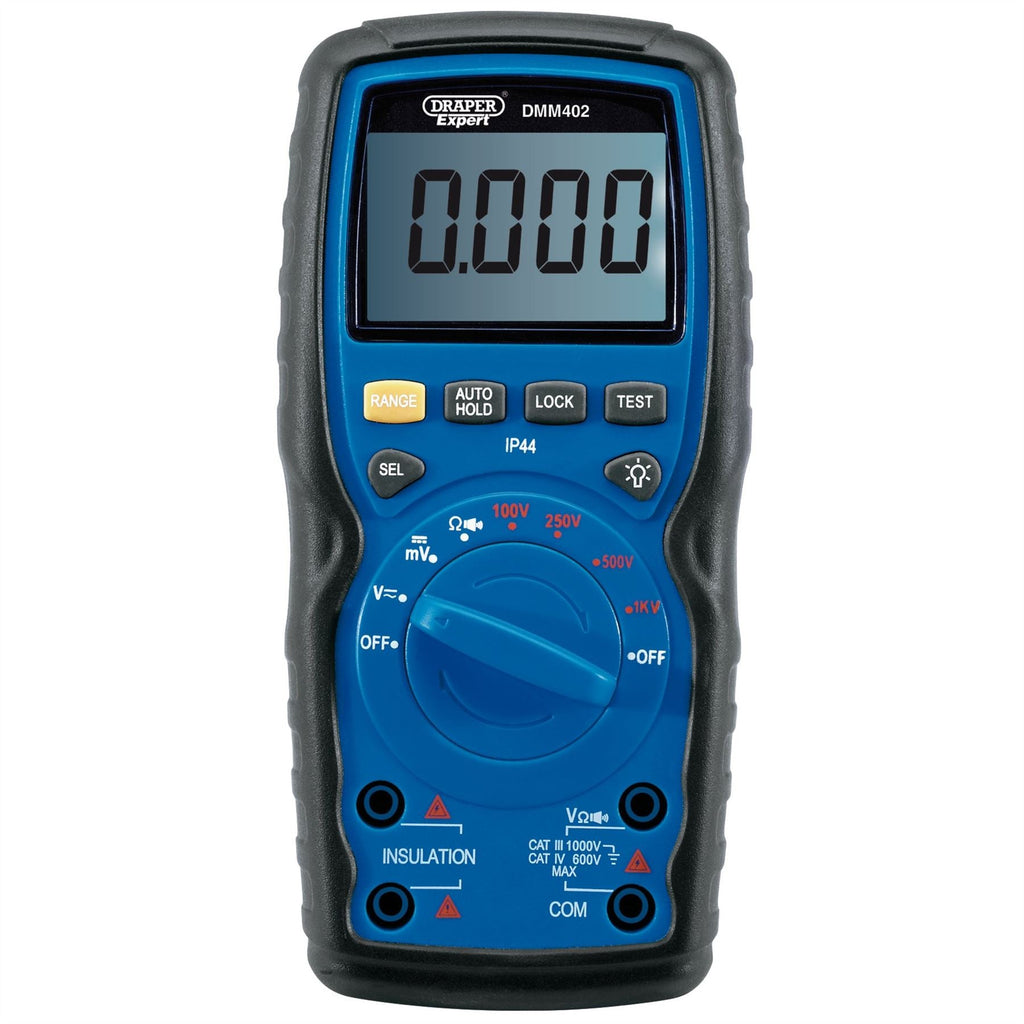

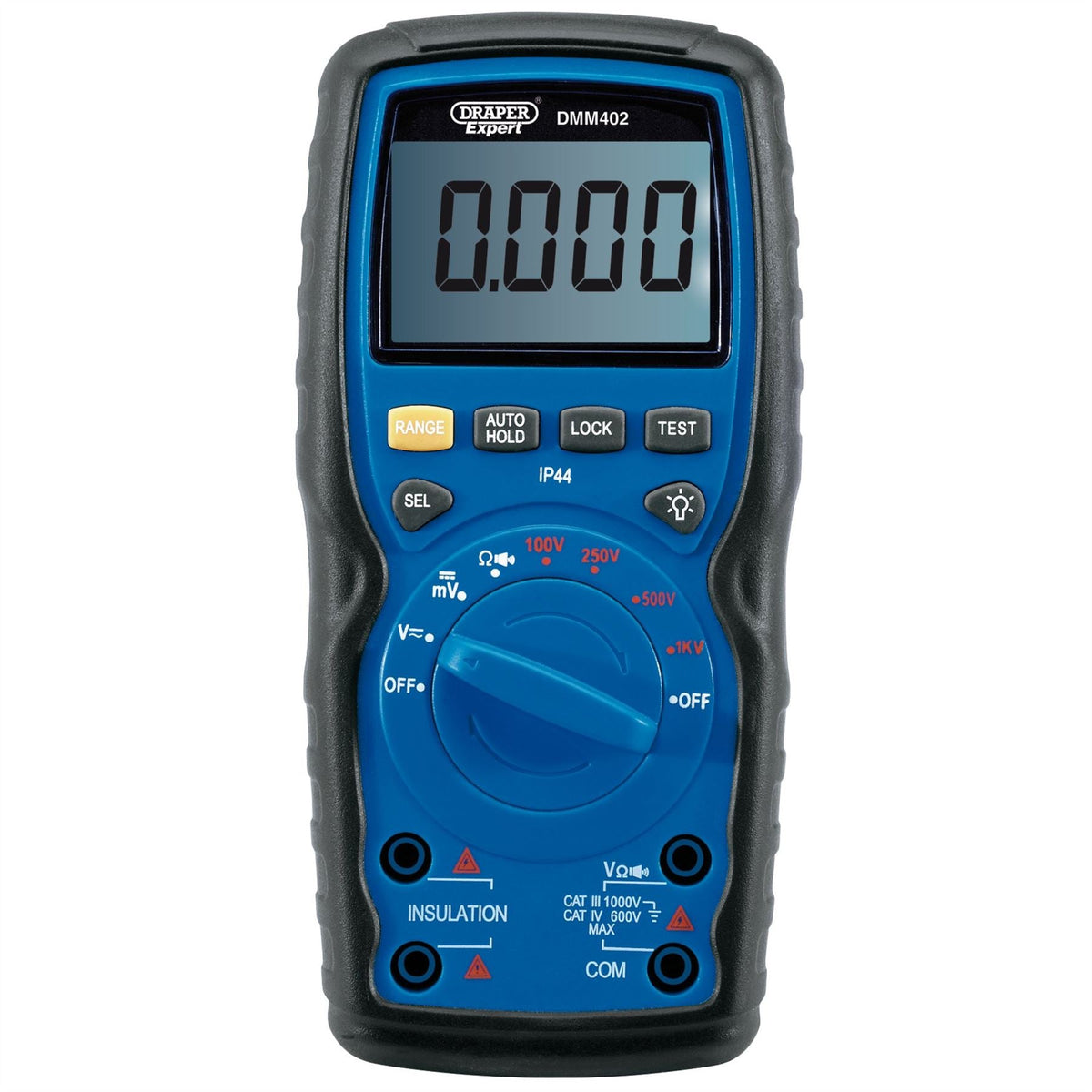

Draper Expert Insulation Resistance Meter 41834

Draper Expert Insulation Resistance Meter 41834

Auto ranging with analogue bar - graph scale. Capable of DC voltage, AC voltage, resistance and continuity testing. Fitted with backlit LCD screen, continuity buzzer, data hold features. Supplied with a carry case.
Features:

• Auto ranging with analogue bar-graph scale
• Capable of DC voltage, AC voltage, resistance and continuity testing
• Fitted with backlit LCD screen, continuity buzzer, data hold features
• Supplied with a carry case

Product Contents:

• 1 x Draper Expert Insulation Resistance Meter

Brand: Draper Expert
Stock No: 41834
Part No: DMM402
Warranty: 12 months

Specification:

• Insulation Test: 100V, 250V, 500V, 1000V
• Diode on/off Test: Yes
• Dimensions: 218mm x 200mm x 74mm
• Duty Ratio: N/A
• Dwell: N/A
• DC Voltage: 400mV/4V/40V/400V/1000V
• DC Current: N/A
• Capacitance: N/A
• Symbol Unit Data Hold: Yes
• Automatic Power Off: Yes
• AC Voltage: 400mV/4V/40V/400V/1000V
• AC Current: N/A
• Resistance (Ohms): 400Ω/4.000kΩ/40.00kΩ
• Weight: 774g (approx.)
• Temperature Range: N/A
• TACH: N/A
• Battery: 6 x AAA (not supplied)
• Frequency: N/A

Downloads:

• Product Data Sheet: View Here
• Instruction Manual: View Here
• Declaration of Conformity UK CA: View Here
