Draper Expert Pneumatic Jack 30 Tonne 03724

Draper Expert Pneumatic Jack 30 Tonne 03724

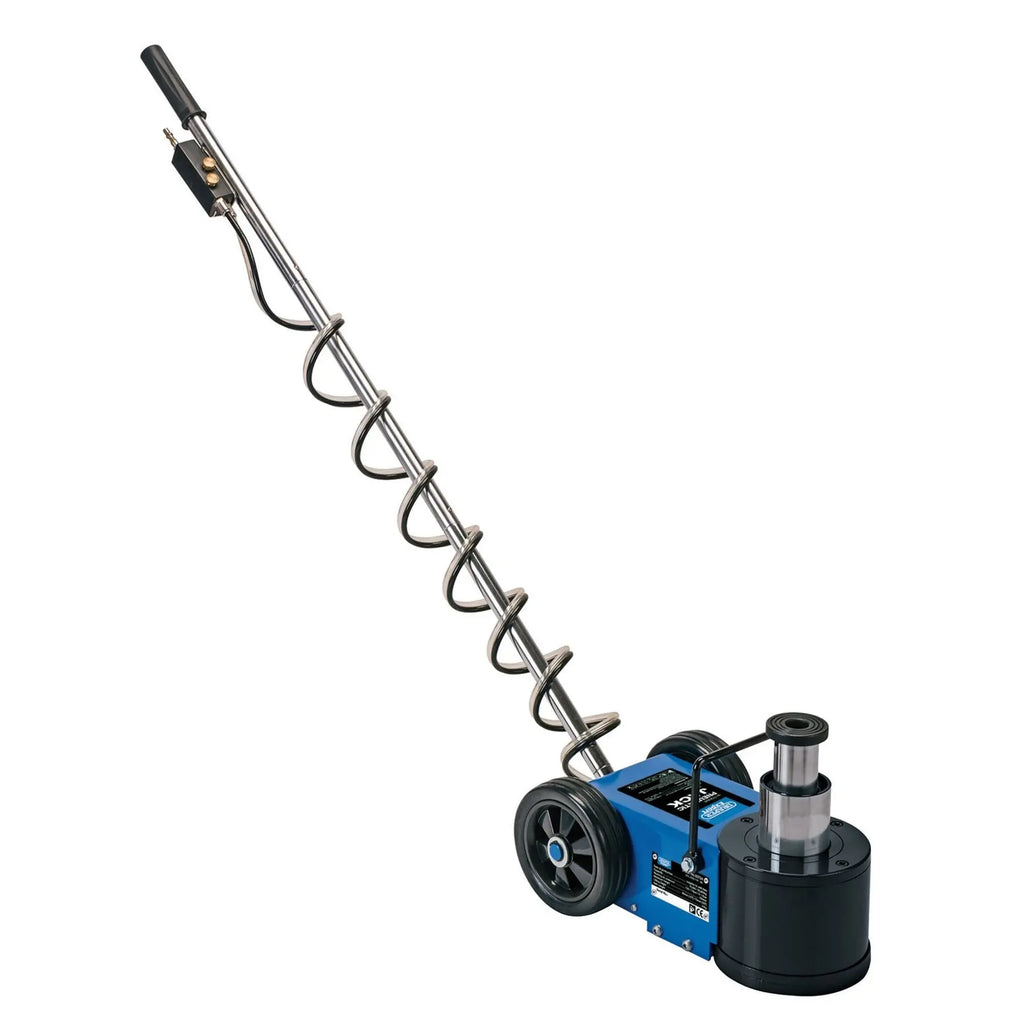

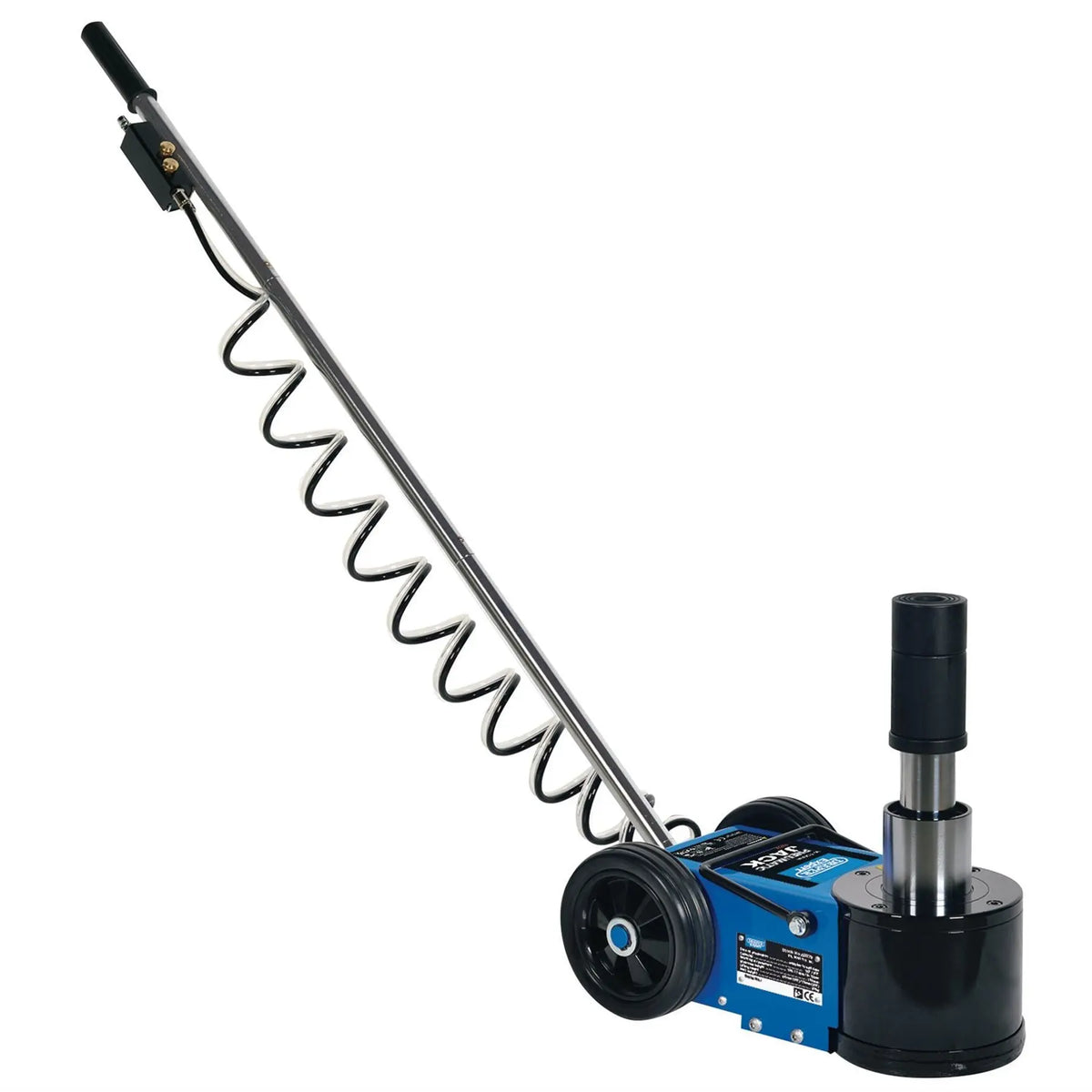

Portable and compact twin stage pneumatic jack, capable of lifting 30 Tonnes. The ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.
Features:

• Twin stage pneumatic jack
• Ergonomic handle grips
• Slow Down' valve
• Self Return' switch
• Twin PP and rubber wheels
• Industrial seals

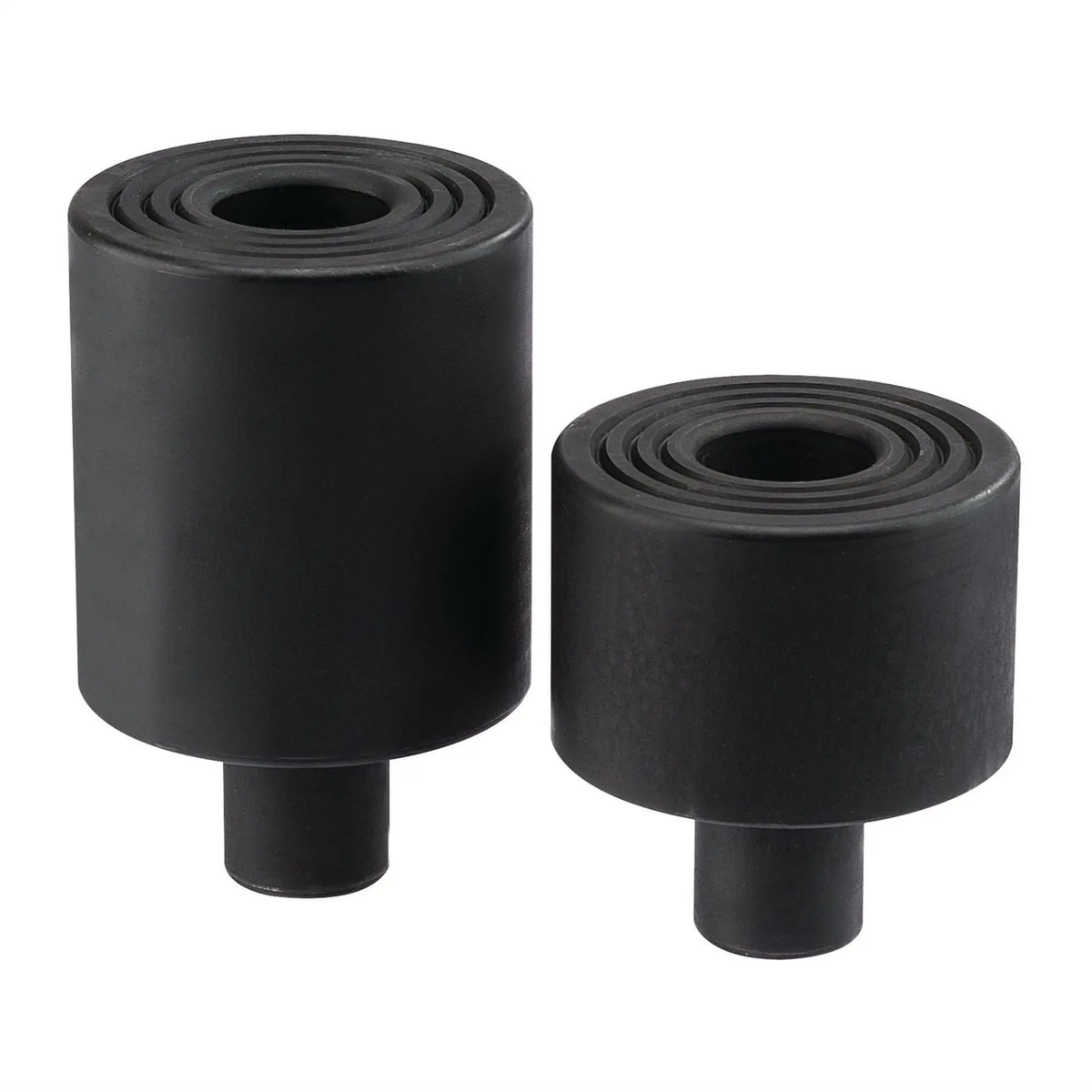

• Supplied with 1/4" BSP inlet and 45mm/75mm extensions
• Manufactured, tested and certified to the current EN1494 standard

Product Contents:

• 1 x Pneumatic Jack, 30 Tonne

Brand: Draper Expert
Stock No: 03724
Part No: PJ30P
Warranty: 12 months

Specification:

• Operating Air Pressure: 9 – 12BAR (130 – 174psi)
• Max Height Stage 2: 409mm (inc extensions)
• Min Height: 150mm
• Nett Weight: 30kg
• Lifting Height Position 1: 73mm
• Chassis Dimensions: 430 x 176 x 150mm
• Handle Length: 1200mm
• Max Height Stage 1: 343mm (inc extensions)
• Saddle Diameter: 70mm
• Wheel Diameter: 165mm
• Wheel Width: 42.5mm
• Air Inlet: 1/4” BSP
• Air Consumption: 10.5cfm
• Lifting Height Position 2: 66mm
• Capacity: 30 Tonne (30,000kg)15 Tonne (15,000kg)

Downloads:

• Product Data Sheet: View Here
• Instruction Manual: View Here
• Declaration of Conformity UK CA: View Here
• Declaration of Conformity CE: View Here
