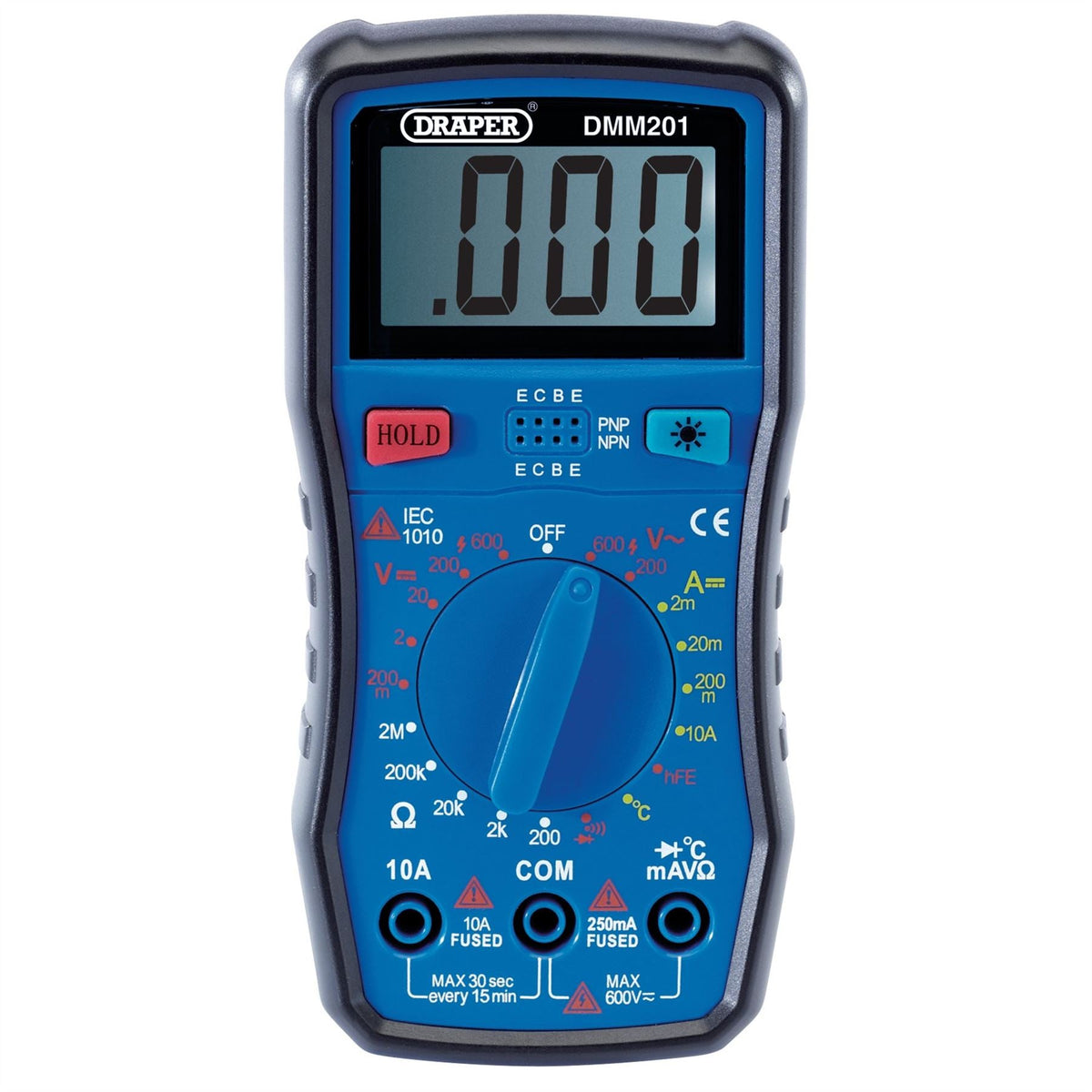

Draper Manual-Ranging Digital Multimeter 1 x Test Leads 1 x Temp Probe 41818

Draper Manual-Ranging Digital Multimeter 1 x Test Leads 1 x Temp Probe 41818

Manual ranging capable of voltage, current, hEF, continuity, resistance, temperature and diode testing. Fitted with a backlit LCD screen, auto power off, continuity buzzer and data hold features. Supplied with test leads and a temp probe.
Features:

• Manual ranging capable of voltage, current, hEF, continuity, resistance, temperature and diode testing
• Fitted with a backlit LCD screen, auto power off, continuity buzzer and data hold features
• Supplied with test leads and a temp probe

Product Contents:

• 1 x Manual-Ranging Digital Multimeter
• 1 x Test Leads
• 1 x Temp Probe

Brand: Draper
Stock No: 41818
Part No: DMM201
Warranty: 12 months

Specification:

• Weight: 233g (approx.)
• Temperature Range: -20°C - 1000°C
• Temperature: -20 to 1000ºC
• TACH: N/A
• Symbol Unit Data Hold: Yes
• Resistance (Ohms): 200Ω/2kΩ/20kΩ/200kΩ/2MΩ
• Frequency: N/A
• Dwell: N/A
• Dimensions: 150mm x 74mm x 43mm
• Diode on/off Test: Yes
• DC Voltage: 200mV/2V/20V/200V/600V
• DC Current: 2mA/20mA/200mA/10A
• DC Amps: 2mA/20mA/200mA/10A
• Capacitance: N/A
• Automatic Power Off: Yes
• AC Voltage: 200V/600V
• AC Current: N/A
• Duty Ratio: Yes
• Battery Type: 1 x PP3 9V (not supplied)

Downloads:

• Product Data Sheet: View Here
• Instruction Manual: View Here
• Declaration of Conformity UK CA: View Here
• Declaration of Conformity CE: View Here
