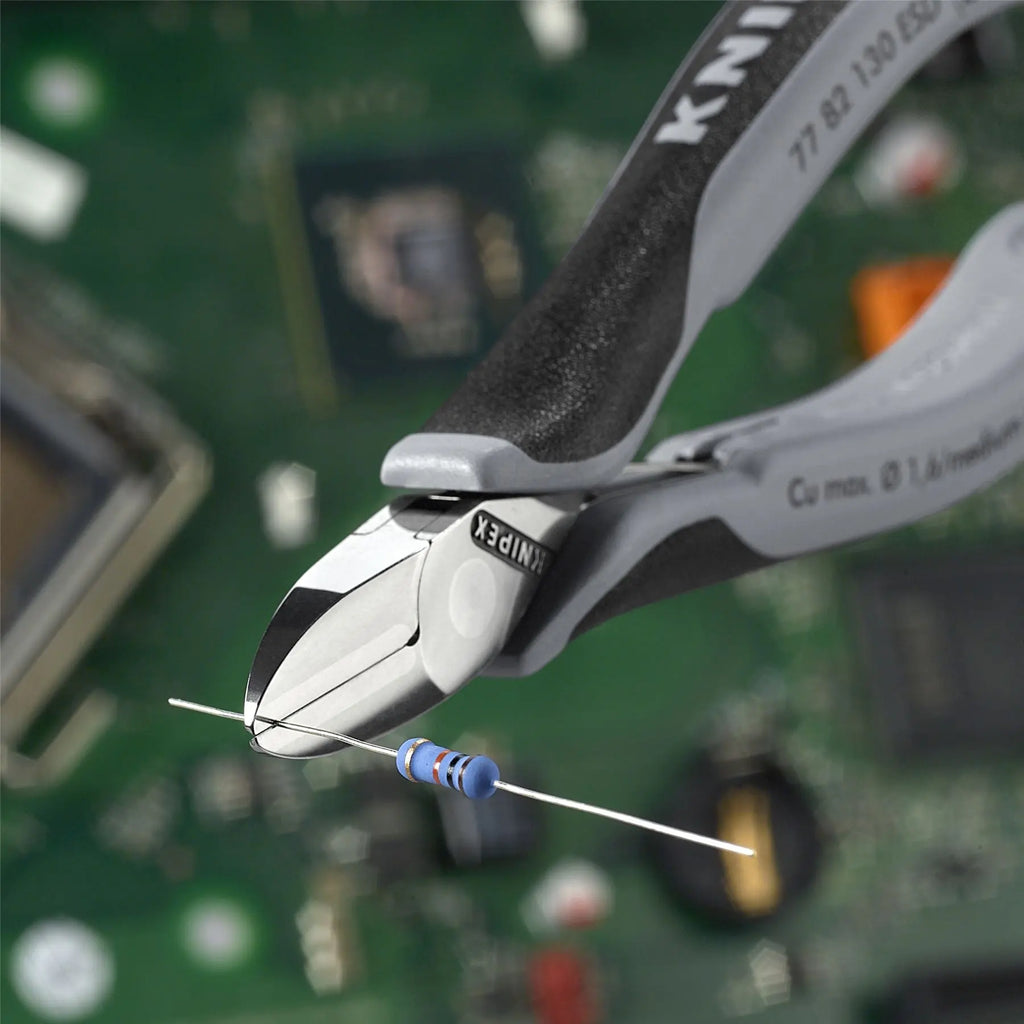

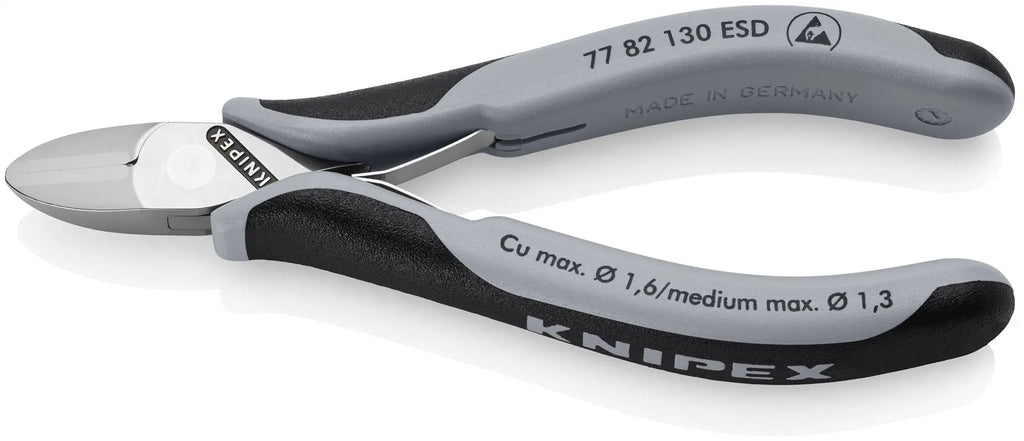

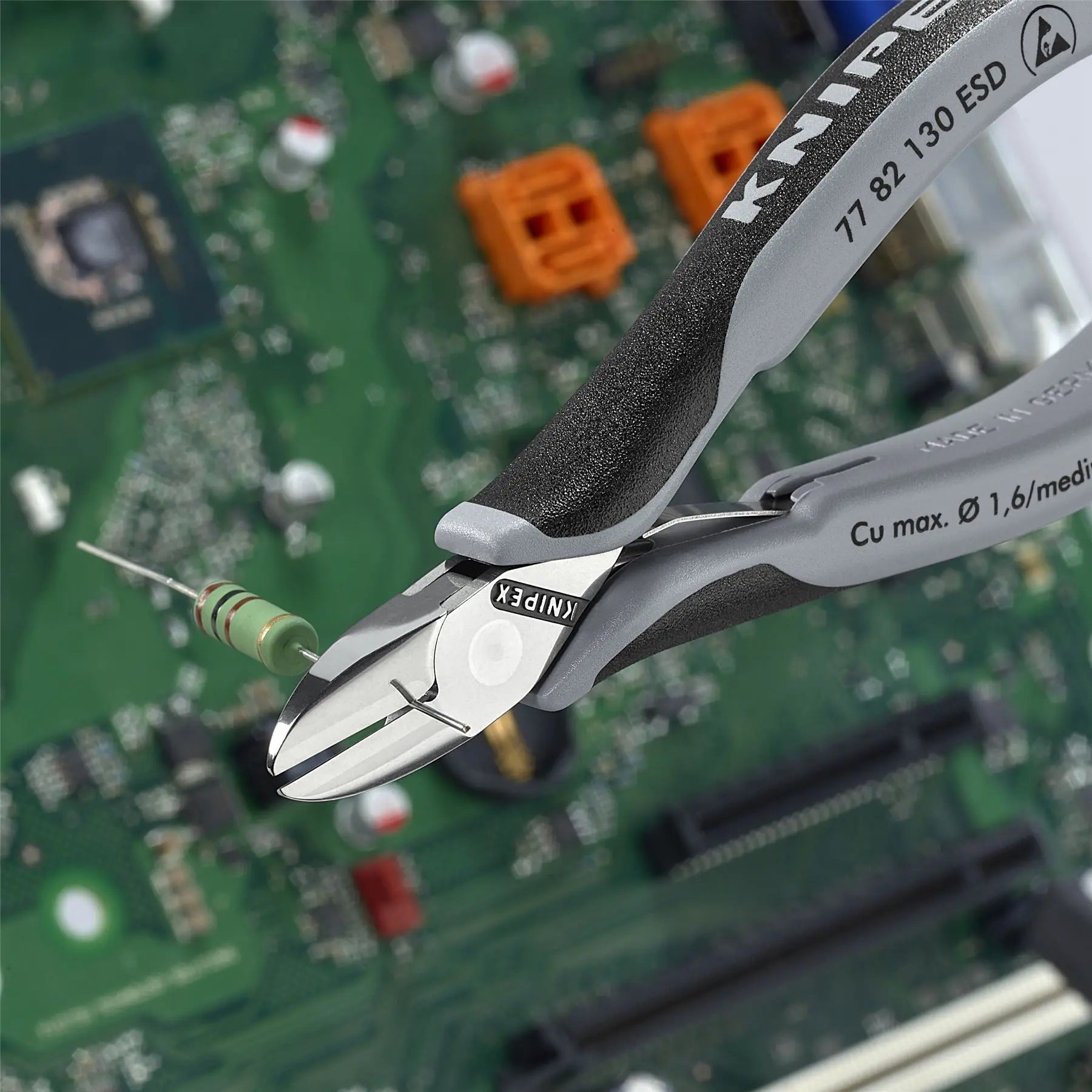

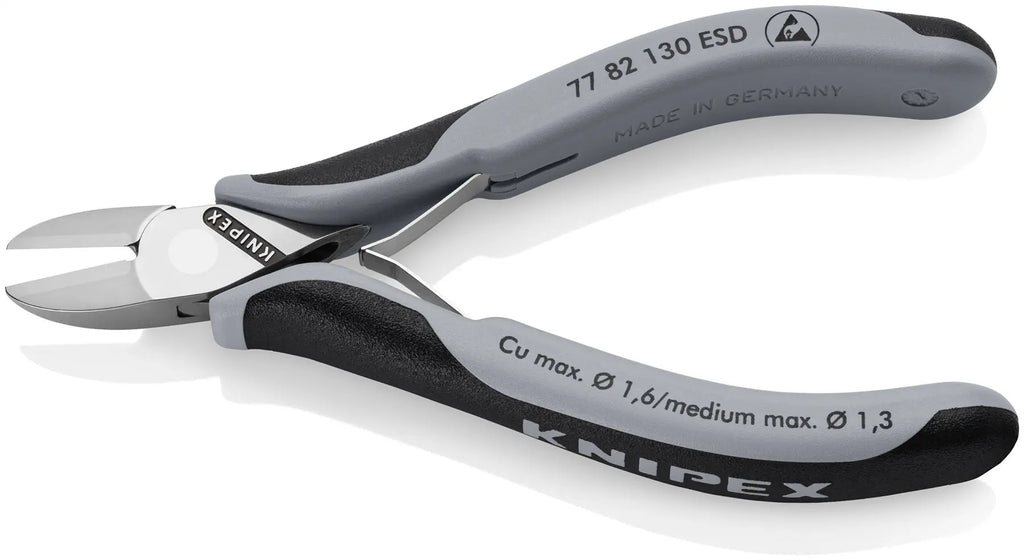

KNIPEX Electronics Diagonal Cutter Pliers 130mm Multi Component Grips 77 82 130 ESD
KNIPEX Electronics Diagonal Cutter Pliers 130mm Multi Component Grips 77 82 130 ESD
KNIPEX Electronics Diagonal Cutter Pliers 130mm Multi Component Grips 77 82 130 ESD
KNIPEX Electronics Diagonal Cutter Pliers 130mm Multi Component Grips 77 82 130 ESD
Roll over image to zoom in Click on image to zoom
KNIPEX Electronics Diagonal Cutter Pliers 130mm Multi Component Grips 77 82 130 ESDKNIPEX Electronics Diagonal Cutter Pliers 130mm Multi Component Grips 77 82 130 ESDKNIPEX Electronics Diagonal Cutter Pliers 130mm Multi Component Grips 77 82 130 ESDKNIPEX Electronics Diagonal Cutter Pliers 130mm Multi Component Grips 77 82 130 ESD

KNIPEX Electronics Diagonal Cutter Pliers 130mm Multi Component Grips 77 82 130 ESD

SKU: 77 82 130 ESD
Price:
€46,95

VAT included

Stock:
In stock

Pickup available at White Rose Tools (Barnsley)

Usually ready in 1 hour

25 Nov. Estimated arrival
22 Nov. Order placed
23-24 Nov. Order dispatches
25 Nov. Delivered!

Description




KNIPEX Electronics Diagonal Cutter Pliers 130mm Multi Component Grips 77 82 130 ESD

77 82 130 ESD Electronics Diagonal Cutters ESD
Durable, load-optimised design with backlash-free box joint. High, slim sleeves for fine and comfortable gripping between thumb and index finger. Less physical effort due to very high transmission ratio. Load-optimised for a more direct feel when working. Low-friction double spring for gentle and even opening. The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools. Cutters additionally laser hardened, cutter hardness at least 62 HRC. round head, without bevel.

  • Cutting capacities medium hard wire (diameter): Ø 1.3 mm
  • Cutting capacities soft wire (diameter): Ø 0.3 – 1.6 mm
  • Jaw length (B): 16.2 mm
  • Jaw thickness (joint) (D): 8.5 mm
  • Head width (A): 13 mm
  • Cutting edge length mm (C): 16.2 mm
  • ESD: yes


    • Technical Information:
    • Cutters additionally laser hardened, cutter hardness at least 62 HRC
    • Load-optimised for a more direct feel when working
    • low-friction double spring for gentle and even opening
    • round head, without bevel
    • The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools
